High-Density Field Signal Acquisition for Distributed Control Systems

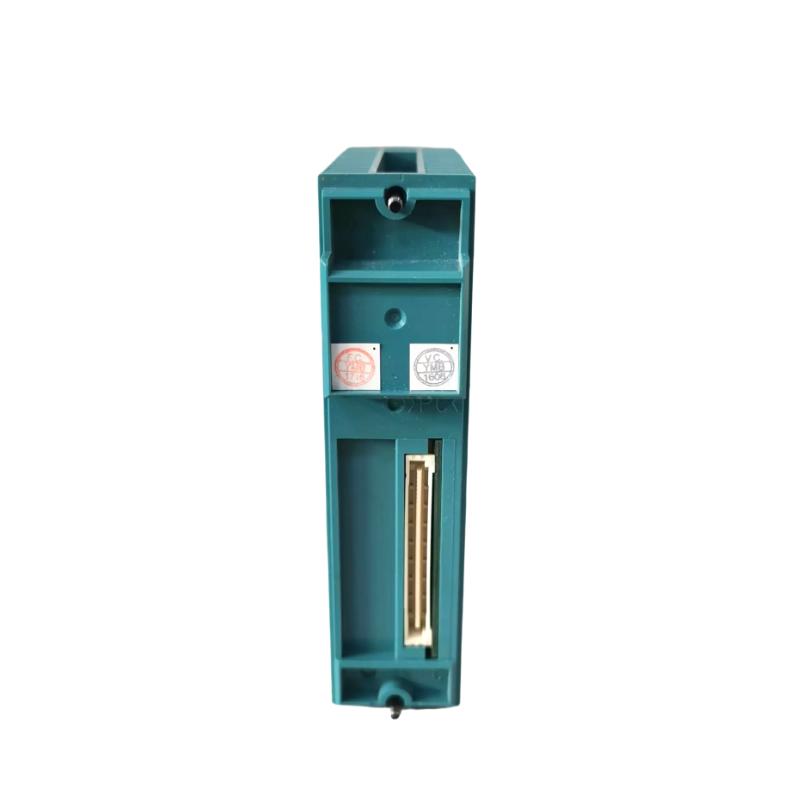

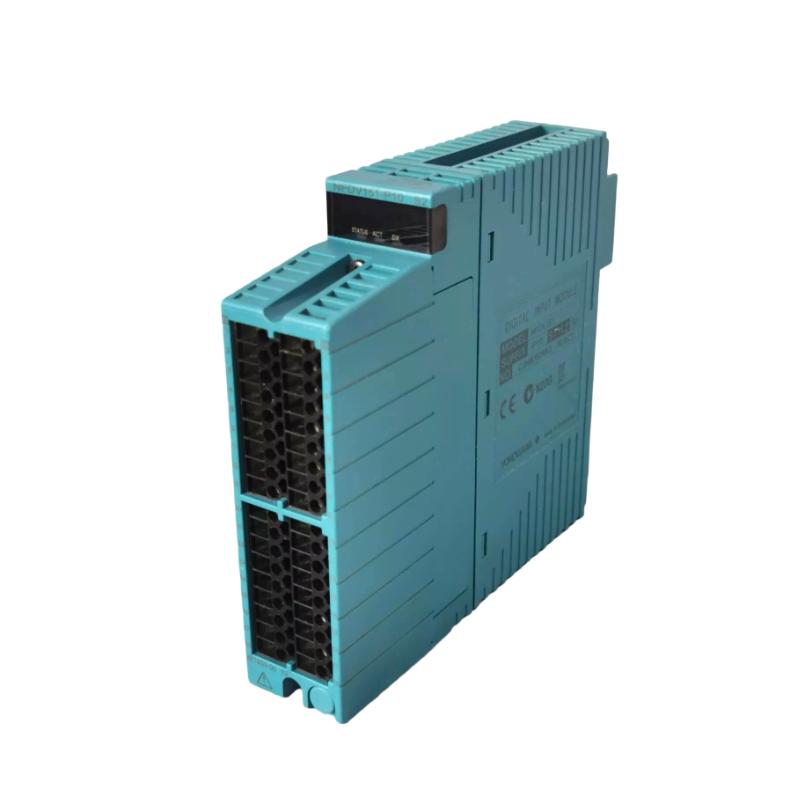

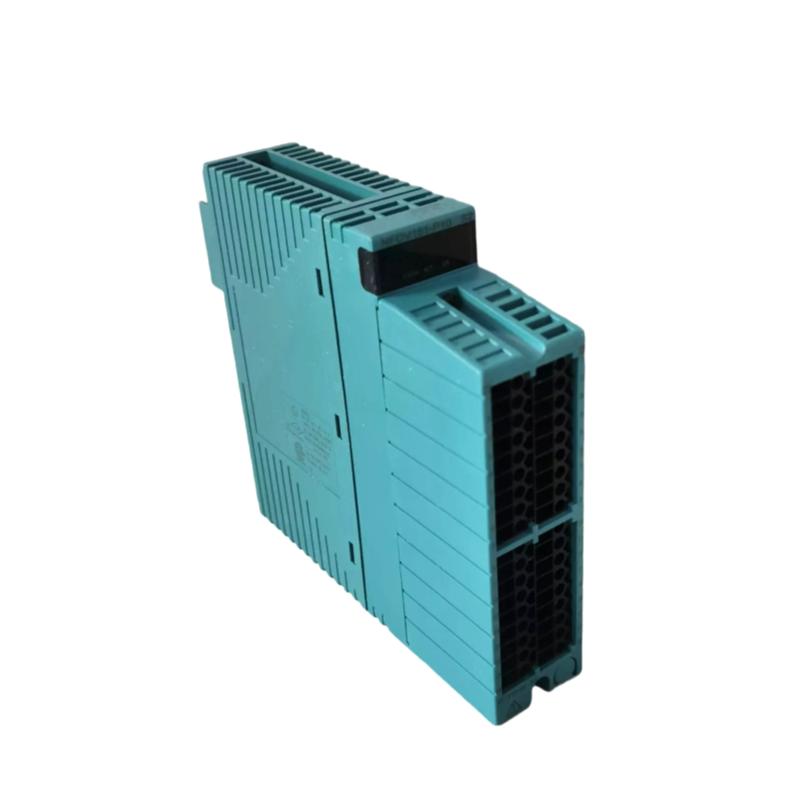

The Yokogawa NFDV151 Digital Input Module is a 32-channel, 24 V DC isolated input module designed for Yokogawa STARDOM FCN series and distributed control architectures. It is engineered to reliably receive ON/OFF signals from field devices such as switches, push buttons, limit sensors, and relay contacts, converting them into stable digital signals for controller processing.
Built with industrial-grade isolation and high-speed response characteristics, the NFDV151 ensures accurate signal detection even in electrically noisy environments, making it a trusted component in mission-critical automation systems.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Digital Input Module |
| Model | NFDV151 |
| System Compatibility | Yokogawa STARDOM FCN / FCJ / FIO systems |
| Input Channels | 32 channels |
| Input Voltage | 24 V DC |
| Input Type | ON/OFF digital (sink/source compatible) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | Approx. 4.1 mA per channel |
| Isolation | Channel-to-system isolation (up to 2000 V AC) |
| Response Time | ≤ 8 ms (status input) |
| Push Button Detection | Supported (edge detection function) |
| Maximum Switching Frequency | Up to 25 Hz (push button mode) |
| Power Consumption | Approx. 500 mA @ 5 V DC |
| External Connection | Pressure clamp terminal / MIL connector |
| Module Weight | Approx. 0.3 kg |
| Operating Temperature | -10°C to +55°C / industrial range |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
Industrial Applications
The NFDV151 is widely used in process and factory automation environments where reliable discrete signal monitoring is required:
-
Oil & gas production and pipeline monitoring systems
-
Petrochemical and chemical processing plants
-
Power generation and turbine control systems
-
Water treatment and utility infrastructure
-
Manufacturing automation and safety interlock systems
Its fast response and high channel density make it ideal for large-scale distributed I/O architectures.
Engineering Advantages
The NFDV151 is designed to deliver stable, noise-resistant digital signal acquisition in harsh industrial environments. Its architecture prioritizes reliability, safety isolation, and flexible integration.
Key advantages include:
-
32-channel high-density input design for compact system integration
-
High electrical isolation (up to 2000 V AC) for system protection
-
Fast response time (≤ 8 ms) for real-time control applications
-
Sink/source compatibility for flexible field wiring
-
Push-button edge detection capability for advanced monitoring functions
-
Industrial-grade durability for continuous operation
These features make it a dependable choice for engineers building robust distributed control systems.
Technical FAQs
1. What is the main function of the NFDV151 module?
It receives 24 V DC digital ON/OFF signals from field devices and sends them to the control system.
2. How many input channels does it have?
It provides 32 isolated digital input channels.
3. What type of signals does it support?
It supports 24 V DC ON/OFF signals (sink/source compatible).
4. What is the response time?
Approximately 8 ms for status input detection.
5. Is the module electrically isolated?
Yes, it provides up to 2000 V AC isolation between input and system.
6. Can it detect push-button actions?
Yes, it supports edge detection and push-button input functions.
7. What systems is it compatible with?
Yokogawa STARDOM FCN, FCJ, and FIO-based systems.
8. What industries use it most?
Oil & gas, chemical, power generation, and manufacturing industries.
9. What is its input voltage range?
18 to 26.4 V DC for ON state detection.
10. Why is it widely used in DCS systems?
Because it provides reliable, high-density, and isolated digital signal acquisition.
