Introduction

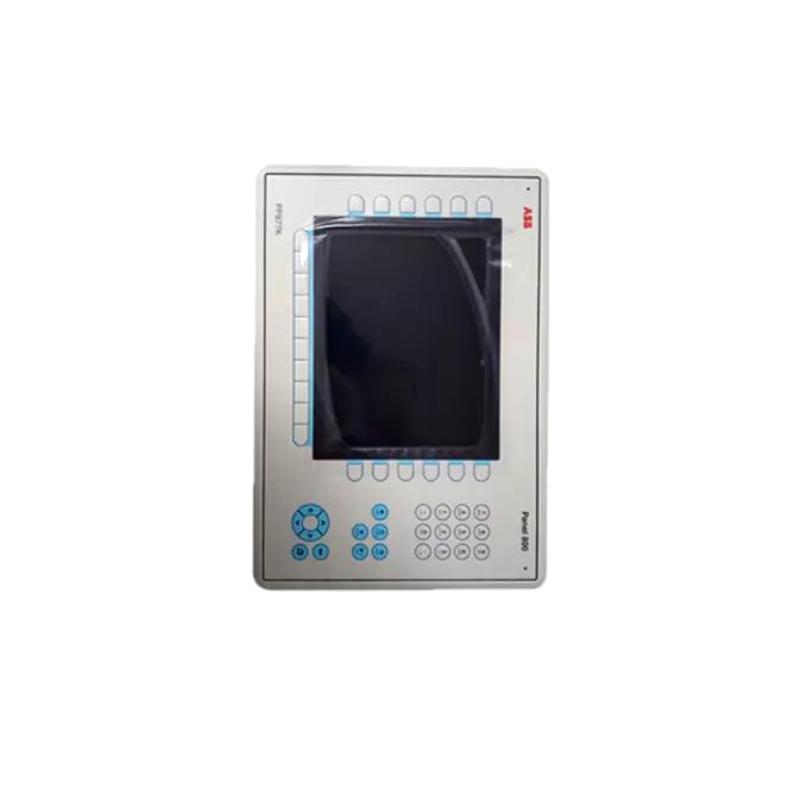

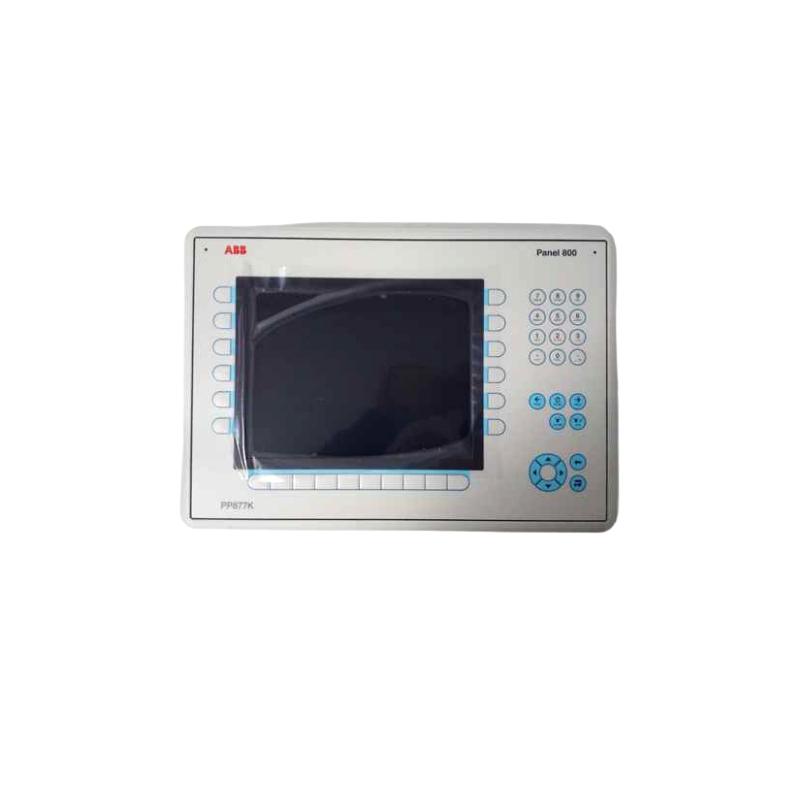

The ABB PP877K (3BSE069274R1) Operator Panel is a robust industrial HMI designed for machine visualization, process control, and operator-level interaction within ABB’s Panel 800 Version 6 platform. It combines a high-resolution TFT display with physical function keys, offering a reliable hybrid interface for fast and precise industrial operation.
It is widely used in ABB automation environments such as PLC and DCS systems, where operators need both graphical process monitoring and direct hardware control in mission-critical applications.
Technical Specifications
| Parameter | Details |
|---|
| Model | PP877K |
| Order Code | 3BSE069274R1 |
| Manufacturer | ABB |
| Product Type | Operator Panel (Key + Display HMI) |
| Series | Panel 800 Version 6 |
| Display Size | 10.4 inch TFT LCD |
| Resolution | 640 × 480 (VGA, 4:3 format) |
| Interface Type | Function keys + display-based control |
| Processor | Embedded industrial ARM-based CPU |
| Communication Ports | Ethernet, RS232, RS485, optional fieldbus |
| Supply Voltage | 24 V DC |
| Power Consumption | Low-power industrial HMI class |
| Front Protection | IP65 (sealed front) |
| Rear Protection | IP20 |
| Mounting Type | Panel-mounted installation |
| Dimensions | Approx. 410 × 286 × 83 mm |
| Weight | ~3.0–3.8 kg |
Applications
The ABB PP877K is commonly deployed in industrial automation systems where operator interaction and real-time monitoring are essential:
-
Power plant auxiliary and control systems
-
Oil & gas process control stations
-
Water and wastewater treatment facilities
-
Manufacturing and assembly line monitoring
-
Packaging and material handling systems
-
PLC and DCS-based industrial automation platforms
Its combination of function keys and display interface makes it especially effective for operators who require both quick commands and detailed system visualization.
Advantages
The PP877K offers a dual-interface design, combining tactile function keys with a graphical display. This allows operators to execute critical actions quickly while maintaining full visibility of system status and alarms.
Its industrial-grade construction with IP65 front protection ensures reliable performance in environments exposed to dust, vibration, or moisture. This makes it suitable for demanding factory and process conditions where equipment durability is essential.
Another key advantage is its tight integration with ABB Panel 800 engineering tools, enabling efficient configuration, standardized application development, and simplified system maintenance. This reduces engineering time and improves long-term operational consistency.
Additionally, its stable communication capability (Ethernet and serial interfaces) ensures smooth integration with PLC and DCS systems, supporting real-time data exchange and centralized control strategies.
Technical FAQs
1. What is the main function of the PP877K?
It serves as an operator interface for monitoring and controlling industrial processes.
2. What size is the display?
It features a 10.4-inch TFT LCD screen.
3. Is it a touch panel or key panel?
It is a hybrid operator panel with function keys and display-based interaction.
4. What resolution does it support?
640 × 480 VGA resolution in 4:3 format.
5. What voltage does it require?
It operates on a 24 V DC industrial power supply.
6. Is it suitable for harsh environments?
Yes, the front panel is IP65 rated for industrial protection.
7. What communication interfaces are available?
It supports Ethernet and serial communication interfaces.
8. What systems is it compatible with?
ABB AC800M, Panel 800 Version 6, and compatible PLC/DCS systems.
9. What industries use this panel?
Energy, manufacturing, water treatment, and process automation industries.
10. What is its key advantage?
Reliable operator control with durable industrial-grade construction and stable HMI performance.
