Product Overview

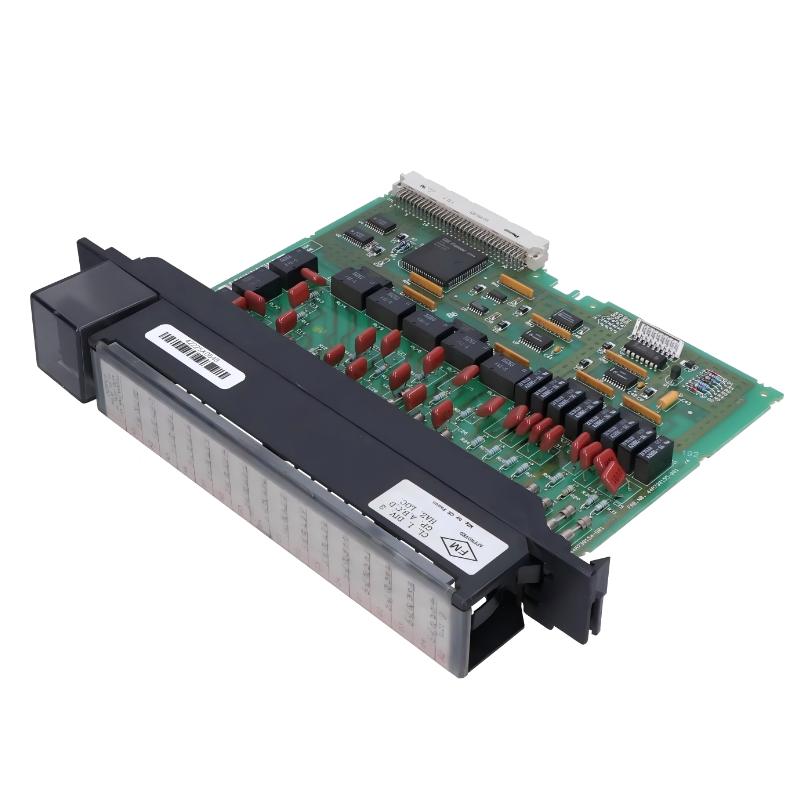

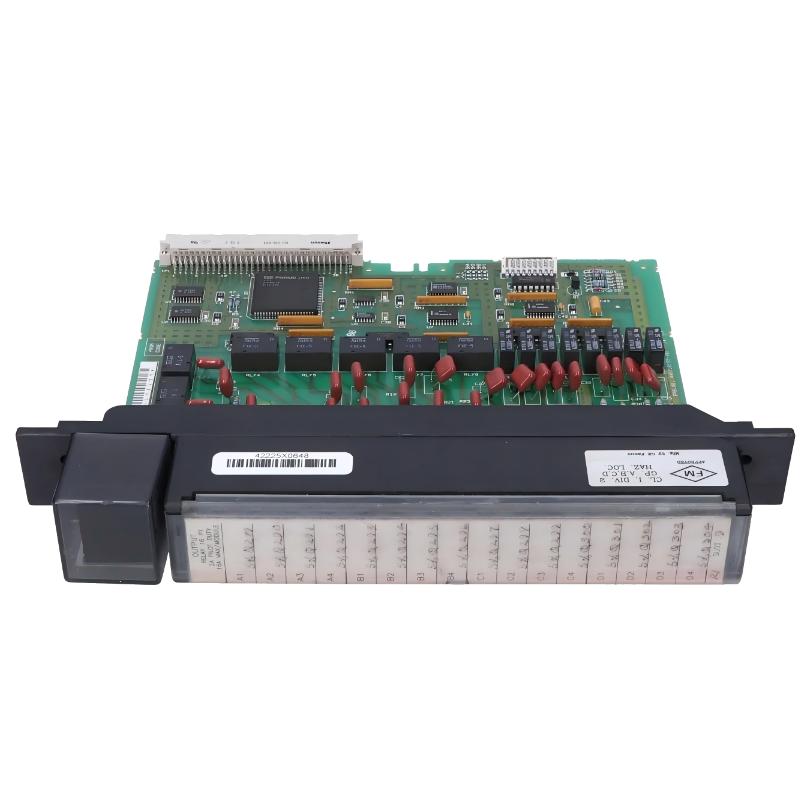

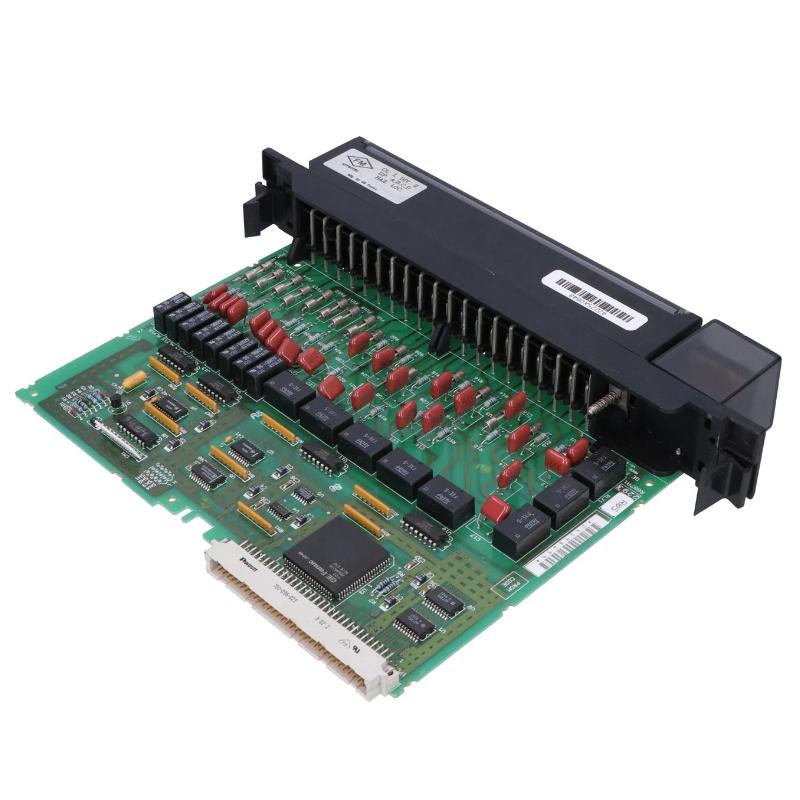

The GE IC697MDL940 Relay Output Module is a robust, general-purpose switching module designed for the Series 90-70 PLC platform. Unlike transistor-based outputs, it uses electromechanical relay contacts, allowing it to directly switch both AC and DC loads with high flexibility. This makes it a dependable choice for applications requiring electrical isolation, mixed-voltage compatibility, and rugged field control performance in industrial automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | IC697MDL940 |
| Series | Series 90-70 |
| Module Type | Relay Output Module |
| Output Points | 16 (8 Form C + 8 Form A) |
| Contact Type | Relay (Form A / Form C) |
| Rated Voltage | 5–125 V DC / 120–240 V AC |
| Operating Range | 5–30 V DC / 5–250 V AC (50/60 Hz) |
| Output Current | 2 A per point (typical) |
| Max Load Current | 16 A per module |
| Grouping | 4 groups (4 channels each) |
| Isolation Voltage | 1500 V |
| Response Time | ≤ 10 ms (ON/OFF) |
| Inrush Current | Up to 5 A |
| Minimum Load | 10 mA |
| Power Consumption | ~480 VA (AC) / 60 W (DC) |
| Dimensions | 216 × 152 × 89 mm |
| Weight | Approx. 0.91 kg |
| Mounting | Rack-based (Series 90-70 backplane) |
