Introduction

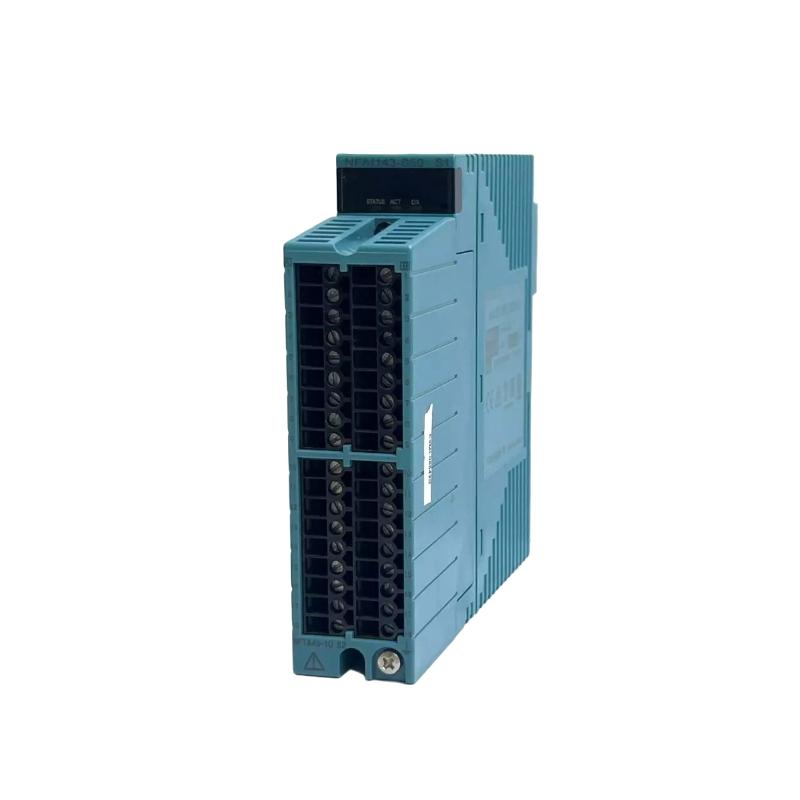

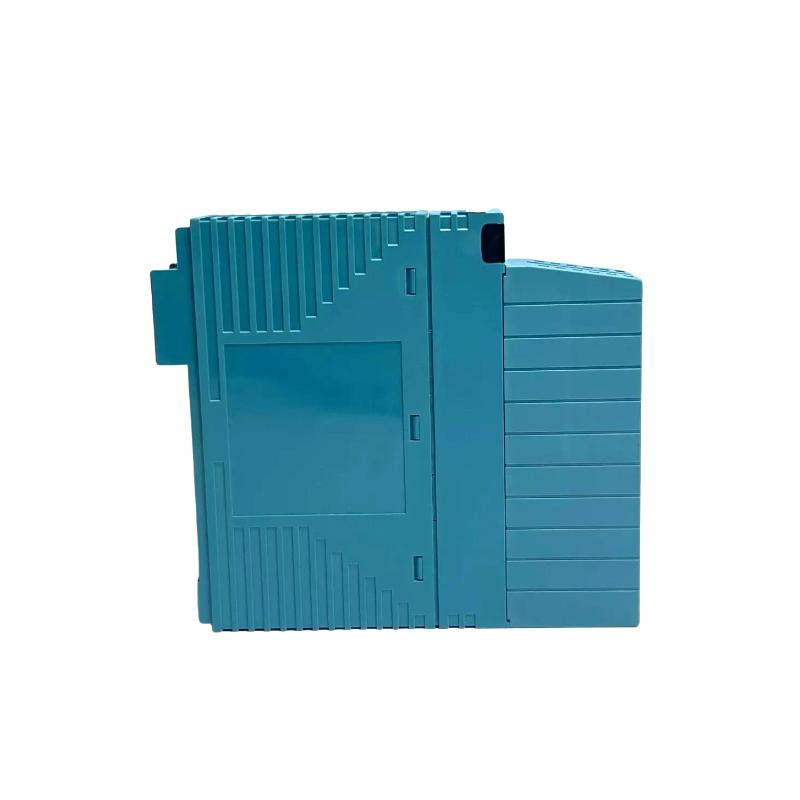

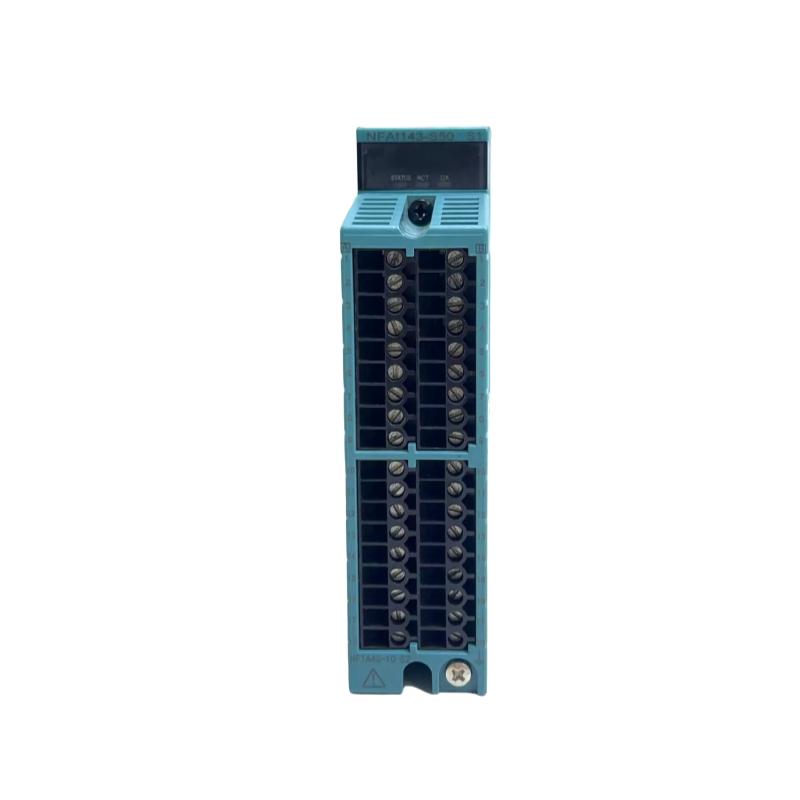

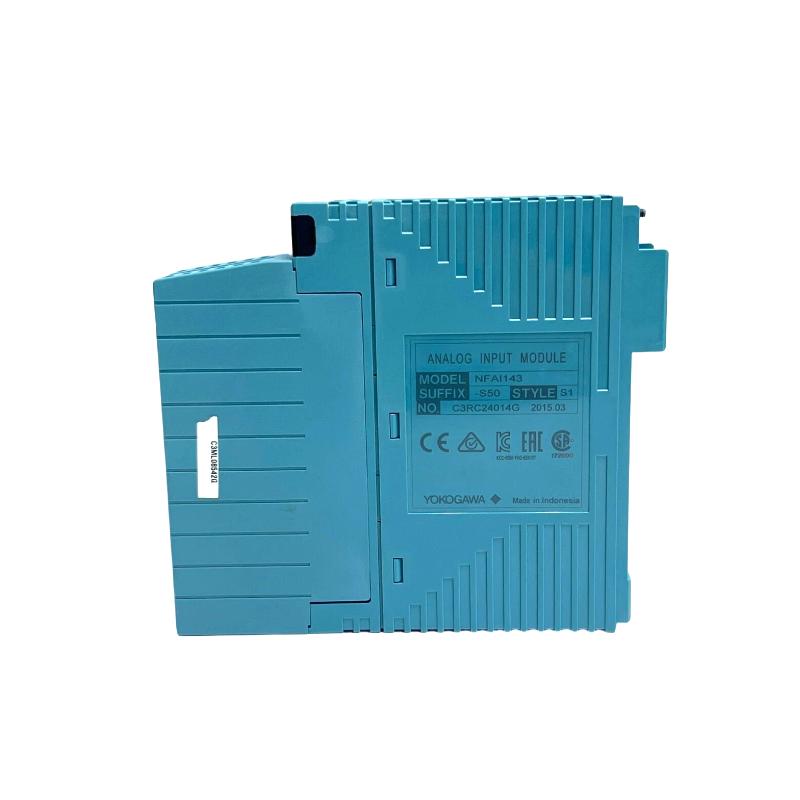

The Yokogawa NFAI143 Analog Input Module is a high-performance, 16-channel industrial I/O module designed for accurate analog signal acquisition in STARDOM FCN/FCJ distributed control systems (DCS). It is engineered to convert field instrumentation signals into reliable digital data, ensuring stable process monitoring and control in critical industrial environments.
Built with a focus on precision, electrical isolation, and long-term stability, the NFAI143 is widely deployed in industries such as oil & gas, chemical processing, and power generation where continuous and accurate measurement is essential for safe and efficient operation.
Its modular architecture allows seamless integration into Yokogawa automation systems, supporting scalable and flexible control configurations.
Technical Specifications
| Parameter | Specification |
|---|
| Model | NFAI143 |
| Manufacturer | Yokogawa |
| Type | Analog Input Module |
| Platform | STARDOM FCN / FCJ |
| Input Channels | 16 channels (isolated, differential depending on variant) |
| Input Signal | 4–20 mA DC (primary), optional voltage ranges in variants |
| Resolution | 16-bit high precision |
| Accuracy | ±0.1% of full scale |
| Data Refresh Cycle | 10 ms |
| Step Response Time | 100 ms |
| Input Current Range | Up to 24 mA allowable |
| Input Resistance | 250 Ω (power ON), ≥500 kΩ (power OFF) |
| Isolation Voltage | Up to 1500 V AC (input to system) |
| Transmitter Supply | 24.0–25.5 V DC |
| Power Consumption | ~230 mA (5V DC), ~540 mA (24V DC) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Weight | ~0.3 kg |
| Communication | Backplane / system bus integration |
Applications
The NFAI143 is designed for high-reliability industrial environments requiring precise analog signal processing.
Typical applications include:
-
Oil & gas production and pipeline monitoring
-
Petrochemical and refinery process control
-
Power plant instrumentation and turbine monitoring
-
Water treatment and environmental systems
-
Factory automation and production systems
-
SCADA and DCS process control architectures
-
Industrial sensor data acquisition systems
-
Equipment performance monitoring and diagnostics
Its strong isolation and stability make it suitable for electrically noisy and harsh industrial conditions.
Advantages
The Yokogawa NFAI143 delivers strong technical and operational benefits:
-
High-density 16-channel architecture reduces system footprint
-
High-precision 16-bit conversion ensures accurate process data
-
Strong electrical isolation (up to 1500 V AC) improves system safety
-
Fast 10 ms refresh cycle supports real-time monitoring
-
Stable long-term measurement performance with low drift characteristics
-
Flexible transmitter support (2-wire / 4-wire configurations)
-
Seamless integration with Yokogawa FCN systems
-
Built-in diagnostics for maintenance efficiency
These features make it a reliable choice for mission-critical automation systems requiring continuous uptime.
Technical FAQs
1. What is the main function of the NFAI143 module?
It converts analog field signals into digital data for control systems.
2. How many input channels does it support?
It supports 16 analog input channels.
3. What type of signals does it accept?
Primarily 4–20 mA current signals, with variants supporting voltage inputs.
4. Is the module isolated?
Yes, most versions feature channel and system isolation.
5. What is the accuracy level?
Approximately ±0.1% of full scale.
6. What is the response time?
About 100 ms step response time.
7. What is the data refresh cycle?
Around 10 ms.
8. What is the operating temperature range?
-20°C to +70°C.
9. What is the weight of the module?
Approximately 0.3 kg.
10. What systems is it used with?
Yokogawa STARDOM FCN/FCJ distributed control systems.
