Product Perspective

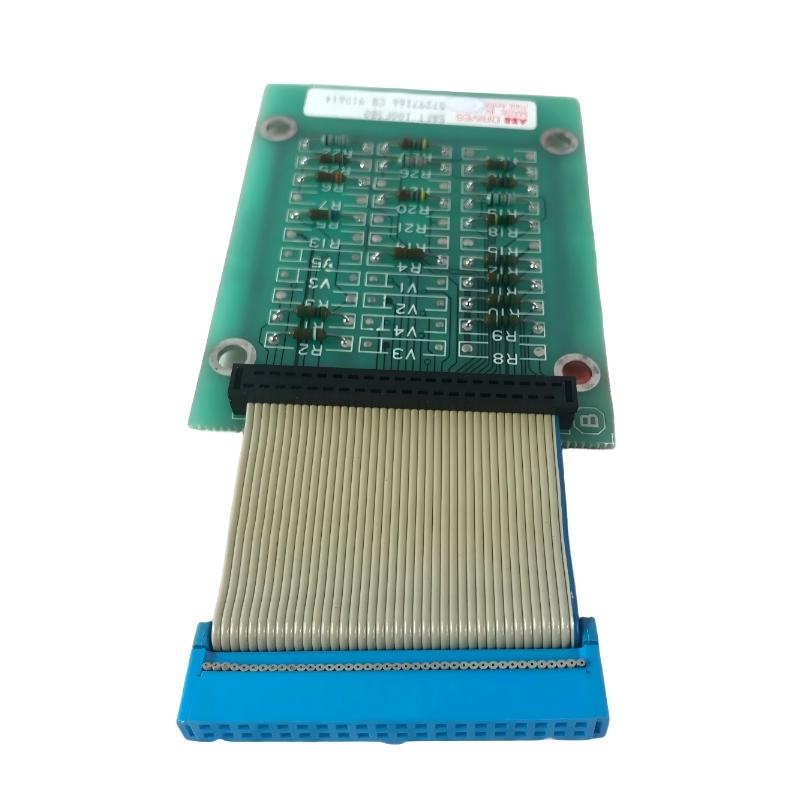

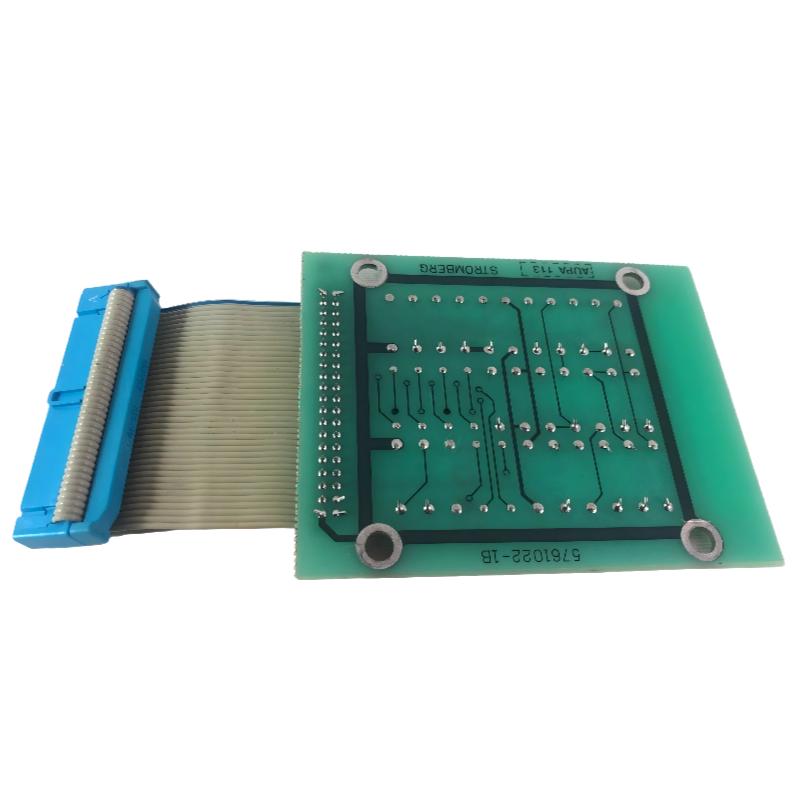

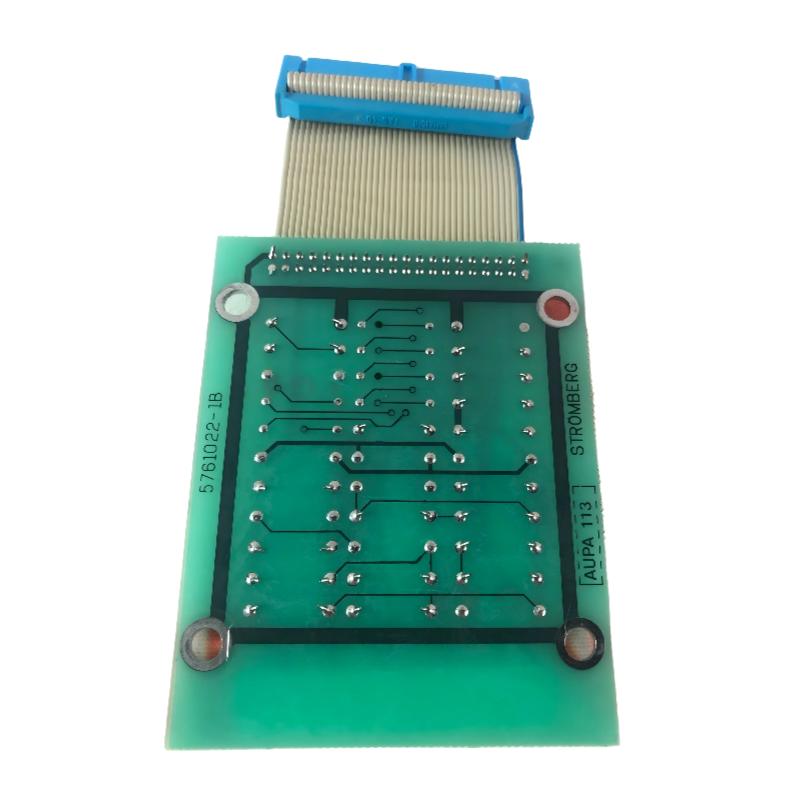

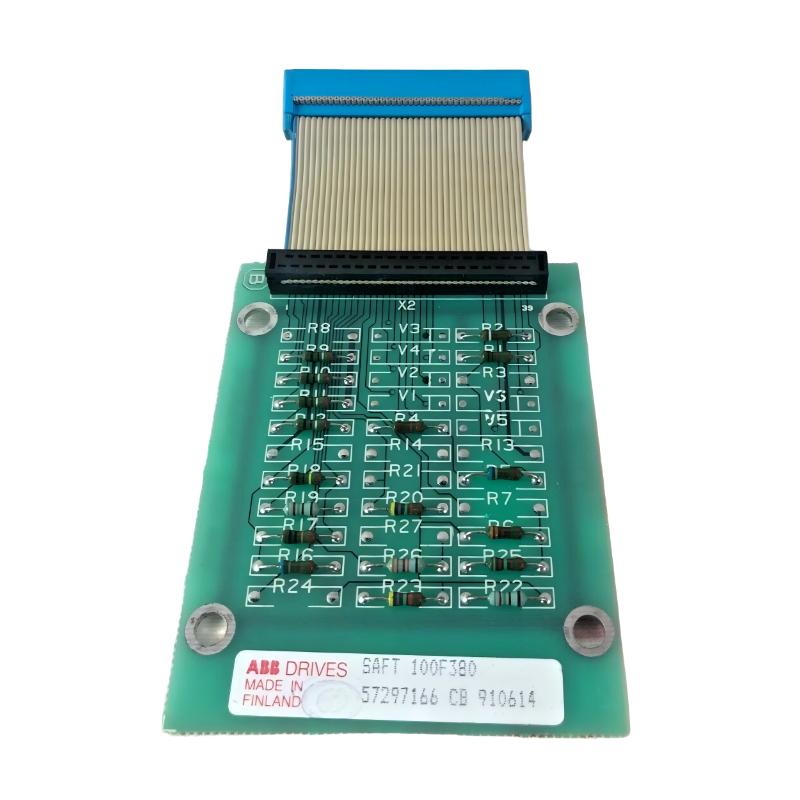

The ABB SAFT 100F380 57297166 PCB Matching Card is a precision-engineered interface module designed to ensure seamless signal compatibility and electrical matching within ABB drive systems. Acting as a bridge between control logic and power electronics, it aligns signal levels and transmission characteristics to maintain system stability and performance.
This board is commonly found in ABB legacy drive platforms, where accurate signal coordination is essential for reliable operation of inverter and motor control systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | SAFT 100F380 |
| Order Code | 57297166 |
| Module Type | PCB Matching Card |
| Function | Signal matching & interface conditioning |
| System Compatibility | ABB drive / inverter systems |
| Board Category | Industrial interface PCB |
| Installation Type | Plug-in module |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L×W×H) | Approx. 160 × 160 × 120 mm |
| Weight | Approx. 0.8 kg |
Application Scenarios
This PCB matching card is widely deployed in industrial environments requiring precise signal alignment and stable communication between subsystems:
-
ABB variable frequency drives (ACS series legacy platforms)
-
Industrial motor control systems
-
Power conversion and inverter cabinets
-
Automation control panels
-
Maintenance and retrofit of ABB drive systems
It ensures consistent signal transmission between interconnected modules, improving system coordination and operational reliability.
Key Advantages
The SAFT 100F380 PCB Matching Card delivers high signal integrity, ensuring that communication between control and power sections remains accurate and interference-free. This reduces the risk of signal distortion, timing errors, and system instability.
Its industrial-grade construction supports long-term operation under electrical noise, vibration, and temperature fluctuations. The modular plug-in design allows for efficient installation and replacement, reducing maintenance time and operational downtime.
Additionally, it enhances overall system performance by maintaining proper electrical matching across components, which is critical in high-precision drive applications.
Technical FAQs
1. What is the main function of SAFT 100F380?
It ensures signal matching and stable communication between system modules.
2. Where is it typically used?
In ABB drive systems and industrial automation platforms.
3. Is it a control or power module?
It is an interface PCB, not a direct power or control unit.
4. What happens if it fails?
Signal mismatch or communication errors may affect system performance.
5. Is it suitable for modern ABB systems?
It is mainly used in legacy ABB drive architectures.
6. Does it require configuration?
No, it operates at hardware interface level.
7. Can it operate continuously?
Yes, it is designed for continuous industrial operation.
8. Is it replaceable individually?
Yes, it is a modular plug-in board.
9. What is its weight?
Approximately 0.8 kg.
10. What is its key benefit?
Stable signal matching for improved system reliability.
