Brand:ABB PLC Item No.:SAFT 160F380 57297077 Product Origin:Sweden (SE) Product Dimensions:160 × 160 × 40 mm Product Weight:0.5kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO Evaluation:

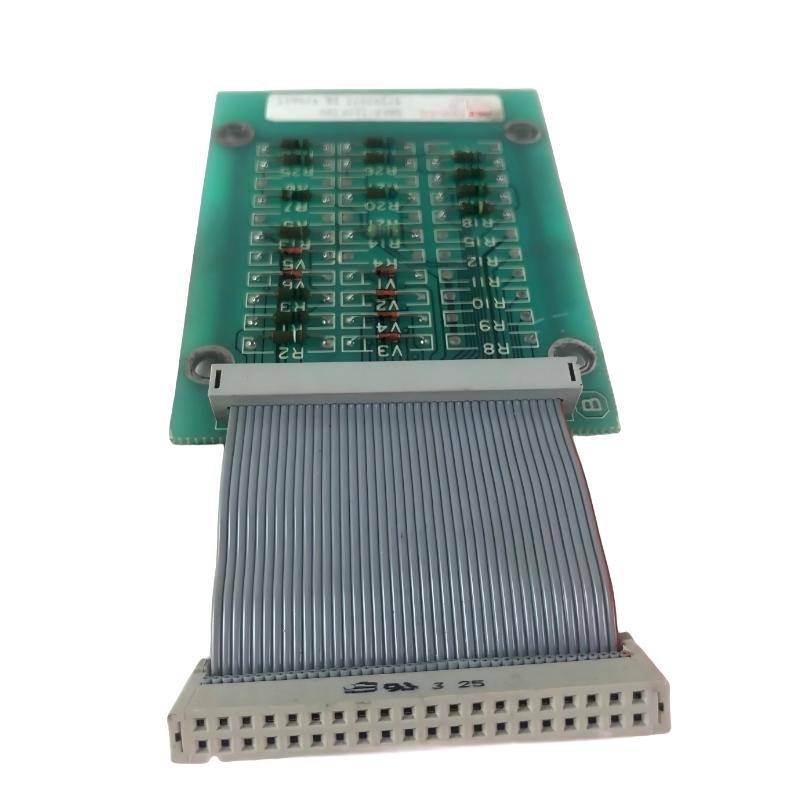

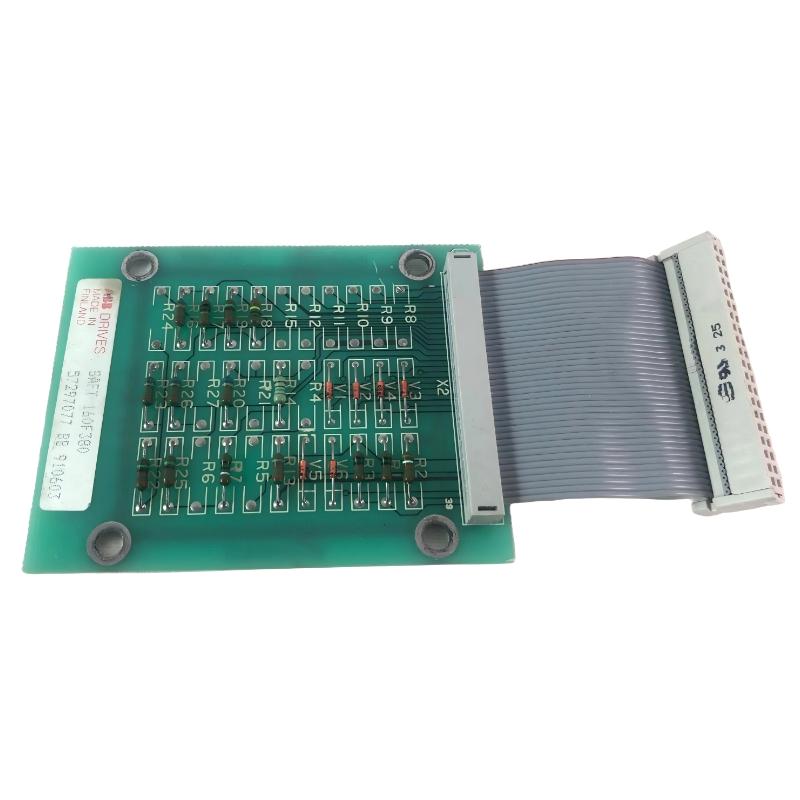

The ABB SAFT 160F380 57297077 PCB Matching Card is a specialized interface and signal conditioning module used in ABB drive and automation systems. It is designed to ensure proper electrical matching, signal alignment, and communication stability between control circuits and power electronic modules.
Commonly deployed in legacy ABB drive platforms, this PCB plays an essential role in maintaining signal integrity and system synchronization within complex industrial control architectures. Its robust design supports stable operation in environments where precision and reliability are critical.
Technical Specifications
Parameter
Specification
Manufacturer
ABB
Model Number
SAFT 160F380
Part Number
57297077
Module Type
PCB Matching Card
Function
Signal matching / interface conditioning
System Compatibility
ABB Drive / Control Systems
Board Type
Industrial PCB module
Operating Temperature
-25°C to +70°C
Storage Temperature
-40°C to +85°C
Installation Type
Plug-in / backplane mounted
Application Scenarios
This PCB matching card is widely used in industrial systems where precise signal adaptation is required:
ABB variable speed drive systems (legacy platforms)
Industrial motor control cabinets
Power conversion and inverter systems
Automation control panels
Heavy industry machinery control systems
It ensures stable communication between control logic and power modules, reducing signal distortion and improving system reliability.
Key Advantages
The SAFT 160F380 matching card provides reliable signal alignment between different control stages, improving overall system stability and reducing communication errors in drive systems.
Its compact PCB design allows easy integration into ABB control racks, making it suitable for both maintenance replacement and system refurbishment projects. The board is engineered for durability, ensuring consistent performance under electrical noise, vibration, and thermal stress.
Additionally, it enhances system uptime by maintaining accurate signal transmission between interconnected drive components.
Technical FAQs
1. What is the main function of this PCB card?
It matches and conditions signals between ABB control and power circuits.
2. Which systems use it?
It is used in ABB drive and industrial control systems.
3. Is it a power module?
No, it is a signal interface / matching PCB.
4. Can it be used in modern ABB drives?
It is mainly used in legacy or specific ABB drive architectures.
5. What happens if it fails?
Signal instability or communication errors in the drive system may occur.
6. Is it replaceable individually?
Yes, it is a modular plug-in PCB component.
7. Does it require programming?
No programming is required; it operates at hardware interface level.
8. What environment is it suitable for?
Industrial environments with electrical noise and vibration.
9. What is its typical weight?
Approximately 0.4–0.8 kg. (turn0search1)
10. What is its key benefit?
Stable signal matching and improved system communication reliability.
