Industrial Overview

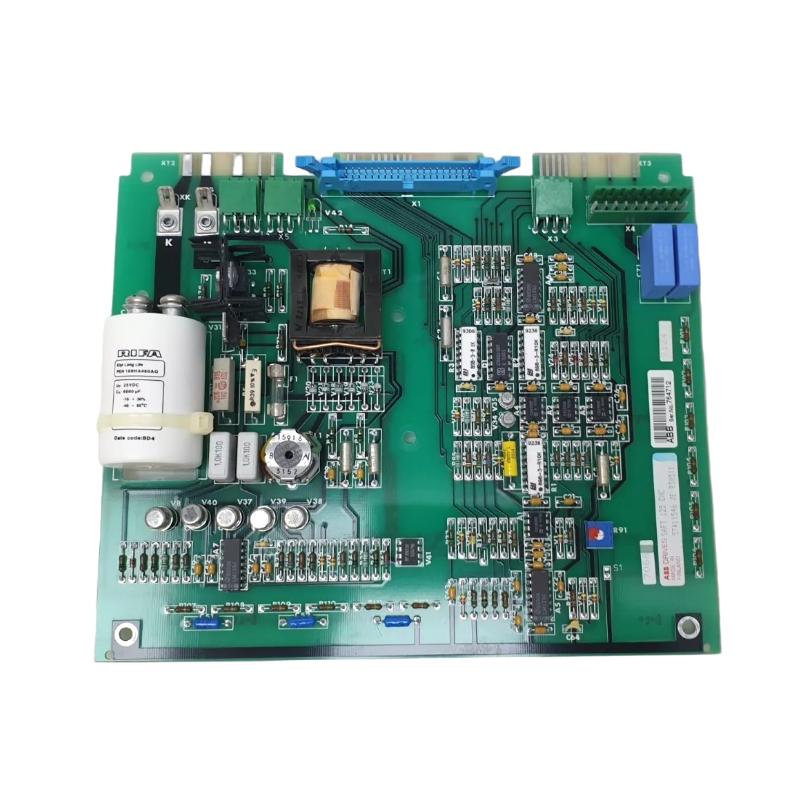

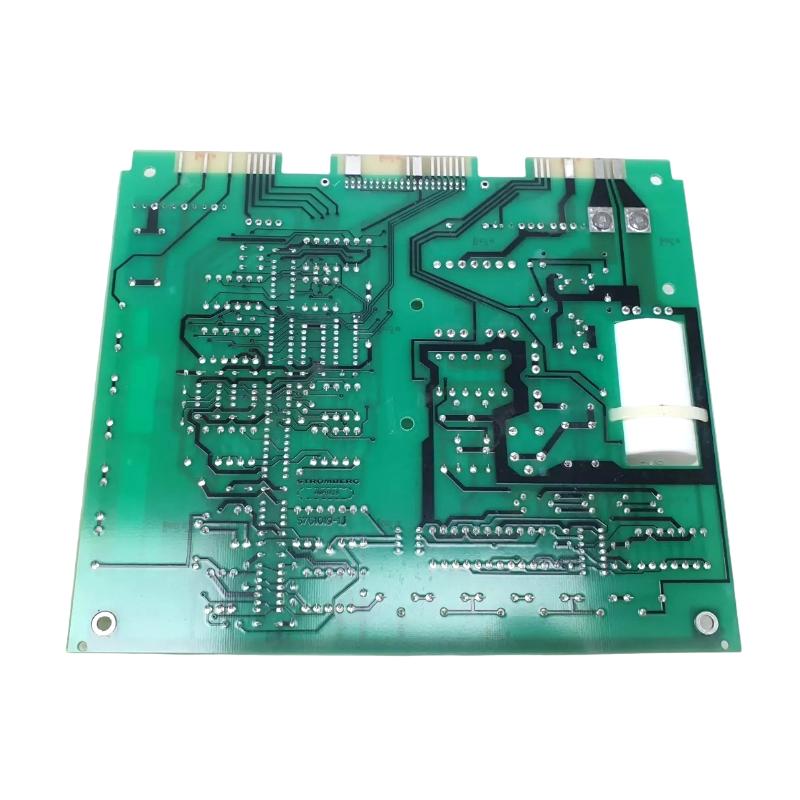

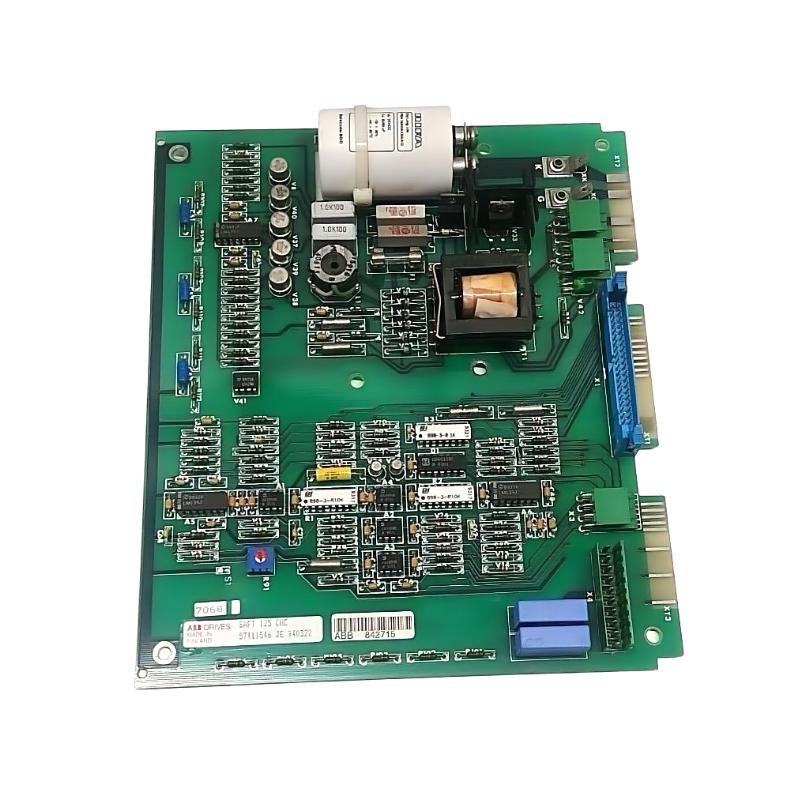

The ABB SAFT 125 CHC (part number 57411546) is a high-performance chopper control board designed for ABB drive and inverter systems. It plays a critical role in DC link energy management, braking control, and power regulation within variable speed drive architectures. By controlling the chopper circuit operation, this module helps maintain stable DC bus voltage and protects power electronic systems from overvoltage conditions.
Engineered for demanding industrial drive applications, it is widely used in legacy ABB variable frequency drives (VFDs) and power conversion systems where precise braking and energy dissipation control are essential.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | SAFT 125 CHC |

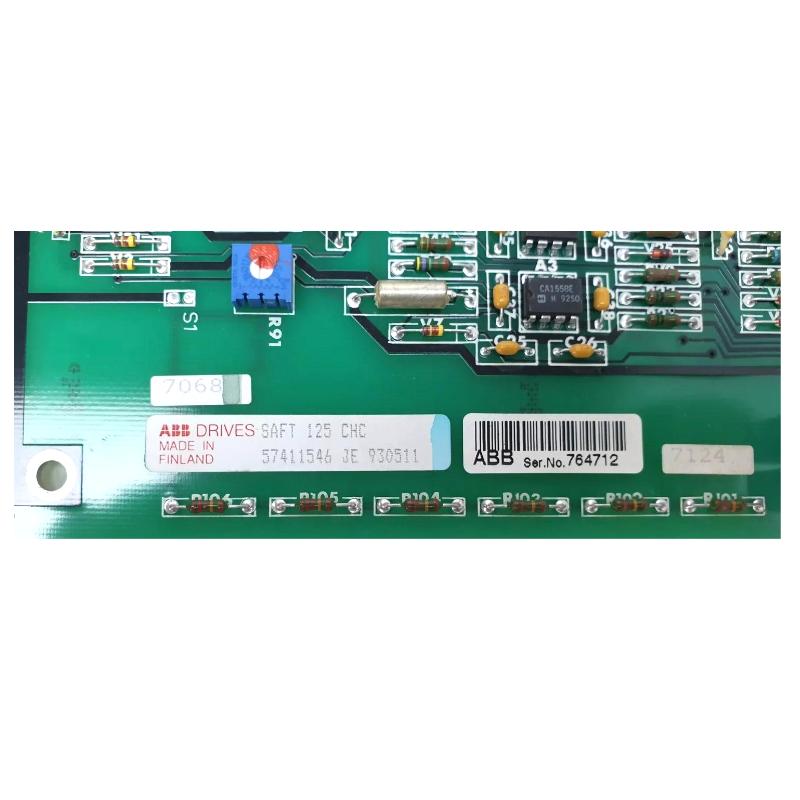

| Order / Part Number | 57411546 |
| Module Type | Chopper Control Board |
| Function | DC link braking / voltage regulation |
| System Type | ABB Drive / Inverter Systems |
| Input Interface | DC bus monitoring & control signals |
| Output Function | Chopper switching control |
| Operating Temperature | -25°C to +70°C |
| Installation Type | Plug-in control board |
| Dimensions (typical) | ~200 × 160 × 50 mm (variant dependent) |
| Weight | ~0.4–0.8 kg (system dependent) |
| Origin | Finland / Switzerland (production varies) |
Application Environments
This chopper control board is typically used in industrial systems requiring controlled braking and stable DC bus operation:
-
ABB variable frequency drives (legacy and industrial series)
-
Motor braking systems in heavy machinery
-
Conveyor and hoist control systems
-
Cranes, elevators, and lifting equipment
-
Industrial automation with high inertia loads
Its main purpose is to manage excess energy generated during motor deceleration, ensuring safe dissipation through braking resistors and maintaining DC bus stability.
Key Advantages
The SAFT 125 CHC offers reliable and fast-response braking control, which is essential in systems with frequent start-stop cycles or high-load inertia. Its precise switching capability helps reduce voltage spikes and protects downstream power electronics.
Designed for industrial durability, it maintains stable performance even under continuous thermal and electrical stress. The modular board design allows straightforward replacement in compatible ABB drive systems, minimizing downtime during maintenance.
Additionally, it contributes to improved system safety by preventing DC link overvoltage conditions, enhancing the overall lifespan of the drive system.
Technical FAQs
1. What is the main function of SAFT 125 CHC?
It controls the braking chopper circuit in ABB drive systems.
2. Where is it used?
In ABB VFDs, motor drive systems, and industrial braking applications.
3. What does a chopper control board do?
It regulates excess DC voltage by controlling energy dissipation into braking resistors.
4. Is it suitable for modern ABB drives?
It is mainly used in legacy or specific ABB drive architectures.
5. What happens if it fails?
The drive may lose braking control and trigger DC overvoltage protection.
6. Can it operate continuously?
Yes, it is designed for continuous industrial duty cycles.
7. Is it a power or control module?
It is a control board managing power switching functions.
8. Does it require calibration?
No, it operates based on system-level configuration.
9. What environments is it suitable for?
Industrial environments with vibration, heat, and electrical noise.
10. Is it replaceable individually?
Yes, it is a modular replaceable drive component.
