Industrial Overview

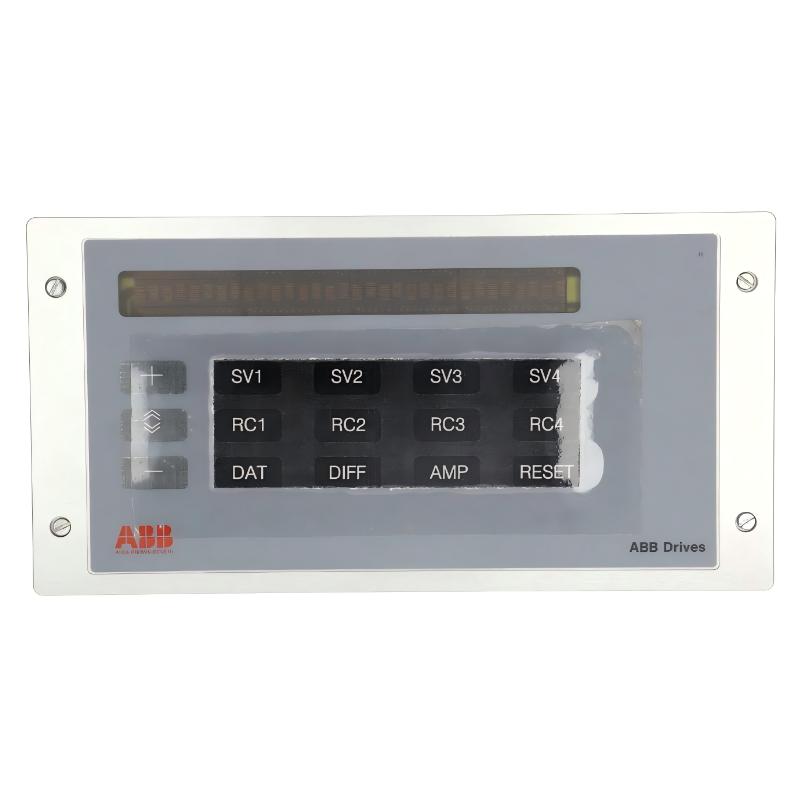

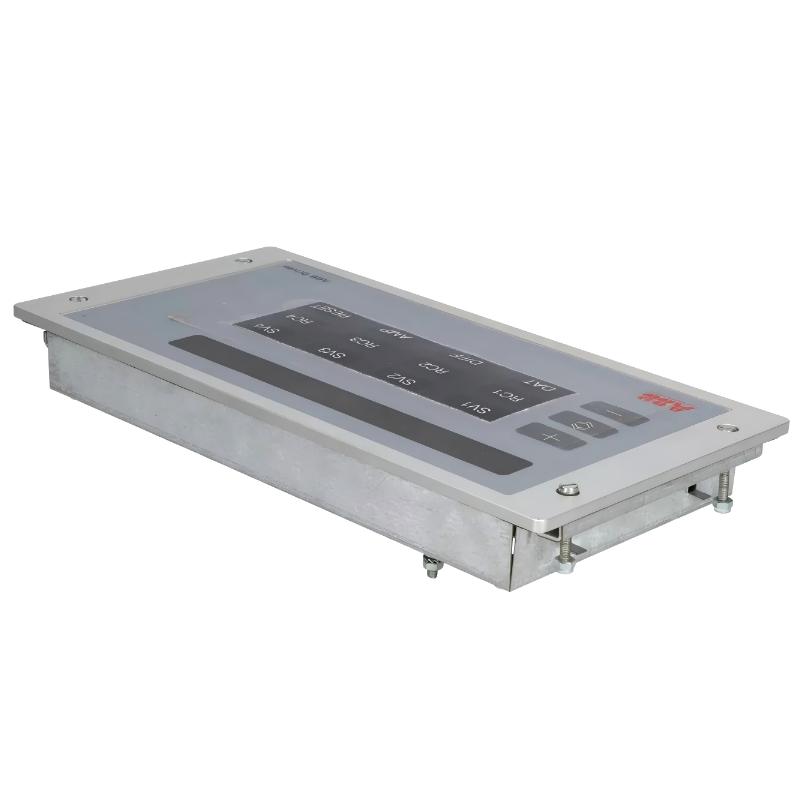

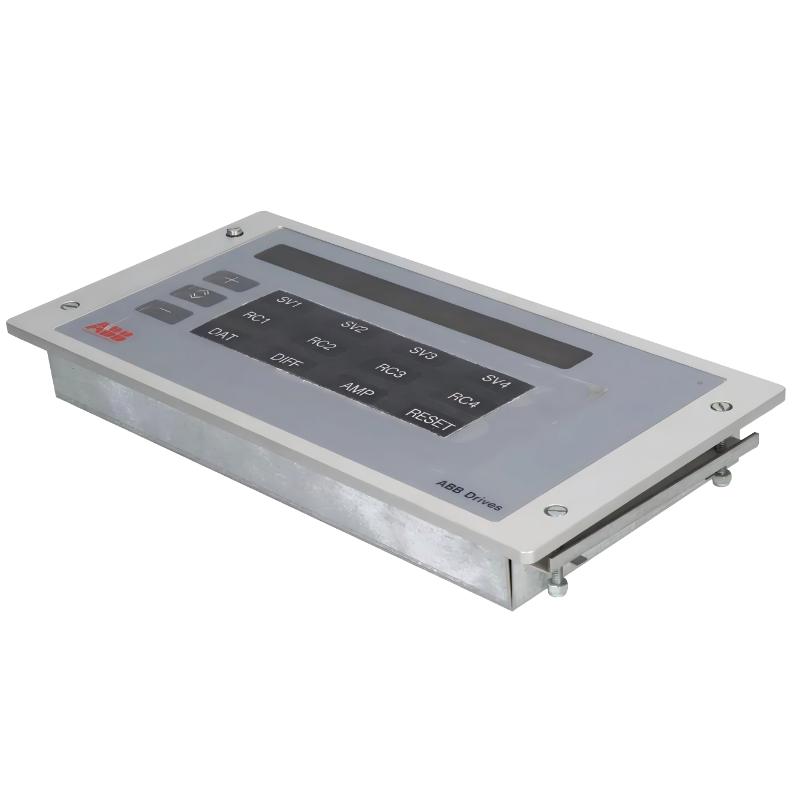

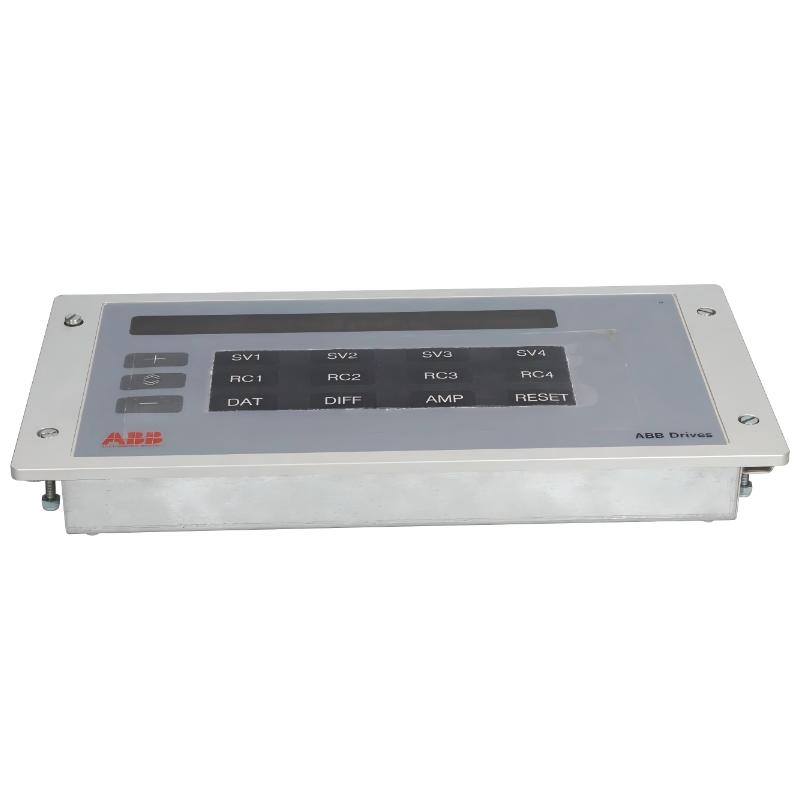

The ABB SAFP 25 PAN T (also referenced as SAFP25PANT, order number 36566442) is an industrial operator panel designed to provide intuitive local control and system interaction within ABB automation and protection environments. It is typically used as a human–machine interface (HMI) accessory, allowing operators to monitor system status, acknowledge alarms, and perform essential control actions in real time.
Built for industrial reliability, this panel focuses on clarity, simplicity, and dependable operation in environments where quick decision-making and system visibility are critical.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model | SAFP 25 PAN T / SAFP25PANT |
| Order Number | 36566442 |
| Module Type | Operator Panel / HMI Unit |
| Function | Local control & system monitoring |
| Operating Voltage | 24 V DC |
| Interface Type | System-specific communication interface |
| Protection Level | Industrial standard enclosure |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions (H×W×D) | 280 × 220 × 95 mm |
| Weight | Approx. 0.91 kg |
Application Scenarios
The SAFP 25 PAN T operator panel is commonly used in systems where local human interaction with automation equipment is required:
-
Industrial control cabinets and automation systems
-
Power distribution and protection panels
-
Facility monitoring and alarm systems
-
Process control environments
-
Retrofit upgrades for legacy ABB systems
It is especially valuable in installations where operators need quick access to system status without relying solely on remote SCADA systems.
Key Advantages
This operator panel is designed with a strong focus on usability and operational clarity. Its interface enables fast access to key system functions, reducing response time during operational events.
The compact form factor allows easy integration into existing control panels, making it suitable for both new installations and modernization projects. Its industrial-grade construction ensures stable performance even in environments with electrical noise, vibration, and temperature variation.
In addition, the panel improves operational transparency by providing direct system feedback at the local level, helping reduce downtime and improving maintenance efficiency.
Technical FAQs
1. What is the main function of the SAFP 25 PAN T panel?
It provides local operator control and system monitoring functions.
2. Is it a touchscreen HMI?
It is typically a dedicated operator interface panel (not a modern full touchscreen HMI in most configurations).
3. What systems is it used with?
It is used in ABB automation and control systems.
4. What is the operating voltage?
It typically operates on 24 V DC systems.
5. Can it be used in industrial environments?
Yes, it is designed for industrial-grade conditions.
6. What is its weight?
Approximately 0.91 kg.
7. Is it suitable for retrofit projects?
Yes, it is commonly used in system upgrades and replacements.
8. What temperature range does it support?
Typically -10°C to +55°C operating range.
9. Does it connect to SCADA systems?
It supports system-level integration depending on configuration.
10. What is its main advantage?
Fast local control and improved operator visibility.
