Industrial Overview

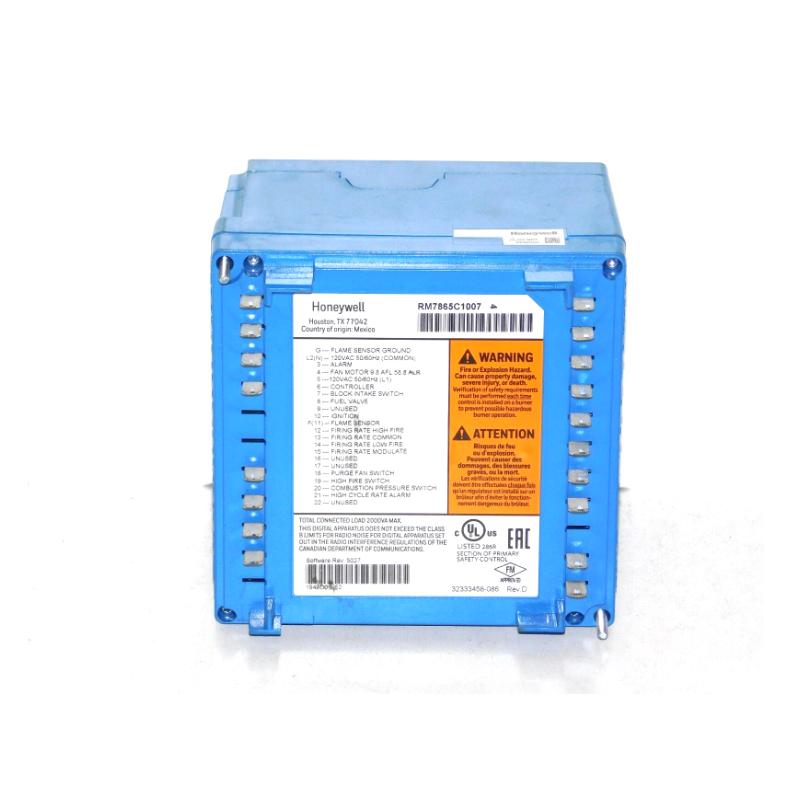

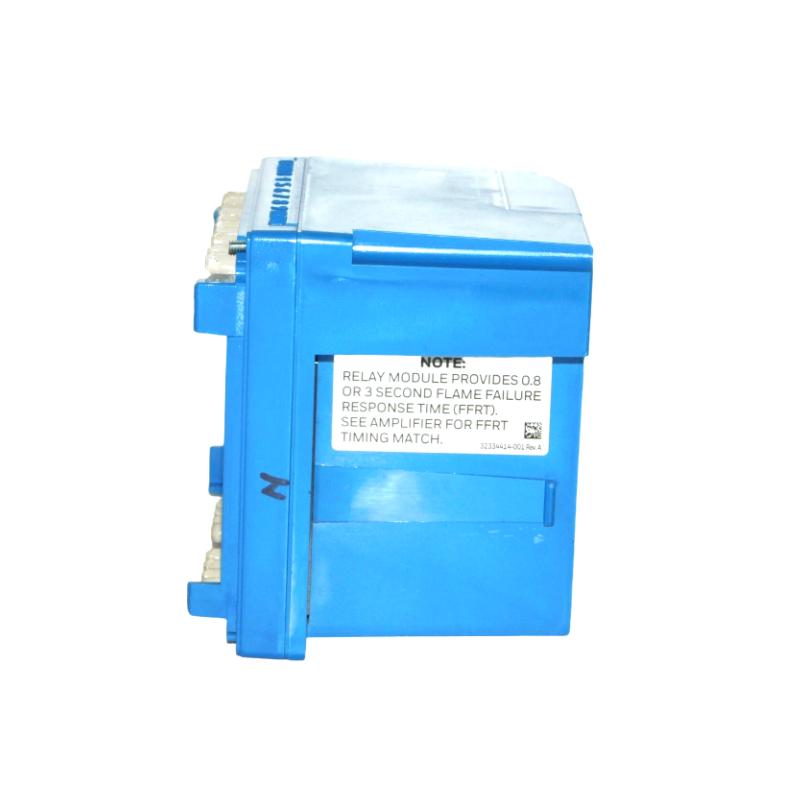

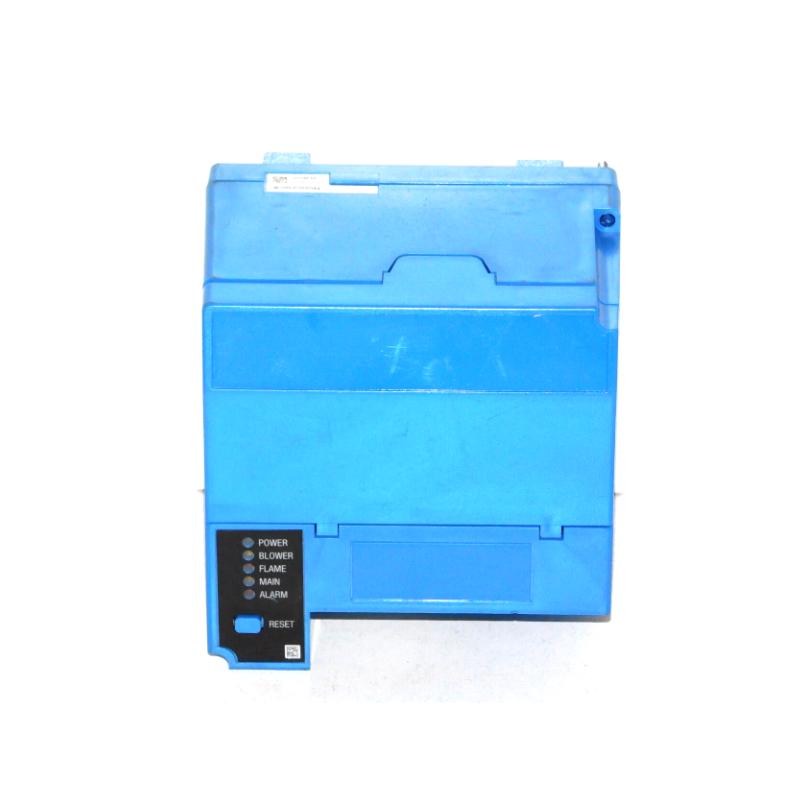

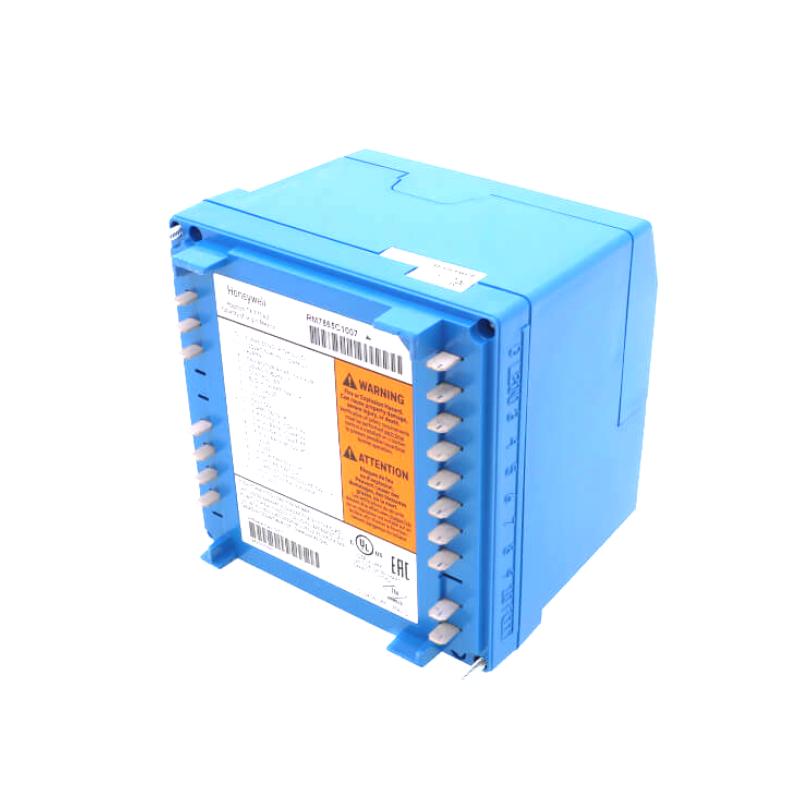

The Honeywell RM7865C1007 Burner Control is a microprocessor-based primary burner management relay module used in the Honeywell 7800 Series burner control system. It is designed for industrial combustion applications such as Fulton Pulse Boilers and packaged burner systems, where it manages safe ignition sequencing, flame supervision, purge cycles, and lockout protection.
This control module acts as the “safety brain” of the burner system, coordinating ignition, fuel valve operation, and flame verification to ensure stable and compliant combustion performance in industrial heating processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7865C1007 |
| Series | 7800 Series Burner Control |
| Module Type | Primary Burner Control / Relay Module |
| Application | Fulton Pulse Boiler / industrial burners |
| Supply Voltage | 120 VAC (±10%) |
| Frequency | 50/60 Hz |
| Power Consumption | Low power relay module (system dependent) |
| Pre-Purge Time | ~35 seconds |
| Post-Purge Time | ~35 seconds |
| Pilot Flame Establishing Time | ~2 seconds |
| Main Flame Establishing Time | ~4 seconds |
| Safety Function | Flame supervision, interlock monitoring |
| Control Type | Microprocessor-based sequencing control |
| Memory | Non-volatile memory (event history retained) |
| Communication | Optional interface module support |
| Mounting | Q7800 series wiring subbase |
| Operating Temperature | -40°C to +60°C |
| Vibration Resistance | Industrial-grade (up to 5G environment) |
