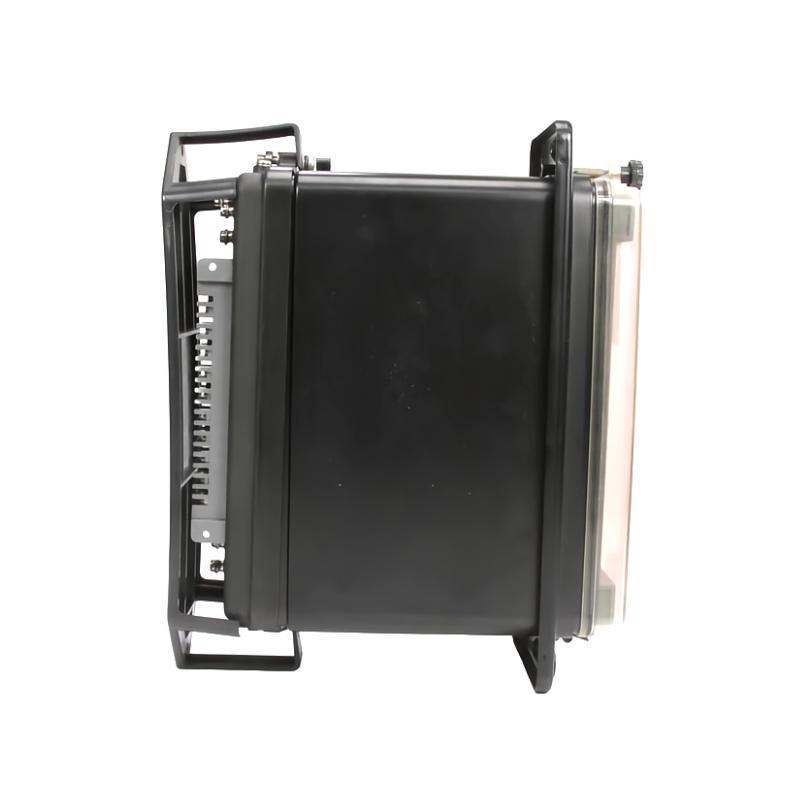

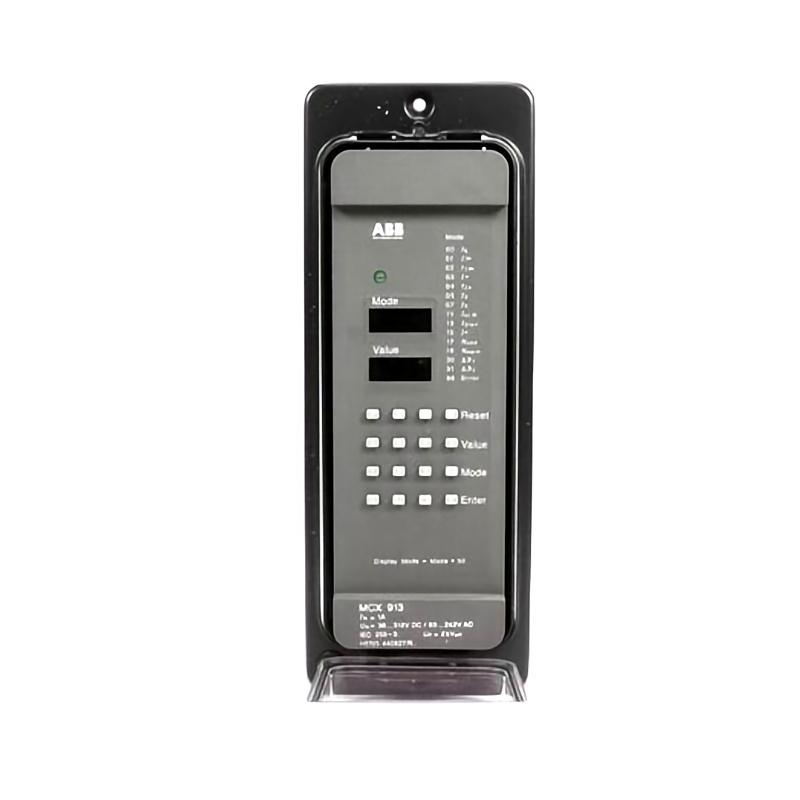

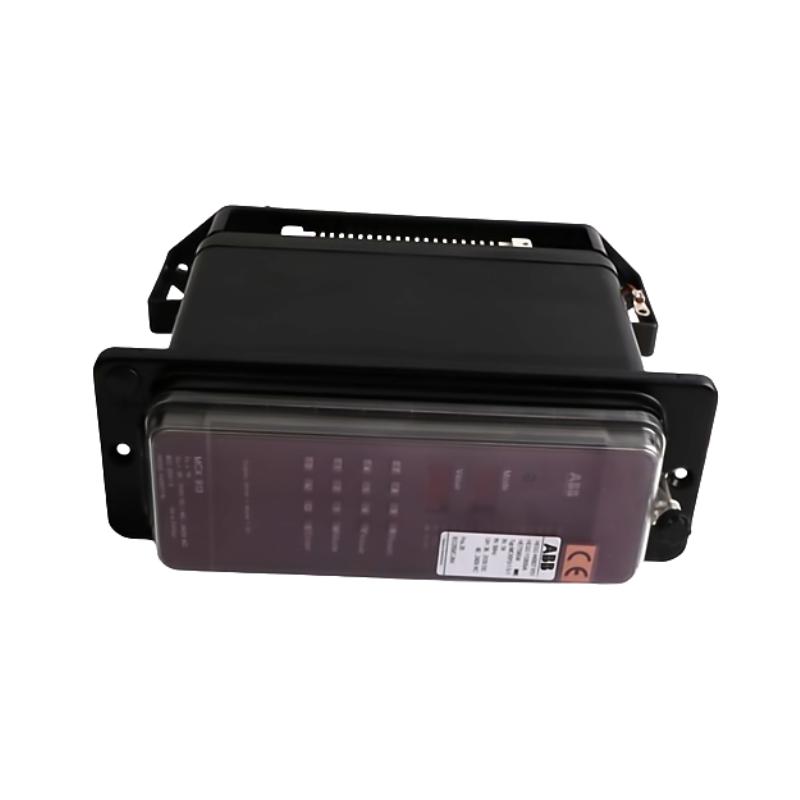

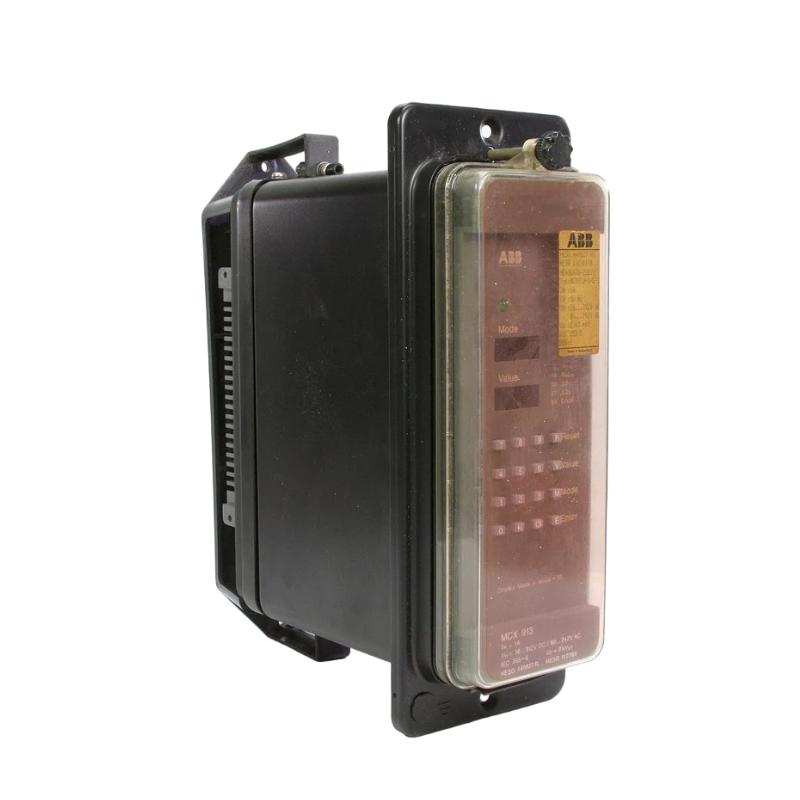

ABB MCX913-1-5-1 HESG112835/A Multifunctional Relay

Name: ABB MCX913-1-5-1 HESG112835/A Multifunctional Relay
Brand: ABB PLC
SKU: 7643
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:MCX913-1-5-1
Product Origin:Sweden (SE)
Product Dimensions:270 x 100 x 220 mm
Product Weight:2.9 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Technical Insight

The ABB MCX913-1-5-1 HESG112835/A Multifunctional Relay is a robust and versatile protection device that enhances the safety and efficiency of electrical systems. By integrating multiple protection and control functions into a single module, it reduces installation complexity while improving response speed and operational reliability. Its adaptability makes it suitable for a wide range of industrial and power distribution applications.

Technical Specifications

Parameter	Details
Model	MCX913-1-5-1 HESG112835/A
Brand	ABB
Module Type	Multifunctional Relay
Function	Protection, monitoring, and control
Protection Features	Overcurrent, overvoltage, undervoltage, fault detection
System Compatibility	Industrial and power distribution systems
Configuration	Programmable
Mounting	Panel / control cabinet mounted
Cooling Method	Passive
Dimensions (H × W × D)	270 × 100 × 220 mm
Weight	2.9 kg (6.39 lb)

Deployment Contexts

The ABB MCX913-1-5-1 HESG112835/A Multifunctional Relay is designed for integrated protection, control, and monitoring of electrical systems in both industrial and utility environments. It is commonly implemented in:

Substation feeder and busbar protection systems
Generator and transformer protection schemes
Industrial motor protection and load supervision
Power distribution panels in process industries
Grid stability and load shedding applications

It consolidates multiple protective functions into a single platform, simplifying system architecture while enhancing reliability.

Functional Advantages

Integrated Protection Functions: Combines multiple electrical protection features in one device
Fast Fault Isolation: Rapid response minimizes damage and system downtime
Flexible Parameter Configuration: Adaptable to various system protection requirements
High System Reliability: Engineered for stable performance in critical applications
Reduced System Complexity: Eliminates the need for multiple standalone protection devices

Technical FAQs

What is the main purpose of this relay?
It provides comprehensive protection and monitoring for electrical equipment and networks.
What protection features are typically included?
Overcurrent, overvoltage, undervoltage, and fault detection functions are commonly supported.
Is it suitable for substation environments?
Yes, it is widely used in substations for feeder and equipment protection.
Can it protect industrial motors?
Yes, it can be configured for motor protection applications.
Does it support programmable settings?
Yes, parameters can be configured to match specific protection requirements.
How quickly does it respond to faults?
It offers fast response times for effective fault isolation.
Can it integrate with automation systems?
Yes, it can be incorporated into larger monitoring and control systems.
What diagnostics are available?
It provides fault indication, status monitoring, and system diagnostics.
Is it designed for continuous operation?
Yes, it supports 24/7 operation in industrial and utility environments.
Does it support remote monitoring?
Yes, depending on system integration, remote monitoring and control are possible.
