Industrial Overview

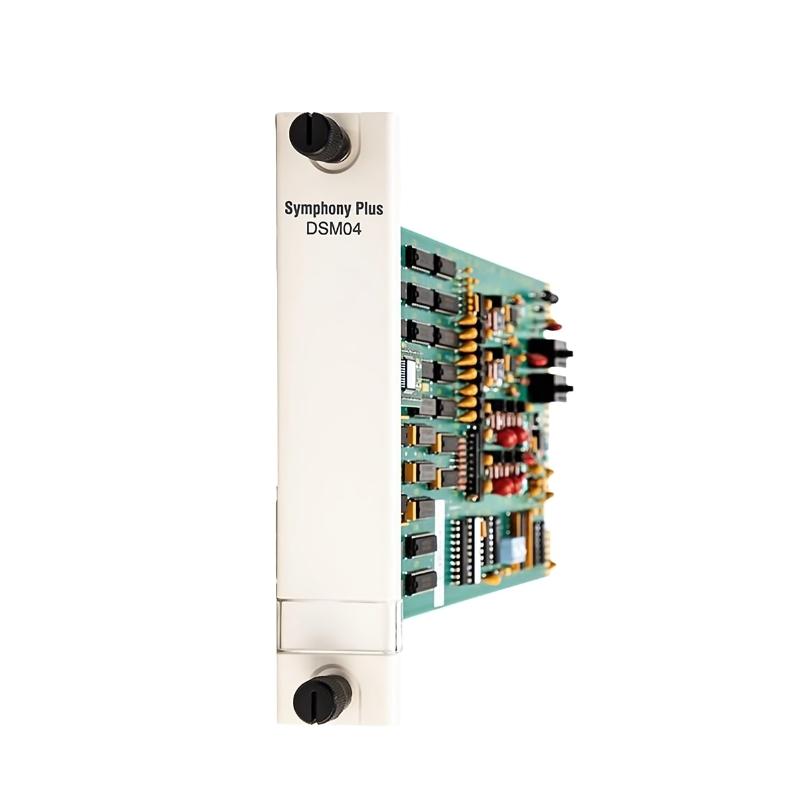

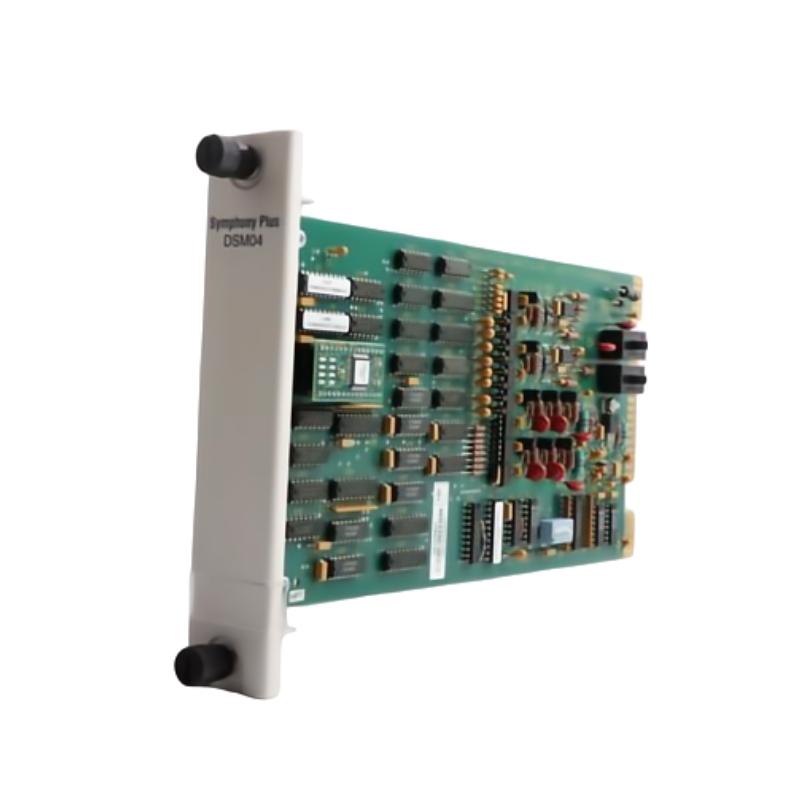

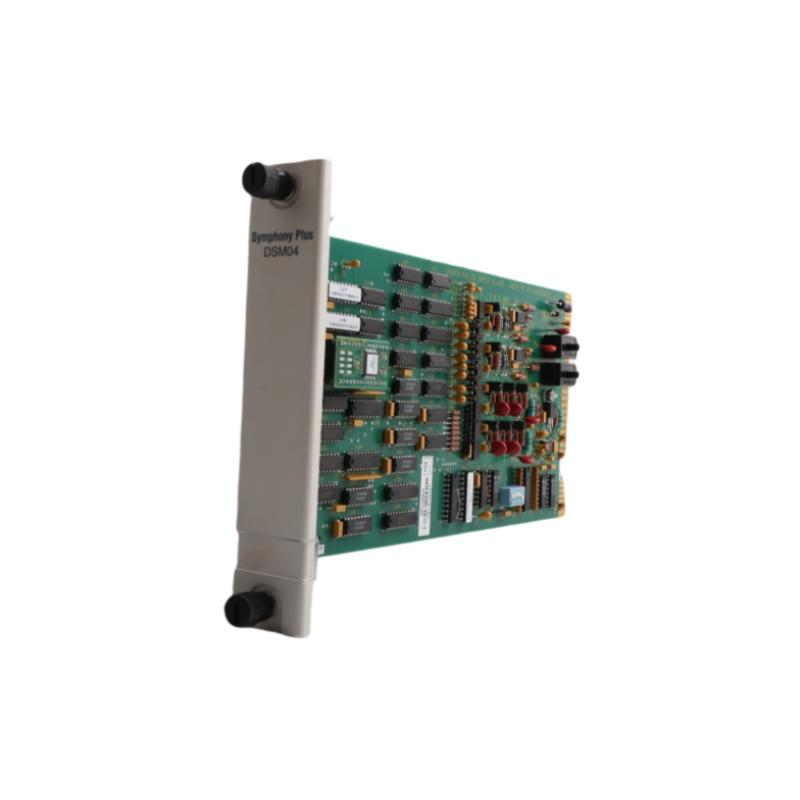

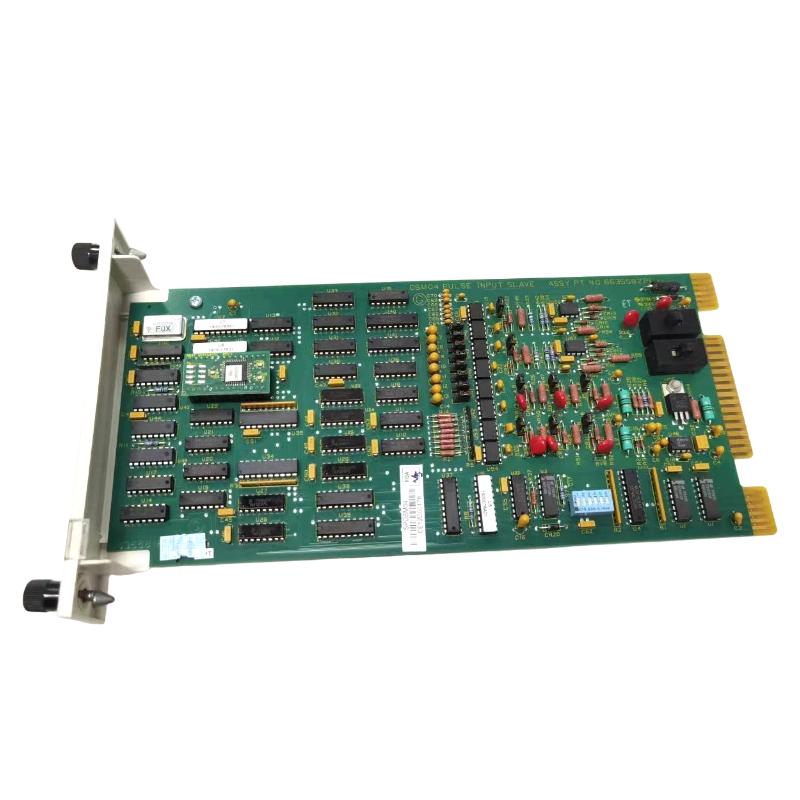

The ABB Bailey SPDSM04 Pulse Input Module is a high-performance signal acquisition module used in ABB Symphony Plus and Bailey Infi 90 distributed control systems. It is designed to process high-speed pulse signals from field devices such as flow meters, rotary encoders, tachometers, and energy meters, converting them into accurate digital values for control and monitoring applications.
This module is widely used in process industries where precise measurement of speed, frequency, flow, or totalized counts is required. Its multi-mode signal processing capability makes it a flexible and reliable solution for advanced industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB (Bailey Controls) |
| Model | SPDSM04 |
| Module Type | Pulse Input Module |
| System Compatibility | ABB Bailey Infi 90 / Net 90 / Symphony Plus |
| Input Channels | 8 independent pulse input channels |
| Input Signal Types | 5 VDC, 24 VDC, and 50 mV–10 V peak-to-peak |
| Max Input Frequency | Up to 50 kHz |
| Operating Modes | Frequency, period, totalize, duration |
| Channel Isolation | Optical isolation per channel |
| Power Supply | 5 VDC (backplane) + 24 VDC auxiliary |
| Power Consumption | ~1.4 A @ 5 VDC (typical) |
| Mounting Type | Harmony rack / termination unit system |
| Operating Temperature | 0°C to 70°C |
| Dimensions (approx.) | 360 × 315 × 177 mm |
| Weight | ~0.5 kg (varies by configuration) |
Application Scenarios
The SPDSM04 is widely deployed in industries requiring precise pulse-based measurement and control:
-
Flow metering and energy monitoring systems
-
Turbine and generator speed measurement
-
Oil & gas pipeline flow monitoring
-
Water treatment flow and pump efficiency tracking
-
Manufacturing automation and conveyor speed control
Its ability to handle high-frequency signals makes it ideal for real-time measurement and process optimization tasks.
Engineering Advantages
The SPDSM04 is engineered for high-precision pulse processing, supporting up to 8 independently configured channels. Each channel can be set to different operating modes such as frequency measurement, totalization, or pulse duration tracking, providing exceptional flexibility for complex control strategies.
A key strength is its high-speed capability up to 50 kHz, allowing it to capture fast-changing industrial signals without loss of accuracy. This makes it suitable for turbine monitoring and high-speed flow measurement applications.
The module also features strong electrical isolation per channel, improving system stability in noisy industrial environments and protecting sensitive control electronics from electrical disturbances.
Additionally, its multi-mode processing architecture allows engineers to use a single module for multiple measurement functions, reducing hardware complexity and improving system efficiency.
Technical FAQs
1. What is the main function of SPDSM04?
It processes high-speed pulse signals from field devices for measurement and control.
2. How many channels does it support?
It supports 8 independent pulse input channels.
3. What is the maximum input frequency?
Up to 50 kHz.
4. What systems is it used in?
ABB Bailey Infi 90, Net 90, and Symphony Plus systems.
5. What types of signals does it accept?
5 VDC, 24 VDC, and analog pulse signals (50 mV–10 V peak-to-peak).
6. What operating modes are available?
Frequency, period, totalize, and duration measurement modes.
7. Is it a digital or analog module?
It is a pulse input module combining digital counting and signal conditioning.
8. What industries use it most?
Power generation, oil & gas, water treatment, and manufacturing automation.
9. Is it suitable for harsh environments?
Yes, it is designed for industrial-grade operation up to 70°C.
10. Does it support isolation?
Yes, each channel is independently optically isolated.
