Industrial Overview

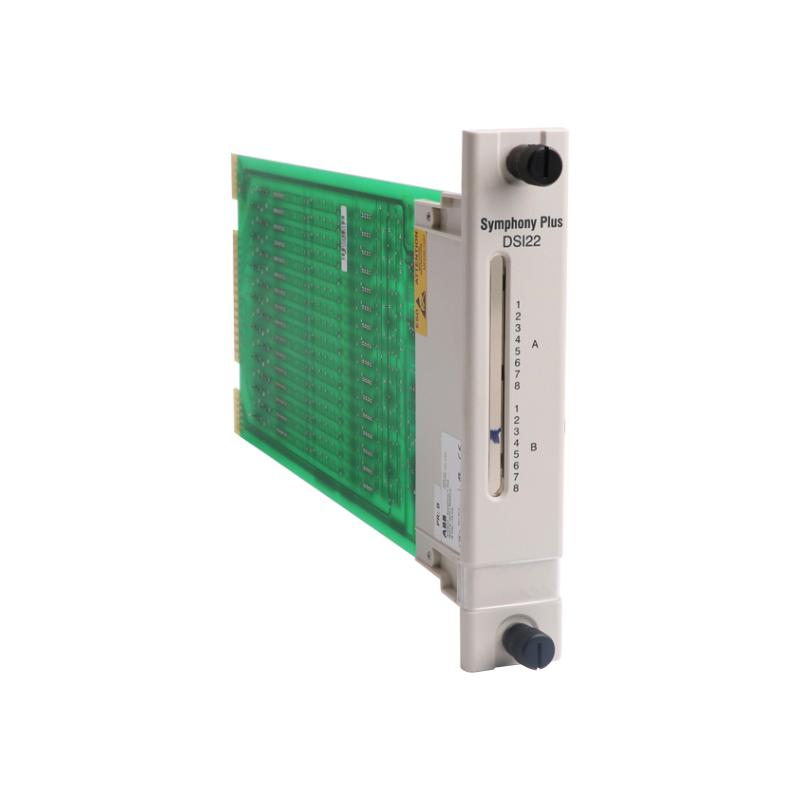

The ABB Bailey SPDSI22 Digital Input (DI) Module is a high-density discrete signal acquisition unit used in ABB Bailey Infi 90, Net 90, and Symphony Plus distributed control systems. It is designed to collect and process on/off field signals from industrial devices such as switches, relay contacts, limit switches, and safety interlocks.
In modern process automation environments, the SPDSI22 plays a critical role in real-time status monitoring, alarm handling, and interlock logic execution. Its universal voltage compatibility and flexible configuration make it one of the more versatile DI modules in the ABB Harmony I/O family.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB (Bailey Controls) |
| Model | SPDSI22 |
| Module Type | Digital Input (DI) Module |
| System Compatibility | ABB Bailey Infi 90 / Net 90 / Symphony Plus |
| Input Channels | 16 digital input channels |
| Input Voltage Range | 24 VDC, 48 VDC, 125 VDC, 120 VAC |
| Configuration | 32 jumper-based flexible configuration |
| Signal Type | Dry contact / wet contact inputs |
| Isolation | Optical isolation per channel |
| Response Time | < 3 ms high-speed acquisition |
| Power Consumption | ≤ 10 W (system backplane powered) |
| Mounting Type | Harmony rack / I/O chassis module |
| Operating Temperature | -40°C to +70°C |
| Dimensions (L×W×H) | 73.66 × 269.24 × 358.14 mm |
| Weight | Approx. 0.24–1.0 kg (variant dependent) |
Application Scenarios
The SPDSI22 is widely deployed in industrial automation systems requiring reliable discrete signal acquisition:
-
Power plant auxiliary system monitoring
-
Oil & gas valve and safety interlock systems
-
Petrochemical process control and alarm systems
-
Water treatment pumping and distribution systems
-
Manufacturing line status monitoring and sequencing
Its ability to handle multiple voltage standards makes it especially useful in mixed legacy and modern field instrument environments.
Engineering Advantages
The SPDSI22 is designed for high flexibility and industrial robustness, making it suitable for complex control architectures where signal types vary across subsystems.
A major advantage is its multi-voltage universal input capability, allowing integration with 24 VDC, 48 VDC, 125 VDC, and 120 VAC field devices without requiring separate modules. This reduces hardware footprint and simplifies cabinet design.
Its fast response time (<3 ms) ensures precise real-time detection of process events, which is critical for interlocking and safety logic applications.
Additionally, the module features strong electrical isolation and wide temperature tolerance (-40°C to +70°C), making it suitable for harsh industrial environments such as refineries, offshore platforms, and power stations.
Technical FAQs
1. What is the main function of SPDSI22?
It acquires digital on/off signals from field devices and transmits them to the control system.
2. How many channels does it support?
It supports 16 digital input channels.
3. What voltage types are supported?
24 VDC, 48 VDC, 125 VDC, and 120 VAC.
4. What systems is it used in?
ABB Bailey Infi 90, Net 90, and Symphony Plus systems.
5. Is it an analog module?
No, it is strictly a digital input module.
6. What is its operating temperature range?
-40°C to +70°C for industrial environments.
7. Does it support configuration flexibility?
Yes, it uses 32 jumpers for flexible channel configuration.
8. What is its response time?
Typically less than 3 milliseconds.
9. What industries use it most?
Power, oil & gas, chemical, and water treatment industries.
10. Is it suitable for harsh environments?
Yes, it is designed for high-reliability industrial operation.
