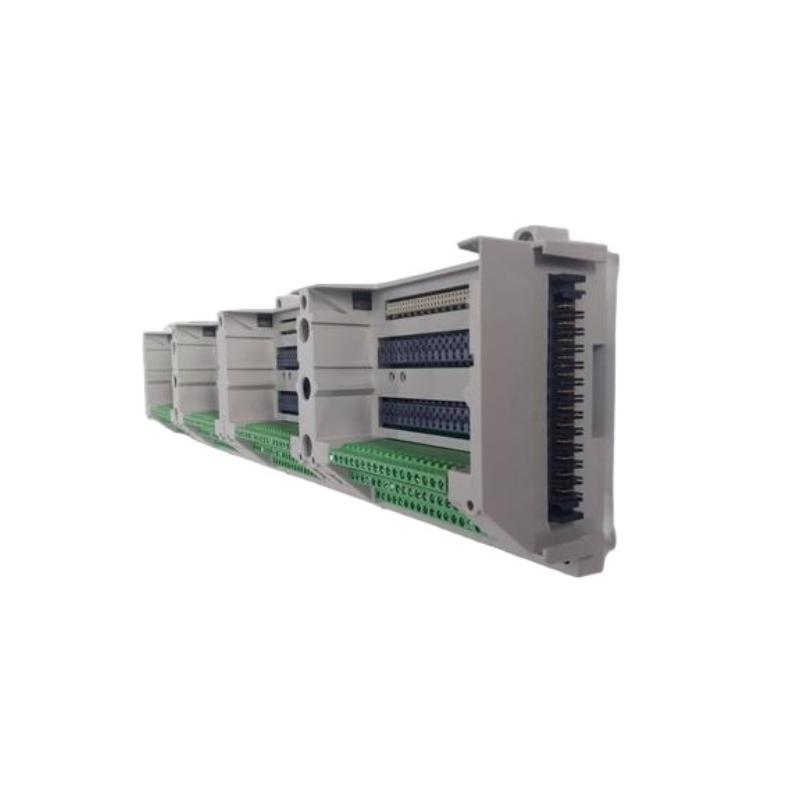

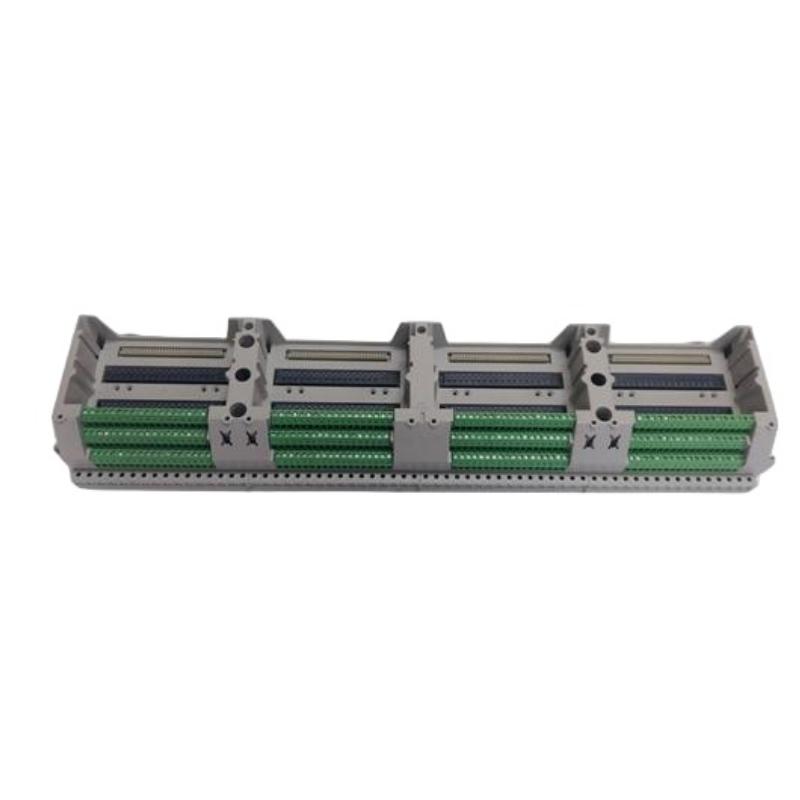

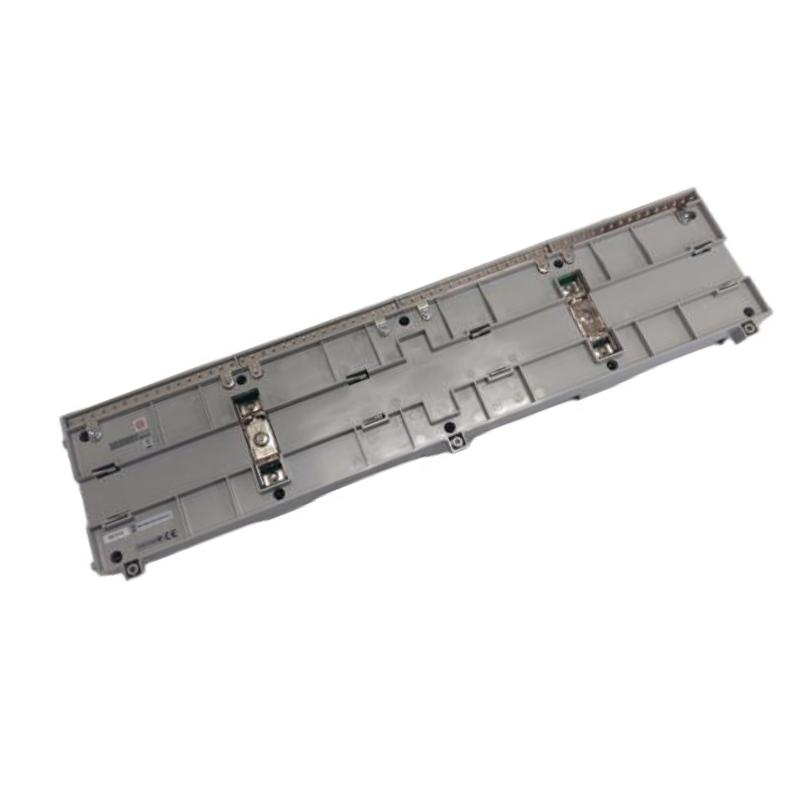

Ovation 5X00497G01 4-Slot I/O Base Unit

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Ovation 5X00497G01 4-Slot I/O Base Unit

Name: Ovation 5X00497G01 4-Slot I/O Base Unit
Brand: Ovation DCS
SKU: 7590
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Ovation DCS
Item No.:5X00497G01
Product Origin:USA
Product Dimensions:250 × 120 × 100 mm
Product Weight:1.5 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Structural Overview

The Ovation 5X00497G01 4-Slot I/O Base Unit is a foundational hardware component that enables organized and efficient module deployment within Ovation systems. By providing both mechanical alignment and electrical continuity, it simplifies system architecture while enhancing reliability. Its rugged construction ensures dependable performance in demanding industrial environments where stability and accessibility are critical.

Technical Specifications

Parameter	Details
Model	5X00497G01
Module Type	4-Slot I/O Base Unit
Slot Capacity	4 Modules
Function	Passive backplane and module mounting
System Compatibility	Ovation DCS
Mounting	Rack / Panel mounted
Cooling Method	Passive
Dimensions (H × W × D)	250 × 120 × 100 mm
Weight	1.5 kg (3.31 lb)

Field Deployment Perspective

Serving as a structural and electrical backbone, the Ovation 5X00497G01 4-Slot I/O Base Unit is designed to host and interconnect multiple I/O modules within an Ovation control system. It is typically found in:

Control cabinets for turbine and generator systems
Distributed I/O nodes in large-scale DCS architectures
Modular expansion panels for process automation
Retrofit projects requiring structured I/O organization
High-availability systems with segmented I/O layouts

Its primary role is to ensure stable mechanical support and reliable backplane communication between installed modules.

Engineering Value Points

Modular Flexibility: Supports up to four I/O modules, enabling scalable system design
Reliable Backplane Connectivity: Ensures consistent data and power distribution across all installed modules
Mechanical Stability: Rigid construction minimizes vibration impact in industrial environments
Simplified Maintenance: Clearly structured slot layout improves accessibility and replacement efficiency
System Consistency: Fully aligned with Ovation architecture standards for seamless integration

Technical FAQs

What is the main function of the 4-slot base unit?
It provides mechanical mounting and electrical interconnection for up to four I/O modules.
Does the base unit include active electronics?
No, it functions as a passive backplane for signal and power distribution.
How are modules connected within the base unit?
Modules interface through the integrated backplane connectors.
Is hot-swapping supported on this base unit?
Yes, when used within a properly configured Ovation system, modules can be replaced without shutting down.
What type of communication does it support?
It supports Ovation backplane communication between modules and the control system.
Can different module types be mixed in the same base unit?
Yes, compatible I/O modules (analog, digital, etc.) can be installed together.
How is power distributed to installed modules?
Power is delivered through the backplane from the system power supply.
What are the mounting options?
It is designed for standard rack or panel mounting within control cabinets.
Does it support redundant configurations?
Redundancy depends on system design, but the base unit can be part of redundant architectures.
What maintenance is required?
Minimal maintenance is needed; periodic inspection of connectors and seating is recommended.
