Industrial Overview

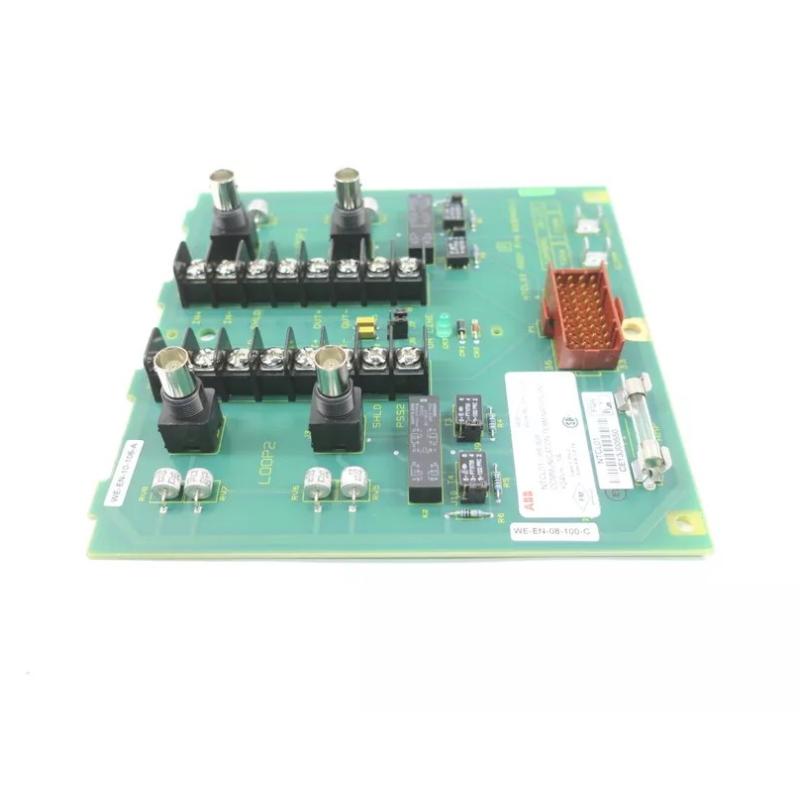

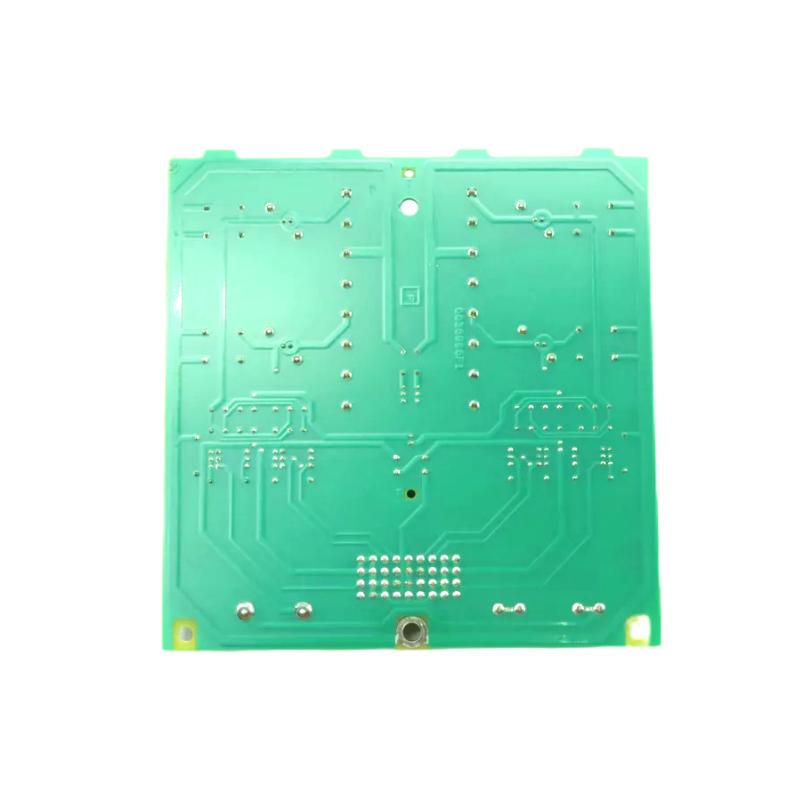

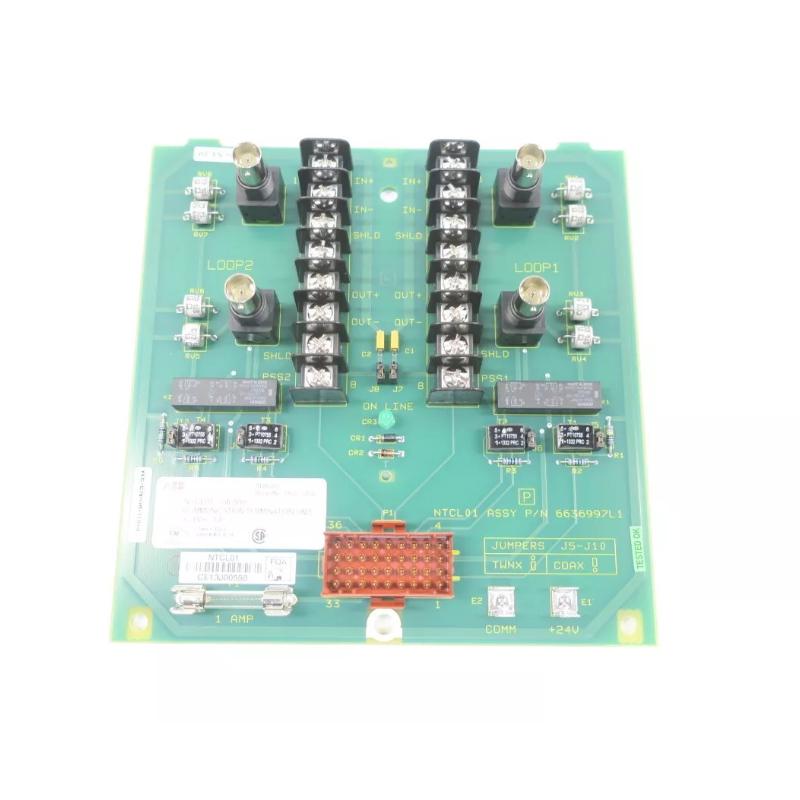

The ABB Bailey NTCL01 Control I/O Termination Unit is a core interface component used in the INFI 90 / Network 90 Distributed Control System (DCS). It is designed to provide a stable and reliable termination point between field wiring and system communication modules, ensuring accurate signal transfer and robust network performance in industrial automation environments.
This unit is primarily used to interface Network Interface Slave Modules (INNIS01) and Loop Interface Modules (INLIM03) with the INFI-NET communication architecture. It supports both coaxial and twinaxial cabling options, making it a flexible solution for complex plant communication networks operating under harsh industrial conditions.
Technical Specifications
| Parameter | Details |
|---|
| Model | NTCL01 |
| System | ABB Bailey INFI 90 / Network 90 |
| Type | Communication Link / Control I/O Termination Unit |
| Function | Field wiring termination + network interface |
| Supported Modules | INNIS01, INLIM03 |
| Communication Media | Coaxial / Twinaxial cable |
| Network Type | INFI-NET / Plant Loop |
| Power Requirement | 24 VDC |
| Power Consumption | ~15–25 mA (low-load design) |
| Mounting Type | Field Termination Panel (cabinet mounted) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions (HxWxD) | Approx. 203 × 51 × 178 mm |
| Weight | Approx. 0.3 kg |
Applications
The NTCL01 is widely used in installed ABB Bailey INFI 90 systems across multiple heavy-duty industries:
-
Oil & gas production and offshore platforms
-
Power generation and turbine control systems
-
Petrochemical and refinery automation plants
-
Water and wastewater treatment facilities
-
Industrial process manufacturing systems
-
Legacy DCS maintenance and system expansion projects
It is especially valuable in environments requiring stable communication loop termination and high immunity to electrical noise interference.
Technical FAQs
1. What is the main function of the NTCL01?
It provides termination and interface connection between field wiring and INFI 90 communication modules.
2. What modules does it support?
It is used with INNIS01 and INLIM03 network interface modules.
3. What communication systems is it part of?
It operates within ABB Bailey INFI 90 / INFI-NET and Plant Loop systems.
4. What type of cables does it support?
It supports both coaxial and twinaxial communication cables.
5. What is its power requirement?
It operates on a 24 VDC low-power supply.
6. What industries commonly use it?
Oil & gas, petrochemical, power generation, and water treatment industries.
7. What is its operating temperature range?
0°C to 70°C.
8. Is it an active processing module?
No, it is a passive termination interface unit.
9. How is it installed?
It is mounted inside control cabinets on a field termination panel.
10. What is its main benefit in a DCS system?
It ensures stable, noise-resistant communication between system modules and field networks.
