Industrial Overview

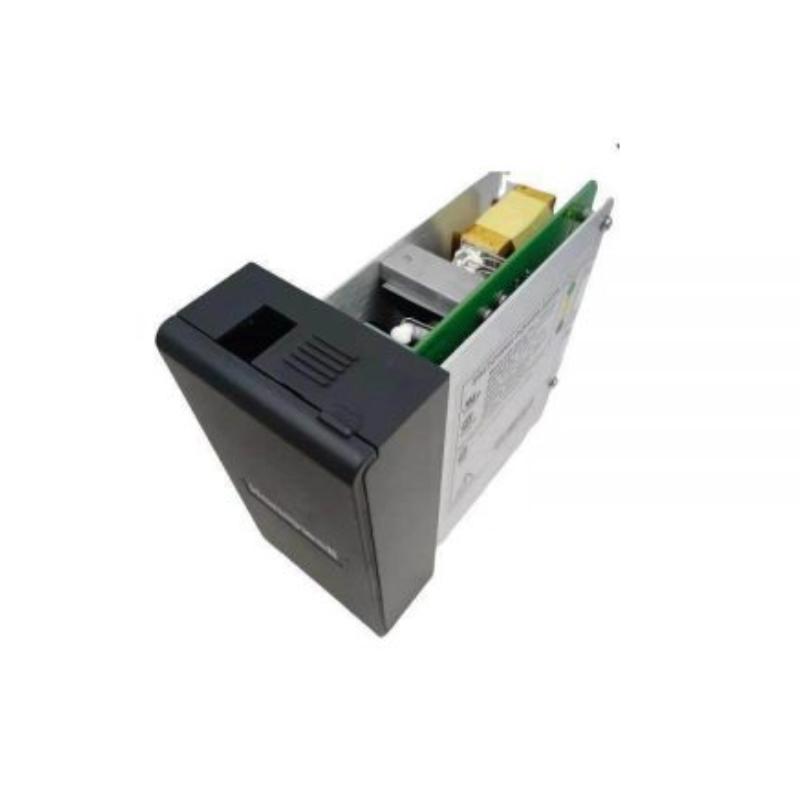

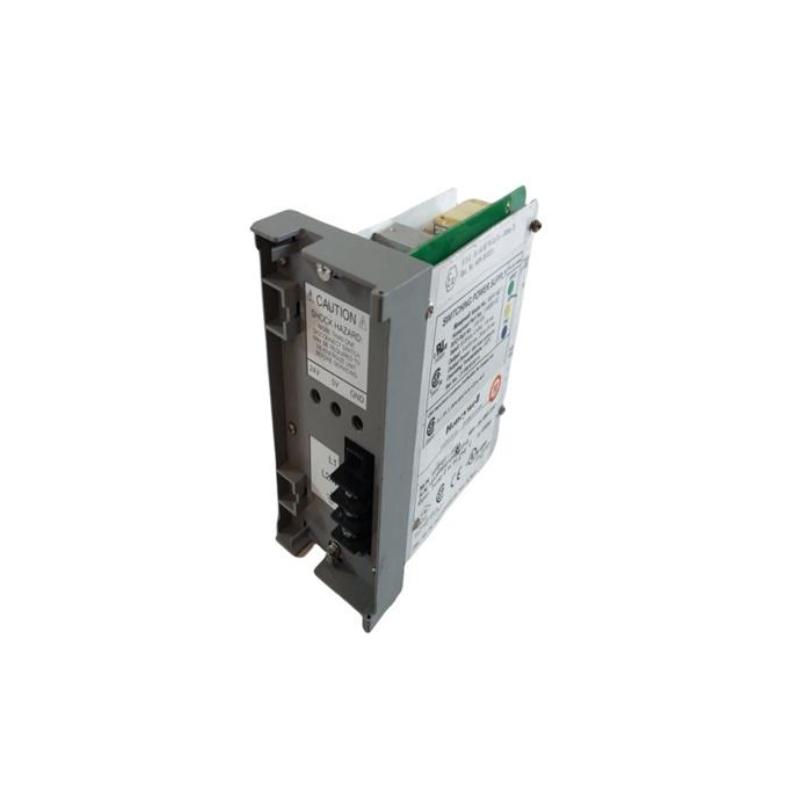

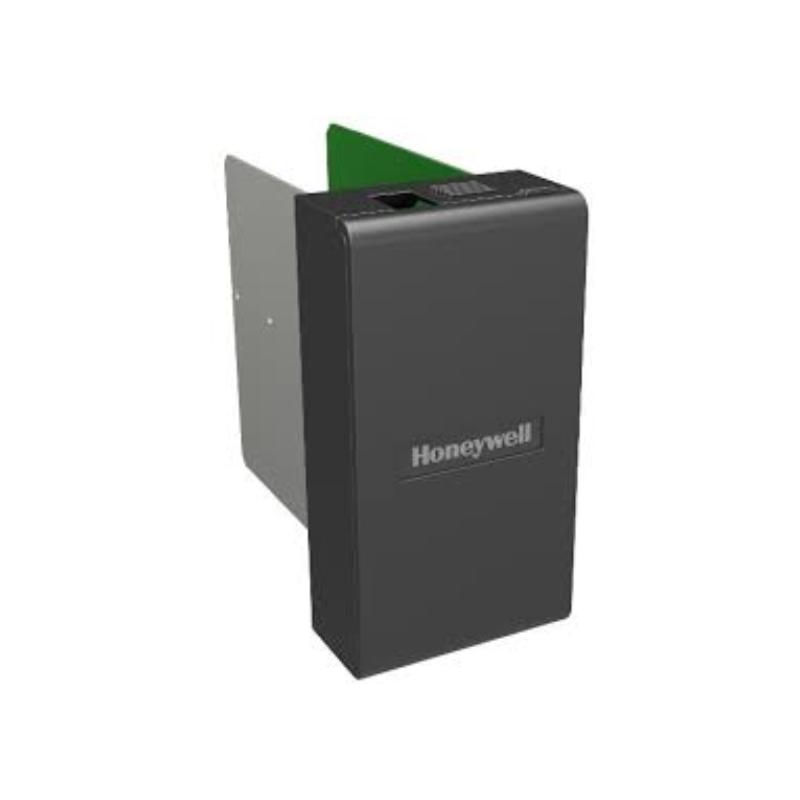

The Honeywell 900P01-0601 Power Supply Module is a high-integrity industrial AC-to-DC power unit designed for the ControlEdge HC900 platform, delivering stable and regulated power to controller racks, CPU modules, and distributed I/O systems.
As part of the enhanced HC900 power family, this module is engineered for higher efficiency, stronger output capability, and improved system reliability, making it suitable for demanding process automation environments where continuous uptime and power stability are critical.
Technical Specifications
| Parameter | Details |
|---|
| Model | 900P01-0601 |
| Platform | ControlEdge HC900 |
| Module Type | Power Supply Module |
| Input Voltage | 100–240 VAC (universal input) |
| Input Frequency | 50/60 Hz |
| Output Voltage | 24 VDC regulated |
| Output Power | 60 W (nominal class) |
| Output Current | Up to 10 A (system-dependent distribution) |
| Efficiency | High-efficiency industrial switching design |
| Protection Features | Overload, overvoltage, short-circuit, thermal protection |
| Hold-up Time | ~20 ms typical |
| Fuse | Internal non-replaceable fuse |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (HxWxD) | Approx. 137 × 72.6 × 150 mm |
| Weight | Approx. 0.65–0.82 kg |
Application Scenarios
The 900P01-0601 is widely used in high-demand industrial control systems where stable power delivery is essential:
-
Oil & gas production and refining systems
-
Power generation and utility control systems
-
Chemical and petrochemical plants
-
Water and wastewater treatment facilities
-
Large-scale manufacturing automation
-
Distributed control system (DCS) architectures
Its stable 24V output ensures reliable operation of both logic controllers and field devices within HC900 racks.
Technical FAQs
1. What is the main function of the 900P01-0601?
It supplies regulated 24VDC power to HC900 controller and I/O systems.
2. What is the input voltage range?
It supports 100–240 VAC universal input.
3. Does it provide only 24V output?
Yes, this model is focused on 24VDC system power distribution.
4. What is the output power capacity?
Approximately 60W nominal class performance.
5. Is it suitable for global installations?
Yes, due to its universal AC input design.
6. Does it include protection features?
Yes, including overload, short-circuit, thermal, and overvoltage protection.
7. What systems is it compatible with?
It is designed for Honeywell ControlEdge HC900 systems.
8. Can it run continuously?
Yes, it is engineered for 24/7 industrial operation.
9. What is its role in the rack system?
It powers controller modules and connected I/O devices.
10. How is it installed?
It is mounted directly into the HC900 rack backplane.
