Industrial Overview

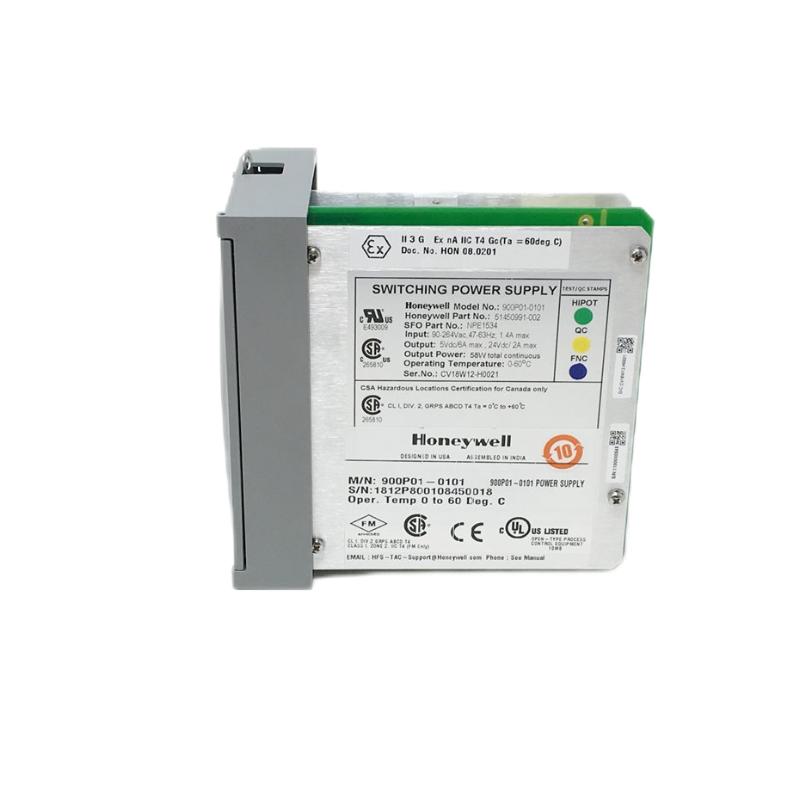

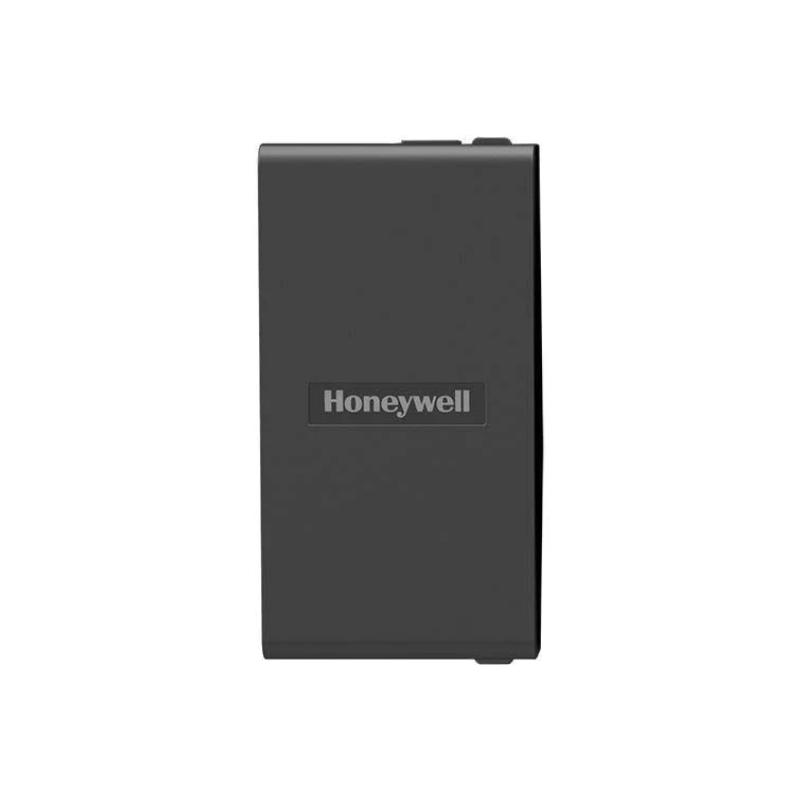

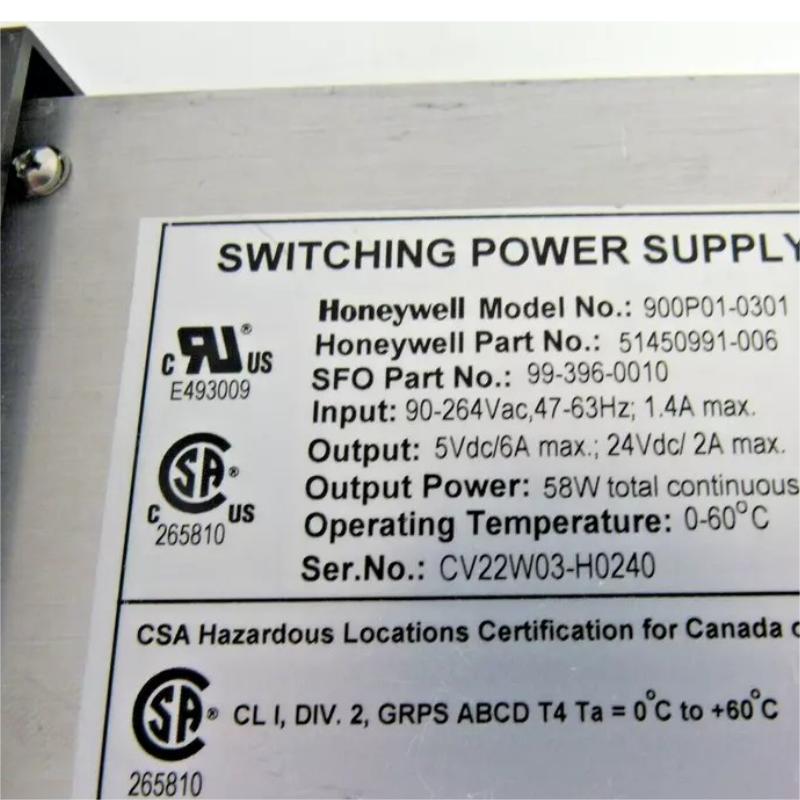

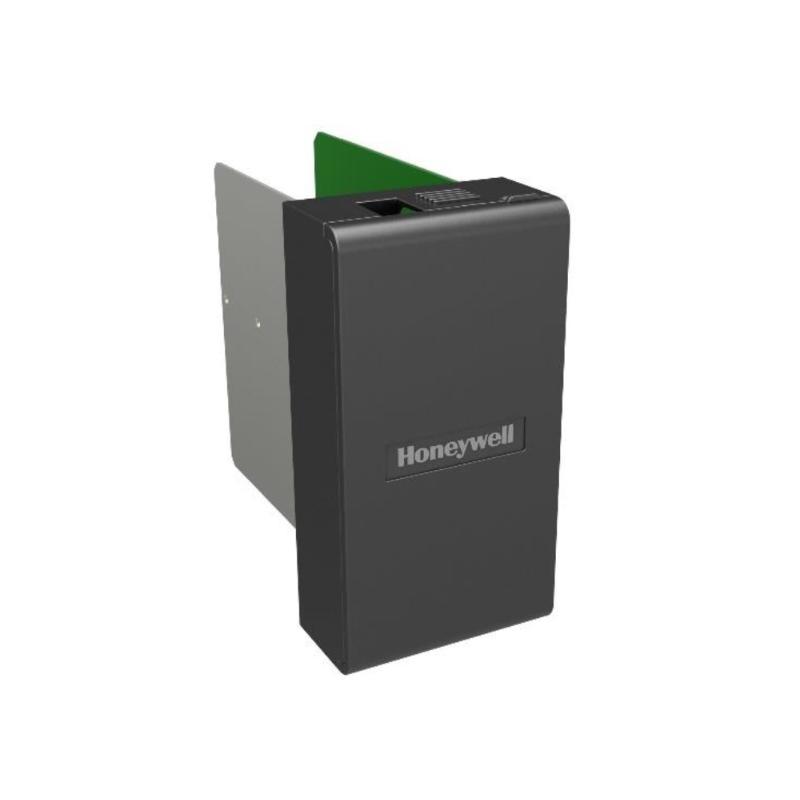

The Honeywell 900P01-0301 Power Supply Module is a high-efficiency AC-to-DC power unit designed for the ControlEdge HC900 platform, providing stable and regulated power distribution to controller backplanes, CPU modules, and I/O systems.
Built for industrial-grade automation environments, this module delivers reliable 5VDC and 24VDC outputs from a universal AC input, ensuring consistent system operation even under fluctuating electrical conditions. It is widely used in process industries where power stability directly impacts system availability and control accuracy.
Technical Specifications
| Parameter | Details |
|---|
| Model | 900P01-0301 |
| Platform | ControlEdge HC900 |
| Module Type | Power Supply Module |
| Input Voltage | 90–264 VAC (universal input) |
| Input Frequency | 47–63 Hz |
| Output Voltage | 5 VDC + 24 VDC regulated |
| Output Power | 60 W nominal |
| Output Current | Up to 2.5 A @ 24 VDC (system dependent) |
| Efficiency | High-efficiency switching design (>85%) |
| Protection Features | Overload, overvoltage, short-circuit, thermal protection |
| Hold-up Time | ~20 ms typical |
| Fuse | Internal non-replaceable fuse |
| Operating Temperature | 0°C to 60°C (industrial range) |
| Storage Temperature | -40°C to 70°C |
| Dimensions (HxWxD) | Approx. 137 × 72.6 × 150 mm |
| Weight | Approx. 0.55–0.82 kg |
Application Scenarios
The 900P01-0301 module is widely deployed in industrial automation systems requiring stable and continuous power delivery:
-
Oil & gas production control systems
-
Power generation and distribution panels
-
Chemical and petrochemical processing plants
-
Water and wastewater treatment systems
-
Manufacturing automation lines
-
DCS and SCADA infrastructure systems
Its dual-output design ensures both logic-level and field-level power stability within a single ControlEdge HC900 rack.
Technical FAQs
1. What is the main function of the 900P01-0301?
It supplies regulated 5VDC and 24VDC power to HC900 controller systems and I/O modules.
2. What is the input voltage range?
It supports a universal AC input range of 90–264 VAC.
3. What outputs does it provide?
It provides 5VDC (logic power) and 24VDC (field power).
4. What is the total power capacity?
Approximately 60 watts nominal output capacity.
5. Is it suitable for global industrial use?
Yes, due to its universal AC input design.
6. Does it include protection features?
Yes, including overload, overvoltage, short-circuit, and thermal protection.
7. What systems is it compatible with?
It is designed specifically for Honeywell ControlEdge HC900 systems.
8. What is the expected operating environment?
Standard industrial environments with 0–60°C operating range.
9. Can it support both CPU and I/O modules?
Yes, it powers both controller logic and connected I/O modules.
10. How is it installed?
It is mounted directly into the HC900 rack backplane.
