Introduction & Technical Overview (Integrated Specification View)

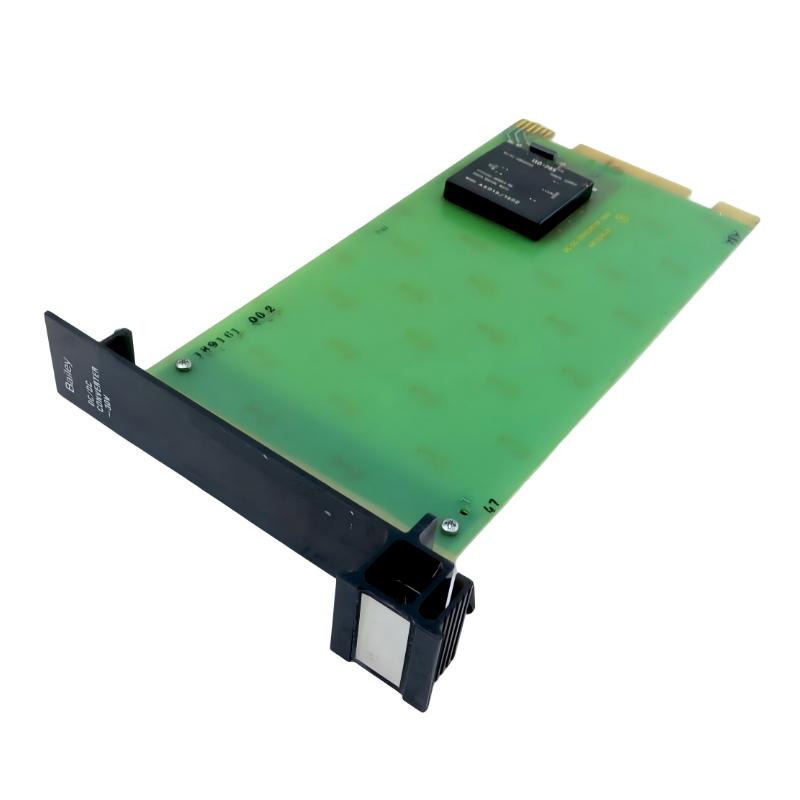

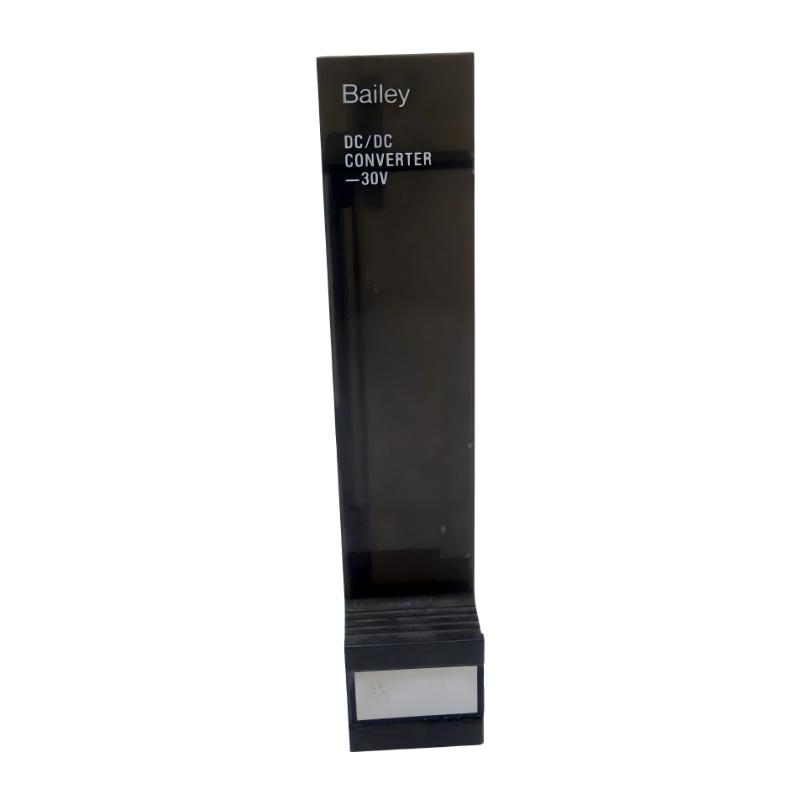

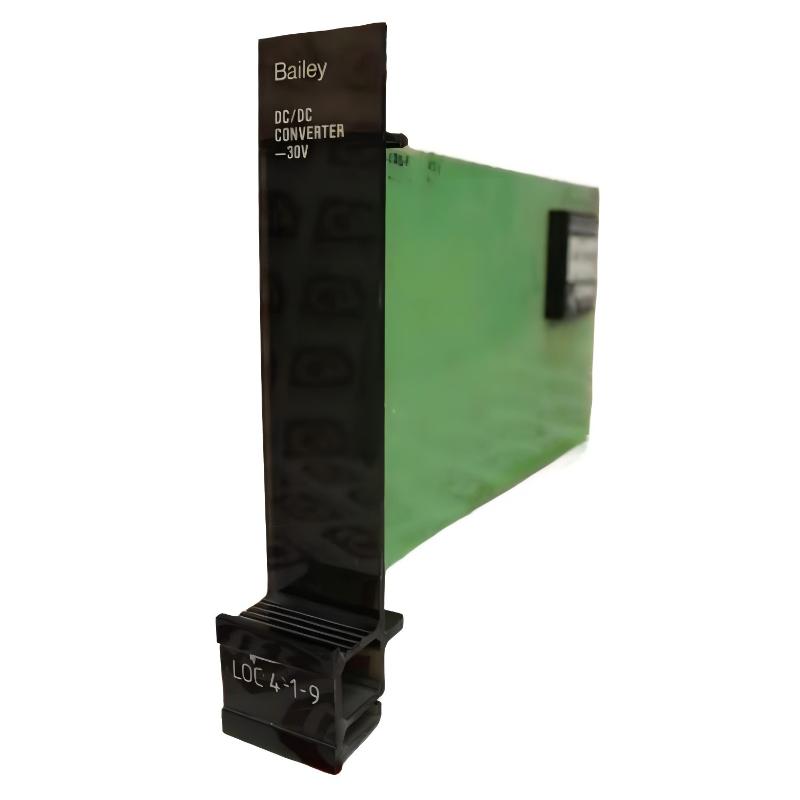

The ABB Bailey NSDM01 DC/DC Converter is a compact industrial power conversion module designed for INFI 90 / Net 90 distributed control system architectures. It is used to convert and regulate DC power within control cabinets, ensuring stable voltage levels for sensitive automation components such as processor modules, I/O interfaces, and communication boards.
In typical system configurations, the NSDM01 acts as an intermediate power conditioning stage, isolating upstream power fluctuations and delivering clean, regulated DC output to downstream control electronics. This function is essential in industrial environments where electrical noise, load variation, and grounding disturbances can affect system stability.
The module is designed for continuous-duty industrial operation, supporting long-term reliability in mission-critical automation systems such as power generation units, refinery control systems, and large-scale process plants.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB Bailey |

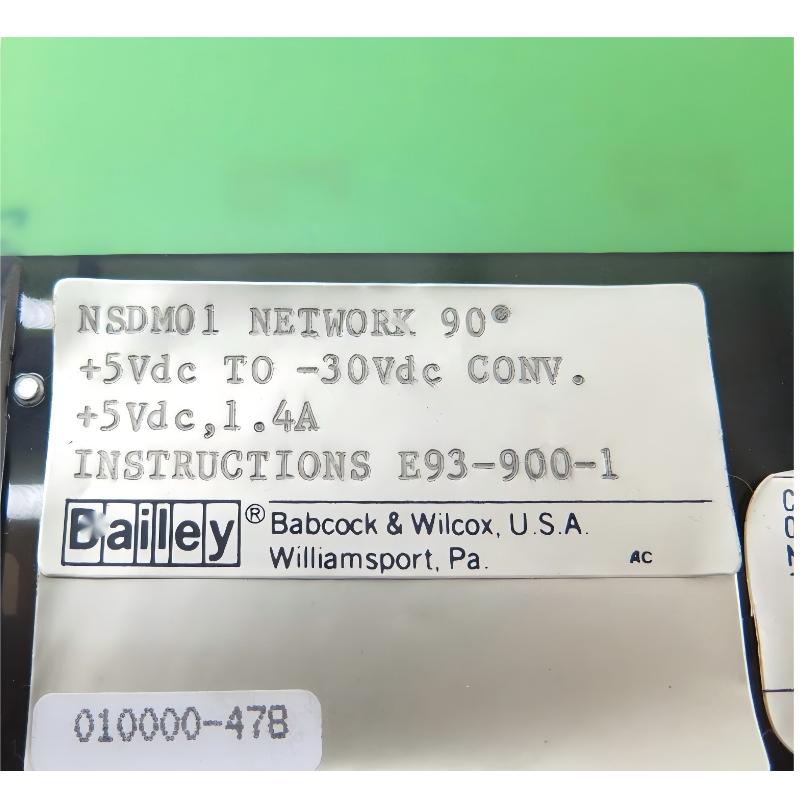

| Model | NSDM01 |
| Product Type | DC/DC Converter Module |
| System Compatibility | INFI 90 / Net 90 DCS |
| Function | DC power conversion and regulation |
| Input Type | Industrial DC input (system dependent) |
| Output Type | Regulated DC output |
| Electrical Role | Power conditioning and isolation |
| Installation | Control cabinet / module rack |
| Operating Environment | Industrial / Power plants / Process industries |
| Dimensions (H × W × D) | 50 × 130 × 190 mm |
| Weight | 0.6 kg (1.32 lb) |
| Cooling Method | Passive industrial cooling |
| Maintenance | Low maintenance, periodic inspection recommended |
Applications
The NSDM01 is widely used in industrial control systems where stable DC power conversion is required within ABB Bailey architectures.
It is typically installed inside control cabinets to support localized power distribution for controller racks and I/O subsystems. In power plants, it supports stable operation of turbine and boiler control electronics. In petrochemical and refinery environments, it ensures reliable voltage conditioning for process automation systems exposed to fluctuating electrical loads.
It is also commonly used in retrofit projects where legacy ABB Bailey systems are maintained, upgraded, or expanded while preserving existing power distribution architecture.
Advantages
The NSDM01 provides highly stable DC voltage conversion, improving overall system reliability by reducing exposure to electrical noise and voltage instability.
Its compact design allows efficient integration into dense control cabinet layouts without sacrificing performance. The module enhances system protection by isolating downstream electronics from upstream power disturbances, reducing the risk of control interruptions.
It is engineered for long operational life under continuous industrial load, making it suitable for environments requiring high uptime and minimal maintenance intervention.
Technical FAQs
1. What is the main function of the NSDM01 module?
It converts and regulates DC power for ABB Bailey control system components.
2. Which systems is it compatible with?
It is used in ABB Bailey INFI 90 and Net 90 DCS architectures.
3. Is it an AC or DC device?
It is a DC/DC converter used for regulated DC power conditioning.
4. Does it power multiple modules?
Yes, it supplies regulated power to multiple downstream control modules depending on system design.
5. Where is it installed?
Inside ABB Bailey control cabinets and power distribution sections.
6. Does it provide electrical isolation?
Yes, it helps isolate sensitive electronics from power disturbances.
7. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.
8. Can it be replaced individually?
Yes, it is designed for modular replacement in rack systems.
9. Is it used in modern PLC systems?
No, it is primarily used in legacy ABB Bailey DCS installations.
10. What is its key advantage?
Stable DC power conversion with strong noise immunity for industrial systems.
