Industrial Overview

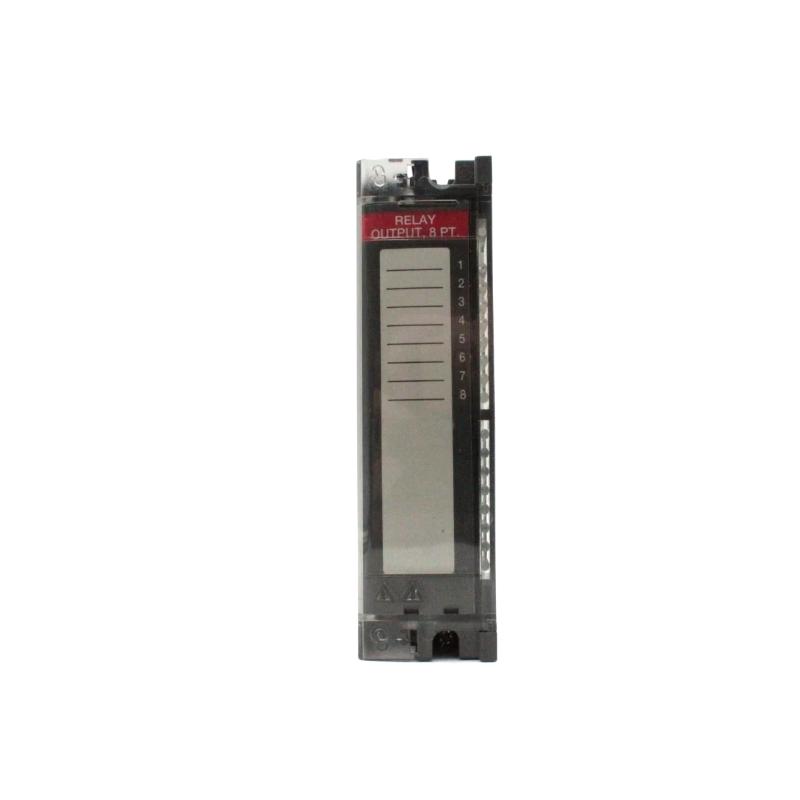

The Honeywell 900H01-0001 Relay Output Module is a rugged, high-reliability output solution designed for the ControlEdge HC900 platform, providing precise switching control for field devices such as alarms, motors, solenoids, and interlocking systems.
Built for mission-critical process automation environments, this module uses electromechanical relay outputs with strong galvanic isolation, ensuring safe and stable operation even under demanding electrical conditions. It is widely used in industries where dependable discrete output control is essential for operational safety and system coordination.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 900H01-0001 |
| Platform | ControlEdge HC900 / ControlEdge 900 |
| Module Type | Relay Output Module |
| Output Channels | 8 relays (4 Form-C + 4 Form-A) |
| Output Type | Electromechanical relay |
| Voltage Rating | 120/240 VAC or 30 VDC |
| Current Rating | Up to 4 A resistive load |
| Contact Isolation | Channel-to-channel galvanic isolation |
| Leakage Current | ≤ 1 mA @ 350 VDC |
| Response Time | ON ≤ 11 ms / OFF ≤ 8 ms |
| Power Consumption | 5V: ~110 mA / 24V: ~100 mA |
| LED Indicators | Per-channel ON status + module diagnostics |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (HxWxD) | Approx. 94 x 229 x 87 mm |
| Weight | Approx. 0.4 kg |
