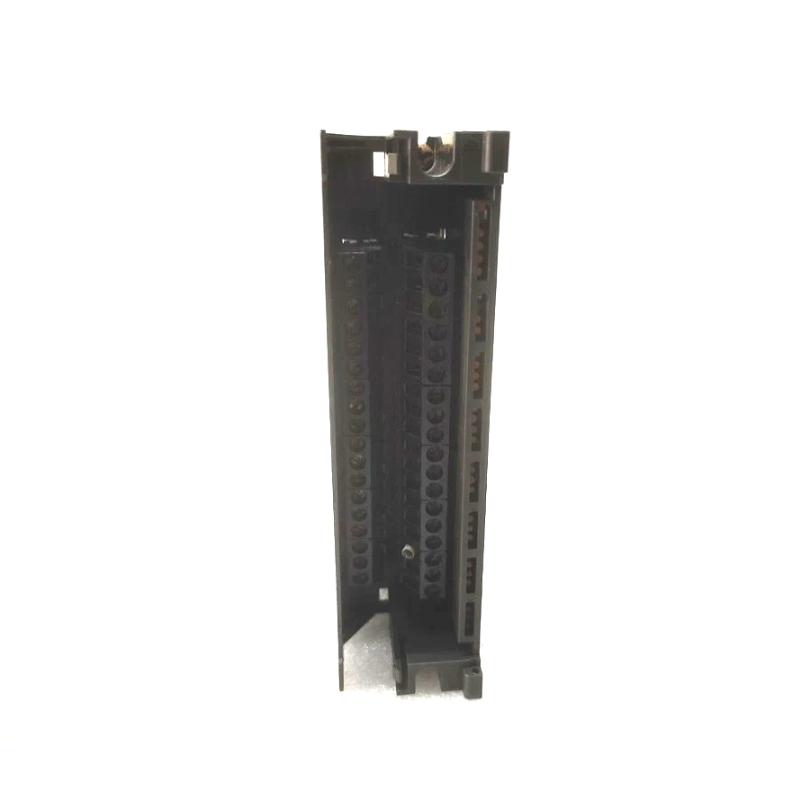

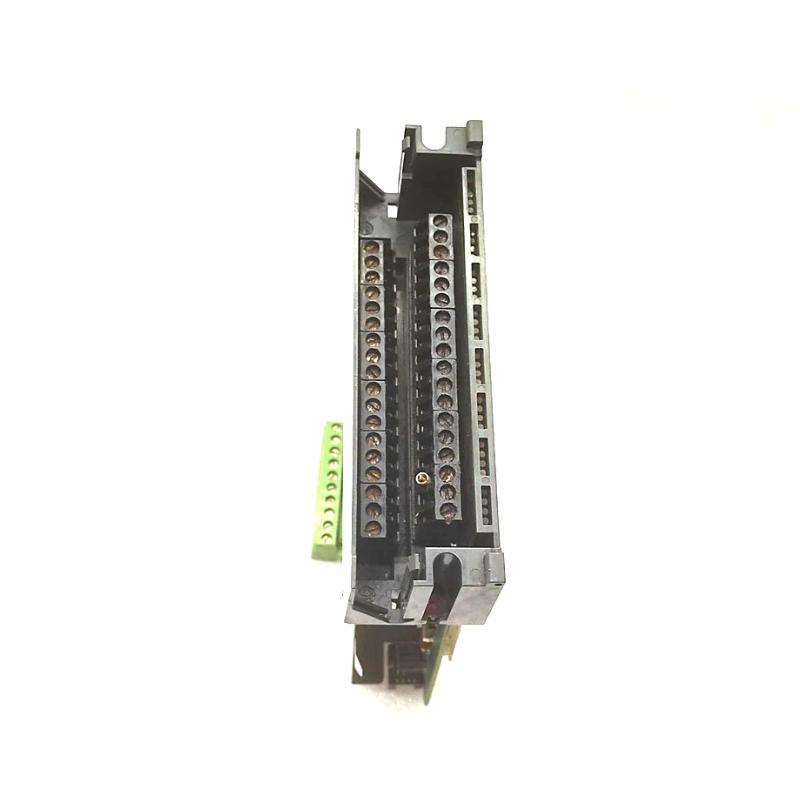

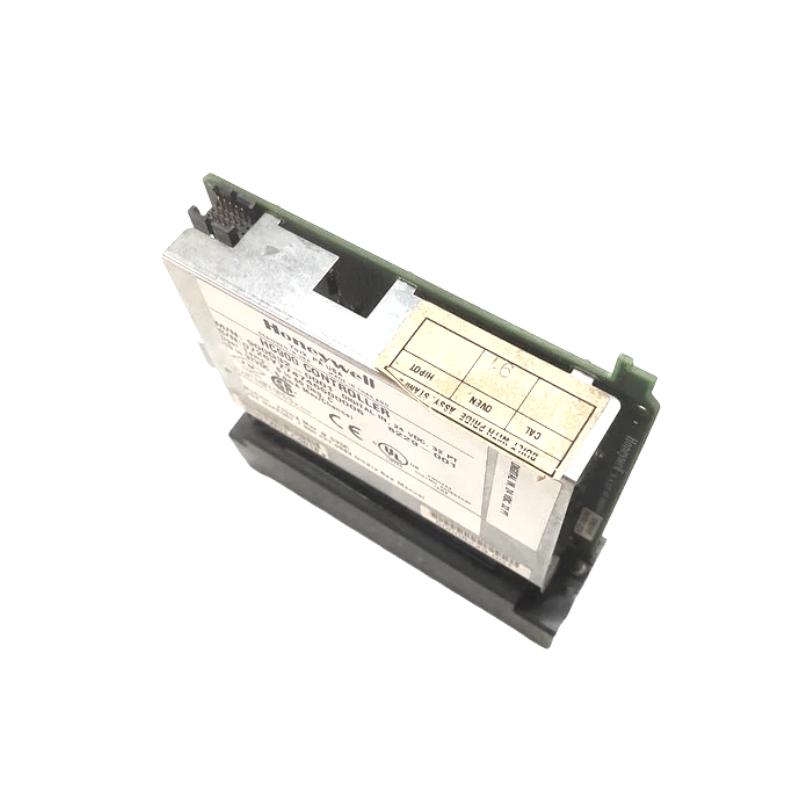

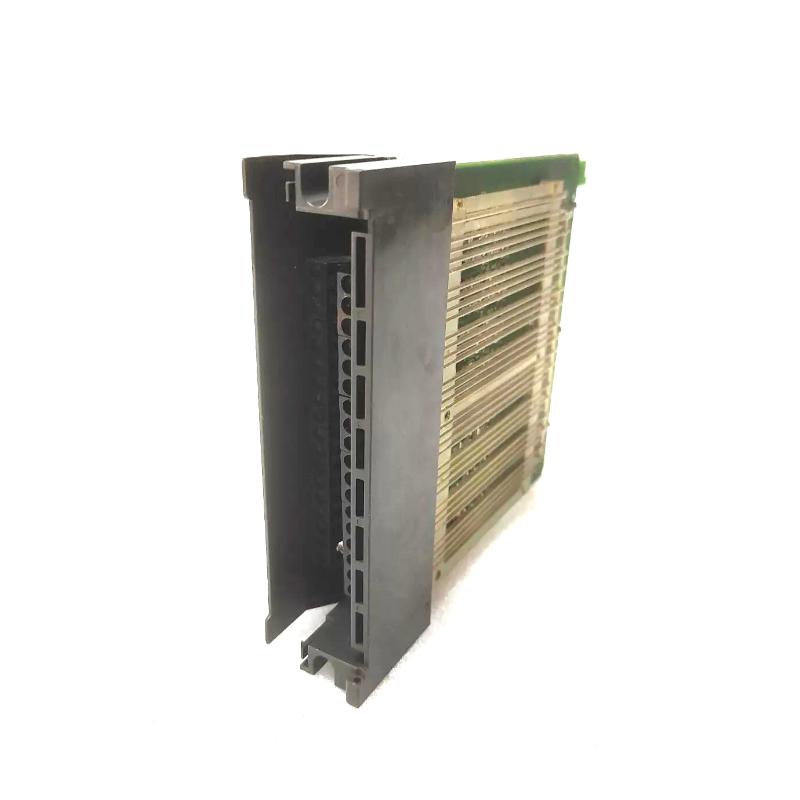

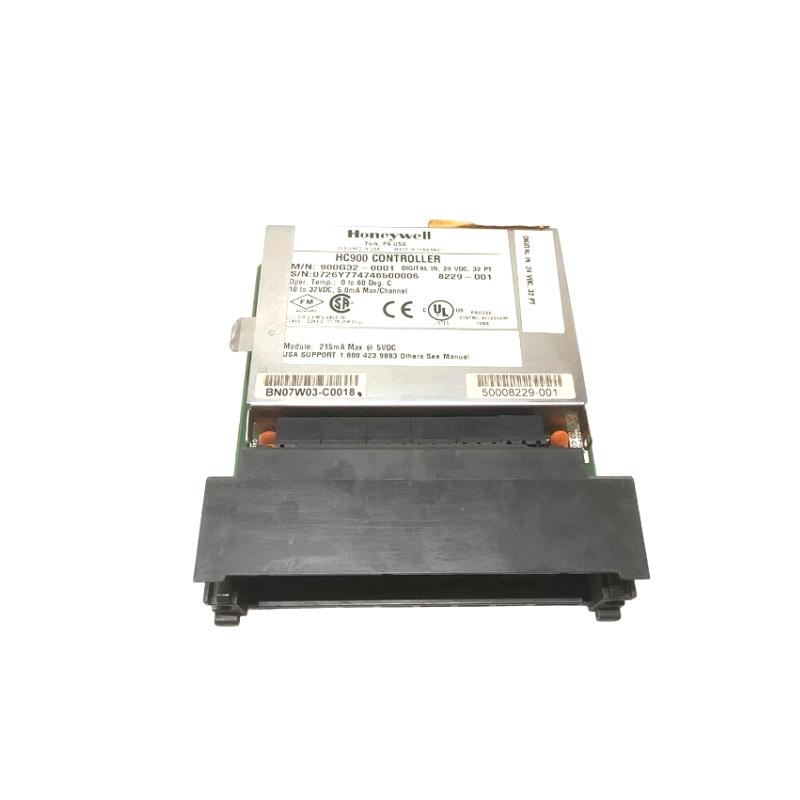

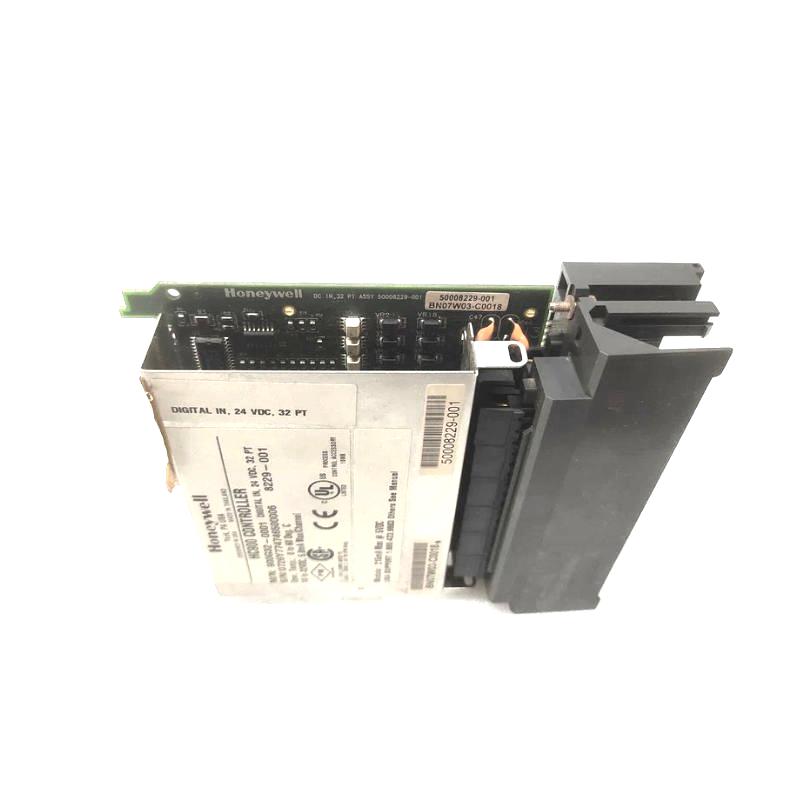

The Honeywell 900G32-0001 Digital Input Module is a high-density DC input solution designed for the ControlEdge HC900 / ControlEdge 900 platform, delivering reliable acquisition of discrete field signals in large-scale process automation systems.
Engineered for demanding industrial environments, this module is built to handle multiple 24VDC input signals with strong electrical isolation and high noise immunity. Its architecture supports stable data acquisition for critical process monitoring, making it a trusted choice for continuous and high-availability operations in modern automation plants.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 900G32-0001 |
| Platform | ControlEdge HC900 / 900 |
| Module Type | Digital Input Module (DC, High Density) |
| Input Channels | 32 (2 groups of 16) |
| Input Type | 24 VDC sinking inputs |
| Input Voltage Range | 10–32 VDC |
| Input Current | ~1.7 mA @ 12 VDC / ~3.5 mA @ 24 VDC |
| Input Impedance | ~6.9 kΩ nominal |
| Response Time | ≤ 5 ms |
| Isolation | Group-to-group galvanic isolation |
| Status Indicators | Per-channel LED + module diagnostics LEDs |
| Power Consumption | 5V backplane supply (~215 mA max) |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -55°C to 85°C |
| Dimensions (HxWxD) | Approx. 270 x 201 x 150 mm |
| Weight | Approx. 4.8 kg |
