Product Overview

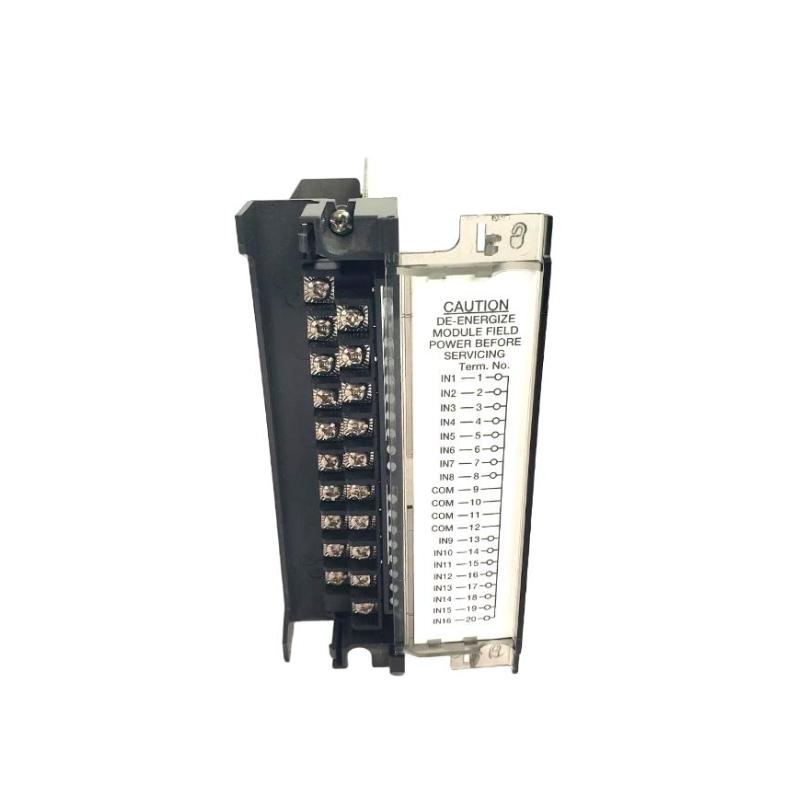

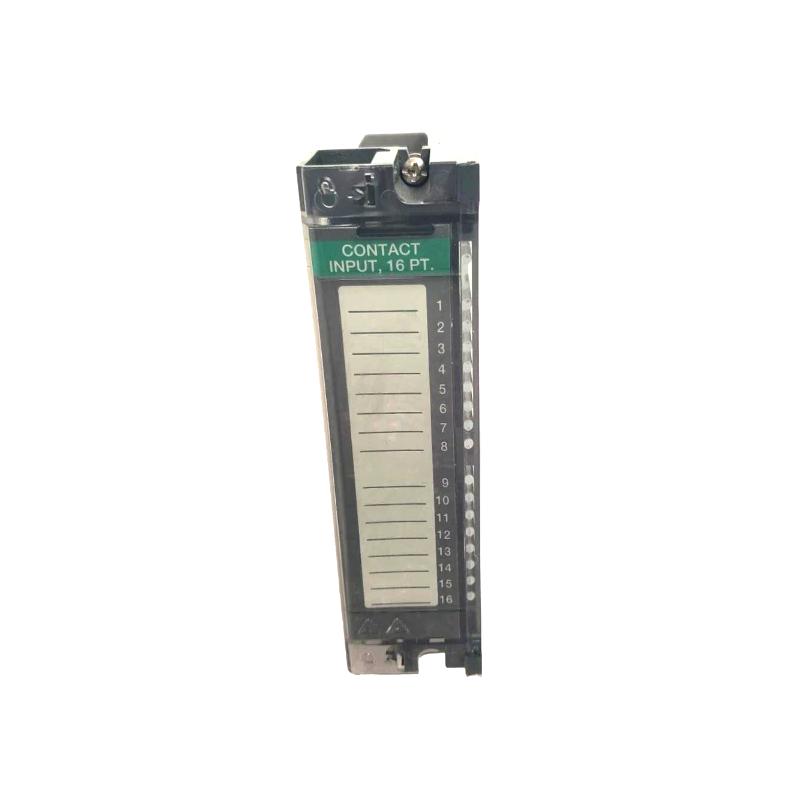

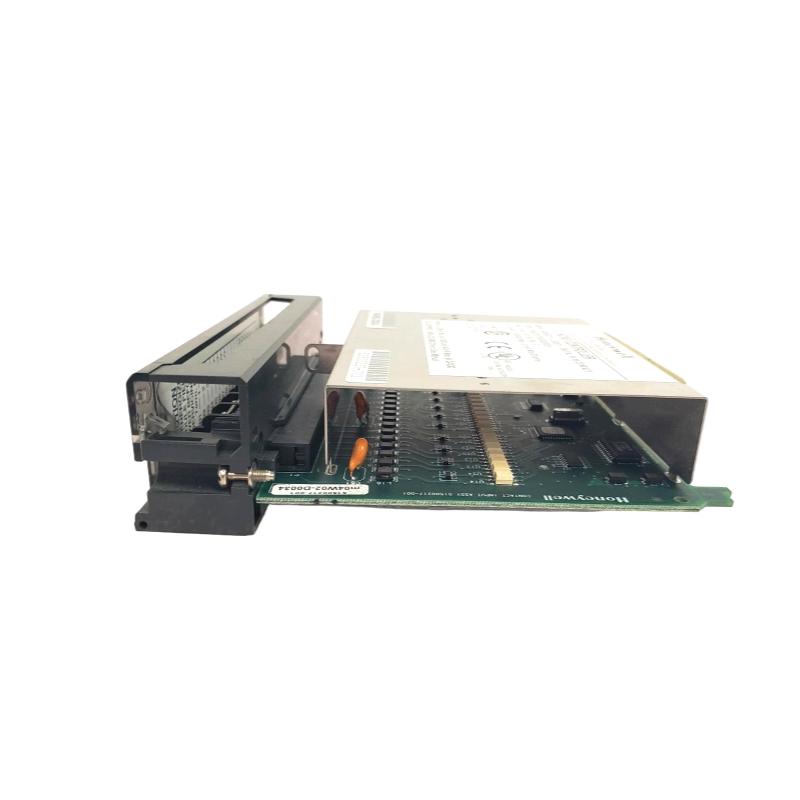

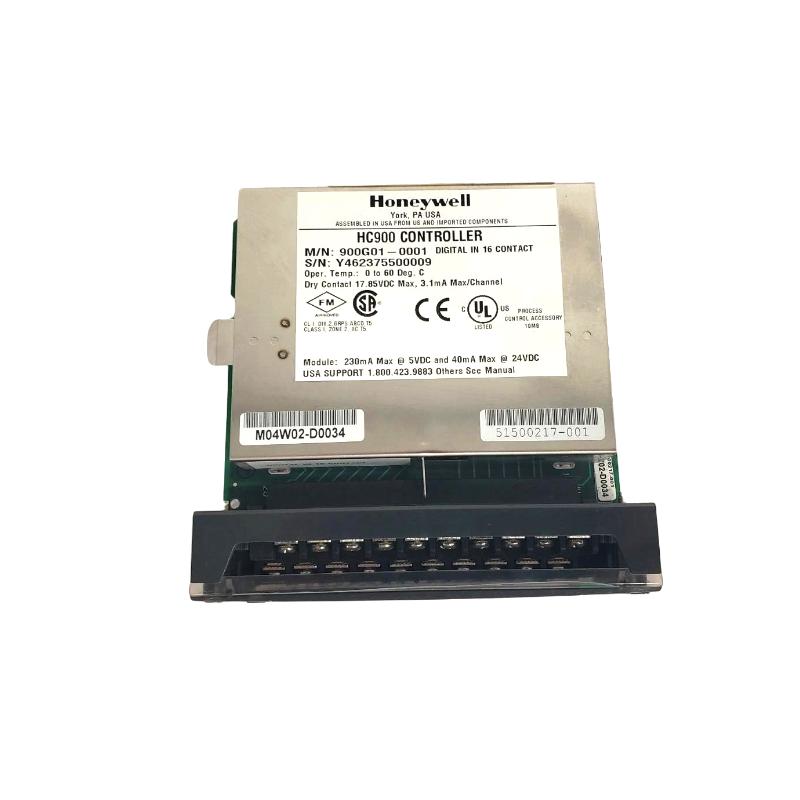

The Honeywell 900G01-0001 Digital Input Module is a core component of the ControlEdge HC900 platform, designed to deliver precise and reliable signal acquisition from field devices. Built for industrial environments where signal integrity and system stability are critical, this module enables seamless monitoring of discrete inputs such as switches, relays, and push buttons.
Engineered with isolation protection and fast response times, it ensures accurate data transmission to the controller, supporting real-time decision-making in complex process automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 900G01-0001 |
| Platform | ControlEdge HC900 |
| Module Type | Digital Input Module |
| Input Channels | 16 (Single-ended) |
| Input Type | Contact Closure |
| Input Voltage | 15 VDC (module supplied) |
| Switching Current | 2.6 mA nominal |
| Response Time | ON: ≤4 ms / OFF: ≤6 ms |
| Isolation | Galvanic Isolation |
| Status Indicators | LED per channel + module status LEDs |
| Power Consumption | 5V: 130 mA max / 24V: 40 mA max |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (HxWxD) | 140 x 38 x 140 mm |
| Weight | Approx. 0.30 kg |
