Design Insight & Introduction

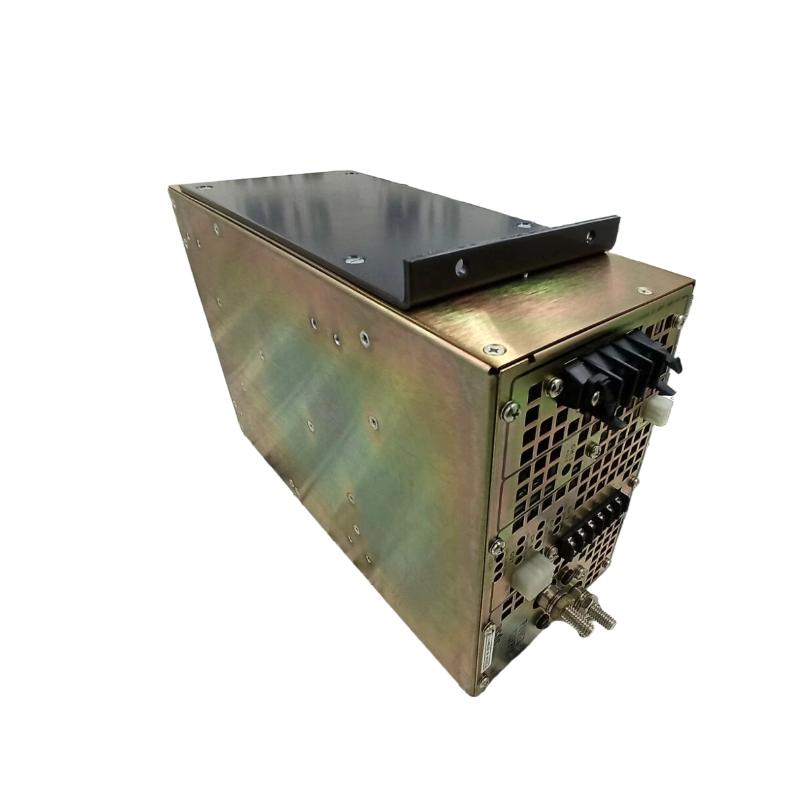

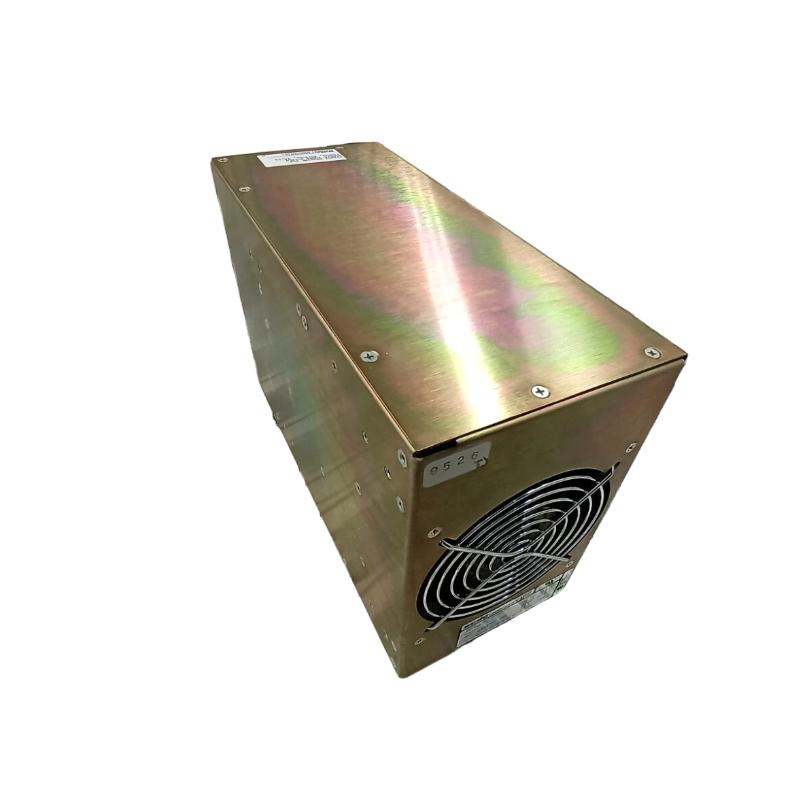

The ABB Bailey NPSM02 Power Module is a compact yet high-reliability power supply unit developed for ABB Bailey INFI 90 / Net 90 distributed control systems. It is specifically engineered to provide stable and conditioned electrical power to control modules within confined cabinet spaces where efficient layout and thermal balance are essential.
Unlike larger panel-mounted power units, the NPSM02 focuses on localized power delivery within modular rack assemblies. It ensures that processor modules, I/O cards, and communication interfaces receive consistent voltage supply, supporting uninterrupted control system performance in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB Bailey |
| Model | NPSM02 |
| Product Type | Power Module |
| System Compatibility | INFI 90 / Net 90 DCS |
| Function | Localized power supply and regulation |
| Input Type | Industrial power input (system dependent) |
| Output Type | Regulated DC output |
| Protection Features | Voltage stabilization and system protection |
| Mounting Type | Control rack / cabinet installation |
| Dimensions (H × W × D) | 135 × 50 × 200 mm |
| Weight | 7.14 kg (15.74 lb) |
| Operating Environment | Industrial / Power plants / Process industries |
| Cooling Method | Passive heat dissipation |
| Maintenance | Low maintenance, periodic inspection recommended |
Applications
The NPSM02 is typically deployed in distributed control cabinets across power generation plants, petrochemical facilities, and industrial processing systems where space optimization is required without compromising power reliability.
It is used to supply power to localized module groups within control racks, particularly in systems where multiple power zones are implemented for redundancy or load distribution. In turbine control panels and process automation systems, it supports stable operation of critical subsystems.
It is also commonly applied in system upgrades or cabinet redesigns where compact power modules are needed to fit into existing infrastructure.
Advantages
The NPSM02 offers a compact form factor while maintaining high power stability, making it ideal for dense cabinet configurations. Its design supports efficient heat dissipation, reducing thermal stress on surrounding components.
It provides reliable voltage regulation and helps protect sensitive control electronics from power fluctuations. The module integrates seamlessly into ABB Bailey systems, ensuring compatibility with existing control architectures.
Its smaller footprint allows flexible installation options, enabling engineers to optimize cabinet layout and improve overall system maintainability.
Technical FAQs
1. What is the main function of the NPSM02 module?
It provides regulated power supply to control system modules within ABB Bailey systems.
2. Which systems is it compatible with?
It is designed for ABB Bailey INFI 90 and Net 90 DCS architectures.
3. How does it differ from larger power modules?
It is more compact and suited for localized or distributed power supply within cabinets.
4. Can it operate continuously in industrial environments?
Yes, it is built for 24/7 industrial operation.
5. Does it support multiple modules?
Yes, it can supply power to several connected modules within its capacity.
6. Does it include protection features?
Yes, it provides voltage stabilization and protection against disturbances.
7. Is it suitable for high-density cabinet layouts?
Yes, its compact size makes it ideal for dense installations.
8. Is it used in modern PLC systems?
It is mainly used in legacy ABB Bailey systems.
9. What happens if the module fails?
Affected modules may lose power, potentially impacting system operation.
10. What is its key advantage?
Compact design combined with reliable power delivery.
