Introduction & Technical Overview

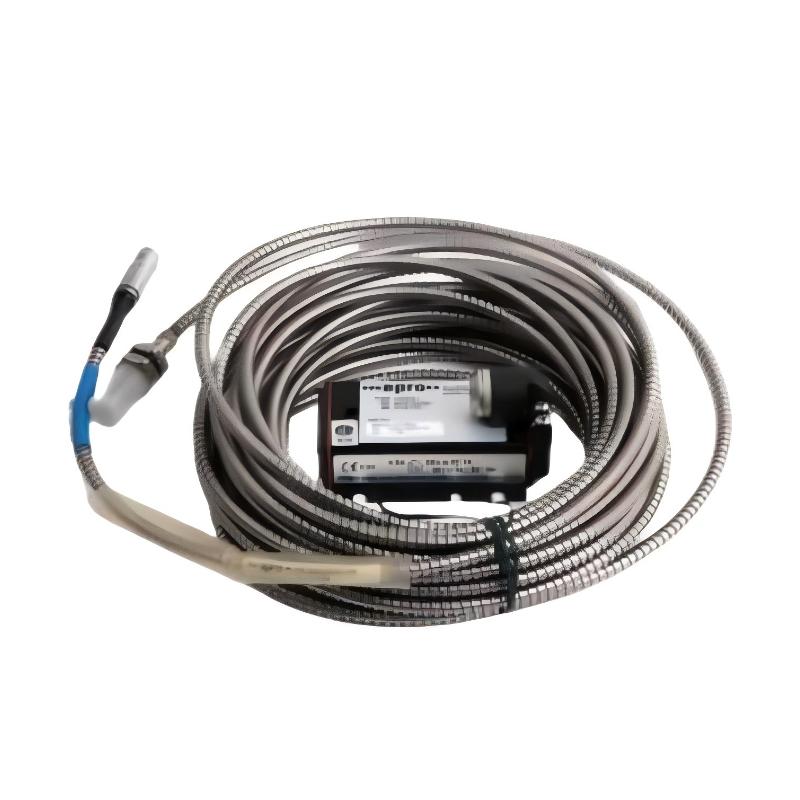

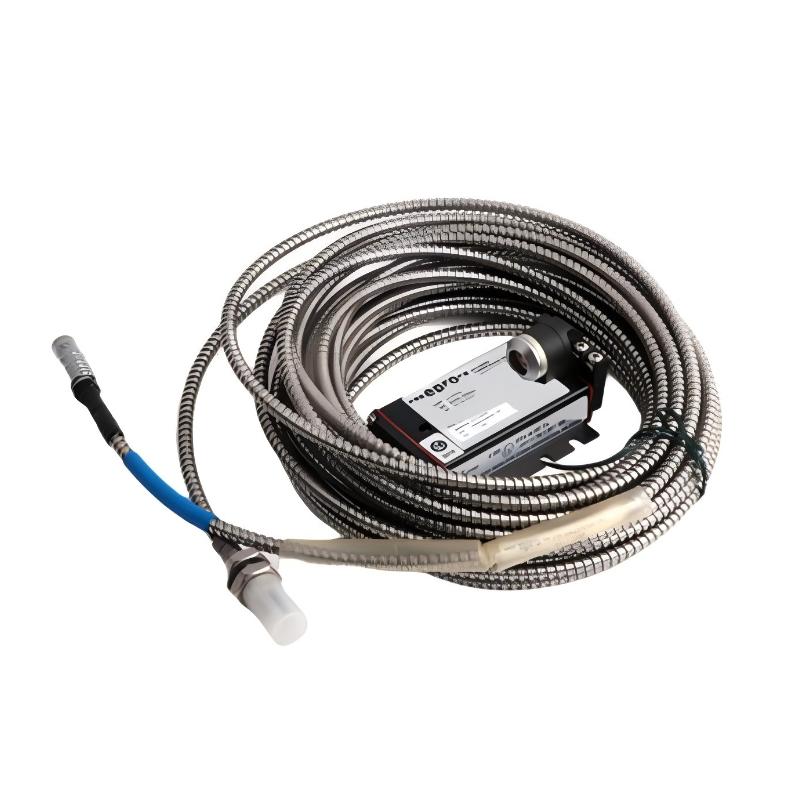

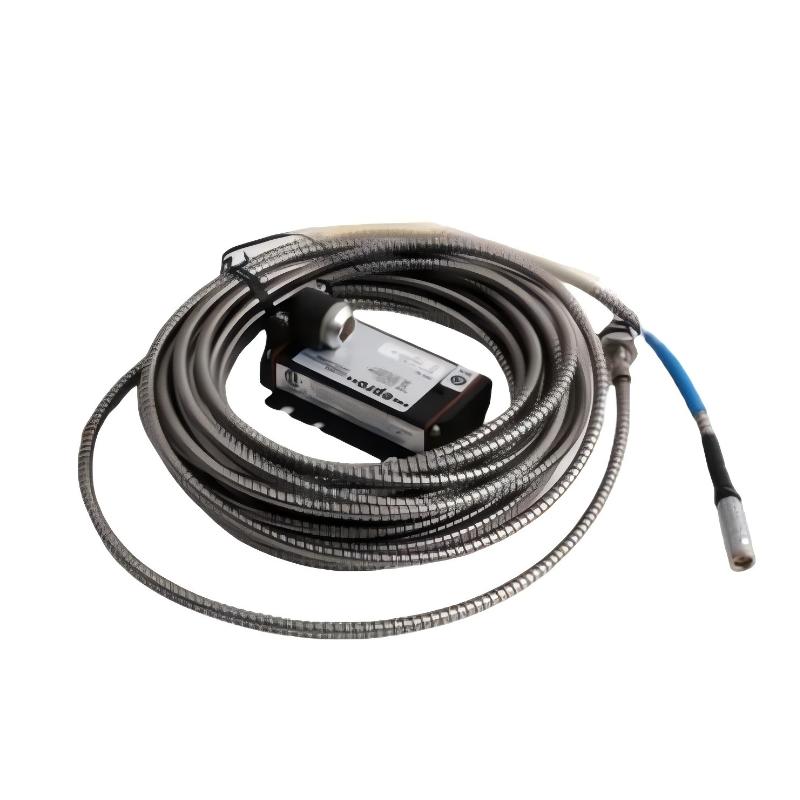

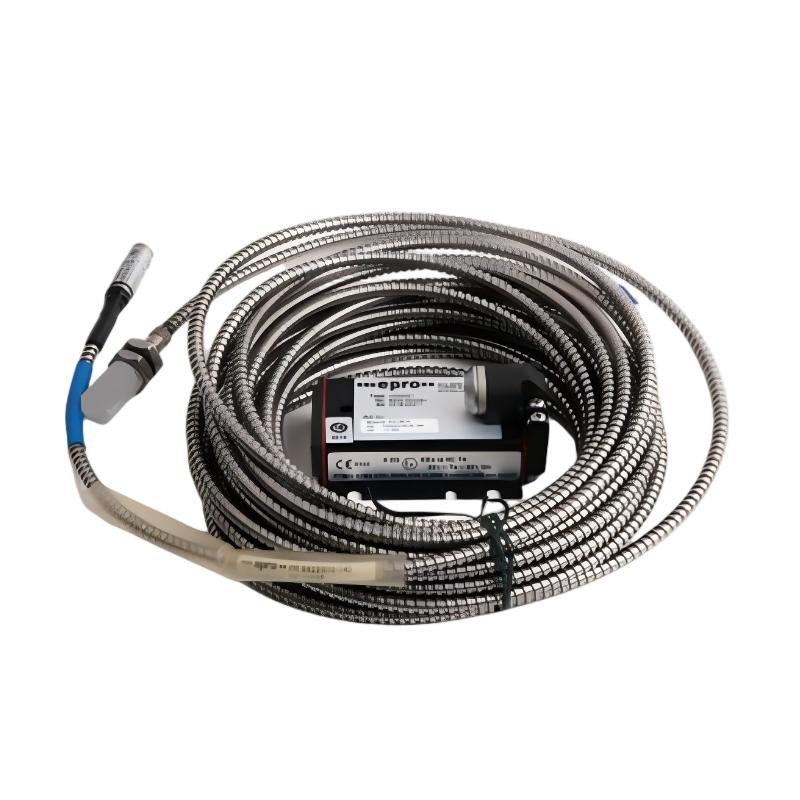

The Epro PR6423/003-130 combined with the CON021 signal conditioner is a high-precision eddy current proximity measurement system designed for continuous monitoring of rotating machinery. The probe performs non-contact displacement sensing, while the CON021 module converts and conditions the raw signal into a stable industrial output suitable for protection and monitoring systems.
This system is engineered for long-term deployment in critical rotating equipment where stable signal integrity, environmental resistance, and predictive maintenance capability are essential. It is widely used in high-speed turbomachinery and heavy industrial drive systems where even small deviations in rotor behavior must be detected early.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Epro |
| Model | PR6423/003-130 + CON021 |
| Sensor Type | Eddy Current Displacement System |
| Measurement Principle | Non-contact eddy current |
| Sensor Head Diameter | 8 mm |
| System Components | Probe + Signal Conditioner |
| Output Type | Conditioned analog signal (via CON021) |
| Measured Parameters | Vibration, displacement, eccentricity, axial position |
| Operating Temperature | -35°C to 180°C |
| Application | Rotating machinery monitoring |
| Mounting Type | Proximity probe system |
| Dimensions | Probe-dependent configuration |
| Weight | 0.22 kg (0.49 lb) |
Applications
The system is typically used in turbine monitoring, compressor vibration analysis, pump shaft displacement tracking, and generator rotor condition monitoring. It plays a key role in both protection systems and predictive maintenance architectures.
In power generation plants, it continuously monitors rotor dynamics to detect imbalance, misalignment, or developing mechanical faults. In oil and gas facilities, it is integrated into compressor train monitoring systems to ensure operational stability under high load conditions. It is also used in industrial plants requiring high-availability rotating equipment monitoring with minimal downtime tolerance.
Advantages
The PR6423 probe combined with the CON021 conditioner provides high measurement accuracy and long-term signal stability. The eddy current principle ensures that measurements are unaffected by oil, dust, humidity, or other non-conductive contaminants commonly found in industrial environments.
The separation between probe and signal conditioning unit improves system flexibility and simplifies maintenance. Individual components can be replaced without requiring full system recalibration, reducing downtime and operational cost.
The system also supports high-frequency dynamic measurement, making it suitable for both steady-state monitoring and transient event detection in rotating machinery.
Technical FAQs
1. What is the function of CON021 in this system?
It conditions the raw probe signal into a standardized output for monitoring systems.
2. Can the probe operate without CON021?
No, the probe requires the CON021 module for proper signal conversion.
3. What machinery is this system typically used on?
It is used on turbines, compressors, pumps, and generators.
4. Does it require contact with the shaft?
No, it is a non-contact eddy current measurement system.
5. What parameters does it measure?
It measures vibration, displacement, eccentricity, and axial position.
6. Is it resistant to oil contamination?
Yes, non-conductive contaminants such as oil do not affect performance.
7. Can it be used in high-temperature environments?
Yes, it is designed for industrial high-temperature applications.
8. Does it support continuous operation?
Yes, it is designed for 24/7 monitoring.
9. Is calibration required after installation?
Yes, proper probe gap calibration is necessary.
10. Is it suitable for predictive maintenance systems?
Yes, it is widely used in predictive maintenance and condition monitoring.
