Introduction

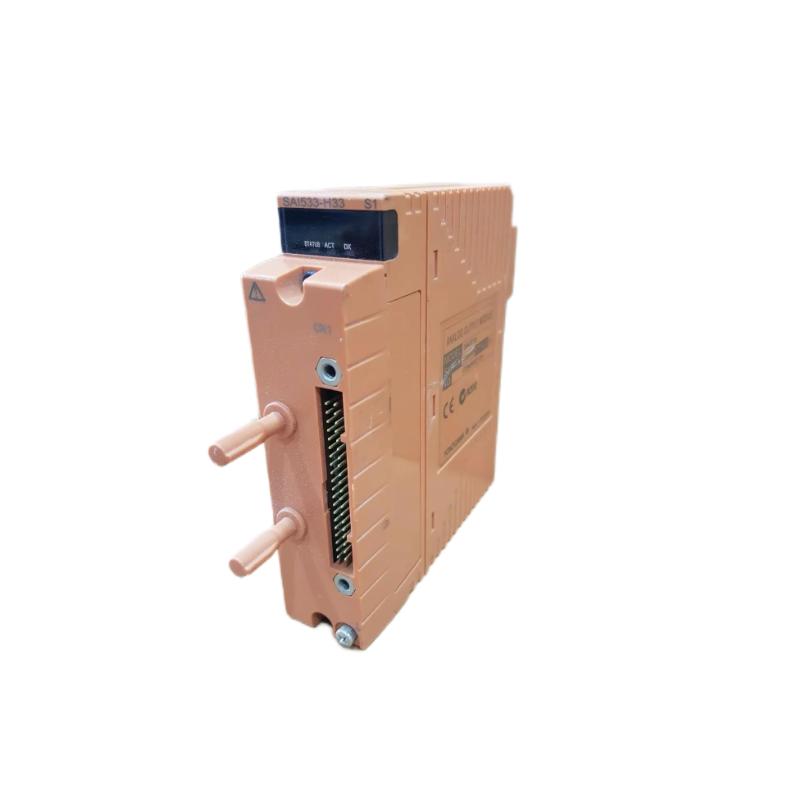

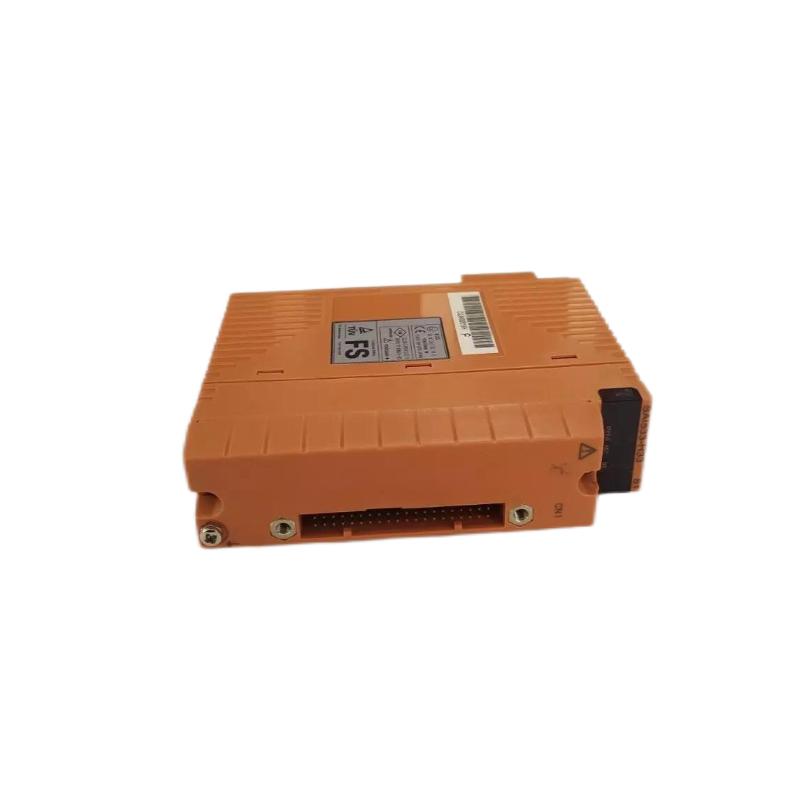

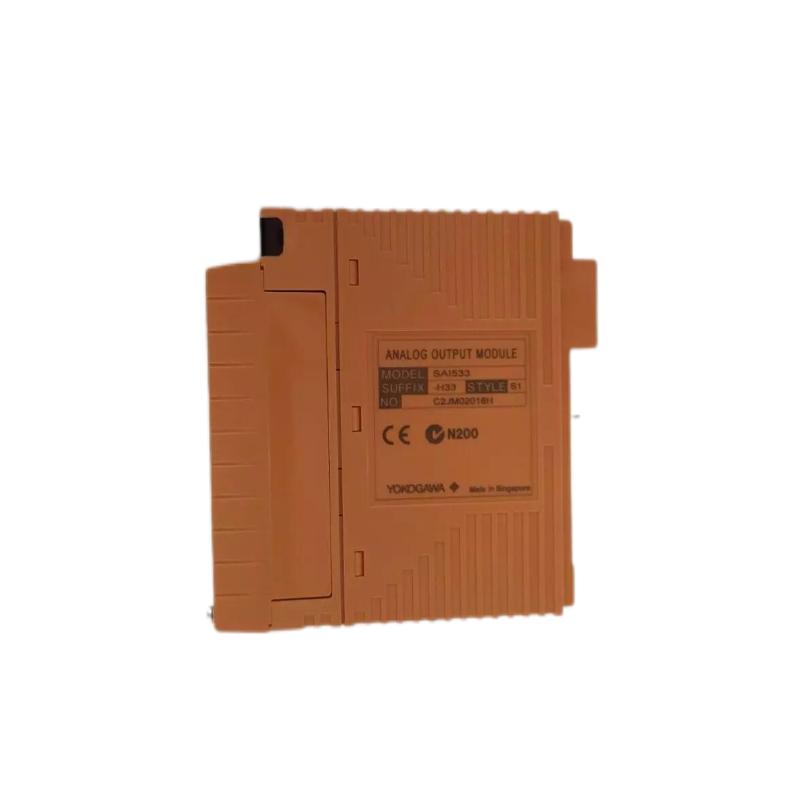

The Yokogawa SAI533-H33 Analog Output Module is a high-reliability, industrial-grade current output module designed for precise 4–20 mA signal control in distributed control systems (DCS) and Safety Instrumented Systems (SIS). It is engineered to drive final control elements such as valves, actuators, and regulators with stable and accurate analog signals, ensuring consistent process performance in demanding industrial environments.
Known for its robustness and modular flexibility, this module is widely adopted in oil & gas, petrochemical, and power generation applications where signal integrity and operational continuity are critical.
Technical Specifications & Physical Data
| Parameter | Details |
|---|
| Manufacturer | Yokogawa |
| Model Number | SAI533-H33 |
| Module Type | Analog Output Module |
| Output Channels | 8 channels (isolated) |
| Output Signal | 4–20 mA DC |
| Output Range | 1.25–23 mA usable range |
| Accuracy | ±48 µA |
| Resolution | 16-bit equivalent |
| Data Update Rate | 40 ms |
| Load Resistance | 230–600 Ω |
| Isolation | Channel-to-system isolation |
| Withstand Voltage | 1.5 kV AC |
| Power Consumption | ~320 mA @ 5V / ~300 mA @ 24V |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Weight | approx. 0.26–0.33 kg |
| Mounting | Rack-based I/O system (ProSafe-RS / FIO architecture) |
Industrial Applications
The SAI533-H33 is used in precision control environments where stable analog output signals are required:
-
Oil and gas production and refining systems
-
Petrochemical and chemical processing plants
-
Power generation and turbine control systems
-
Safety Instrumented Systems (SIS)
-
Large-scale Distributed Control Systems (DCS)
It is typically used to control final elements such as control valves, dampers, and flow regulators, ensuring smooth and accurate process adjustments.
Technical FAQs
1. What type of signal does the SAI533-H33 output?
It outputs standard 4–20 mA analog current signals for industrial control devices.
2. How many output channels does it have?
It provides 8 isolated analog output channels.
3. What is the accuracy of this module?
Approximately ±48 µA depending on operating conditions.
4. What is the output update speed?
Around 40 milliseconds per cycle.
5. What load resistance is supported?
Typically 230–600 Ω under rated conditions.
6. Is it suitable for safety systems?
Yes, it is widely used in SIS and DCS environments.
7. Does it support channel isolation?
Yes, each channel is electrically isolated for stable operation.
8. What industries commonly use it?
Oil & gas, petrochemical, power generation, and process automation industries.
9. What is the output range flexibility?
Extended output range is typically 1.25–23 mA for diagnostic and control purposes.
10. Is it still in production?
It is part of a widely used SAI533 series and may be replaced by newer variants depending on system design.
