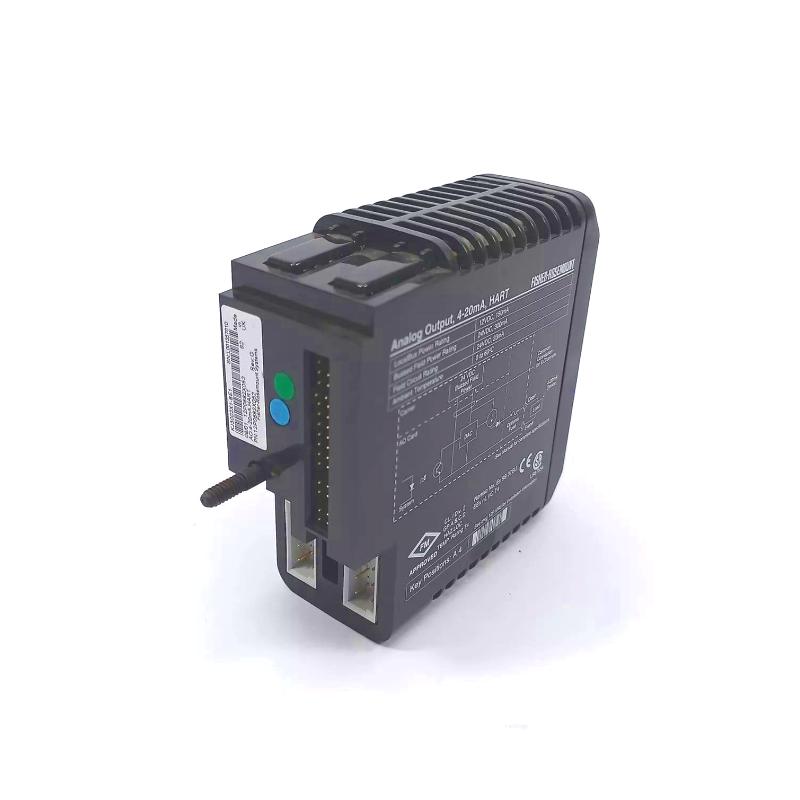

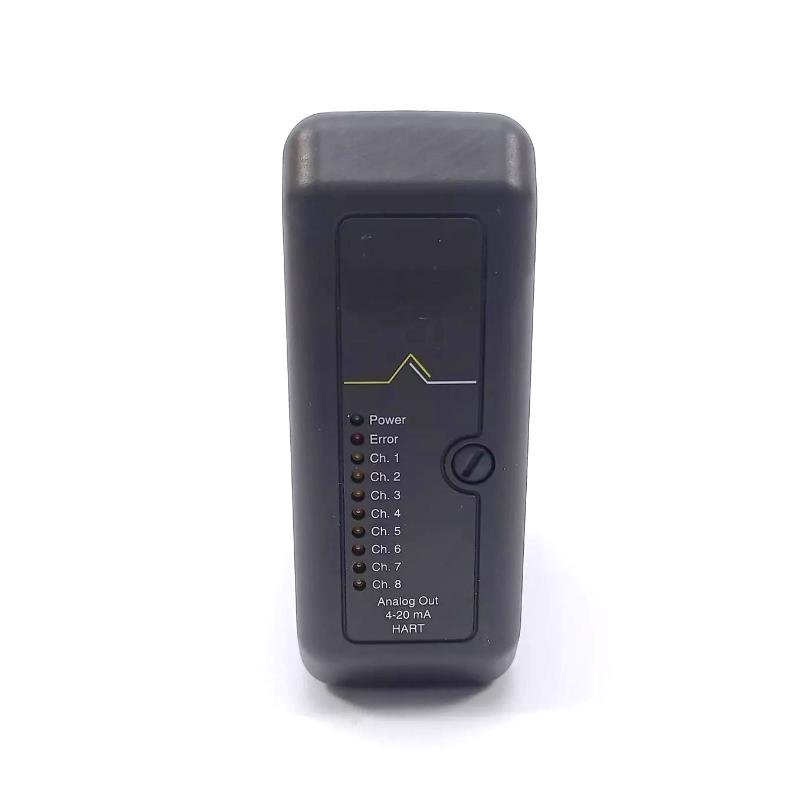

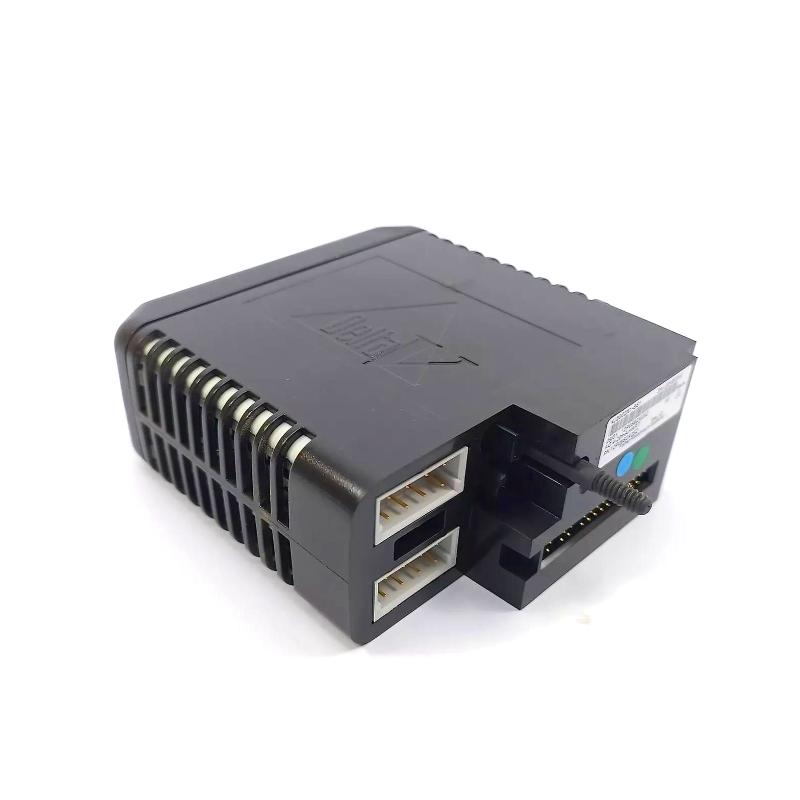

Emerson KJ3002X1-BE1 Analog Output Module

Brand:Emerson Module
Item No.:KJ3002X1-BE1
Product Origin:USA
Product Dimensions:200 x 120 x 60 mm
Product Weight:0.65 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Introduction

The Emerson KJ3002X1-BE1 Analog Output Module is designed to deliver precise and stable analog control signals within distributed automation systems. It plays a critical role in translating control logic into real-world process adjustments, ensuring that industrial operations run smoothly and efficiently.

Its engineering focus is on accuracy, reliability, and electrical robustness, making it a key component in modern process control environments where continuous modulation and precise actuator control are required.

Technical Specifications

ParameterDetails
ModelKJ3002X1-BE1
Module TypeAnalog Output Module
Output Type4–20 mA DC
Channel Count8 channels
System RoleProcess Control Output
CommunicationHART compatible (optional)
Accuracy±0.1% to ±0.15% of span
Load ResistanceUp to ~600 Ω (typical)
Power Supply24 VDC system power
Operating Temperature0°C to 60°C
Storage Temperature-40°C to 85°C
Dimensions200 × 120 × 60 mm
Weight0.65 kg (1.43 lb)


Industrial Application Context

The Emerson KJ3002X1-BE1 Analog Output Module is a core control interface component used in Emerson DeltaV distributed control systems (DCS). It is widely deployed in process industries such as oil & gas, petrochemical refining, power generation, and chemical processing, where precise analog control of field devices is required.

In real-world applications, this module converts digital control signals from the controller into standard analog current outputs (typically 4–20 mA). These outputs are used to regulate process actuators such as control valves, variable speed drives, dampers, and dosing systems. By delivering stable and accurate analog signals, it ensures smooth process modulation and precise closed-loop control.

The module is typically used in high-reliability control loops where signal stability, accuracy, and isolation are critical for process safety and performance.


Advantages

  • High-Precision Analog Control:
    Provides accurate 4–20 mA outputs for stable process regulation.
  • Multi-Channel Architecture:
    Supports multiple output channels for efficient control of multiple field devices.
  • Electrical Isolation Design:
    Protects control electronics from field-side noise and disturbances.
  • High System Stability:
    Ensures consistent analog signal output for tight process control.
  • Seamless DeltaV Integration:
    Fully compatible with Emerson DeltaV I/O carriers and system architecture.
  • Industrial Reliability:
    Designed for continuous operation in harsh environments with vibration and EMI resistance.


Technical FAQs

  1. What is the main function of the KJ3002X1-BE1?
    It generates analog output signals for controlling field devices.
  2. What type of output does it provide?
    Standard 4–20 mA analog current signals.
  3. How many channels does it support?
    Typically 8 output channels in DeltaV configurations.
  4. What devices does it control?
    Control valves, actuators, VFDs, and process instruments.
  5. Is the module isolated?
    Yes, it includes channel and system-level electrical isolation.
  6. Does it support HART communication?
    Yes, many configurations support HART-enabled analog outputs.
  7. What is its accuracy level?
    High-precision output, typically around ±0.1%–0.15% of span.
  8. Does it require calibration?
    No field calibration is required; it is factory calibrated.
  9. Is it suitable for safety systems?
    It can be used in both DCS and safety-related architectures depending on design.
  10. What happens if a channel fails?
    The affected output channel becomes unavailable and may require module replacement.
