Introduction

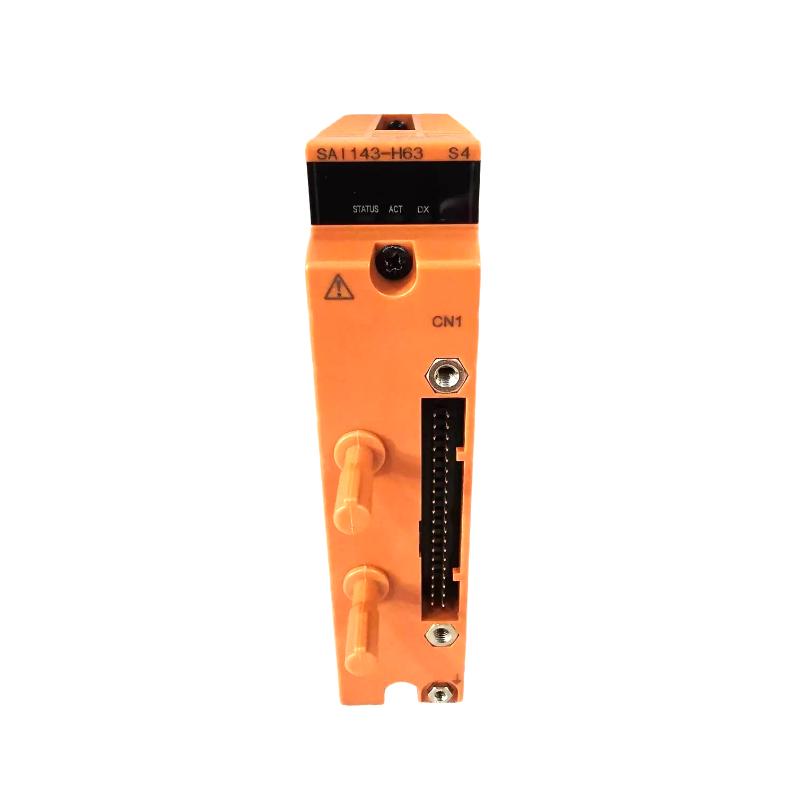

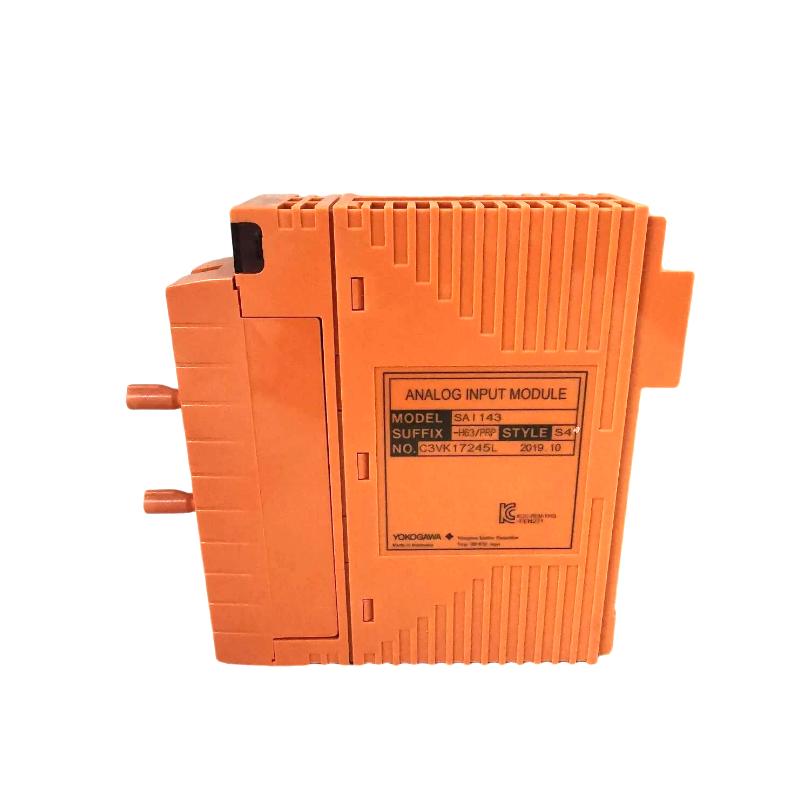

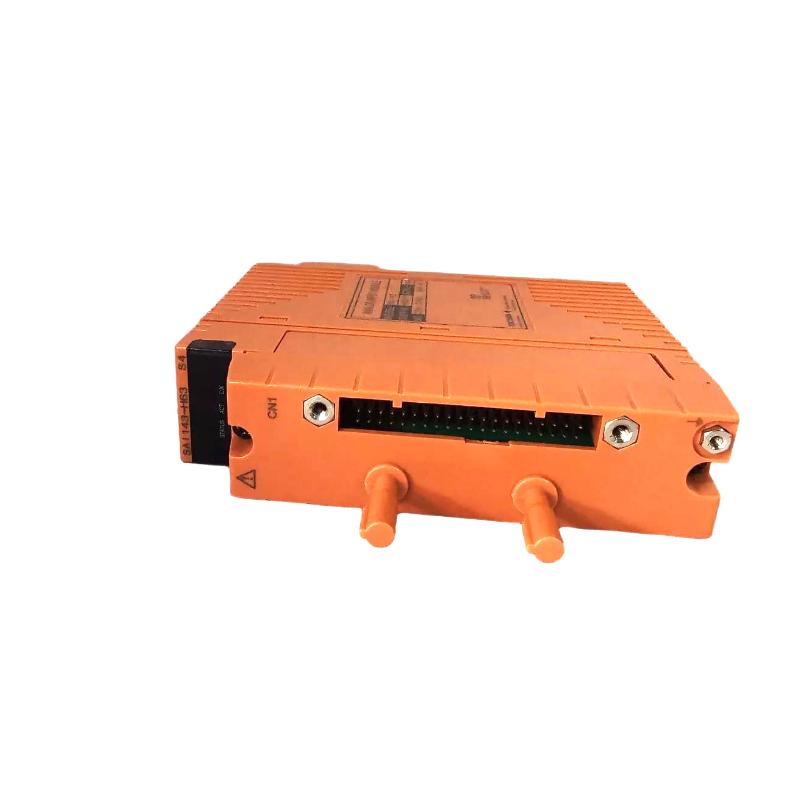

The Yokogawa SAI143-H63 S4 Analog Input Module is a high-reliability industrial I/O component designed for Safety Instrumented Systems (SIS) and advanced process control platforms. Built to deliver accurate and stable 4–20 mA signal acquisition, it ensures dependable performance in mission-critical environments such as oil & gas, petrochemical, and power generation facilities.
The S4 configuration emphasizes robust construction, enhanced isolation, and consistent long-term operation, making it suitable for high-availability automation architectures where precision and uptime are essential.
Technical Specifications & Physical Data
| Parameter | Details |
|---|
| Manufacturer | Yokogawa |
| Model Number | SAI143-H63 S4 |
| Module Type | Analog Input Module |
| Input Channels | 16 channels (isolated) |
| Input Signal | 4–20 mA DC |
| Permissible Input Range | 0–25 mA |
| Accuracy | ±16 µA |
| Resolution | 16-bit equivalent |
| Data Update Rate | 40 ms |
| Communication | HART protocol |
| Isolation | Channel-to-system isolation |
| Withstand Voltage | 1.5 kV AC |
| Input Impedance | 250 Ω (powered) / ≥500 kΩ (unpowered) |
| Power Consumption | ~320 mA @ 5V / ~550 mA @ 24V |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (HxWxD) | approx. 12.7 × 22.9 × 17.8 cm |
| Weight | approx. 0.30–0.39 kg |
| Mounting | Rack-based control system |
Industrial Applications
The SAI143-H63 S4 module is widely used in industrial automation systems requiring high signal integrity and reliability:
-
Oil & gas production and refining systems
-
Petrochemical and chemical processing plants
-
Power generation and turbine control systems
-
Safety Instrumented Systems (SIS)
-
Distributed Control Systems (DCS) for large-scale plants
Its 16-channel isolated design allows efficient consolidation of multiple field signals such as pressure, temperature, flow, and level transmitters, improving system efficiency and reducing wiring complexity.
Technical FAQs
1. What does the S4 suffix mean?
It typically represents a specific configuration variant of the SAI143-H63 series used in safety-oriented control systems.
2. How many input channels does it support?
It supports 16 isolated analog input channels.
3. What signal type is supported?
Standard 4–20 mA DC current signals used in industrial instrumentation.
4. Does it support HART communication?
Yes, it supports HART for device-level diagnostics and communication.
5. What is the data update rate?
Approximately 40 milliseconds per scan cycle.
6. Is the module suitable for safety systems?
Yes, it is commonly deployed in Safety Instrumented Systems (SIS).
7. What is the input range tolerance?
0–25 mA permissible input range.
8. What is the accuracy level?
Typically ±16 µA depending on operating conditions.
9. Does it support electrical isolation?
Yes, each channel is electrically isolated to ensure signal integrity.
10. What industries use this module most?
Oil & gas, petrochemical, power generation, and heavy process industries.
