Introduction

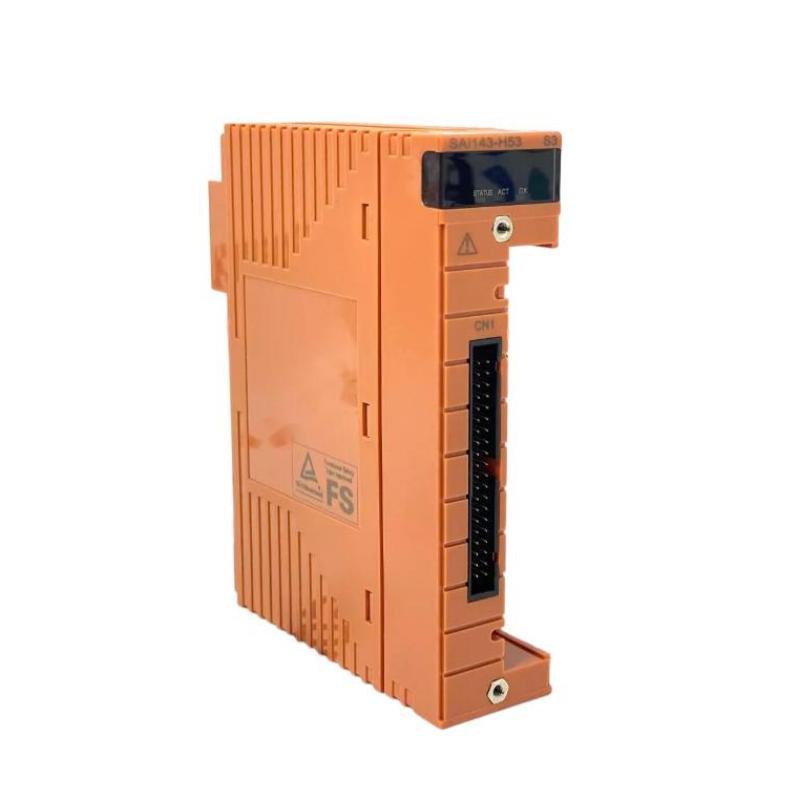

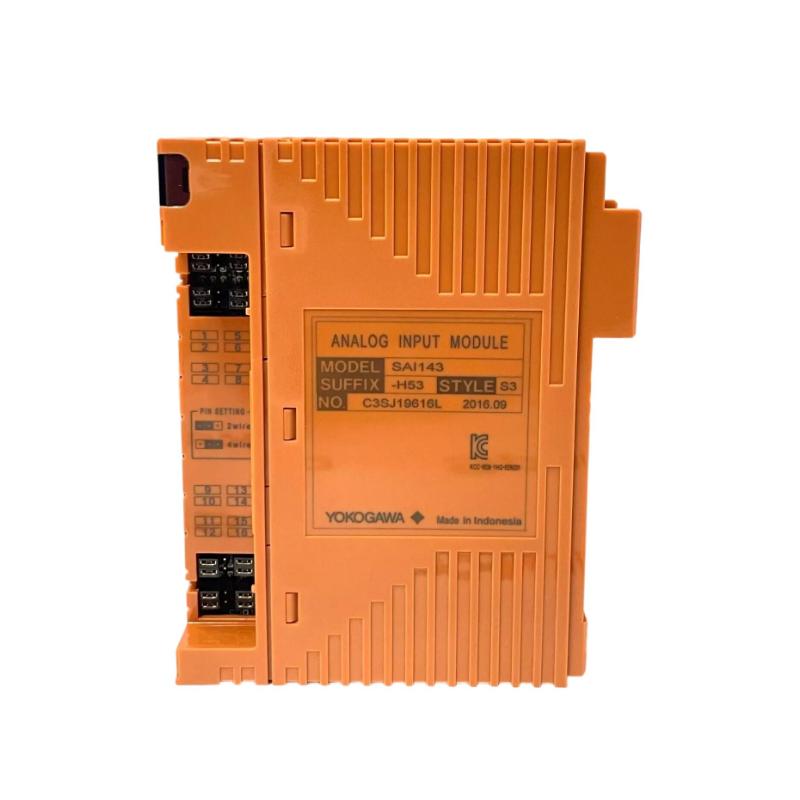

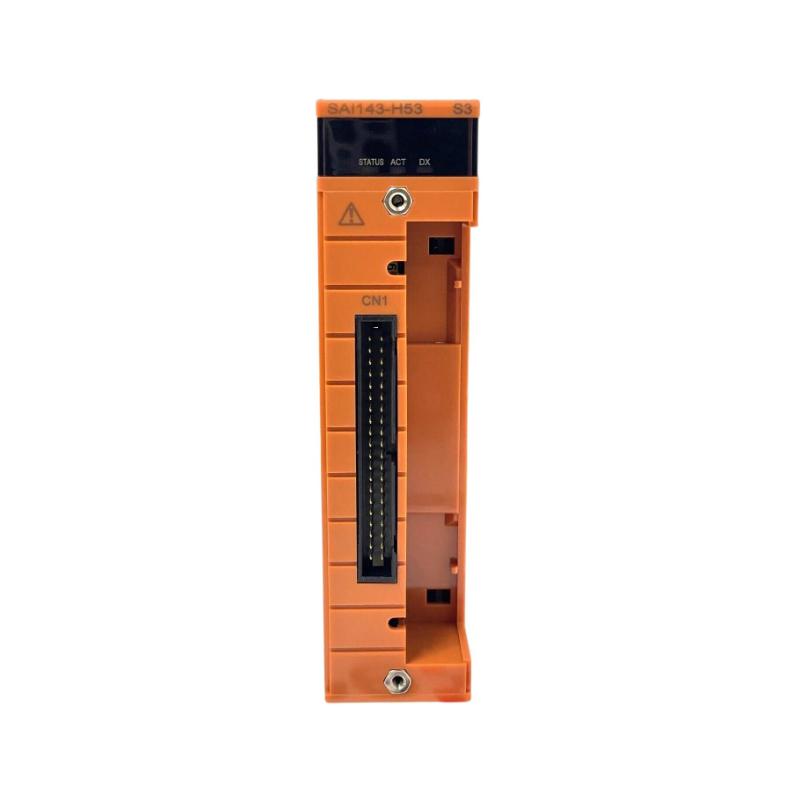

The Yokogawa SAI143-H53 S3 Analog Input Module is a high-integrity industrial signal acquisition module designed for Safety Instrumented Systems (SIS) and advanced process automation. Engineered for reliability and precision, it delivers stable 4–20 mA signal processing with enhanced diagnostics and robust environmental resistance.
This S3 configuration is optimized for long-term operational stability, making it a dependable choice for critical industrial infrastructures where continuous monitoring and system safety are essential.
Technical Specifications & Physical Data
| Parameter | Details |
|---|
| Manufacturer | Yokogawa |
| Model Number | SAI143-H53 S3 |
| Module Type | Analog Input Module |
| Input Channels | 16 channels (isolated) |
| Input Signal | 4–20 mA DC |
| Permissible Input Range | 0–25 mA |
| Accuracy | ±16 µA |
| Resolution | 16-bit equivalent |
| Data Update Rate | 40 ms |
| Communication | HART protocol |
| Isolation | Channel-to-system isolation |
| Withstand Voltage | 1.5 kV AC |
| Input Impedance | 250 Ω (typical operating condition) |
| Power Consumption | ~320 mA @ 5V / 550 mA @ 24V |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (HxWxD) | approx. 10.5 × 13.6 × 1.9 cm |
| Weight | approx. 0.2 – 0.34 kg |
| Mounting | Rack-mounted I/O system |
| Configuration | S3 enhanced stability revision |
Industrial Applications
The SAI143-H53 S3 is widely used in high-reliability automation environments where precise analog monitoring is essential:
-
Oil and gas processing and refining plants
-
Petrochemical and chemical production facilities
-
Power generation and turbine control systems
-
Safety Instrumented Systems (SIS)
-
Large-scale distributed control systems (DCS)
Its 16-channel isolated architecture enables efficient consolidation of multiple field signals such as pressure, temperature, flow, and level transmitters.
Technical FAQs
1. What does the S3 suffix mean?
It refers to an enhanced revision optimized for stability and long-term industrial operation.
2. How many input channels are available?
The module provides 16 isolated analog input channels.
3. What type of signal does it support?
It supports standard 4–20 mA current loop signals.
4. Does it support HART communication?
Yes, it supports HART for diagnostics and configuration of field devices.
5. What is the data refresh rate?
Approximately 40 milliseconds per cycle.
6. Is it suitable for safety systems?
Yes, it is widely used in Safety Instrumented Systems (SIS).
7. What is the input range tolerance?
0–25 mA permissible input range.
8. Does it support channel isolation?
Yes, each channel is isolated for signal integrity.
9. What industries commonly use it?
Oil & gas, petrochemical, power generation, and heavy process industries.
10. Can it operate in harsh environments?
Yes, it is designed for industrial-grade temperature and electrical conditions.
