Product Overview

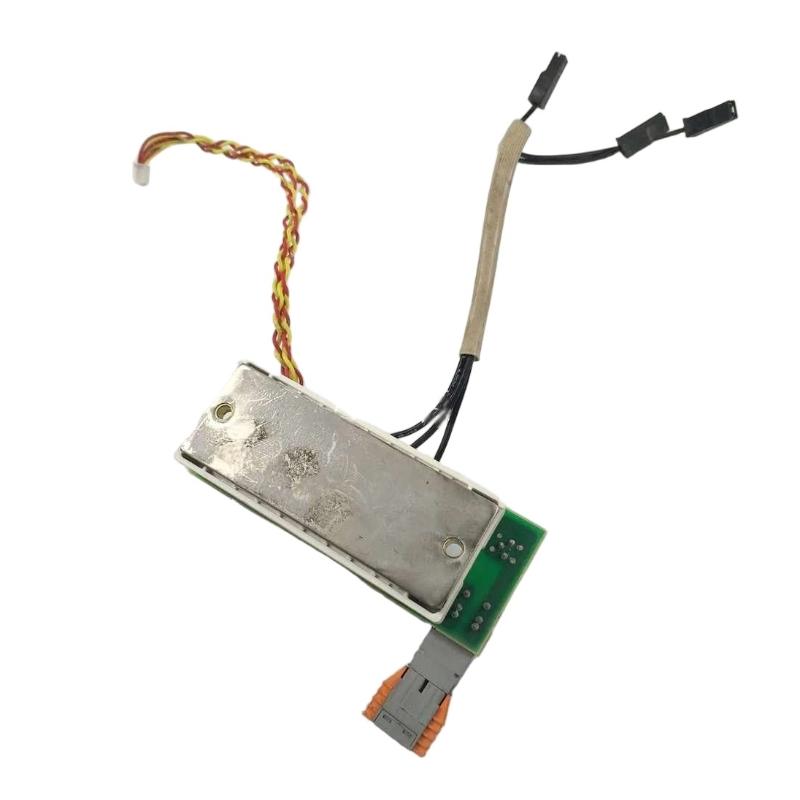

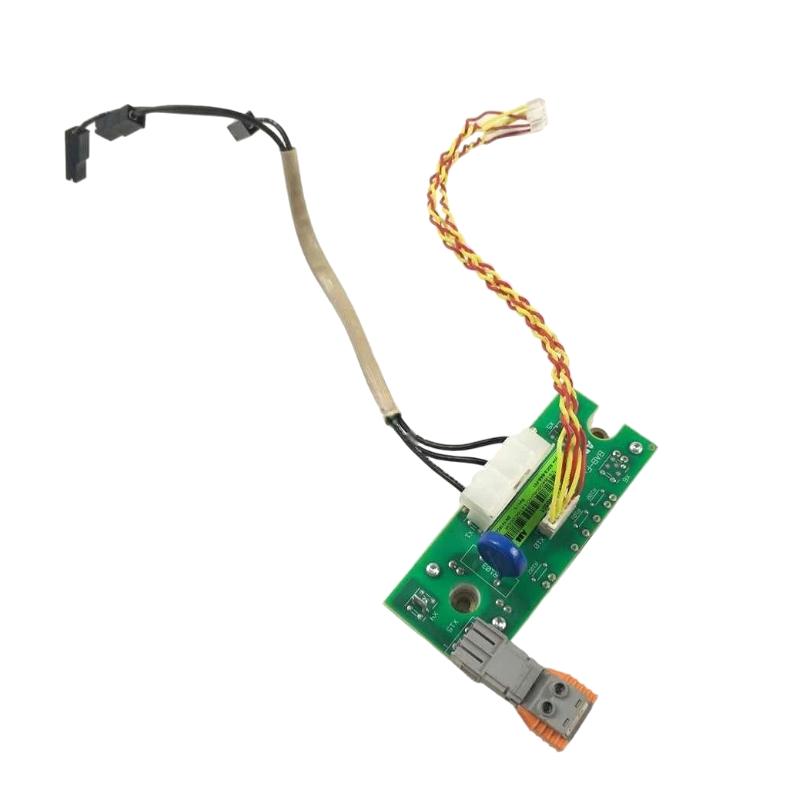

The ABB SDCS-BAB-F01 3ADT316400R0501 is a bridge adapter board designed for ABB DCS550 and related DC drive systems. It plays a key role in linking the power section and control electronics, ensuring stable signal adaptation and coordinated operation within the drive architecture.
This module is widely used in ABB industrial DC drive platforms where reliable interface handling between converter stages is required. Its design supports efficient power/control synchronization, making it a critical component in maintaining smooth motor control performance in heavy-duty applications.
Technical Specifications
| Parameter | Details |
|---|
| Model | SDCS-BAB-F01 |
| Part Number | 3ADT316400R0501 |
| Module Type | Bridge Adapter Board |
| System Compatibility | ABB DCS550 / DC Drive Systems |
| Function | Power-control interface bridging |
| Communication Interface | Internal drive bus / system link |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Mounting Type | Plug-in module |
| Dimensions | Approx. 170 × 110 × 100 mm |
| Weight | Approx. 2.5 kg (typical industrial module) |
Industrial Applications
The SDCS-BAB-F01 bridge adapter board is used in high-power industrial drive systems requiring precise coordination between control and power stages. Typical applications include:
-
Steel rolling mills and metal processing lines
-
Mining conveyor and heavy machinery drives
-
Paper and pulp production systems
-
Industrial DC motor control systems
-
ABB DCS550 drive cabinets
-
Retrofit and maintenance of legacy ABB drive installations
Its stable interface function ensures smooth energy transfer and control synchronization in demanding environments.
Key Advantages
The ABB SDCS-BAB-F01 is engineered to improve system stability by ensuring reliable communication and coordination between drive power modules and control boards. This reduces signal mismatch and enhances overall drive performance.
Its robust industrial design allows it to operate in high-vibration and electrically noisy environments, which are common in heavy industry. This improves system uptime and reduces maintenance interventions.
Another key advantage is its strong compatibility with ABB DCS550 systems, making it a practical replacement or spare part for maintaining installed drive bases without requiring major system redesign.
Technical FAQs
-
What is the main function of SDCS-BAB-F01?
It acts as a bridge adapter between power and control sections in ABB DC drives.
-
Which systems use this module?
ABB DCS550 DC drive systems and related platforms.
-
Is it a control board or power board?
It is an interface (bridge adapter) board.
-
What is its role in the system?
It ensures proper signal and control coordination between drive components.
-
What is its operating temperature range?
Typically -20°C to +60°C.
-
Is it suitable for industrial environments?
Yes, it is designed for heavy industrial applications.
-
Can it be used in retrofit projects?
Yes, it is commonly used for legacy ABB system maintenance.
-
What industries use it most?
Steel, mining, pulp & paper, and manufacturing industries.
-
Does it handle communication protocols?
It uses internal ABB drive system communication architecture.
-
What is its main advantage?
Stable and reliable bridging between control and power sections in DC drives.
