Product Overview

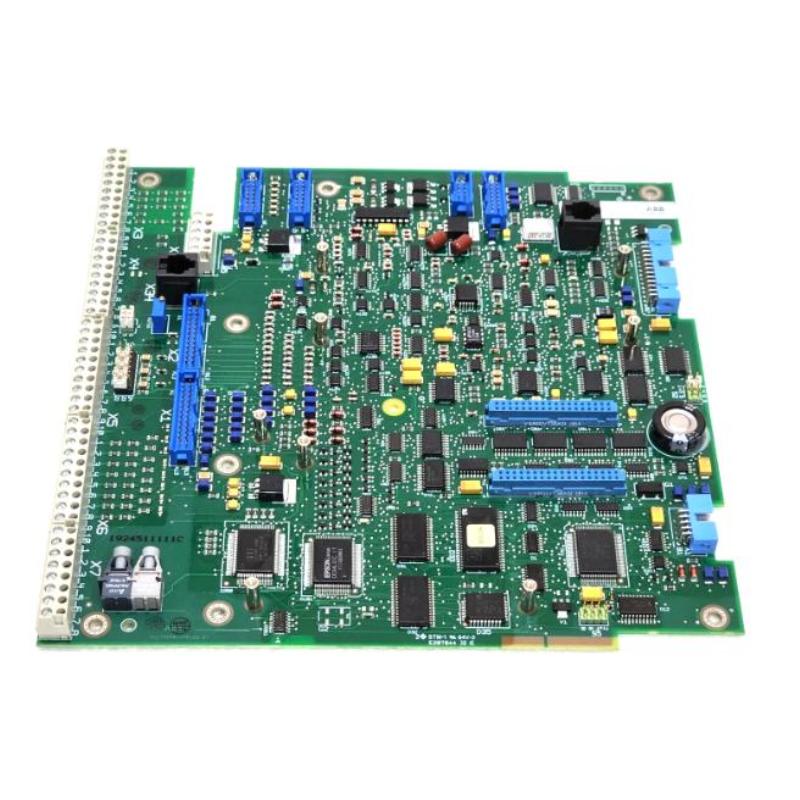

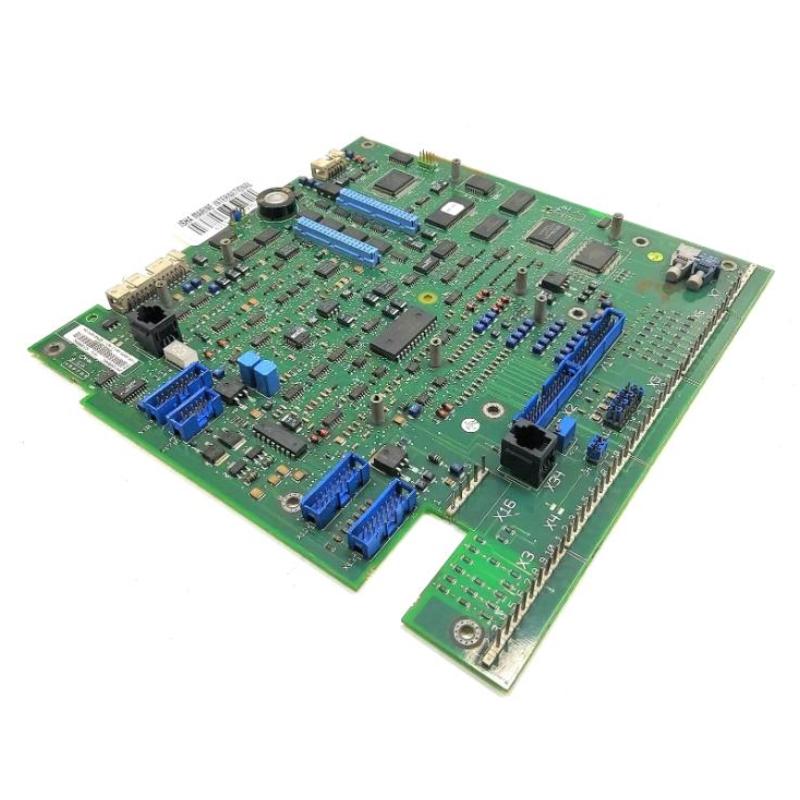

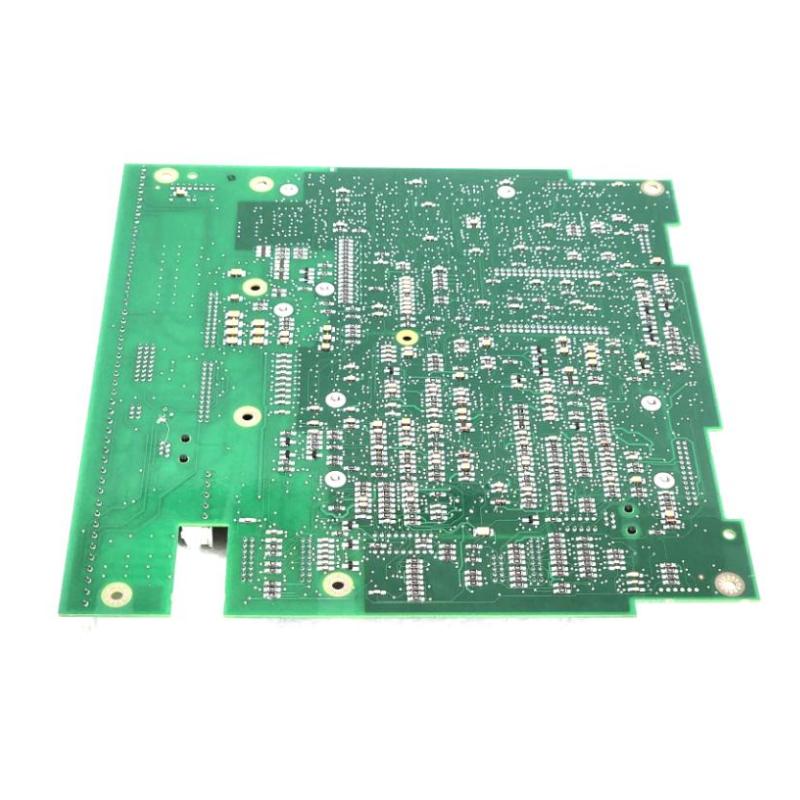

The ABB SDCS-AMC-DC-2COAT 3ADT220072R0012 is a coated industrial control board designed for ABB SDCS drive systems, widely used in DC motor control and automation platforms. It serves as a high-precision control interface that manages drive logic, signal processing, and system coordination within ABB’s SDCS architecture.
This module is engineered with a protective coating (“COAT” version) to enhance resistance against dust, humidity, and industrial contaminants, making it suitable for harsh operating environments where long-term reliability is critical.
Technical Specifications
| Parameter | Details |
|---|
| Model | SDCS-AMC-DC-2COAT |
| Part Number | 3ADT220072R0012 |
| Module Type | Control Board (DC Drive System) |
| System Compatibility | ABB SDCS / DC Drive Systems |
| Function | Drive control & signal processing |
| Communication Interface | Internal drive bus / backplane |
| Input Voltage | Up to 24 V DC |
| I/O Capacity | 16 Inputs / 16 Outputs (typical variant) |
| Memory Capacity | 128 KB RAM / 8 KB EEPROM |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L×W×H) | Approx. 8.3 × 2.5 × 16.5 cm |
| Weight | Approx. 0.1–0.65 kg (variant dependent) |
Industrial Applications
The SDCS-AMC-DC-2COAT control board is widely used in DC drive automation systems requiring stable and precise control performance. Typical applications include:
-
Steel rolling mills and metal processing lines
-
Paper and pulp production systems
-
Mining conveyor and heavy-duty drive systems
-
Industrial DC motor speed control systems
-
ABB SDCS legacy drive installations
-
Retrofit and modernization of industrial automation systems
Its coated design ensures reliable operation even in environments exposed to dust, vibration, and temperature fluctuations.
Key Advantages
The ABB SDCS-AMC-DC-2COAT offers a strong combination of durability, precision, and system integration capability. Its coated protection layer significantly improves resistance to environmental stress, extending operational lifespan in demanding industrial settings.
Another key advantage is its reliable real-time control performance, enabling stable motor regulation and efficient system coordination. This helps reduce process variation and improves overall production quality.
Its compatibility with ABB SDCS architectures makes it a preferred choice for maintenance and replacement projects, allowing operators to extend system life without full platform replacement.
Technical FAQs
-
What is the main function of SDCS-AMC-DC-2COAT?
It controls and coordinates ABB DC drive system operations.
-
What does “COAT” mean in this model?
It refers to a protective coating for harsh environment resistance.
-
Which systems is it compatible with?
ABB SDCS DC drive systems.
-
Is it used for AC or DC drives?
It is primarily used in DC drive systems.
-
What is its operating voltage?
Typically up to 24 V DC system supply.
-
Does it support I/O processing?
Yes, it handles digital input/output control functions.
-
Is it suitable for harsh environments?
Yes, the coated version improves environmental durability.
-
Can it be used for replacement projects?
Yes, it is widely used in legacy system maintenance.
-
What industries use this module?
Steel, mining, paper, and heavy manufacturing industries.
-
What is its main advantage?
Stable DC drive control with enhanced environmental protection.
