Product Overview

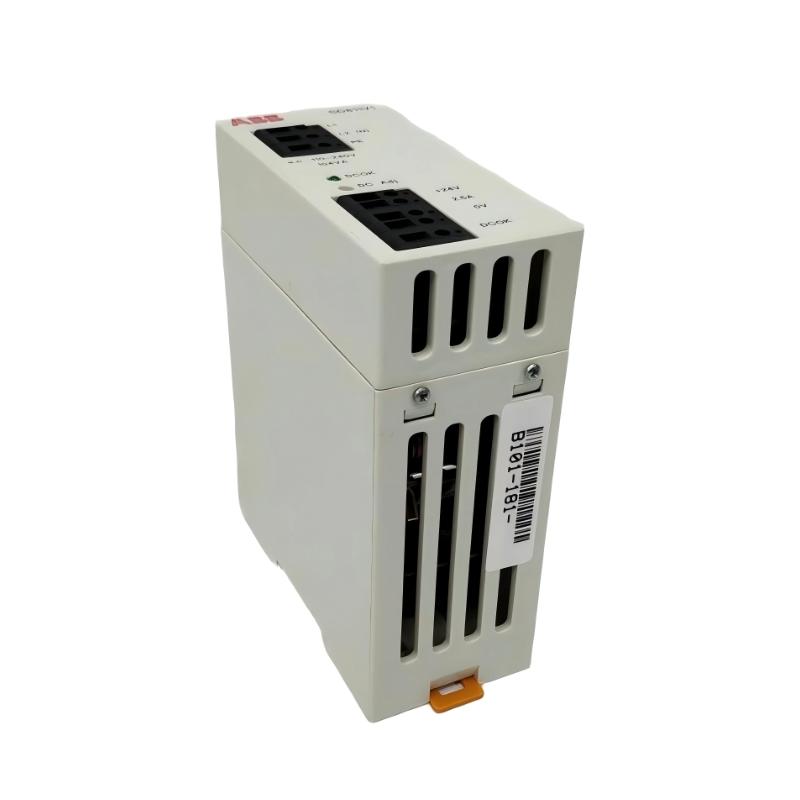

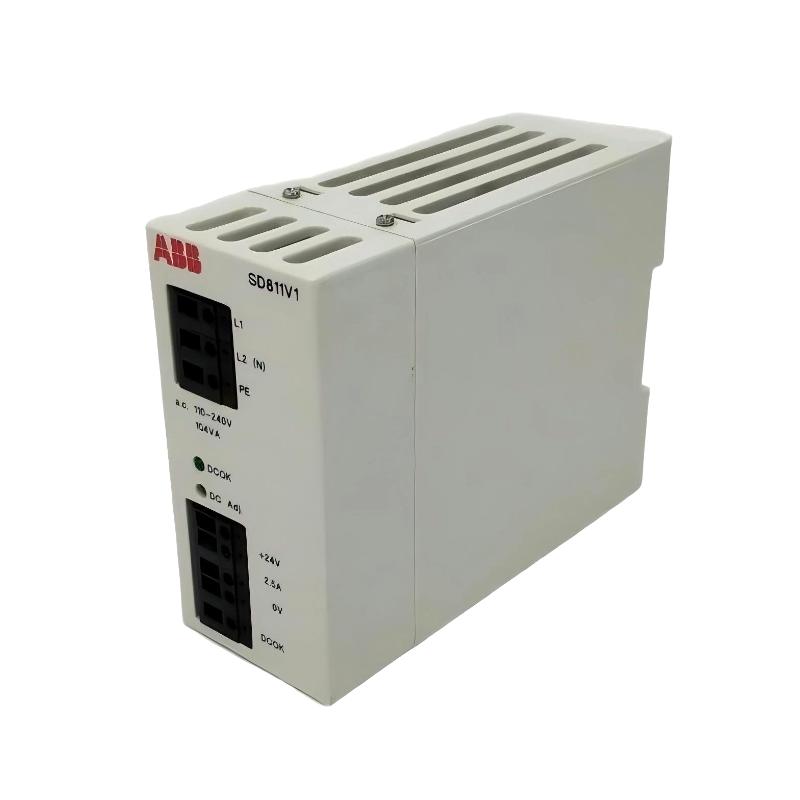

The ABB SD811V1 3BSC610044R1 is a high-efficiency industrial power supply module designed for ABB AC 800F and related distributed control systems (DCS). It delivers stable and regulated 24V DC output to CPUs, I/O modules, and communication units, ensuring consistent system performance in demanding automation environments.
Engineered for reliability and compact integration, this module is widely used in process industries where uninterrupted power delivery and system stability are essential. Its design supports long-term operation with strong resistance to electrical fluctuations and industrial environmental stress.
Technical Specifications
| Parameter | Details |
|---|
| Model | SD811V1 |
| Part Number | 3BSC610044R1 |
| Module Type | Power Supply Unit |
| System Compatibility | ABB AC 800F / DCS Systems |
| Input Voltage Range | 100–240 VAC |
| Output Voltage | 24 V DC |
| Output Power | Approx. 100 W |
| Operating Temperature | -20°C to +70°C |
| Protection Functions | Overload, short-circuit, overvoltage |
| Efficiency | High-efficiency switch-mode design |
| Dimensions (H×W×D) | Approx. 150 × 80 × 30 mm |
| Weight | Approx. 0.8 kg |
Industrial Applications
The SD811V1 power supply is widely used in industrial automation systems requiring stable and continuous power distribution. Typical applications include:
-
ABB AC 800F / Freelance DCS control cabinets
-
Power generation and energy management systems
-
Chemical and petrochemical plants
-
Water treatment and utility automation
-
Manufacturing and process control systems
-
Retrofit and system modernization projects
Its stable output ensures reliable operation of critical control components, reducing the risk of downtime in continuous production environments.
Key Advantages
The ABB SD811V1 is designed with a focus on stability, efficiency, and industrial durability. Its wide input voltage range allows flexible deployment across different global electrical standards without additional configuration.
A key advantage is its strong output stability, which ensures consistent voltage delivery even under fluctuating load conditions. This helps protect sensitive DCS components and improves overall system reliability.
Its compact design allows easy installation in control cabinets, while built-in protection features enhance safety and reduce maintenance requirements. These characteristics make it a dependable choice for long-term industrial automation use.
Technical FAQs
-
What is the main function of SD811V1?
It provides regulated 24V DC power for ABB DCS systems.
-
Which systems is it compatible with?
ABB AC 800F and Freelance control systems.
-
What is the input voltage range?
100–240 VAC.
-
What is the output voltage?
24 V DC.
-
Is it suitable for industrial environments?
Yes, it is designed for harsh industrial conditions.
-
What is its approximate power rating?
Around 100 W depending on configuration.
-
Does it support protection functions?
Yes, including overload and short-circuit protection.
-
Can it be used in retrofit systems?
Yes, it is commonly used in legacy ABB upgrades.
-
What is its weight?
Around 0.8 kg.
-
Is it still widely used today?
Yes, especially in installed ABB AC 800F systems and spare-part maintenance.
