Product Overview

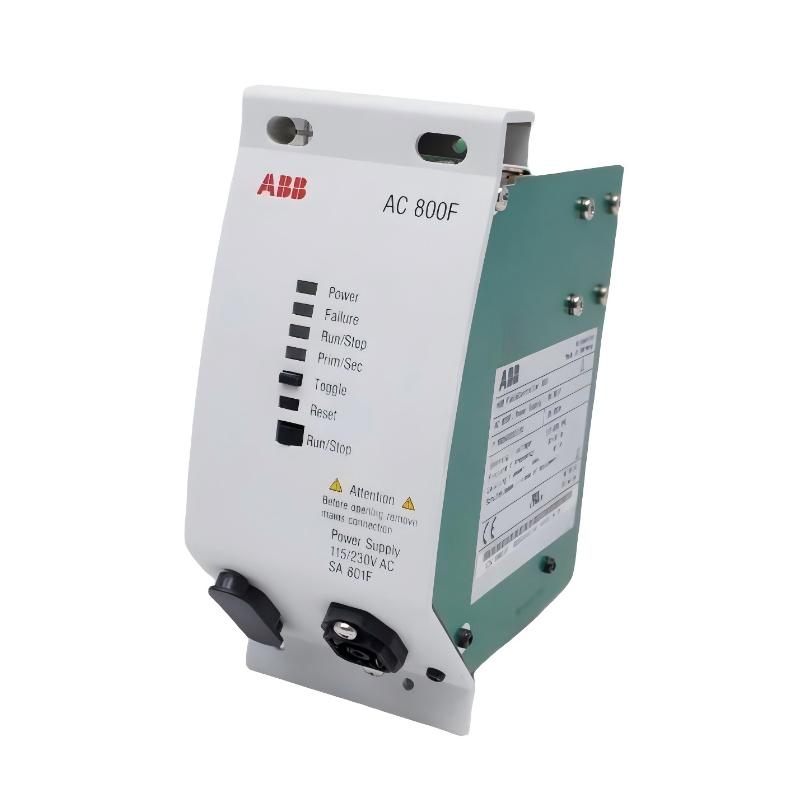

The ABB SA801F 3BDH000011R1 is an industrial-grade power supply module designed for ABB AC 800F / Freelance distributed control systems (DCS). It delivers stable and regulated power to CPU boards, communication modules, and fieldbus interfaces, ensuring uninterrupted system operation in critical automation environments.
Engineered for reliability and wide input flexibility, this module supports both 115 VAC and 230 VAC supply, making it suitable for global industrial installations. It plays a central role in maintaining consistent voltage distribution across control system components, directly impacting system stability and uptime.
Technical Specifications
| Parameter | Details |
|---|
| Model | SA801F |
| Part Number | 3BDH000011R1 |
| Module Type | Power Supply Module |
| System Compatibility | ABB AC 800F / Freelance DCS |
| Input Voltage Range | 115 / 230 VAC (wide range) |
| Output Voltage | 24 V DC (system supply) |
| Output Power | Approx. 26–35 W (system dependent) |
| Efficiency | High-efficiency industrial design |
| Protection Functions | Overload, short circuit, voltage monitoring |
| Communication Support | Diagnostic interface included |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H×W×D) | Approx. 155 × 155 × 67 mm |
| Weight | Approx. 2.5 kg |
Industrial Applications
The SA801F power supply is widely used in distributed control and automation systems where uninterrupted power delivery is essential. Typical applications include:
-
Power plants and energy generation systems
-
Chemical and petrochemical processing facilities
-
Water treatment and utility automation systems
-
Industrial manufacturing and production lines
-
ABB AC 800F / Freelance DCS control cabinets
-
System modernization and retrofit projects
Its stable output ensures that all connected modules operate consistently, reducing system instability and unplanned downtime.
Key Advantages
The ABB SA801F is designed for long-term operational reliability in demanding environments. Its wide input voltage range allows flexible deployment across different regions without configuration changes, making it highly practical for global industrial use.
Another key advantage is its strong diagnostic capability, allowing operators to monitor system status and quickly identify potential power issues. This improves maintenance efficiency and reduces troubleshooting time.
Its rugged construction and industrial protection features ensure consistent performance even under fluctuating electrical conditions. As a result, it is widely trusted in mission-critical DCS infrastructures where power stability directly impacts production safety and efficiency.
Technical FAQs
-
What is the main function of SA801F?
It supplies stable power to ABB AC 800F DCS systems.
-
Which systems is it compatible with?
ABB Freelance / AC 800F distributed control systems.
-
What input voltage does it support?
115 VAC and 230 VAC wide-range input.
-
What output does it provide?
Typically regulated 24 V DC system power.
-
Is it suitable for industrial environments?
Yes, it is designed for harsh industrial conditions.
-
Does it include protection features?
Yes, including overload and short-circuit protection.
-
What is its approximate weight?
Around 2.5 kg.
-
Is it used in modern systems?
It is mainly used in ABB AC 800F and legacy DCS setups.
-
Can it support system diagnostics?
Yes, it includes diagnostic and status monitoring functions.
-
Is it suitable for retrofit projects?
Yes, it is commonly used in system upgrades and replacements.
