Introduction

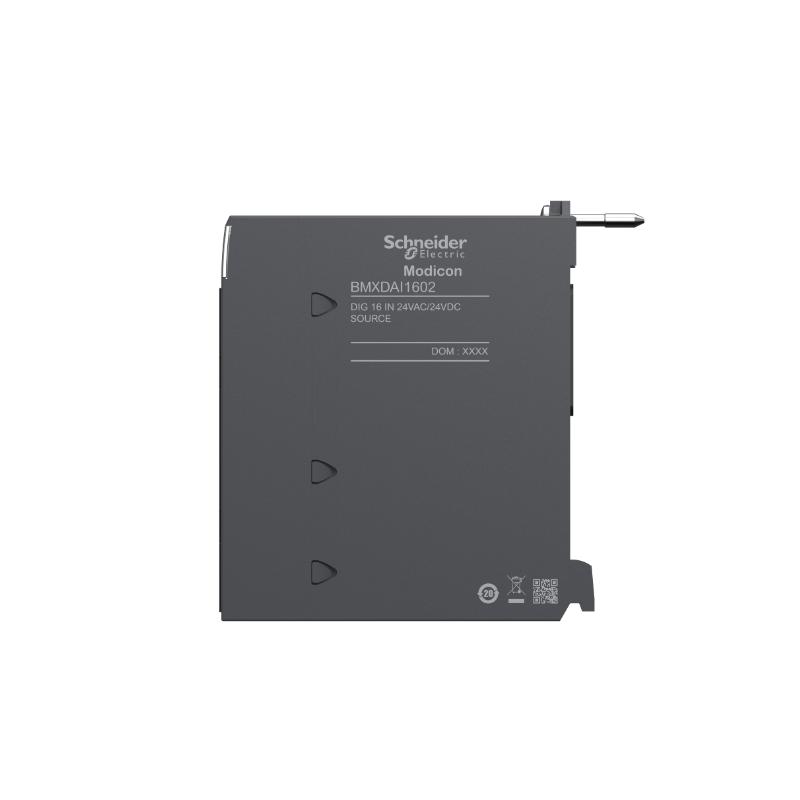

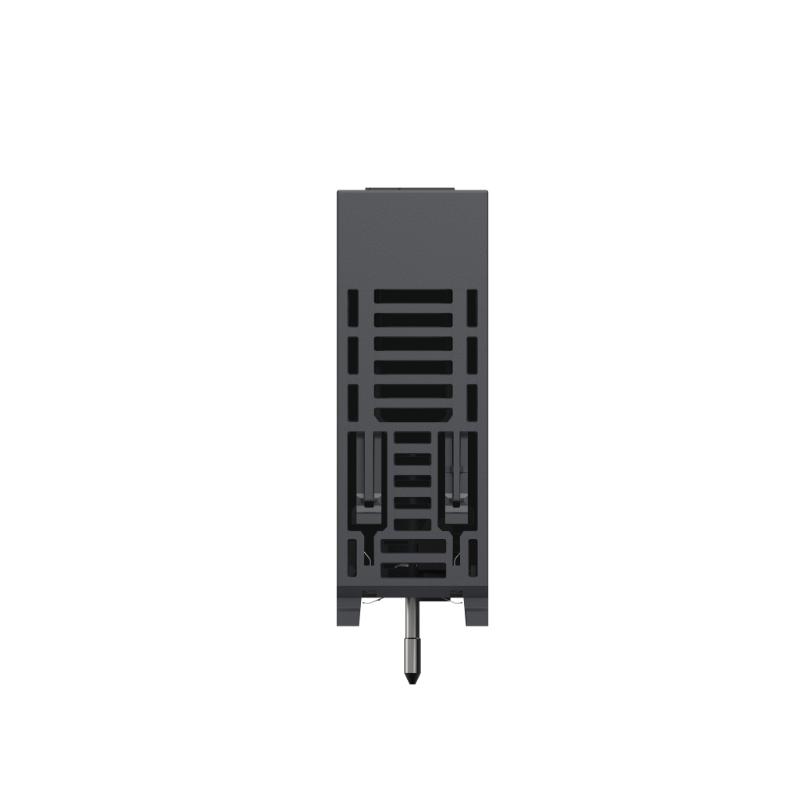

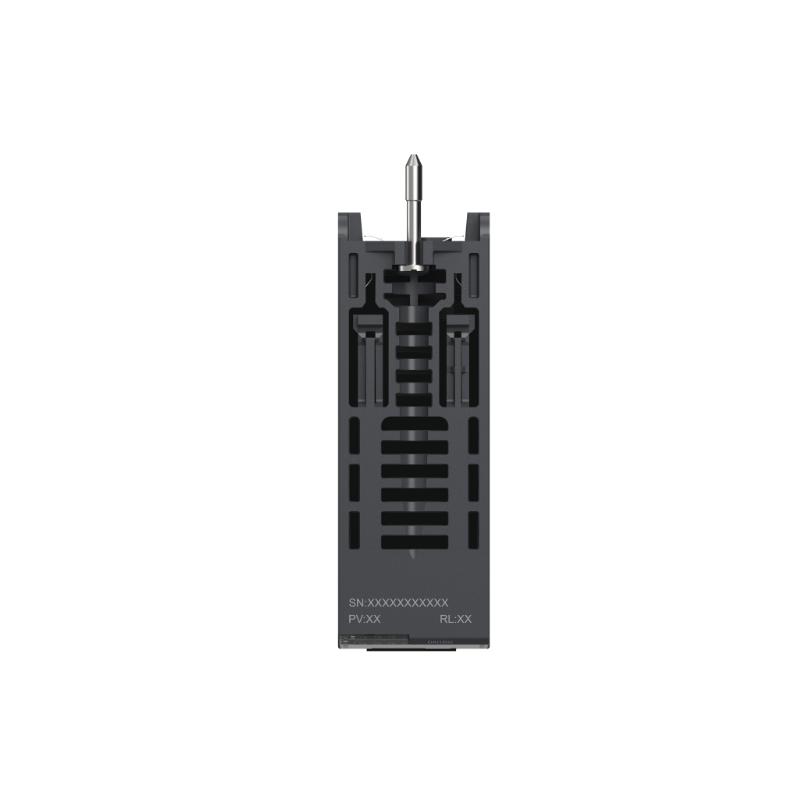

The Schneider BMXDAI1602 is a 16-channel discrete input module designed for Modicon X80 automation platforms used in M340 and M580 PLC architectures. It is built to acquire both AC and DC digital field signals, providing a flexible and reliable interface between industrial sensors, switches, and the PLC backplane system.
With galvanic isolation, wide voltage tolerance, and diagnostic capabilities, it is optimized for demanding industrial environments where signal integrity and fast response are essential for safe and efficient control.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Discrete Input Module |
| Model | BMXDAI1602 |
| Platform | Modicon X80 |
| Compatible Systems | Modicon M340 / M580 |
| Input Channels | 16 isolated inputs |
| Input Type | AC/DC discrete (24 V) |
| Logic Type | Positive / negative compatible |
| Input Current | 3 mA (AC), 3.9 mA (DC) |
| Input Voltage Range | 19–30 V AC/DC |
| Frequency | 50/60 Hz |
| Sensor Compatibility | 2-wire / 3-wire proximity sensors |
| Input Impedance | 6 kΩ |
| Response Time | 10–20 ms |
| Power Dissipation | 3 W |
| Backplane Supply | 3.3 V DC |
| Protection | External 0.5 A fast-blow fuse per group |
| Diagnostics | Channel + module LED indicators |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 160 × 100 × 35 mm |
| Weight | 0.12 kg (0.26 lb) |
Applications
The BMXDAI1602 is widely used in industrial automation systems that require high-density discrete signal acquisition.
Typical applications include:
-
Manufacturing machine status monitoring
-
Conveyor and logistics control systems
-
Water and wastewater treatment plants
-
Pump and valve position monitoring
-
Energy distribution and substation auxiliary signals
-
Packaging and food processing automation
-
Building and infrastructure control systems
It is especially effective in systems where mixed AC/DC field signals must be integrated into a centralized PLC architecture.
Advantages
The BMXDAI1602 provides high flexibility and robust signal handling for complex industrial environments.
Key benefits include:
-
16 isolated discrete inputs for high-density signal acquisition
-
Supports both 24 V AC and 24 V DC field signals
-
High electrical immunity for noisy industrial environments
-
Fast and stable signal processing for real-time control
-
Compatible with 2-wire and 3-wire proximity sensors
-
Channel-level diagnostics via LED indicators
-
Compact design optimized for X80 rack integration
-
High MTBF for continuous industrial operation
These features make it a dependable solution for mixed-signal industrial input systems.
Technical FAQs
1. What type of signals does the BMXDAI1602 support?
It supports 24 V AC and 24 V DC discrete input signals.
2. How many input channels are available?
It provides 16 isolated input channels.
3. Can it work with both sinking and sourcing devices?
Yes, it supports positive and negative logic configurations.
4. Is the module isolated?
Yes, each input group is electrically isolated for noise protection.
5. Does it support proximity sensors?
Yes, it supports 2-wire and 3-wire proximity sensors compliant with IEC standards.
6. What PLC platforms is it compatible with?
It is compatible with Modicon M340 and M580 systems.
7. Does it require external signal conditioning?
No, it is designed for direct field connection.
8. What is the response time of the module?
Typical response time is around 10–20 ms depending on signal transition.
9. Is it suitable for harsh environments?
Yes, it is designed for industrial cabinet environments with high EMI resistance.
10. Does it provide diagnostics?
Yes, it includes per-channel LED status indicators and module-level diagnostics.
