Introduction

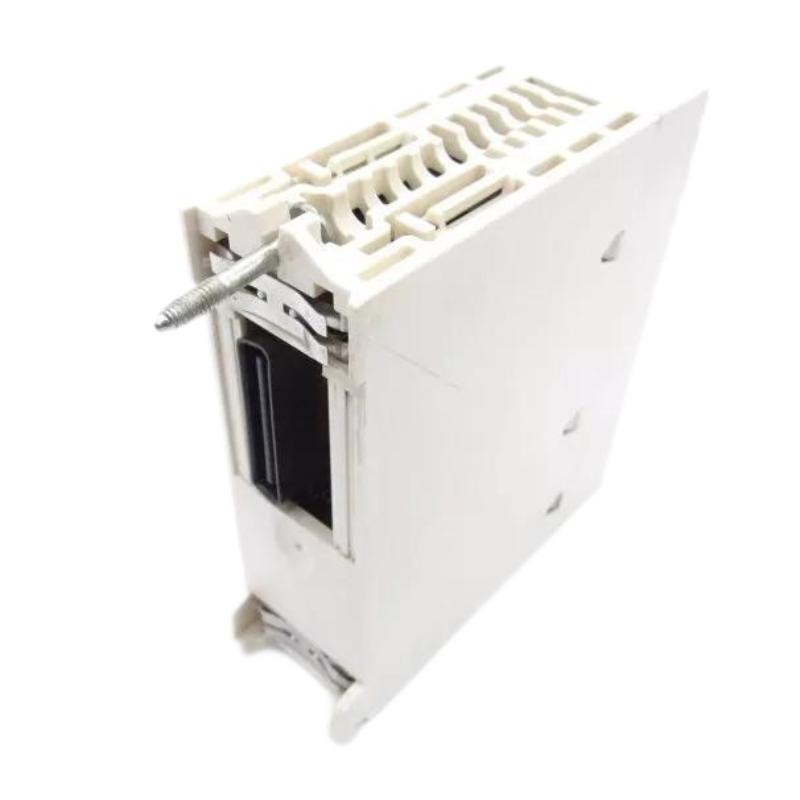

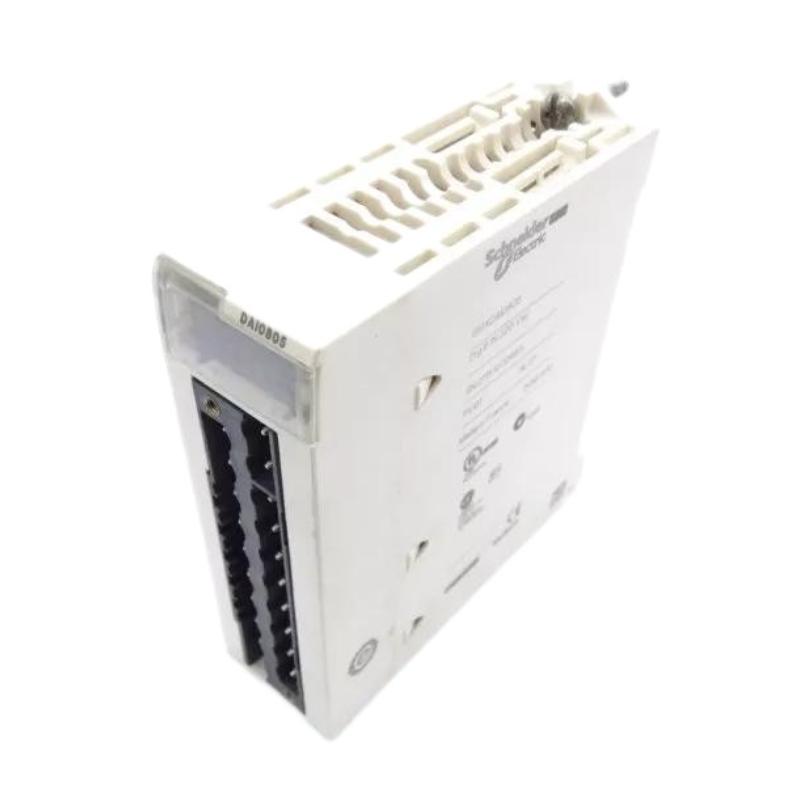

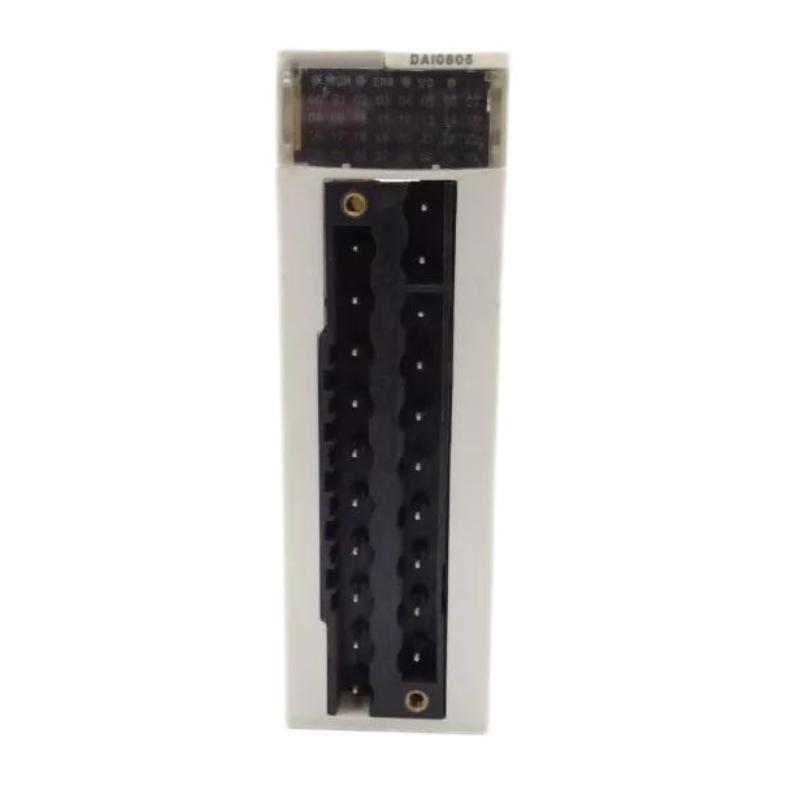

The Schneider BMXDAI0805 is an 8-channel discrete input module designed for Modicon X80 automation platforms used in M340 and M580 PLC systems. It is engineered to acquire AC digital signals from field devices such as sensors, switches, and auxiliary contacts, converting them into reliable digital data for PLC processing.
Built for industrial environments with electrical noise and long cable runs, it provides galvanic isolation, stable signal detection, and diagnostic feedback, making it suitable for medium to large-scale automation systems where input reliability is critical.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Discrete Input Module |
| Model | BMXDAI0805 |
| Platform | Modicon X80 |
| Compatible Systems | Modicon M340 / M580 |
| Input Channels | 8 isolated inputs |
| Input Type | Capacitive AC input |
| Input Voltage | 200–240 V AC |
| Frequency | 50/60 Hz |
| Signal Compatibility | 2-wire / 3-wire proximity sensors |
| Response Time | ~10 ms activation / ~20 ms deactivation |
| Power Dissipation | 4.73 W |
| Backplane Consumption | 3.3 V DC supply |
| Protection | External 0.5 A fast-blow fuse per group |
| Diagnostics | Channel LED + module status LED |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 160 × 100 × 35 mm |
| Weight | 0.12 kg (0.26 lb) |
Applications
The BMXDAI0805 is commonly used in industrial control systems requiring reliable AC signal acquisition from field devices.
Typical applications include:
-
Manufacturing machine control panels
-
Conveyor and material handling systems
-
Water treatment plant monitoring systems
-
Pumping station status monitoring
-
Power distribution auxiliary signal acquisition
-
Packaging and bottling automation systems
-
Infrastructure and building automation systems
It is especially effective in environments where multiple AC field signals must be reliably monitored in real time.
Advantages
The BMXDAI0805 is designed to improve signal reliability and reduce input noise issues in demanding industrial environments.
Key benefits include:
-
8-channel isolated AC discrete inputs for reliable signal detection
-
High electrical immunity for noisy industrial environments
-
Compatible with 200–240 V AC field signals
-
Fast response time for real-time control applications
-
Channel-level diagnostic LEDs for quick troubleshooting
-
Compact design optimized for X80 rack integration
-
High MTBF reliability for continuous operation
These features make it a stable and dependable interface between field devices and PLC systems.
Technical FAQs
1. What type of signals does the BMXDAI0805 support?
It supports AC discrete input signals from field devices such as switches and sensors.
2. How many input channels does it have?
It provides 8 isolated input channels.
3. What is the input voltage range?
It operates with 200–240 V AC input signals.
4. Is the module isolated?
Yes, it provides electrical isolation between channels for noise protection.
5. Can it be used with proximity sensors?
Yes, it is compatible with 2-wire and 3-wire proximity sensors.
6. What PLC platforms support it?
It is compatible with Modicon M340 and M580 systems.
7. Does it provide diagnostic indicators?
Yes, each channel has LED status indicators for monitoring input states.
8. Is it suitable for harsh industrial environments?
Yes, it is designed for industrial cabinet environments with high EMI resistance.
9. What is the response time of the module?
It provides fast AC input response suitable for real-time automation tasks.
10. Does it require external signal conditioning?
No, it is designed for direct field signal connection without additional conditioning.
