Introduction

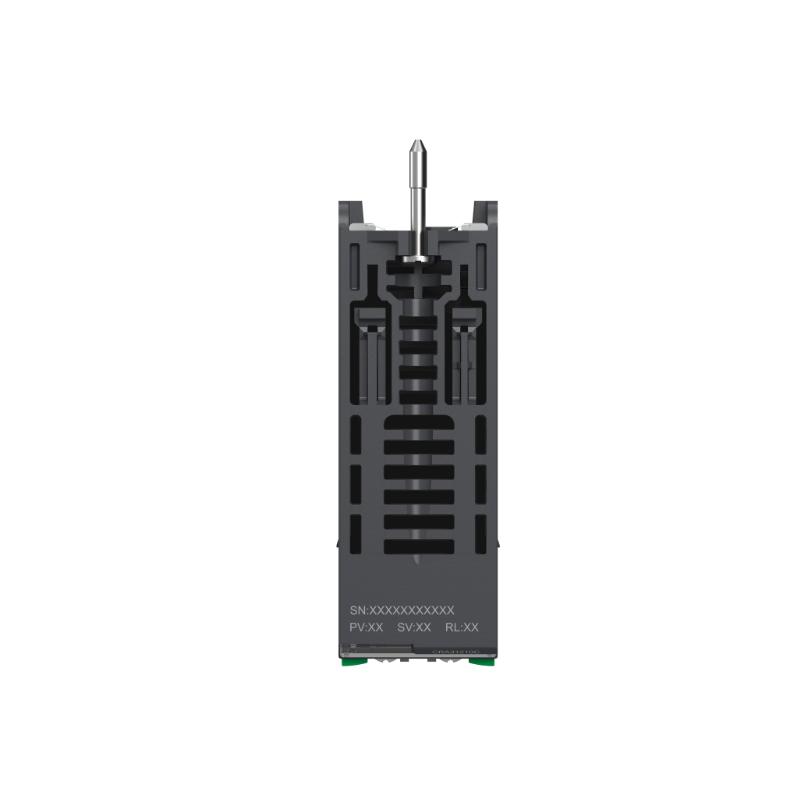

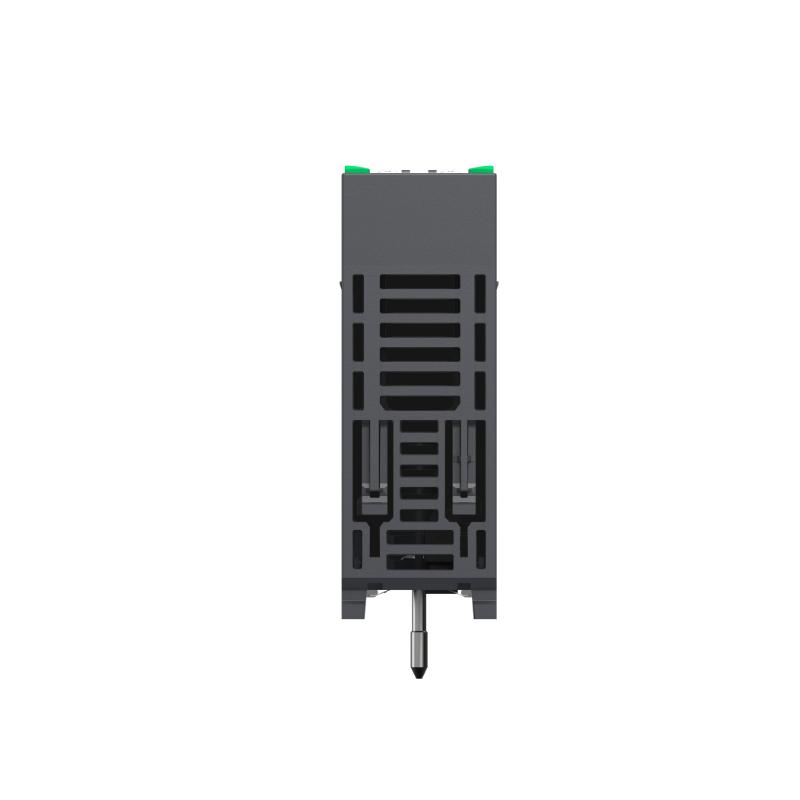

The Schneider BMXCRA31210C is an Ethernet-based Remote I/O (RIO) master/head module designed for Modicon X80 architectures used in M580 and M340 PLC systems. It acts as the central communication interface between the PLC CPU and distributed X80 I/O racks, enabling deterministic, high-speed data exchange over industrial Ethernet networks.
Engineered for large-scale automation systems, it supports ring topology, advanced diagnostics, and real-time I/O synchronization, making it a core component in decentralized industrial control architectures.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Ethernet I/O Master / Head Module |
| Model | BMXCRA31210C |
| Platform | Modicon X80 |
| Compatible Systems | Modicon M340 / M580 |
| Communication Protocol | EtherNet/IP, Modbus TCP |
| Network Topology | Ring (RSTP supported) |

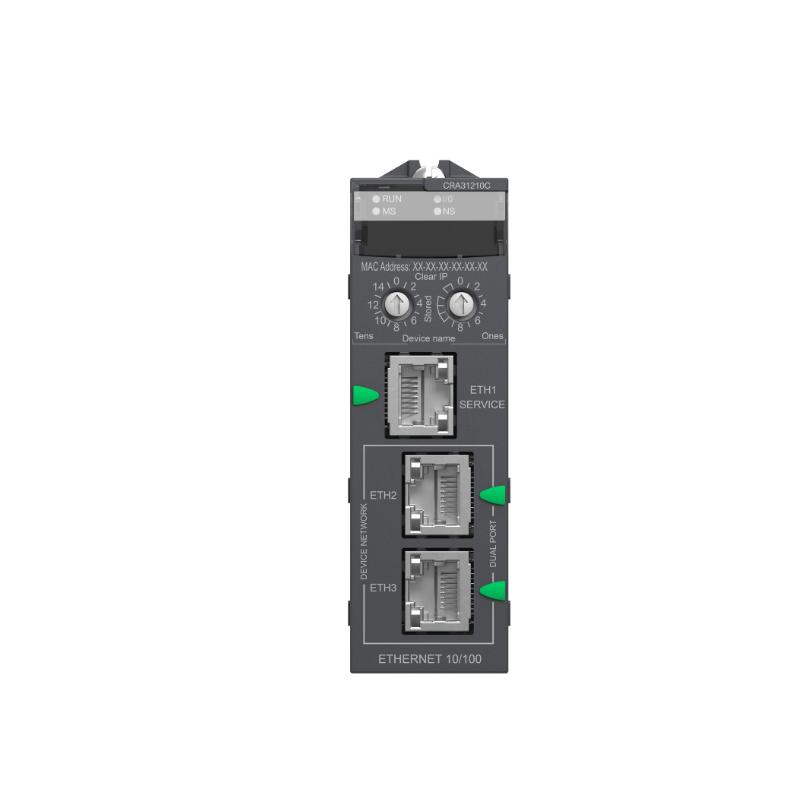

| Ethernet Ports | 3 × RJ45 |
| Transmission Rate | 10/100 Mbps |
| I/O Capacity | 1024 discrete / 256 analog channels |
| Backplane Interface | Bus X |
| Current Consumption | 1200 mA |
| Input Voltage | 3.3 V DC |
| Diagnostics | Network, module, and I/O status monitoring |
| Mounting Type | Rack-mounted |
| Protection Class | IP20 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H × W × D) | 100 × 32 × 87.5 mm |
| Weight | 0.225 kg (0.50 lb) |
Applications
The BMXCRA31210C is used in distributed automation systems where remote I/O racks must be tightly synchronized with a central PLC controller.
Typical applications include:
-
Large manufacturing plants with segmented production lines
-
Water and wastewater treatment distributed control systems
-
Oil and gas pipeline monitoring and control networks
-
Power generation and electrical substation automation
-
Logistics and warehouse automation systems
-
Food and beverage production facilities
-
Infrastructure and transportation control systems
It is especially effective in systems requiring scalable I/O expansion with deterministic Ethernet communication.
Advantages
The BMXCRA31210C improves system flexibility and network performance by enabling robust Ethernet-based remote I/O control.
Key benefits include:
-
High-speed Ethernet RIO communication for Modicon X80 systems
-
Supports EtherNet/IP and industrial Ethernet protocols
-
Ring topology capability for network redundancy (RSTP support)
-
Integrated diagnostics for network and module health monitoring
-
Supports up to 1024 discrete and 256 analog channels
-
Real-time data synchronization between PLC and remote racks
-
Compact design for easy integration in control cabinets
-
High resistance to industrial electromagnetic interference
These features make it suitable for complex distributed automation environments requiring high reliability and deterministic control.
Technical FAQs
1. What is the main function of the BMXCRA31210C?
It acts as an Ethernet Remote I/O master/head module connecting distributed X80 racks to a PLC.
2. What PLC systems is it compatible with?
It is compatible with Modicon M580 and Modicon M340 platforms.
3. How many Ethernet ports does it have?
It typically features 3 RJ45 ports for service and RIO network communication.
4. Does it support ring network topology?
Yes, it supports RSTP-based Ethernet ring redundancy.
5. What is the maximum I/O capacity?
It supports up to 1024 discrete and 256 analog channels depending on system configuration.
6. What communication protocols are supported?
It supports EtherNet/IP and Modbus TCP for diagnostics and control communication.
7. Can it operate in real-time control systems?
Yes, it is designed for deterministic industrial real-time communication.
8. Does it provide diagnostics?
Yes, it includes advanced diagnostics for network status, module health, and I/O performance.
9. Is it suitable for harsh environments?
Yes, it is designed for industrial cabinet environments with IP20 protection and coated PCB options.
10. Does it require special configuration software?
Yes, configuration is done via EcoStruxure Control Expert or Unity Pro.
