Introduction

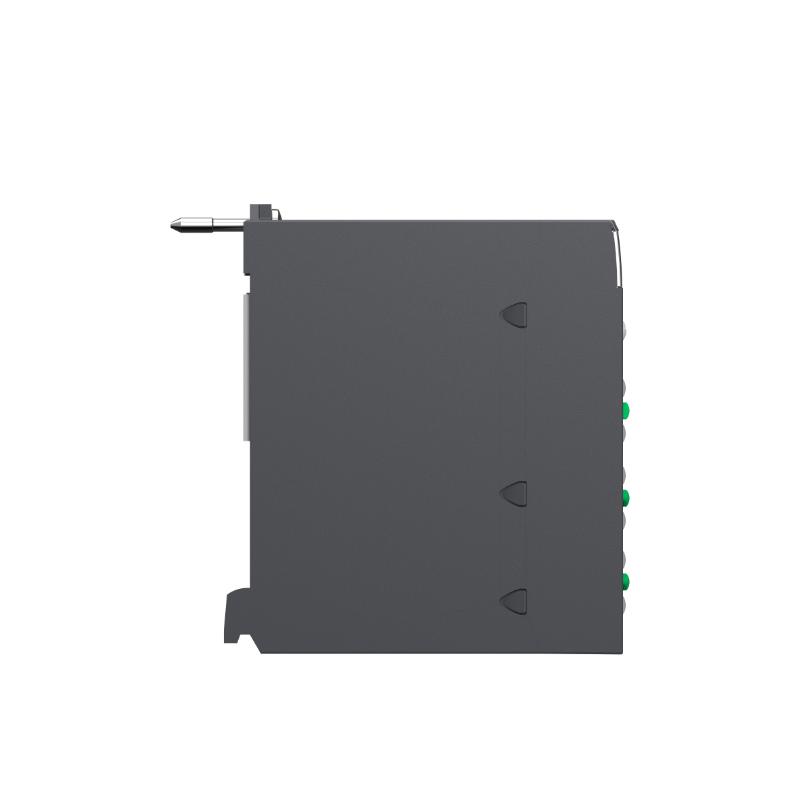

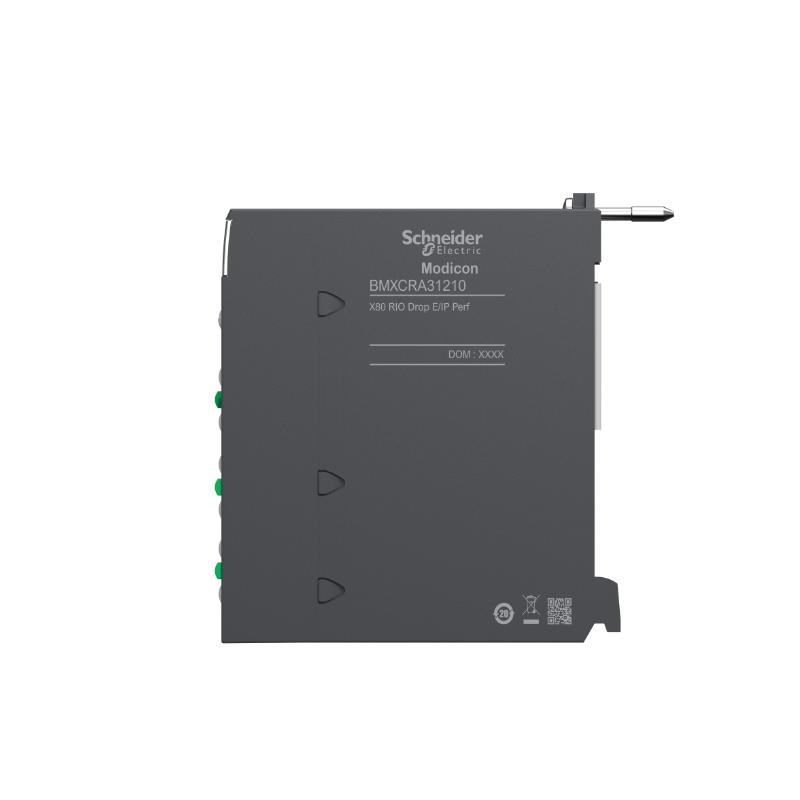

The Schneider BMXCRA31210 is an Ethernet Remote I/O (RIO) drop adapter designed for Modicon M340 and M580 automation architectures within the X80 platform. It enables distributed I/O expansion by connecting remote racks into a high-speed Ethernet-based control network, allowing PLC systems to manage geographically or functionally separated I/O islands.
Built for industrial-grade communication performance, the module supports real-time data exchange, network redundancy topologies, and seamless integration into Schneider Electric’s EcoStruxure control environment. It is widely used in modern decentralized automation systems where flexibility and networked architecture are required.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Ethernet Remote I/O Drop Adapter Module |
| Model | BMXCRA31210 |
| Platform | Modicon X80 |
| Compatible Systems | Modicon M340 / M580 |
| Communication Protocol | EtherNet/IP, Modbus TCP |
| Network Rate | 10/100 Mbps |
| Ports | RJ45 Ethernet ports (service + RIO network) |
| I/O Capacity | Up to large distributed X80 expansion systems |
| Power Consumption | 3.3 V DC backplane supply |
| Current Draw | 1200 mA |
| Mounting Type | Rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 87.5 × 32 × 100 mm |
| Weight | 0.225 kg (0.50 lb) |
Applications
The BMXCRA31210 is used in distributed automation environments where remote I/O racks must be integrated into a centralized PLC control system.
Typical applications include:
-
Large manufacturing production lines with segmented control zones
-
Water treatment plants with distributed pumping stations
-
Oil and gas pipeline monitoring systems
-
Power distribution and substation automation
-
Food and beverage processing facilities
-
Logistics and warehouse automation systems
-
Infrastructure and transportation control networks
It is especially effective in architectures requiring scalable remote I/O expansion without increasing central cabinet complexity.
Advantages
The BMXCRA31210 improves system architecture flexibility by enabling high-speed Ethernet-based remote I/O integration.
Key benefits include:
-
Ethernet-based remote I/O expansion for Modicon X80 systems
-
Supports real-time deterministic communication via EtherNet/IP
-
Flexible network topologies including ring and daisy-chain configurations
-
High I/O capacity support for large distributed systems
-
Integrated diagnostics for network and module health monitoring
-
Seamless compatibility with M340 and M580 PLC platforms
-
Compact rack-mounted design for easy installation in control cabinets
These features make it a core component in modern decentralized automation designs.
Technical FAQs
1. What is the primary function of the BMXCRA31210?
It acts as an Ethernet RIO drop adapter, connecting remote I/O racks to a central PLC system.
2. Which PLC systems is it compatible with?
It is compatible with Modicon M340 and Modicon M580 platforms.
3. What communication protocol does it use?
It supports EtherNet/IP and related industrial Ethernet protocols.
4. How many ports does it have?
It typically includes multiple RJ45 Ethernet ports for service and network connectivity.
5. Can it support ring network topology?
Yes, it supports RSTP-based ring redundancy for network resilience.
6. What is its role in a distributed system?
It connects remote I/O racks to the main PLC over Ethernet.
7. Does it support diagnostics?
Yes, it provides detailed network and module-level diagnostics.
8. Can it handle real-time control applications?
Yes, it is designed for real-time industrial automation communication.
9. Is it suitable for harsh industrial environments?
Yes, it is built for industrial cabinet environments with IP20 protection.
10. Does it require special configuration tools?
It is configured using Schneider’s EcoStruxure Control Expert or Unity Pro software.
