Introduction

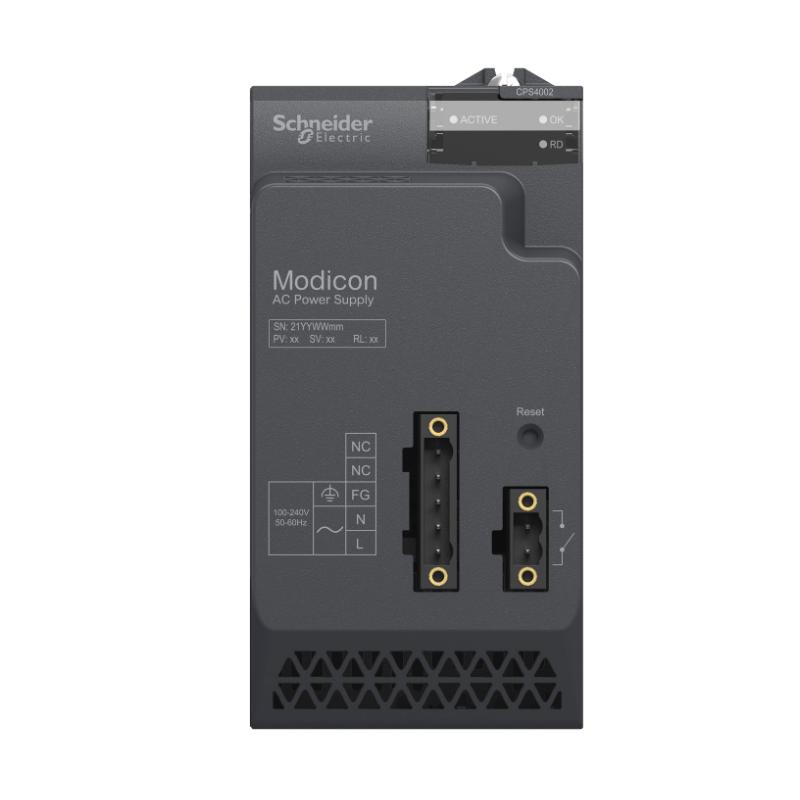

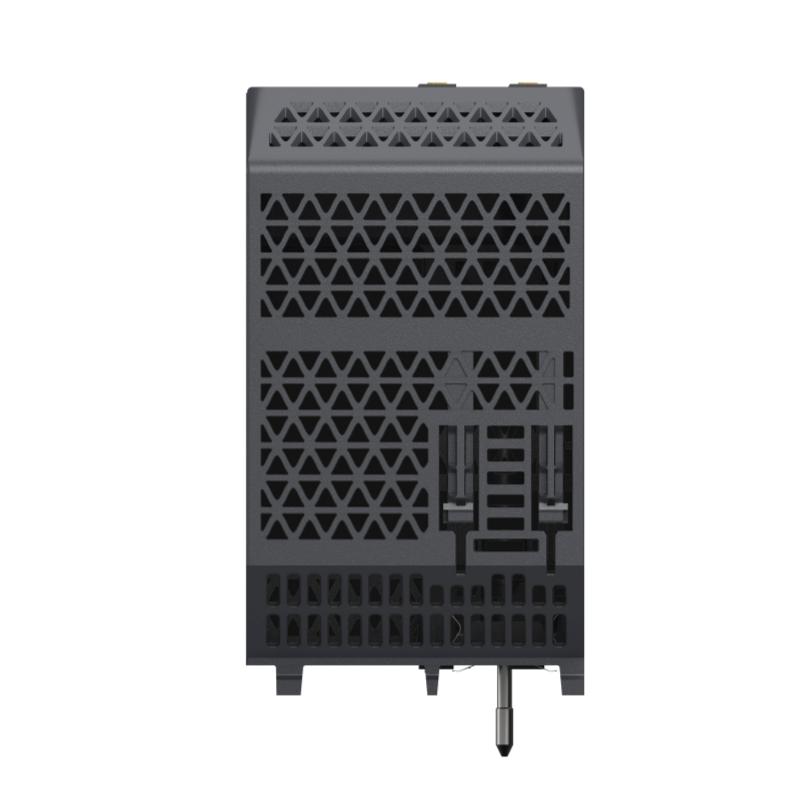

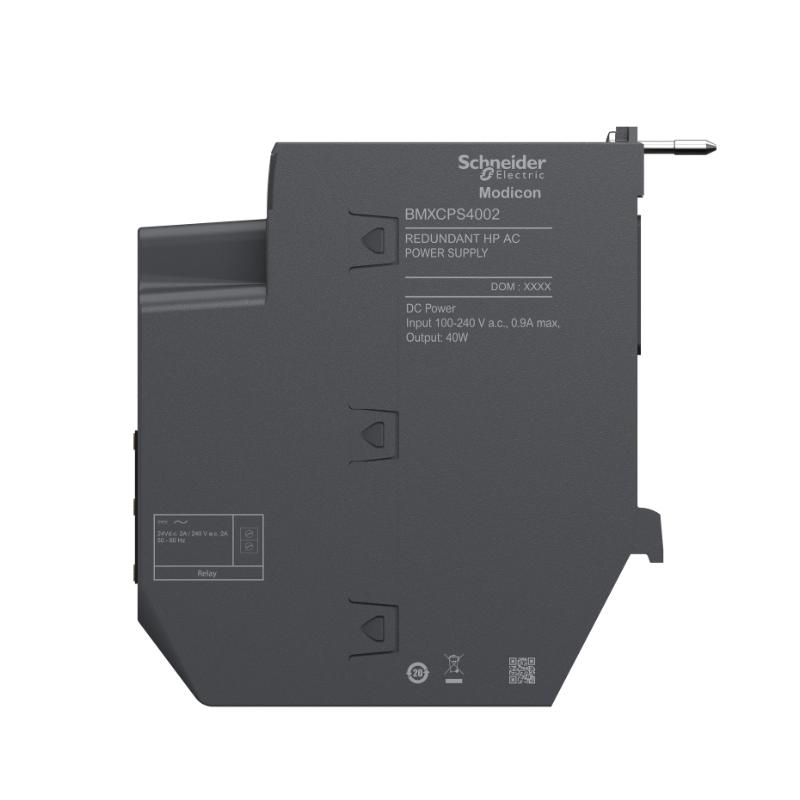

The Schneider BMXCPS4002 Power Module is a redundant AC power supply unit designed for the Modicon X80 automation platform used in M580 and M340 architectures. It delivers stable and regulated power to rack-mounted automation modules, ensuring continuous operation of PLC processors, I/O modules, and communication interfaces.
Engineered for high-availability industrial systems, it supports redundancy functions, advanced diagnostics, and robust electrical protection, making it suitable for mission-critical process environments where downtime is unacceptable.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Redundant Power Supply Module |
| Model | BMXCPS4002 |
| Platform | Modicon X80 (M580 / M340) |
| Input Voltage | 100–240 V AC |
| Frequency | 50/60 Hz |
| Output Function | 3.3 V DC / 24 V DC rack power distribution |
| Secondary Power | Up to 40 W |
| Current Output | 5.5 A (3.3 V DC), 1.67 A (24 V DC) |
| Apparent Power | 0.13 kVA |
| Protection | Overload / short circuit / overvoltage |
| Redundancy | Supported (dual supply architecture) |
| Diagnostics | Voltage, redundancy status, module health |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dielectric Strength | 1500 V primary/secondary |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 134.6 × 64.6 × 130.3 mm |
| Weight | 0.51 kg (1.12 lb) |
Applications
The BMXCPS4002 is widely used in automation systems requiring redundant power architecture and stable rack energy distribution.
Typical applications include:
-
Oil & gas production and pipeline control systems
-
Power generation and electrical substations
-
Water treatment and distribution networks
-
Chemical and petrochemical processing plants
-
Large-scale manufacturing automation lines
-
Transportation infrastructure control systems
-
Critical infrastructure monitoring and safety systems
It is especially suitable for systems where power redundancy and continuous uptime are essential design requirements.
Advantages
The BMXCPS4002 is designed to increase system reliability and reduce downtime risk in complex industrial automation environments.
Key benefits include:
-
Redundant AC power architecture for high system availability
-
Stable power distribution for Modicon X80 rack modules
-
Wide input voltage tolerance (100–240 V AC)
-
Integrated protection against overload, short circuit, and overvoltage
-
Advanced diagnostics including redundancy and health monitoring
-
Hot-swappable capability for easier maintenance in some configurations
-
High immunity to industrial electrical disturbances
-
Compact design optimized for control cabinet integration
These features make it a preferred choice for engineers designing fail-safe automation systems.
Technical FAQs
1. What is the main function of the BMXCPS4002?
It provides redundant AC-to-DC power for Modicon X80 rack systems.
2. What makes it a redundant power module?
It supports dual power paths and redundancy monitoring for high availability systems.
3. What input voltage does it support?
It operates with 100–240 V AC input (wide-range industrial supply compatibility).
4. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial process environments.
5. What happens if one power source fails?
The redundant architecture ensures continuous operation without system interruption.
6. Does it support diagnostics?
Yes, it provides monitoring for redundancy status, voltage presence, and module health.
7. Can it be used in Modicon M580 systems?
Yes, it is part of the Modicon X80 platform used in M580 and M340 architectures.
8. What protections are included?
It includes overload, overvoltage, and short-circuit protection mechanisms.
9. Is it resistant to electrical noise?
Yes, it is designed for high immunity in industrial environments.
10. Does it require special maintenance procedures?
No special maintenance is required beyond standard cabinet inspection.
