Introduction

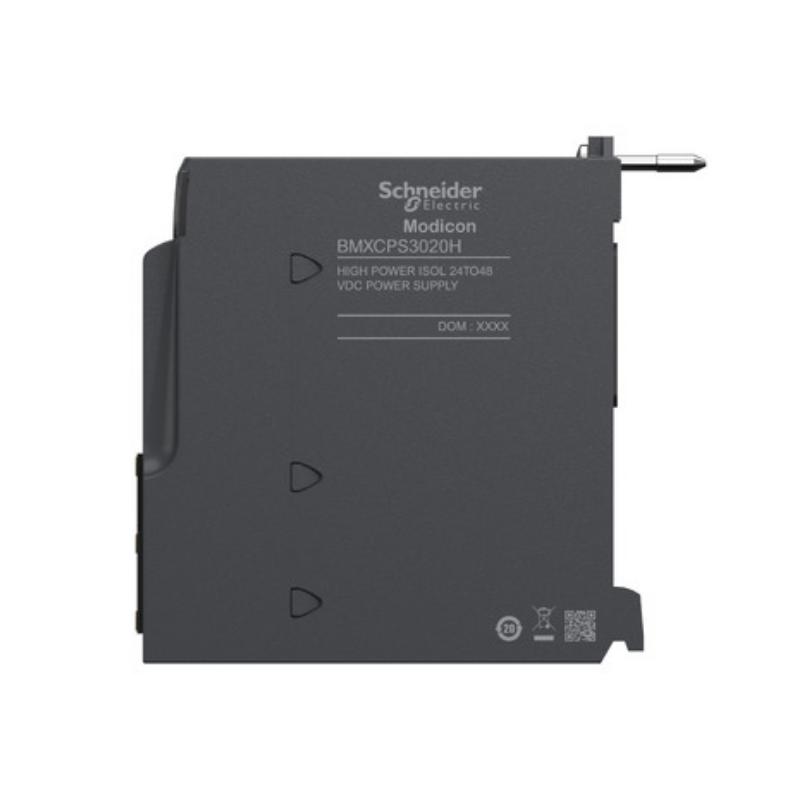

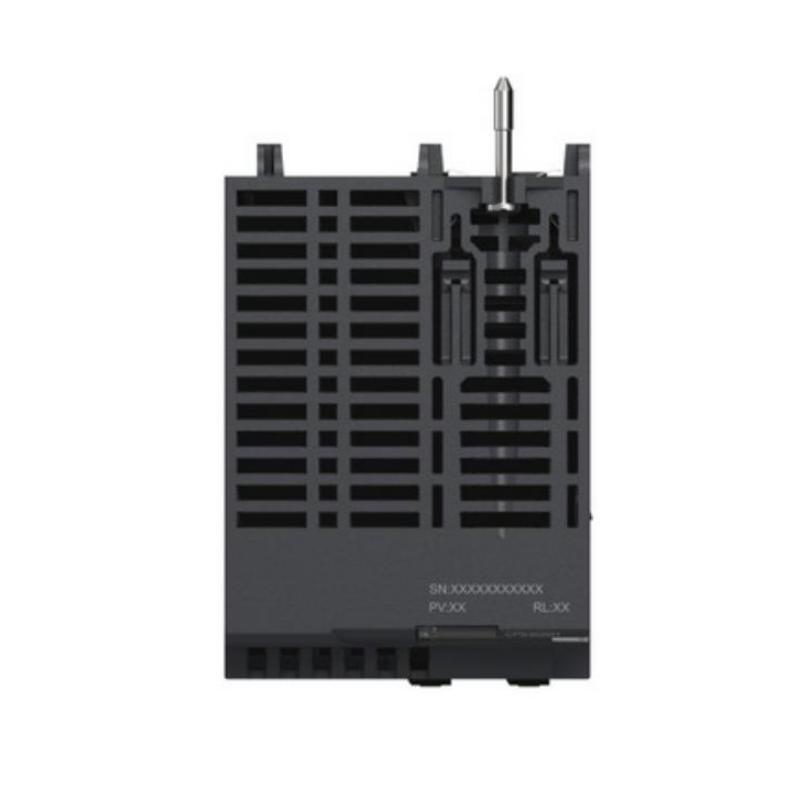

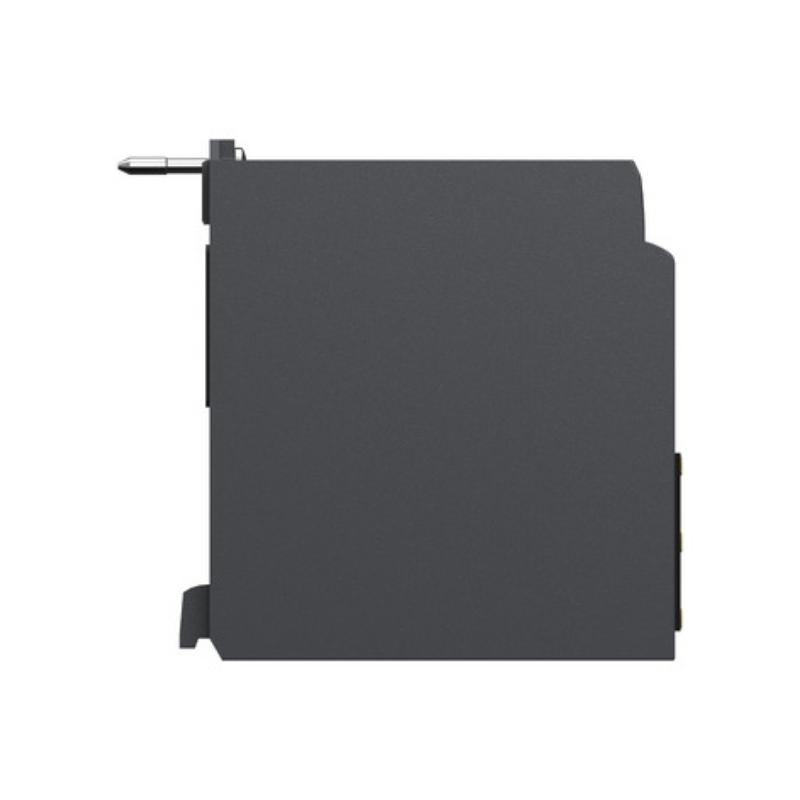

The Schneider Schneider Electric BMXCPS3020H Power Module is a high-performance, isolated rack power supply designed for the Modicon X80 platform used in M580 and M340 automation architectures. It delivers stable DC power distribution in mission-critical industrial environments where system uptime, redundancy readiness, and electrical robustness are essential.
Built for severe environments, it supports extended temperature operation and industrial electrical standards, ensuring reliable performance in continuous process control applications such as energy, water treatment, and large-scale manufacturing systems.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Power Supply Module |
| Model | BMXCPS3020H |
| Platform | Modicon X80 (M580 / M340) |
| Input Voltage | 24–48 V DC (isolated) |
| Output Function | Rack power distribution |
| Protection | Overload, short circuit, overvoltage |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Electrical Isolation | Primary to ground / secondary |
| Mounting Type | Rack-mounted |
| IP Rating | IP20 |
| Dimensions (H × W × D) | 104 × 68 × 99 mm |
| Weight | 0.34 kg |
Applications
The BMXCPS3020H is deployed in industrial systems requiring high reliability and stable rack power distribution across multiple automation modules.
Typical applications include:
-
Oil & gas process control systems
-
Power generation and substation automation
-
Water treatment and distribution networks
-
Heavy manufacturing and production lines
-
Infrastructure monitoring and transportation systems
-
Chemical and pharmaceutical processing plants
-
Large distributed control systems (DCS/PLC architectures)
It is particularly suited for environments where electrical noise, load variation, and harsh conditions demand consistent power integrity.
Advantages
The BMXCPS3020H is engineered to improve system stability and operational continuity in high-demand automation architectures.
Key advantages include:
-
Isolated 24–48 V DC input for electrical safety and stability
-
Reliable rack power distribution for Modicon X80 systems
-
Designed for severe industrial environments with extended temperature range
-
Integrated protection against overload, short circuit, and overvoltage
-
High immunity to electrical disturbances and micro-interruptions
-
Compact modular design for easy rack integration and replacement
-
High MTBF reliability suitable for continuous 24/7 operation
Technical FAQs
1. What is the primary function of BMXCPS3020H?
It provides regulated DC power to all modules in a Modicon X80 automation rack.
2. Is the module suitable for harsh environments?
Yes, it is designed for severe industrial environments with extended temperature ranges.
3. What input voltage does it support?
It operates with an isolated 24 V to 48 V DC input.
4. Does it support redundancy configurations?
It is designed for stable operation in critical systems and can be used in architectures that implement redundancy at system level.
5. What protections are integrated into the module?
It includes overload, short-circuit, and overvoltage protection mechanisms.
6. Can it handle continuous operation?
Yes, it is built for 24/7 industrial continuous-duty operation.
7. Is it compatible with Modicon M580 systems?
Yes, it is part of the Modicon X80 family used in M580 and related platforms.
8. What happens during voltage fluctuations?
The module maintains stable rack output within defined electrical tolerances.
9. Is it resistant to electrical noise?
Yes, it has high immunity to industrial electromagnetic interference.
10. Does it require special maintenance?
No routine maintenance is required beyond standard cabinet inspection procedures.
