Product Overview and Industrial Role

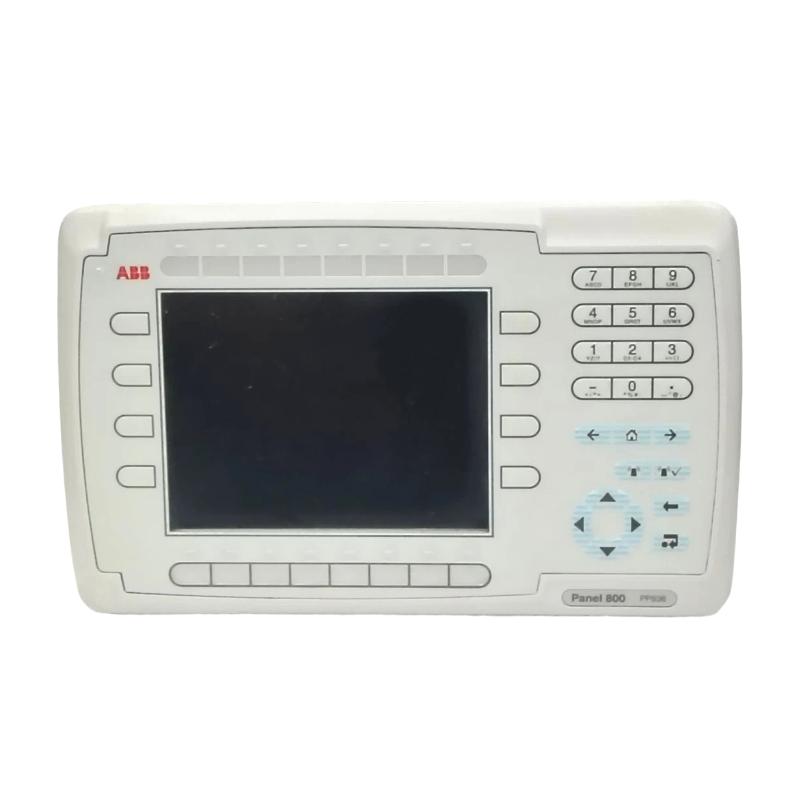

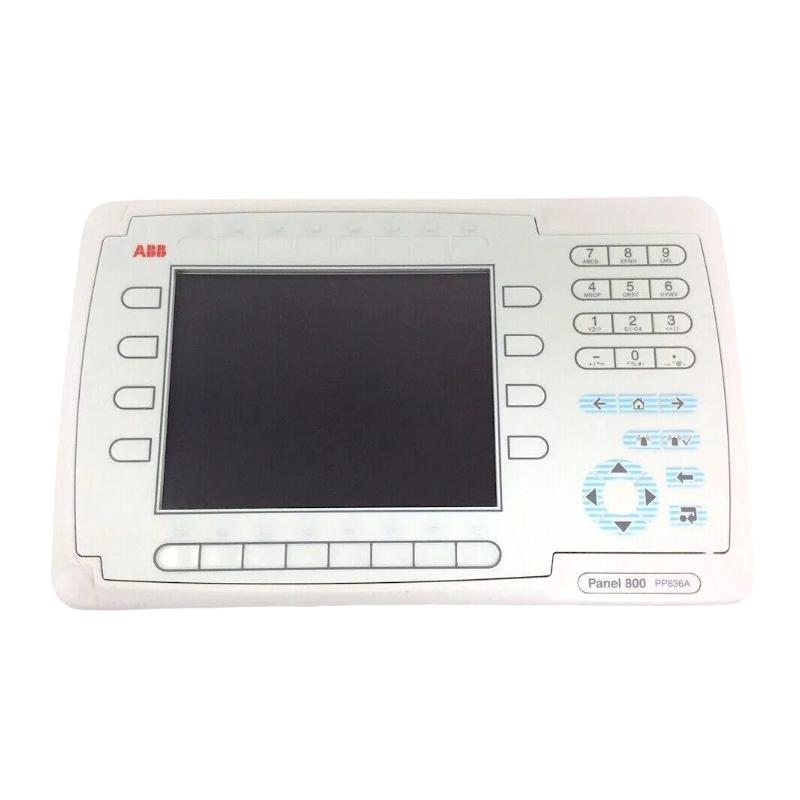

The ABB PP836A 3BSE042237R2 Control Panel is an industrial-grade HMI (Human Machine Interface) operator panel designed for ABB’s System 800xA and Panel 800 platform. It serves as a front-end visualization and control interface, allowing operators to monitor real-time process data, alarms, diagnostics, and system status within distributed control systems (DCS).
Built for continuous industrial operation, this panel is widely used in process automation environments where stable operator interaction and high system visibility are essential.
Technical Specifications
| Parameter | Details |
|---|
| Product Type | Operator Panel / HMI Control Panel |
| Manufacturer | ABB |
| Part Number | 3BSE042237R2 |
| Model Series | PP836A / Panel 800 |
| System Compatibility | ABB System 800xA |
| Display Type | Industrial TFT touch screen |
| Screen Size | ~7 inch class display |
| Resolution | ~640 × 480 (variant dependent) |
| Input Voltage | 24 VDC |

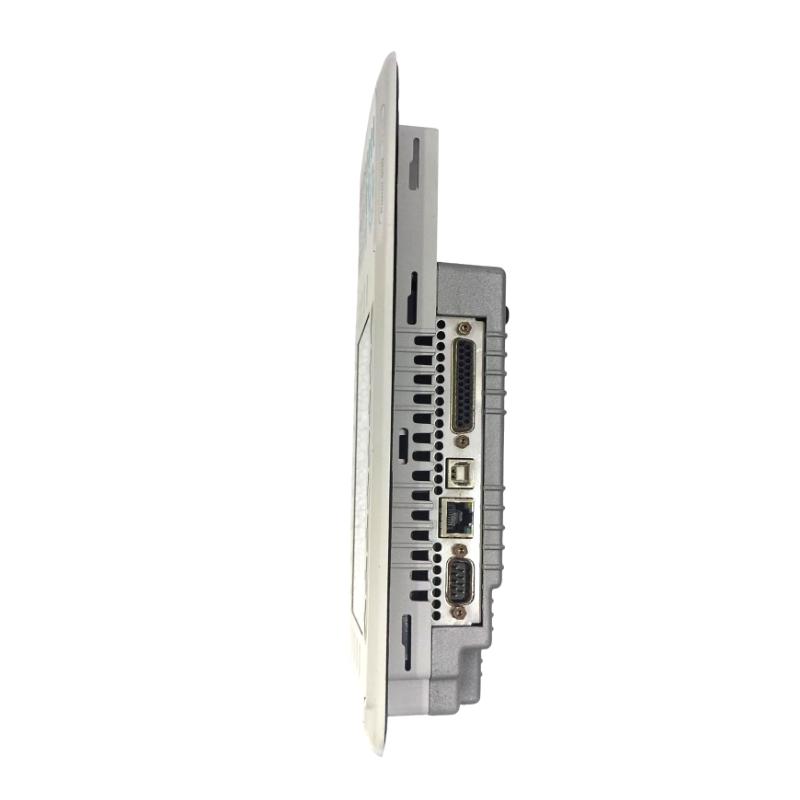

| Communication Interfaces | Ethernet, RS232, RS485, USB |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP65 front panel (typical Panel 800 spec) |
| Mounting Type | Panel mounting / embedded installation |
| Weight | ~1.3–1.9 kg |
Application Scenarios
The ABB PP836A control panel is widely used in industrial automation systems such as:
-
Distributed Control Systems (DCS)
-
Power generation control rooms
-
Oil & gas process monitoring systems
-
Chemical and petrochemical plants
-
Water treatment facilities
-
Manufacturing line automation
-
Energy management and utility systems
It provides operators with real-time visualization and direct control access, improving operational efficiency and decision-making speed.
Technical FAQs
1. What is the main function of the PP836A panel?
It provides operator control and visualization for ABB automation systems.
2. Which systems is it compatible with?
It is mainly used with ABB System 800xA and Panel 800 architecture.
3. Is it a PLC?
No, it is an HMI operator interface, not a controller.
4. What is the screen size?
Typically around 7 inches, depending on configuration.
5. What is its power supply requirement?
Standard 24 VDC industrial supply.
6. Can it operate in harsh environments?
Yes, it is designed for industrial environments with dust and vibration resistance.
7. What communication protocols does it support?
Ethernet, RS232, RS485, and USB interfaces.
8. Is it still widely used?
Yes, especially in installed ABB DCS systems worldwide.
9. Does it support alarm monitoring?
Yes, it provides real-time alarm and event display.
10. Can it replace older ABB panels?
Yes, it is commonly used as a replacement or upgrade in Panel 800 systems.
