Product Overview and Industrial Role

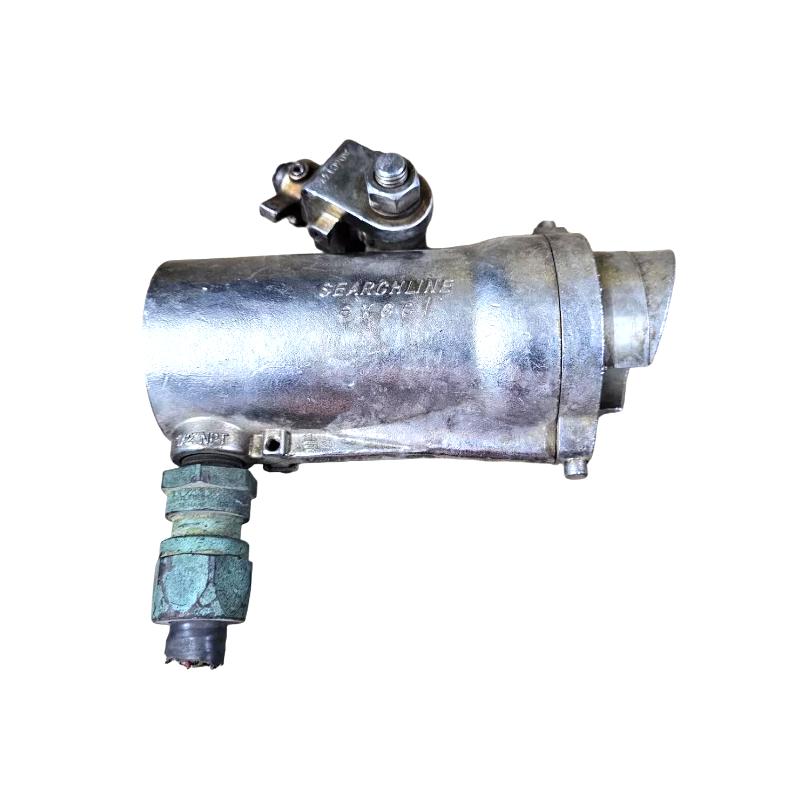

The Honeywell 2104B2071 Short Range Transmitter Incl Conduit ATEX is part of the Searchline Excel open-path infrared gas detection system, designed for hazardous industrial environments requiring reliable flammable gas monitoring over short distances.

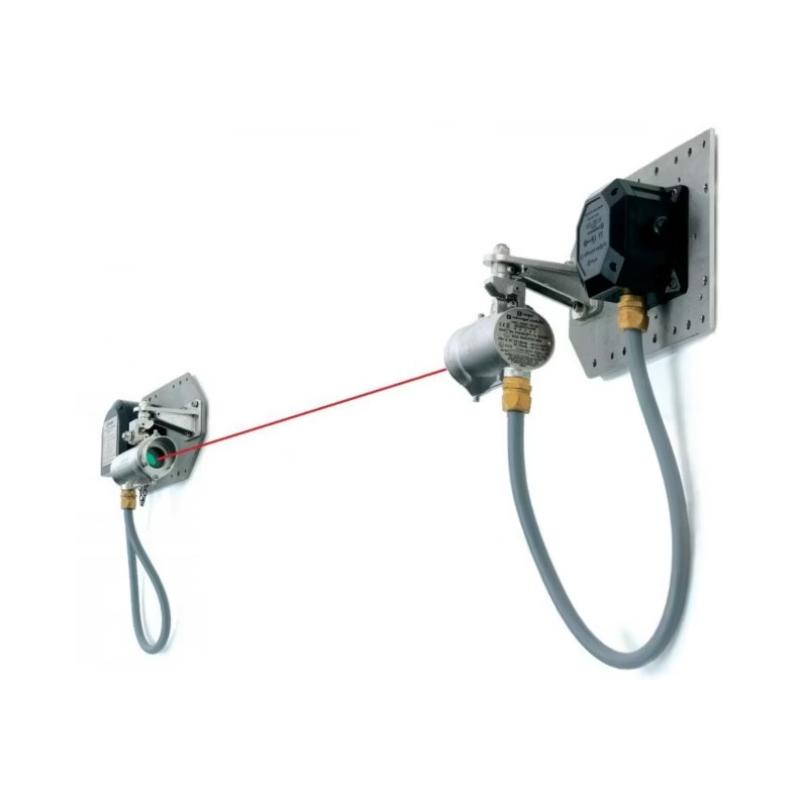

It operates as a transmitter unit paired with a receiver, forming a continuous infrared beam that detects hydrocarbon gas clouds across open areas. This model is specifically optimized for short-range coverage (typically 5–40 meters), making it ideal for compact installations such as process modules, tank farms, and congested plant layouts.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Open-Path Gas Detection Transmitter |
| Model Number | 2104B2071 |
| System Series | Honeywell Searchline Excel |
| Detection Method | Infrared (IR) open-path sensing |
| Range Category | Short Range (approx. 5–40 m) |
| Gas Types Detected | Methane, Ethane, Propane, Butane, etc. |
| Output Signal | 4–20 mA + RS485 / Modbus |
| Power Supply | 18–32 VDC |
| Operating Temperature | -40°C to +65°C |
| Response Time | T90 < 3 seconds |
| Enclosure Material | 316 stainless steel |
| Weight | ~3.5–7 kg (variant dependent) |

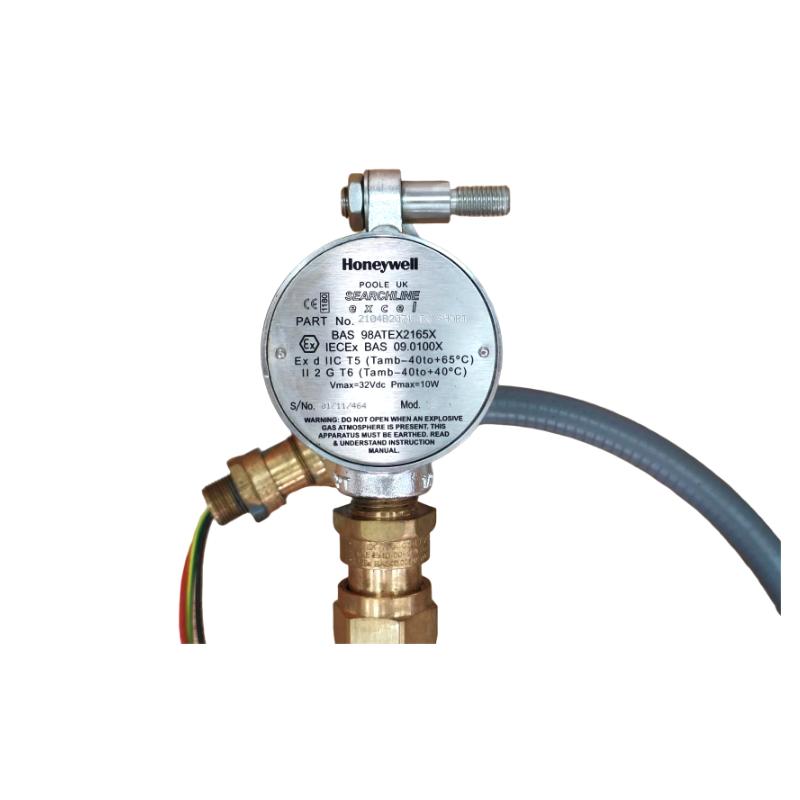

| Certification | ATEX (Ex d IIC T5) |

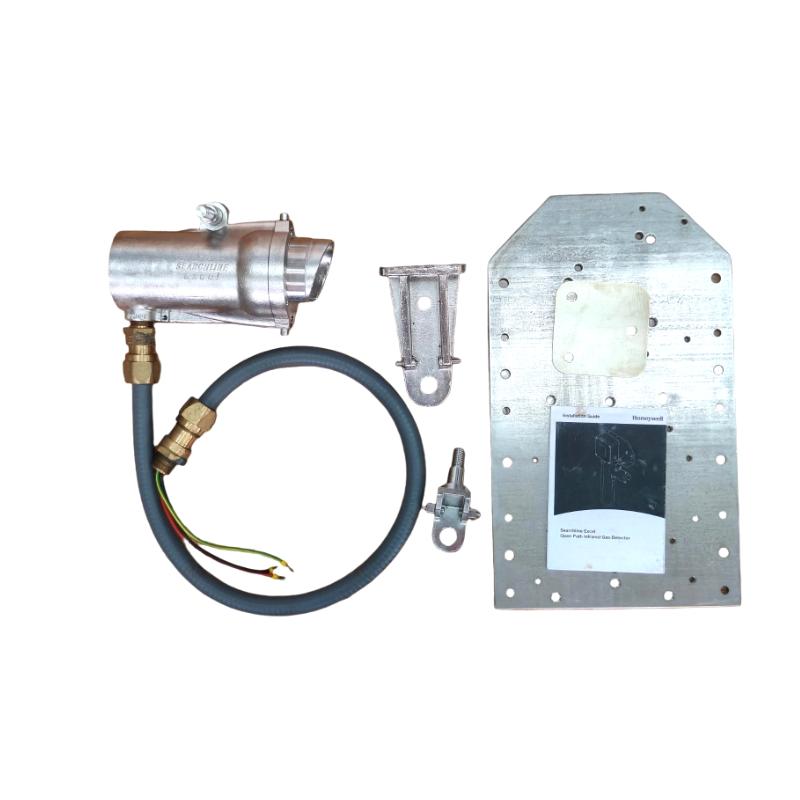

| Installation | Includes conduit assembly |
