Product Overview and Industrial Role

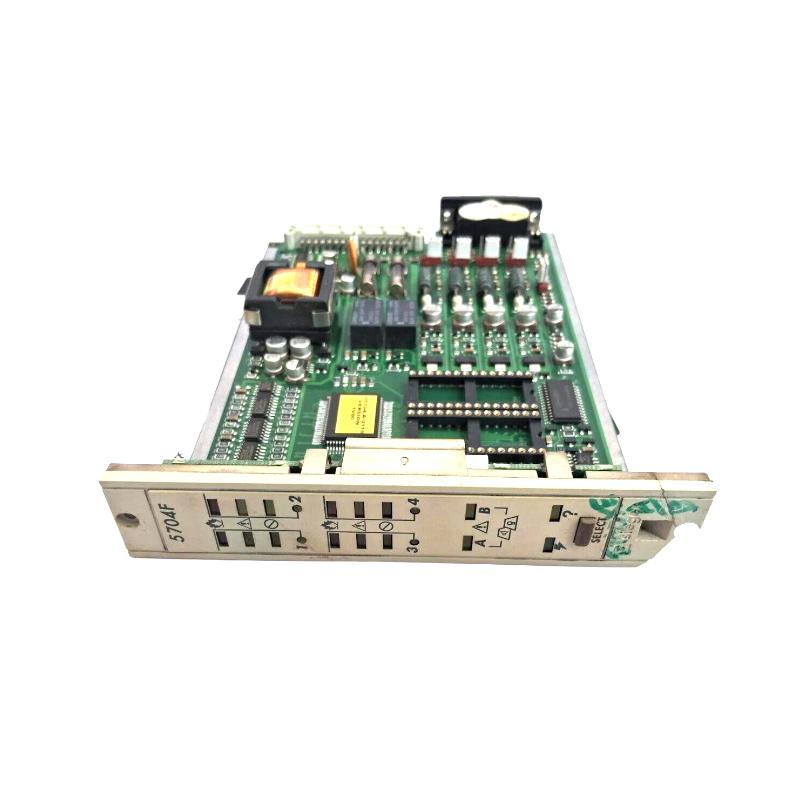

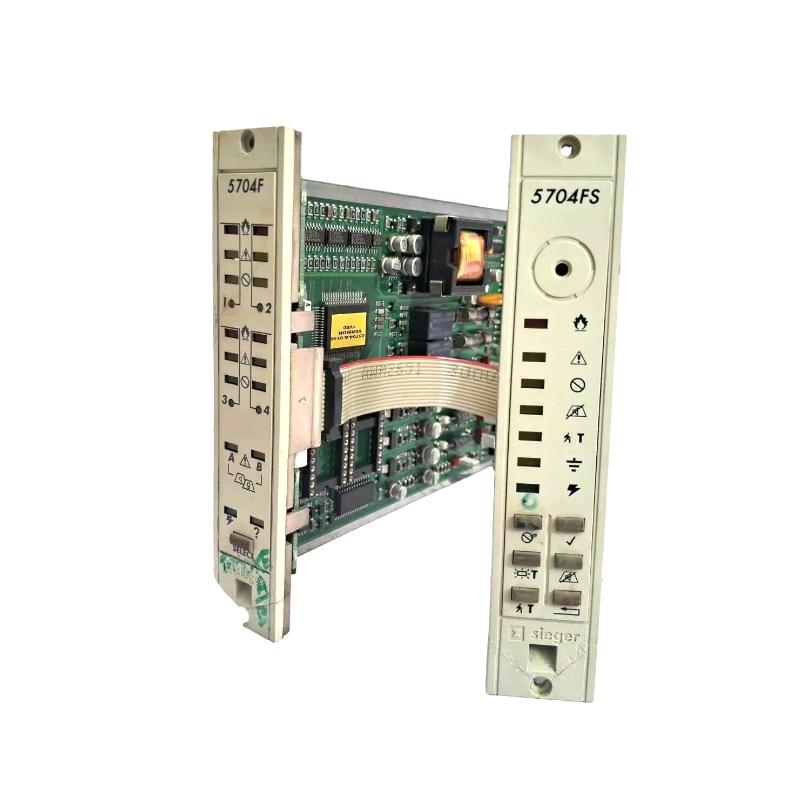

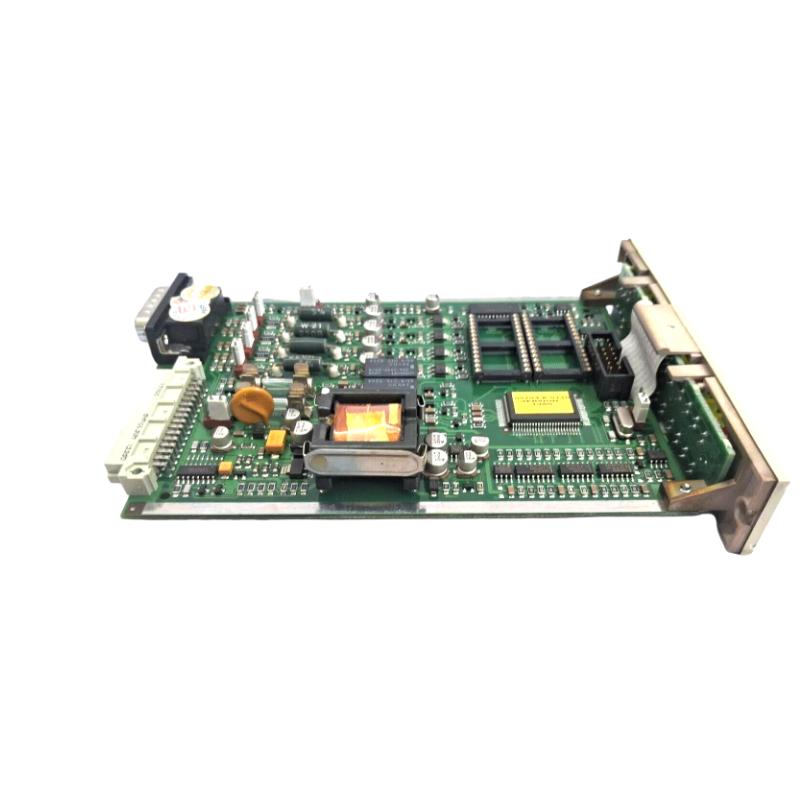

The Honeywell 05704-A-0146 (5704F Fire Control Card) is a dedicated industrial fire control module designed for integration within Honeywell’s System 57 fire safety architecture. It provides multi-zone fire detection processing, alarm handling, and relay output control, making it a key component in critical safety automation systems.
Built for reliability and precision, this module is widely used in environments where early fire detection and fast response logic are essential for protecting personnel and industrial assets.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Fire Control Card |
| Model Number | 05704-A-0146 (5704F) |
| System Compatibility | Honeywell System 57 / Fire Control Panels |
| Function | Multi-zone fire detection & control |
| Fire Zones | 4 configurable fire zones |
| Outputs | Switched DC outputs + relay outputs |
| Relay Capacity | Up to 16 configurable relay outputs |
| Communication | System backplane integration |
| Operating Voltage | 21–32 VDC |
| Power Consumption | ~2 W |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -25°C to +55°C |
| Dimensions | 17.2 cm × 2.5 cm × 13.2 cm |
| Weight | ~0.16 kg |
| Mounting Type | Rack-mounted module |
