Introduction

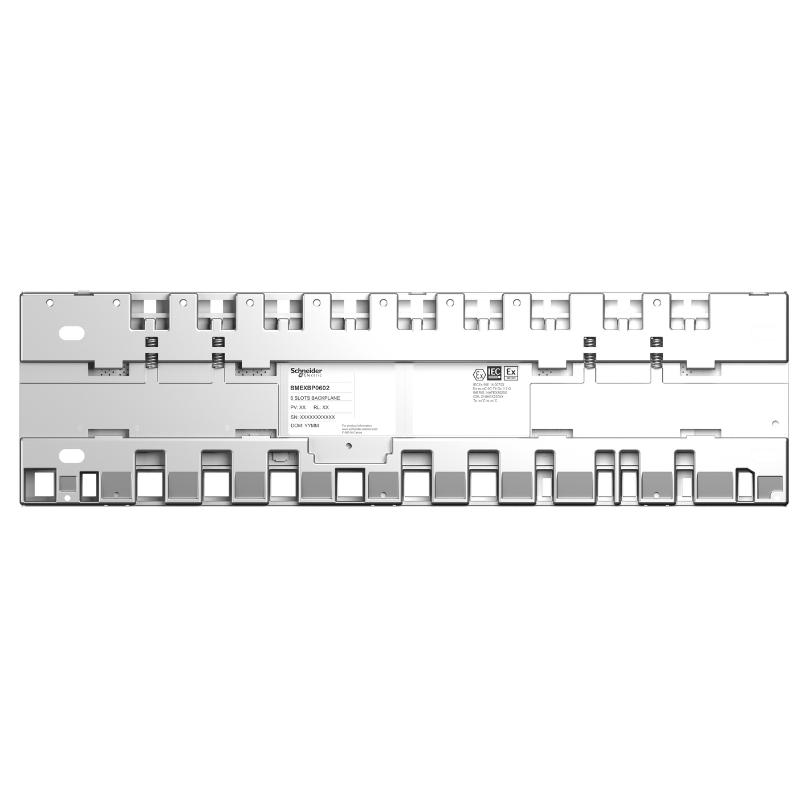

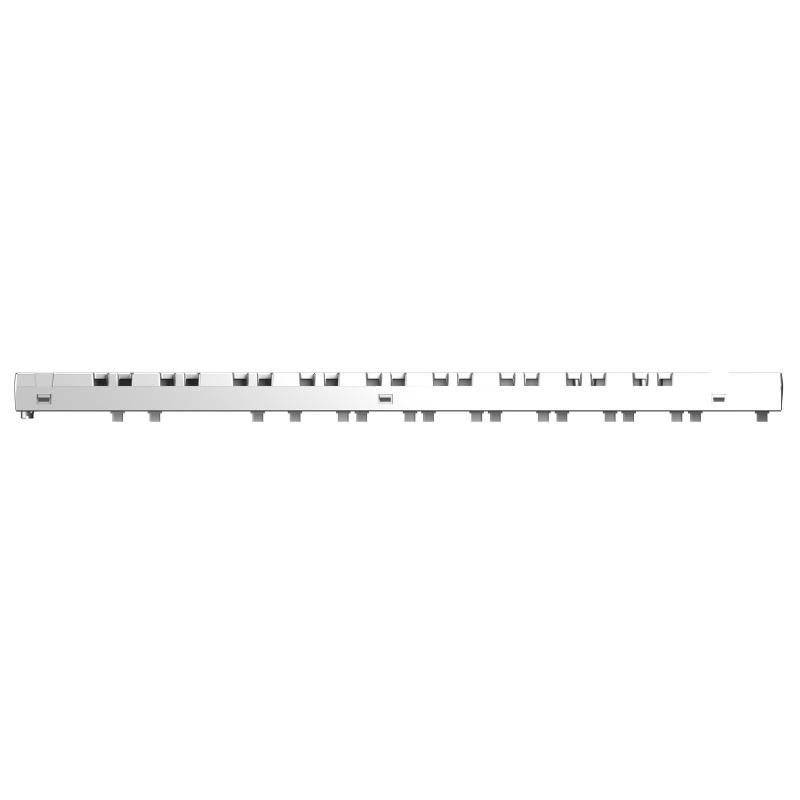

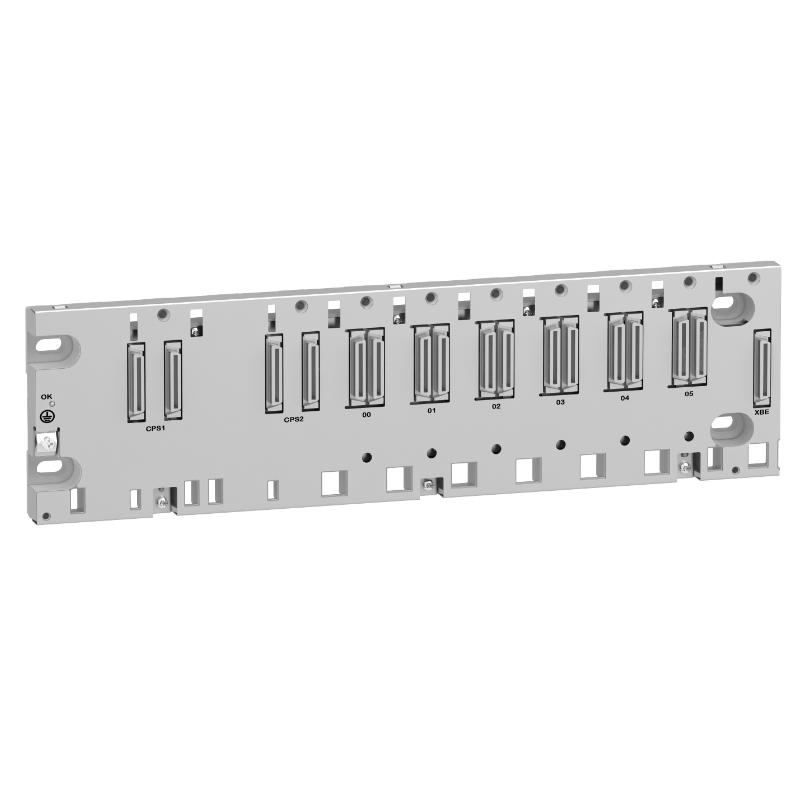

The Schneider BMEXBP0602 6-slot Ethernet backplane provides essential communication infrastructure for industrial automation systems. As part of the Modicon M580 architecture, it facilitates efficient communication between I/O modules and controllers, enabling fast and reliable data transfer across distributed control systems.
Designed to meet the needs of large-scale, process-critical applications, this backplane’s robust design ensures long-term performance even in harsh industrial environments. With the ability to expand control systems and easily replace I/O modules, the BMEXBP0602 offers flexibility and reliability for modern automation applications.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | 6-Slot Ethernet Backplane |
| Model | BMEXBP0602 |
| Platform Compatibility | Modicon M580 / X80 |
| Communication Interface | Ethernet |
| Slot Capacity | 6 slots for I/O modules |
| Mounting Type | Rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 375.8 × 19 × 105.11 mm |
| Weight | 1.02 kg (2.25 lb) |
Applications
The Schneider BMEXBP0602 is a robust 6-slot Ethernet backplane designed to provide a reliable communication platform for distributed I/O systems. It supports seamless integration of Schneider’s Modicon X80 I/O modules with the Modicon M580 automation platform, enabling high-performance data transfer across various industrial control applications.
Typical applications include:
-
Distributed control systems in process automation
-
Remote I/O expansion for Modicon M580 systems
-
Industrial manufacturing systems requiring high-speed data exchange
-
Process monitoring in water and wastewater facilities
-
Packaging and assembly lines
-
Machine control and robotics integration
-
Energy management systems in utilities and plants
Its flexible architecture allows for scalable and fault-tolerant system design, providing engineers with a reliable solution for large-scale, distributed automation networks.
Advantages
The BMEXBP0602 provides the backbone for high-speed communication, improving system efficiency and fault tolerance.
Key benefits include:
-
High-speed Ethernet communication for seamless data transfer
-
6 slots for flexible I/O module integration
-
Scalable architecture for expanding system capacity
-
Robust industrial design for demanding environments
-
Integrated diagnostic functions for system health monitoring
-
Hot-swappable I/O modules for easy maintenance and upgrades
-
Simple integration with Schneider Modicon M580 systems
These features provide engineers with the tools needed to build flexible, scalable, and reliable control systems in industrial automation.
Technical FAQs
1. What is the purpose of the BMEXBP0602?
It provides the communication backbone for connecting Modicon X80 I/O modules to the Modicon M580 automation platform.
2. How many I/O modules can be integrated with the BMEXBP0602?
It supports up to 6 I/O modules, providing flexible system expansion.
3. What type of communication does it support?
It supports high-speed Ethernet communication for data exchange between modules and controllers.
4. Is the BMEXBP0602 hot-swappable?
Yes, I/O modules can be replaced or added without shutting down the system.
5. Can it be used for remote I/O configurations?
Yes, it is designed to work in distributed systems with remote I/O configurations.
6. How does the BMEXBP0602 enhance system scalability?
It allows for easy integration of additional I/O modules to scale up control systems without additional network infrastructure.
7. Does it support any diagnostic features?
Yes, it includes diagnostic capabilities for monitoring module status and network health.
8. What are the primary applications of the BMEXBP0602?
It is used in process automation, machine control, and large-scale manufacturing systems requiring reliable communication.
9. Can it integrate with third-party I/O modules?
It is primarily designed for Schneider X80 I/O modules, but compatibility with third-party modules may depend on specific network configurations.
10. Is it suitable for harsh industrial environments?
Yes, it is built for robust performance in demanding industrial settings.
