Engineered Overview and System Role

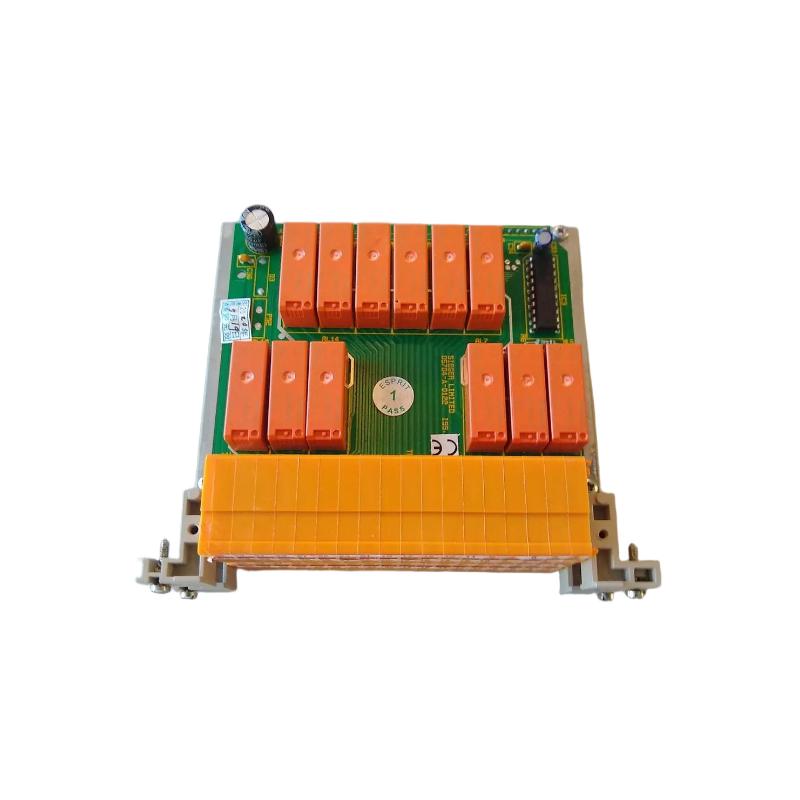

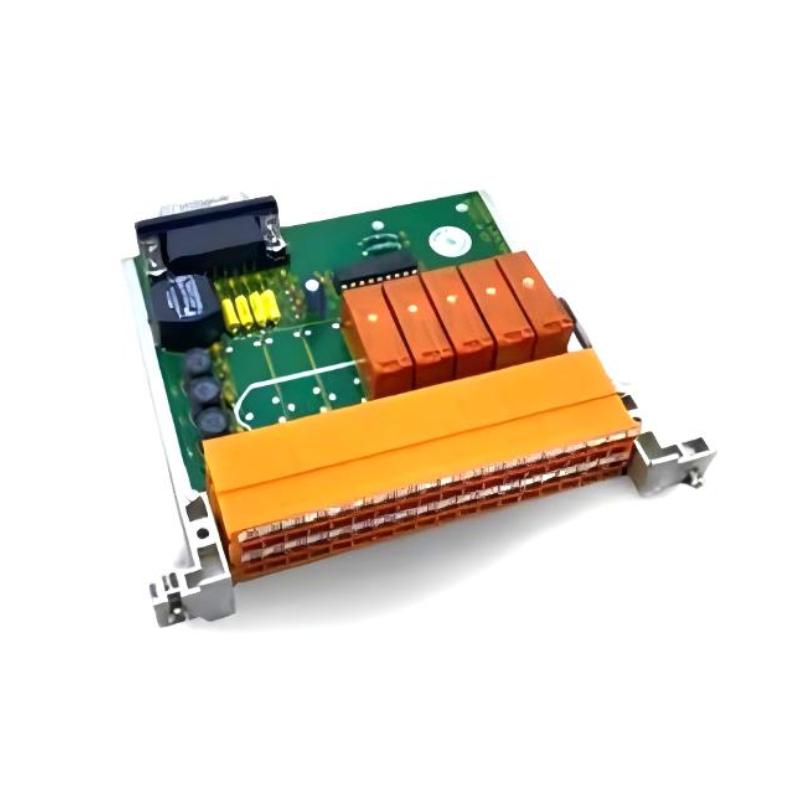

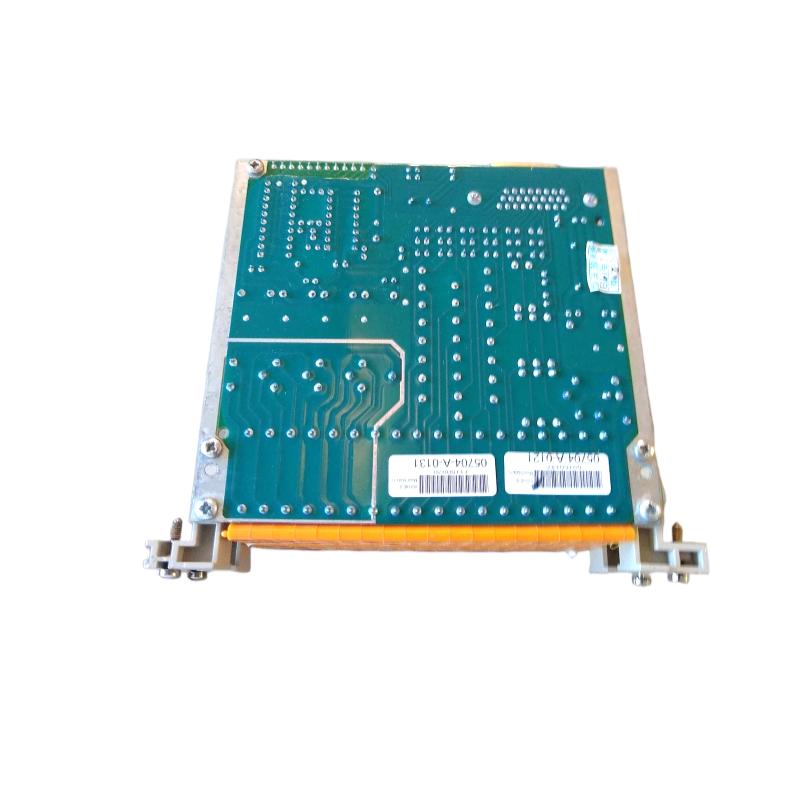

The Honeywell 05704-A-0131 Quad Relay Interface Card is designed to expand relay output capabilities within Honeywell control and monitoring systems. Integrated into System 57 architectures, this module enables structured communication between detection devices and control units, supporting coordinated system responses.
Unlike standard relay cards, the 05704-A-0131 combines a quad relay interface with an expansion relay section, offering enhanced output flexibility for more complex control strategies. It is particularly suitable for applications requiring multiple relay signals and precise output control.
Technical Specifications
| Parameter | Details |
|---|
| Product Type | Quad Relay Interface Card |
| Relay Configuration | 12 × SPCO + 4 × SPST |
| Relay Operation Modes | Latching / Non-latching selectable |
| Energised / De-energised selectable |
| Power Consumption | 3.5 W (typical), 6.5 W (maximum) |
| Field Terminal Size | 2.5 mm² (14 AWG) |
| System Compatibility | Honeywell System 57 |
| Installation Type | Rack-mounted module |
| Operating Temperature | -40°C to +85°C |
Application Coverage
The 05704-A-0131 module is widely implemented in systems that require multiple relay outputs and coordinated signaling:
-
Gas detection and monitoring systems
-
Industrial automation and process control
-
Alarm management and status indication
-
Ventilation and environmental control systems
-
Integrated safety and monitoring platforms
Its expanded relay configuration makes it ideal for applications where multiple outputs must be handled simultaneously with high reliability.
Technical FAQs
1. What makes the 05704-A-0131 different from standard relay cards?
It includes both a quad relay interface and an expansion relay section, increasing total relay outputs.
2. How many relays are available on this module?
It provides 12 SPCO and 4 SPST relays.
3. Can relay behavior be configured?
Yes, users can select latching or non-latching modes.
4. What systems is it compatible with?
It is designed for Honeywell System 57 platforms.
5. What is the power consumption?
Typical consumption is 3.5 W, with a maximum of 6.5 W.
6. Is it suitable for multi-signal output applications?
Yes, it is specifically designed for systems requiring multiple relay outputs.
7. What is the installation method?
It is installed within compatible control racks.
8. What type of terminals are used?
It uses 2.5 mm² field terminals.
9. Can it support alarm and control functions simultaneously?
Yes, it can manage multiple signaling roles within the same system.
10. What industries commonly use this module?
It is widely used in industrial monitoring, process control, and safety systems.
