Introduction

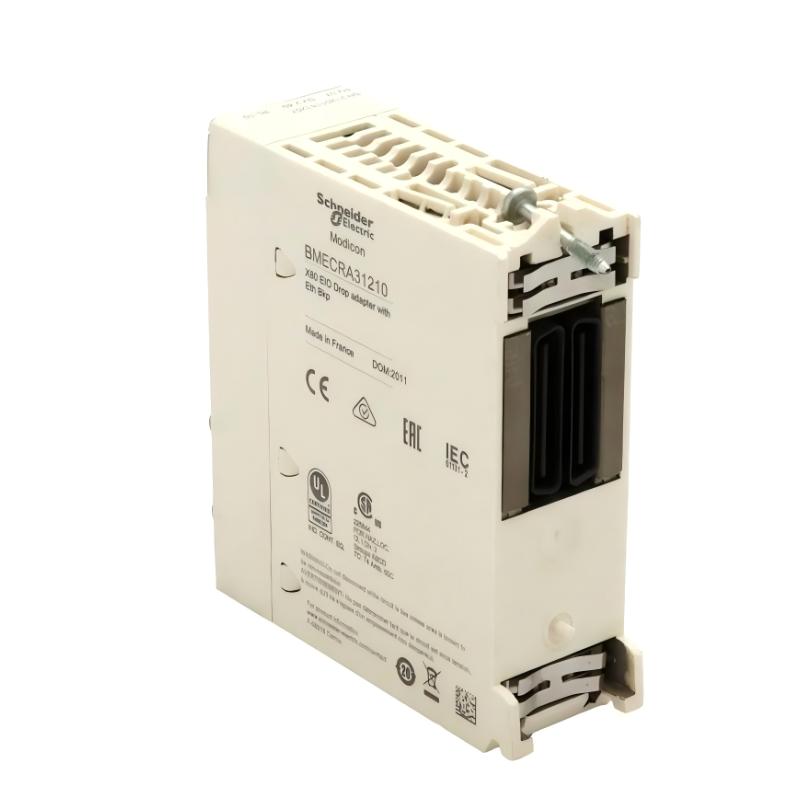

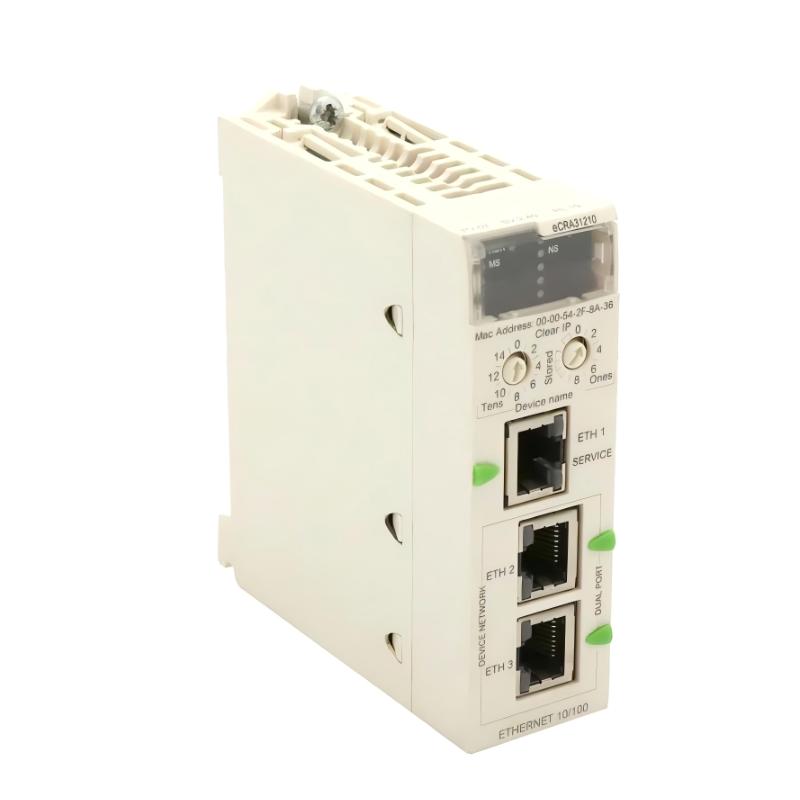

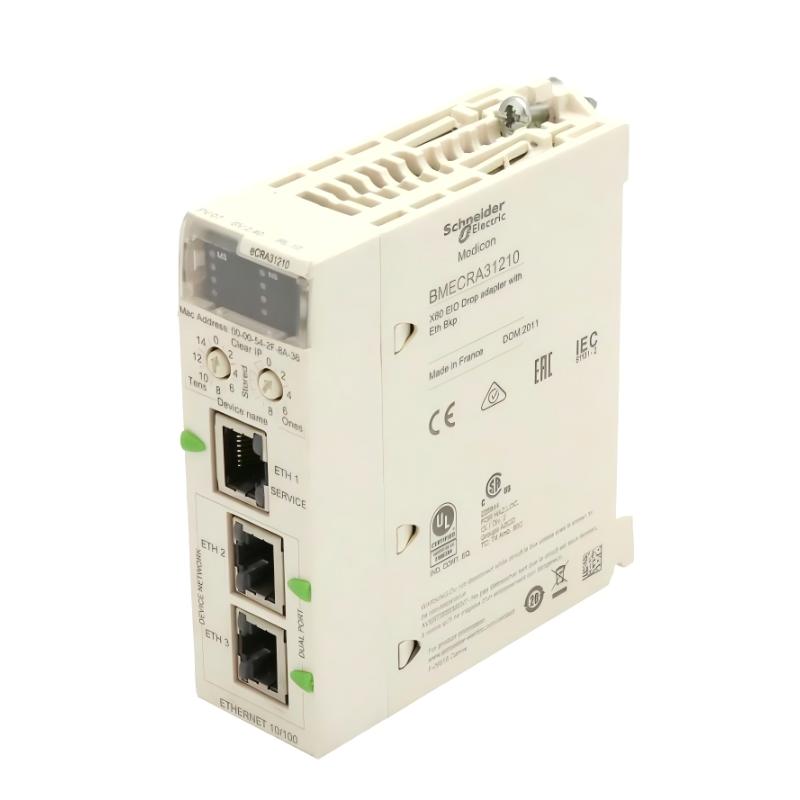

The Schneider BMECRA31210 is an Ethernet Remote Rack Communication Module developed for Modicon M580 distributed automation systems. It provides a dependable communication link between central controllers and remote X80 I/O racks, helping engineers build flexible and scalable industrial control networks.
Designed for process-critical environments, this module supports fast data transmission, rack synchronization, and system diagnostics. Its compact footprint and robust industrial design make it well suited for both new installations and system expansions.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Ethernet Remote Rack Communication Module |
| Model | BMECRA31210 |
| Platform Compatibility | Modicon M580 / X80 |
| Communication Interface | Ethernet Remote I/O |
| Network Port | Ethernet |
| Mounting Type | Rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 100 × 32 × 87.5 mm |
| Weight | 0.225 kg (0.50 lb) |
Applications
The Schneider BMECRA31210 is purpose-built for distributed automation systems that require fast, stable communication between remote I/O racks and central controllers. It is widely used in architectures where reliable data exchange and synchronized control are essential.
Typical applications include:
-
Distributed process control in water treatment plants
-
Remote I/O expansion in manufacturing lines
-
Energy and utility monitoring systems
-
Oil and gas field instrumentation networks
-
Conveyor and material handling systems
-
Infrastructure automation and building control
-
Large-scale packaging and logistics systems
Its Ethernet-based architecture makes it especially effective in systems requiring scalable remote rack deployment.
Advantages
The BMECRA31210 is designed to improve system flexibility while maintaining communication stability across industrial networks.
Key benefits include:
-
High-speed Ethernet remote rack communication
-
Supports distributed Modicon M580 architectures
-
Stable data exchange for time-sensitive control tasks
-
Simplified remote rack integration and expansion
-
Built-in diagnostics for communication status monitoring
-
Reduced wiring complexity in large systems
-
Reliable operation in industrial environments
These strengths make it ideal for engineers building scalable and resilient control systems.
Technical FAQs
1. What is the main function of the BMECRA31210?
It manages Ethernet communication between a remote X80 rack and the main M580 controller.
2. Which Schneider platforms is it compatible with?
It is designed for Modicon M580 and X80 remote I/O architectures.
3. Does it support hot swapping?
Yes, the module supports maintenance-friendly replacement procedures within supported system configurations.
4. What communication protocol does it use?
It uses Ethernet-based remote I/O communication protocols for deterministic rack data transfer.
5. Can it be used in redundant systems?
Yes, it supports deployment in high-availability distributed architectures.
6. How are diagnostics accessed?
Diagnostics can be monitored through controller software and integrated network tools.
7. Is additional configuration software required?
Yes, setup is typically performed through Schneider EcoStruxure Control Expert.
8. What happens during communication interruption?
The module supports fault handling and system recovery strategies depending on controller settings.
9. Can it support long-distance rack communication?
Yes, within Ethernet infrastructure design limits.
10. Is it suitable for harsh industrial environments?
Yes, it is designed for industrial control cabinets and process environments.
