Product Introduction

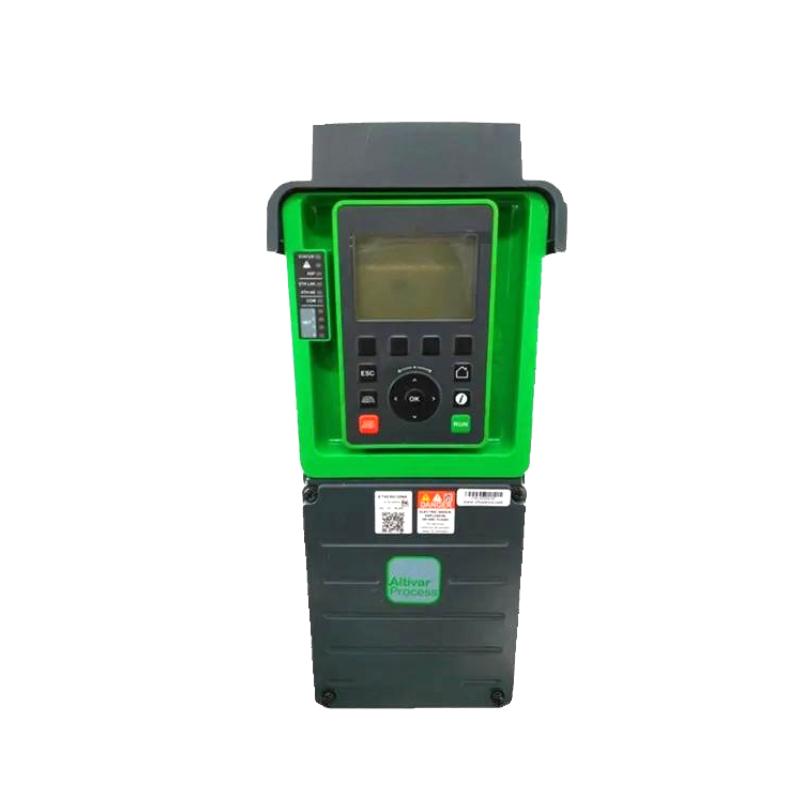

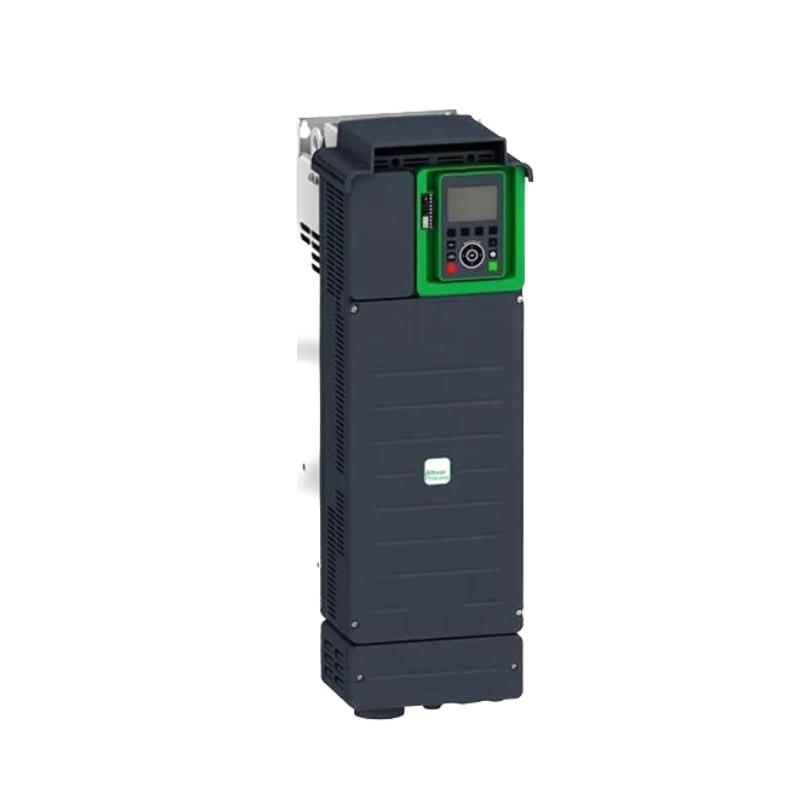

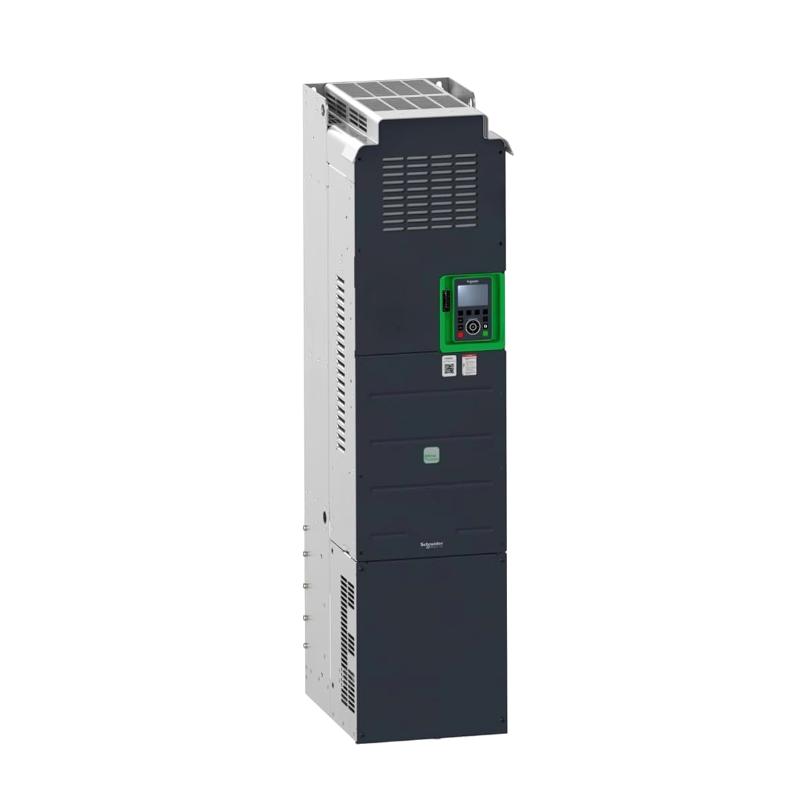

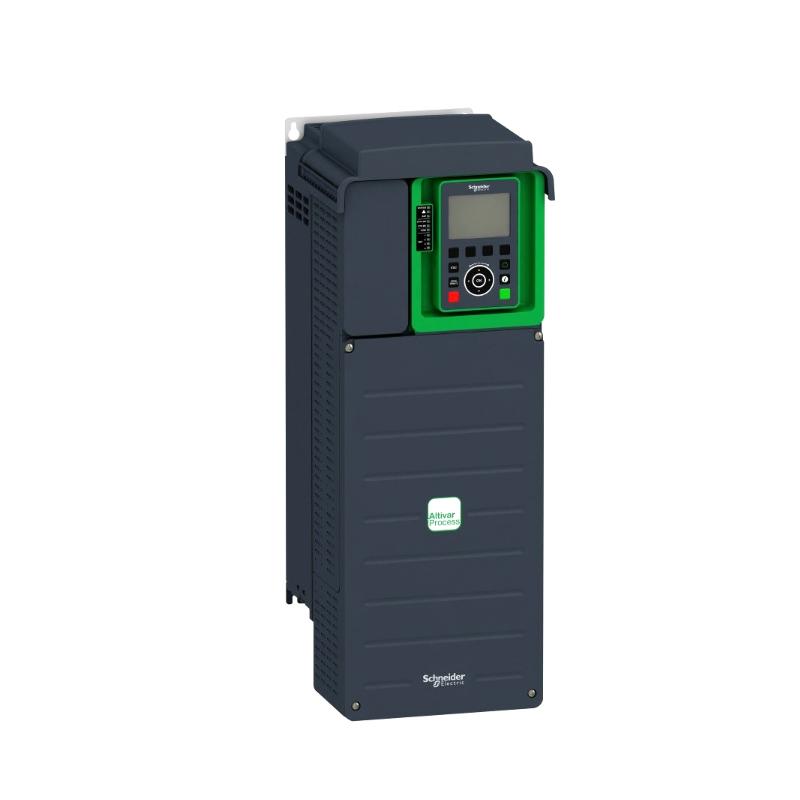

The Schneider ATV930C13N4 is an intelligent industrial drive from the Altivar Process ATV900 range, designed for modern automation environments where drives are part of the overall process intelligence layer.
Unlike traditional VFDs, it is designed to deliver not only motor control but also diagnostics, communication, and energy optimization. This makes it highly suitable for digitalized industrial plants where uptime, efficiency, and data visibility are critical.
From an engineering standpoint, it is often selected for large-scale infrastructure projects where long-term reliability and system integration are more important than standalone motor control performance.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Variable Speed Drive |
| Model | ATV930C13N4 |
| Series | Altivar Process ATV900 |
| Motor Power | 132 kW / 110 kW (duty dependent) |
| Input Voltage | 380–480 V AC |
| Phase | 3 Phase |
| Line Current | ~201–237 A depending on load |
| Output Current | ~211–250 A class |
| Output Frequency | 0.1–500 Hz (up to 599 Hz depending configuration) |
| Control Modes | V/F, SFVC, FVC |
| Communication | Modbus TCP, Ethernet/IP, Modbus serial |
| Safety Functions | STO (Safe Torque Off) |
| EMC Filter | Integrated |
| Protection Rating | IP21 |
| Mounting Type | Wall Mount |
| Dimensions | 320 × 1205 × 393 mm |
| Weight | 104 kg (229.28 lb) |
Industrial Application Overview
The Schneider ATV930C13N4 Variable Speed Drive is part of the Altivar Process ATV900 series, designed for high-power industrial applications where advanced process control, energy optimization, and system connectivity are required. It is widely used in:
-
Large water and wastewater treatment systems
-
Oil & gas pumping and compression stations
-
Mining and bulk material handling systems
-
Heavy industrial conveyors and crushers
-
Large HVAC and district energy systems
-
Process industries requiring continuous operation
This drive is engineered not only for motor control but also for full process integration within modern industrial automation architectures.
Engineering Advantages in Real Operation
The ATV930C13N4 is built for high-demand environments where reliability, data communication, and energy efficiency are equally important.
Key advantages
-
132 kW (normal duty) / 110 kW (heavy duty) power class for industrial-scale systems
-
380–480 V three-phase supply compatibility for standard industrial networks
-
Advanced vector control (SFVC & FVC) for precise torque and speed regulation
-
Integrated process control functions for pumps, fans, and compressors
-
Ethernet-based communication (Modbus TCP, Ethernet/IP) for SCADA integration
-
Energy optimization algorithms to reduce lifecycle operating cost
-
High overload capability (short-time transient operation up to ~300 A class behavior)
-
Built-in safety functions including STO (Safe Torque Off)
-
Modular architecture with expansion for I/O and fieldbus systems
In industrial operation, it is typically selected when both process stability and digital integration are required at plant level.
Technical FAQs
1. What is the power rating of this drive?
It supports 132 kW (normal duty) and 110 kW (heavy duty) motor loads.
2. What voltage range does it operate on?
It operates on 380–480 V three-phase industrial power systems.
3. Does it support Ethernet communication?
Yes, it supports Modbus TCP and Ethernet/IP for industrial networks.
4. What motor types are supported?
It supports both synchronous and asynchronous motors.
5. Does it include vector control?
Yes, it supports both sensorless and closed-loop vector control modes.
6. What is the maximum output frequency?
Up to 500 Hz (with some configurations extending higher depending on setup).
7. Does it support pump and fan control functions?
Yes, it includes dedicated process control optimization features.
8. Is it suitable for SCADA systems?
Yes, it is designed for full SCADA and PLC integration.
9. Does it include safety functions?
Yes, including Safe Torque Off (STO).
10. What makes it different from standard VFDs?
It combines motor control, energy management, and industrial communication in one platform.
