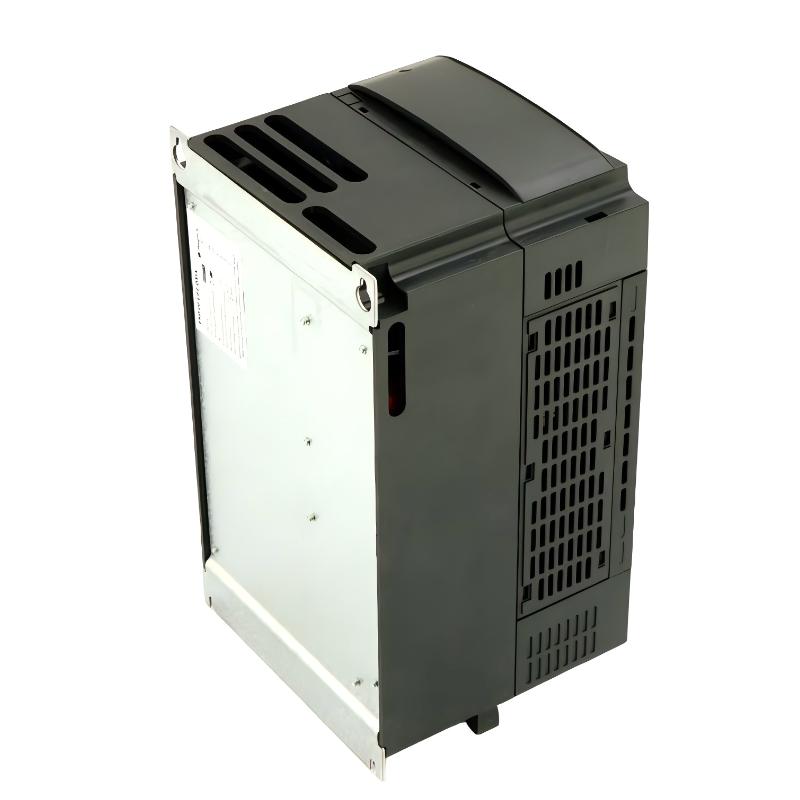

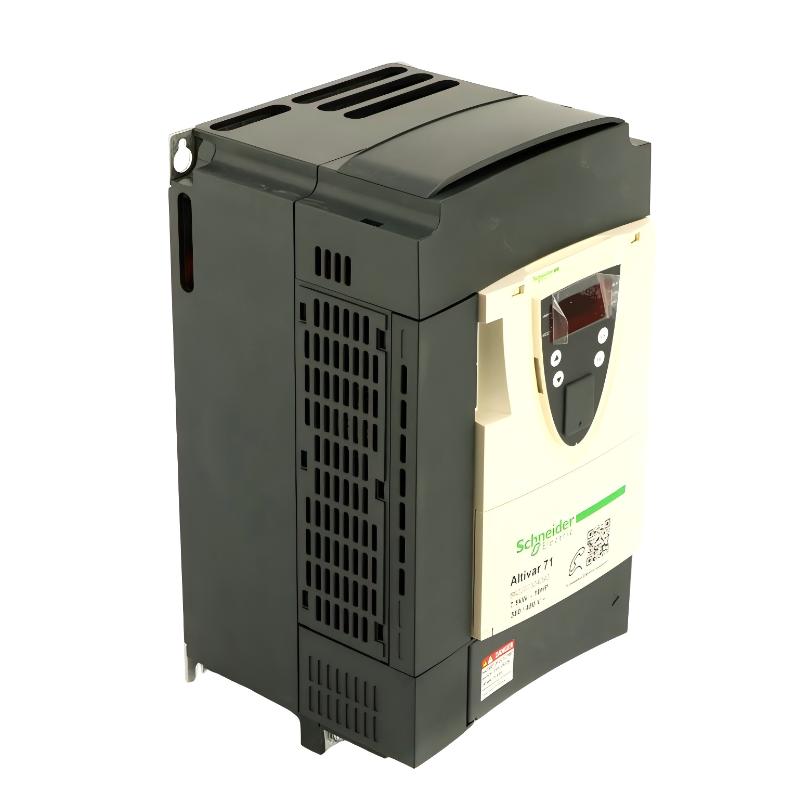

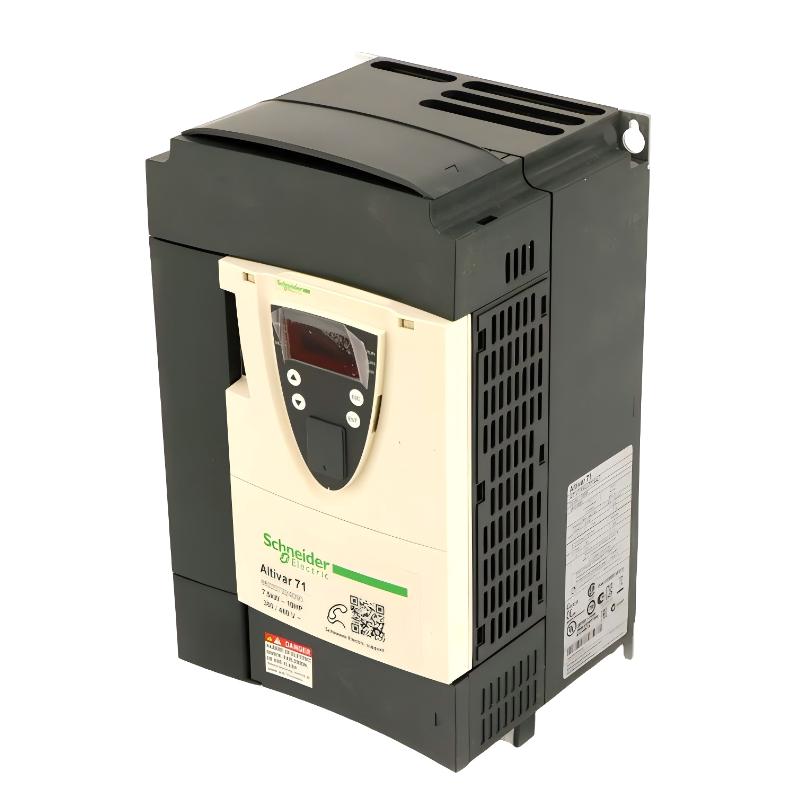

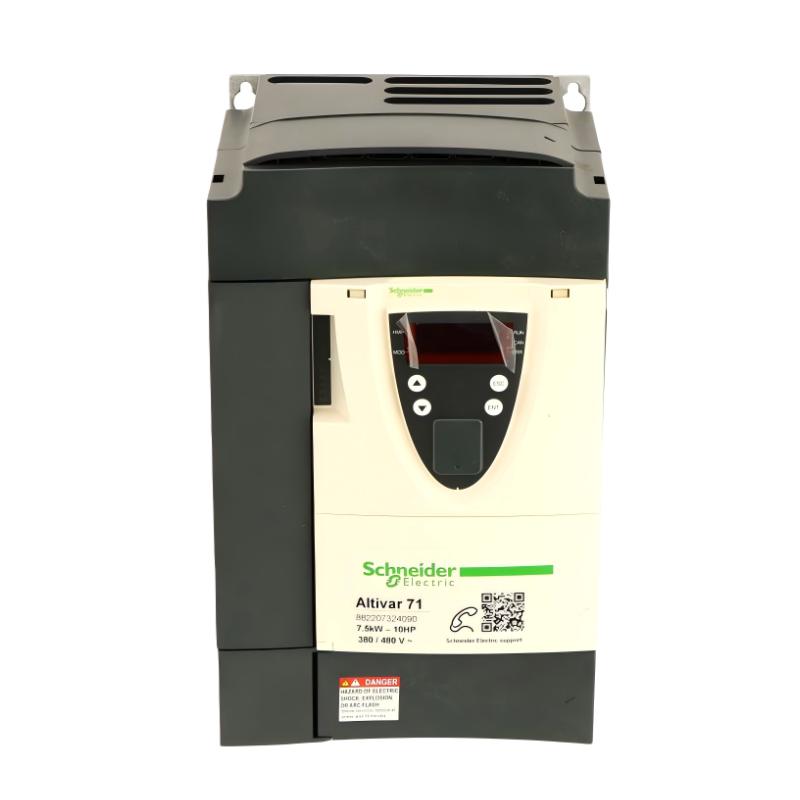

Product Introduction
The Schneider ATV71HU75N4 belongs to the Altivar 71 range, designed for advanced motor control applications requiring more than basic frequency adjustment. It is intended for systems where torque stability, process continuity, and operational efficiency are critical.
Unlike basic VFDs, this model integrates advanced control algorithms that improve performance under dynamic load conditions. This makes it suitable for both standalone machines and integrated plant-wide automation systems.
From an engineering perspective, it is often selected for its balance of reliability, control precision, and adaptability in industrial environments where uptime is essential.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Variable Speed Drive |
| Model | ATV71HU75N4 |
| Series | Altivar 71 |
| Motor Power | 7.5 kW / 10 HP |
| Input Voltage | 380–480 V AC |
| Phase | 3 Phase |
| Line Current | ~17.6–27 A (depending on voltage) |
| Nominal Output Current | ~14–17.6 A |
| Output Frequency | 0.1–599 Hz |
| Control Modes | V/F, SFVC, FVC |
| Communication | Modbus, CANopen |
| EMC Filter | Integrated |
| Protection Rating | IP20 |
| Mounting Type | Panel / Wall Mount |
| Dimensions | 295 × 175 × 187 mm |
| Weight | 5.5 kg (12.13 lb) |
Industrial Application Overview
The Schneider ATV71HU75N4 Variable Speed Drive is designed for medium-to-high power industrial motor control applications where stable torque, precise speed regulation, and robust system reliability are required. It is widely used in:
-
Conveyor and material handling systems
-
Industrial pumps and fluid transfer stations
-
Fans, blowers, and HVAC infrastructure
-
Compressors and process equipment
-
Hoisting and mechanical handling systems
-
General-purpose industrial automation lines
As part of the Altivar 71 series, it is built for complex motor control scenarios rather than simple speed variation.
Engineering Advantages in Operation
The ATV71HU75N4 is engineered to handle demanding load conditions while maintaining smooth and stable motor performance across a wide operating range.
Key advantages
-
7.5 kW (10 HP) motor capacity for 380–480 V three-phase systems
-
Sensorless flux vector control (SFVC) for stable low-speed torque performance
-
Closed-loop flux vector control option (FVC) for high-precision applications
-
Wide output frequency range (0.1–599 Hz) for flexible process adaptation
-
Integrated EMC filter for reduced electrical noise and improved system compatibility
-
High overload capability for short-duration heavy starting conditions
-
Modbus and CANopen communication support for automation integration
-
Expandable option cards for fieldbus, I/O, and encoder feedback
In real industrial environments, it is valued for maintaining consistent performance under variable torque loads and continuous-duty operation.
Technical FAQs
1. What motor power does it support?
It is rated for 7.5 kW (10 HP) three-phase motors at 380–480 V.
2. Does it support vector control?
Yes, it supports both sensorless and closed-loop flux vector control modes.
3. What is the output frequency range?
It operates from 0.1 Hz up to 599 Hz.
4. Does it include EMC filtering?
Yes, an integrated EMC filter is included as standard.
5. Can it handle overload conditions?
Yes, it supports high transient overload for demanding startup conditions.
6. What communication protocols are supported?
It supports Modbus and CANopen, with optional expansion modules.
7. Is it suitable for industrial automation systems?
Yes, it is widely used in process and machine automation environments.
8. Can it control synchronous motors?
Yes, it supports both synchronous and asynchronous motor types.
9. How is it configured?
It is configured via a graphical terminal with built-in diagnostics.
10. What makes it suitable for harsh industrial use?
Its vector control system, protection functions, and robust thermal design ensure stable operation under varying loads.
