Product Insight

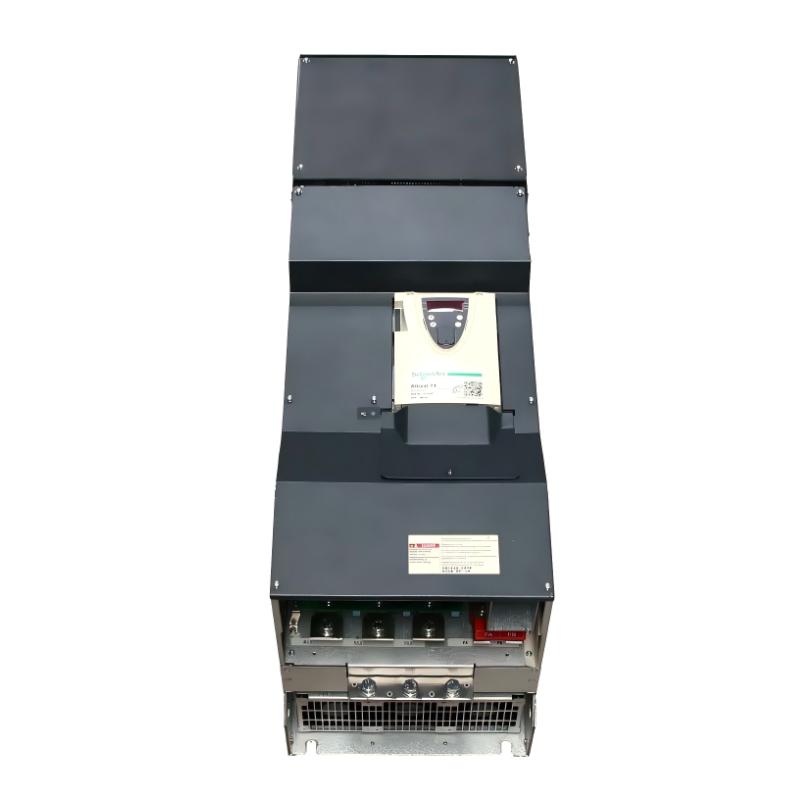

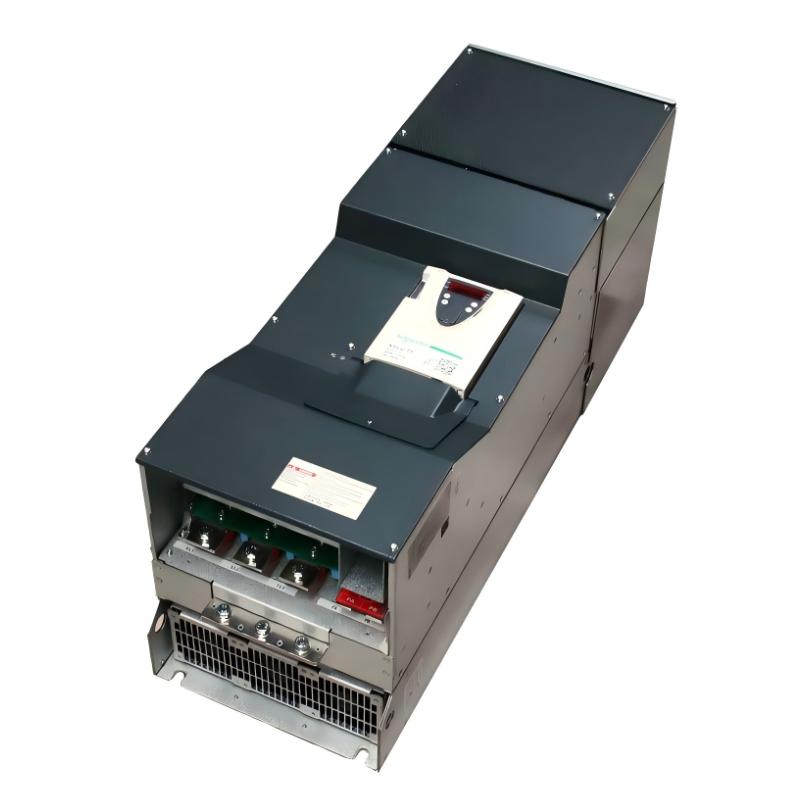

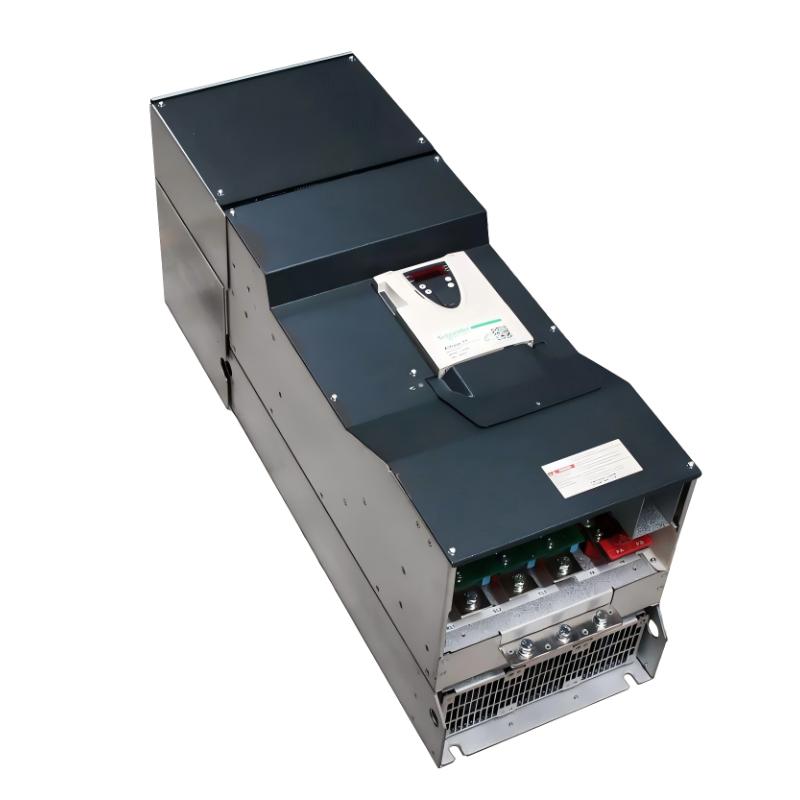

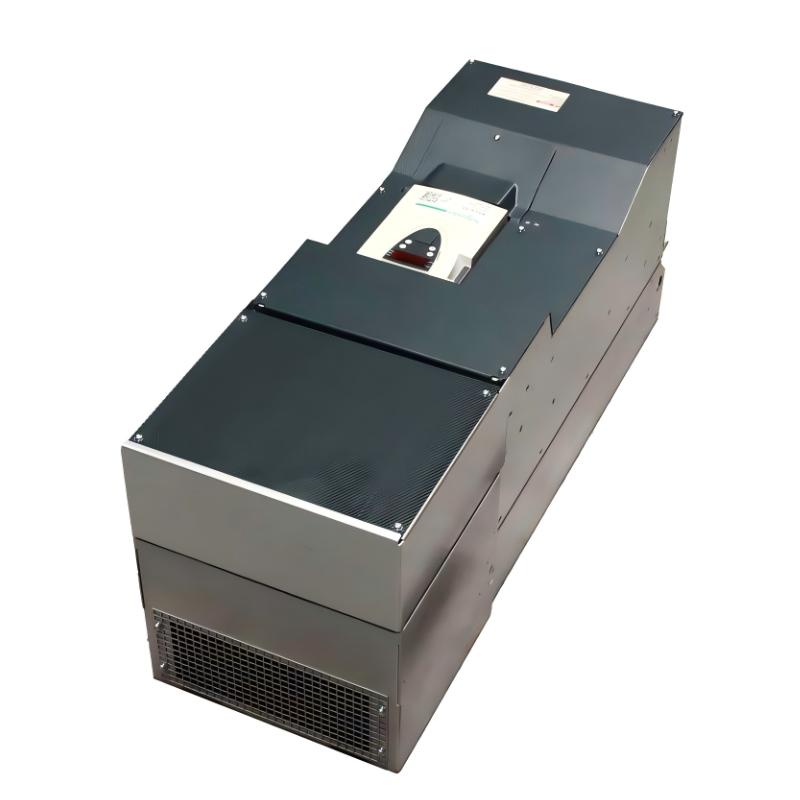

The Schneider ATV71HD90N4 Variable Speed Drive belongs to the Altivar 71 series, developed for complex, high-power industrial automation systems. Unlike standard drives, it integrates advanced control algorithms, high overload tolerance, and adaptive energy management.
In real-world engineering environments, this model is often selected for critical processes where performance consistency, fault tolerance, and system scalability are required. Its ability to handle large motors while maintaining precise control makes it a reliable backbone for heavy industrial operations.
Additionally, its modular communication capability allows seamless integration into modern automation networks, making it suitable for both new installations and system upgrades.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Variable Speed Drive |
| Model | ATV71HD90N4 |
| Series | Altivar 71 |
| Motor Power | 90 kW / 125 hp |
| Input Voltage | 380–480 V AC |
| Phase | 3 Phase |
| Line Current | 166 A at 380 V / 134 A at 480 V |
| Nominal Output Current | 179 A |
| Maximum Transient Current | 269 A (60 s) / 295 A (2 s) |
| Output Frequency | 0.1–500 Hz |
| Switching Frequency | 2.5–8 kHz Adjustable |
| EMC Filter | Integrated |
| Communication | Modbus, CANopen |
| Mounting Type | Panel / Wall Mount |
| Dimensions | 920 × 320 × 377 mm |
| Weight | 100 kg (220.46 lb) |
High-Power Applications and System Integration
The Schneider ATV71HD90N4 Variable Speed Drive is designed for large-scale industrial systems where high torque demand, continuous operation, and precise motor control are critical. It is typically deployed in:
-
Heavy-duty conveyor and bulk material transport systems
-
Large pumping stations and water treatment facilities
-
Industrial compressors and HVAC infrastructure
-
Extrusion and processing lines
-
Hoisting, cranes, and lifting systems
-
Mining and high-load mechanical equipment
Its reinforced design and high current capacity make it particularly suitable for applications involving sudden load changes and high inertia.
Engineering Advantages in Real Operation
From a system engineering perspective, the ATV71HD90N4 is optimized for stability under high electrical and mechanical stress conditions.
Key advantages
-
90 kW / 125 hp capacity for high-power industrial motors
-
Advanced vector control (SFVC & FVC) enabling precise torque and speed regulation
-
Integrated EMC filter for improved electromagnetic compatibility
-
Energy Adaptation (ENA) system to stabilize performance under unbalanced loads
-
Wide frequency range (0.1–500 Hz) for flexible speed control
-
High transient current capability supporting heavy startup loads
-
Robust thermal design with integrated heat sink
-
Support for long motor cable installations without performance loss
In practical deployment, this drive excels in maintaining consistent motor performance even under fluctuating process conditions.
Technical FAQs
1. What motor rating is supported?
It supports 90 kW (125 hp) motors operating on 380–480 V three-phase systems.
2. What control methods are available?
It supports sensorless flux vector control, flux vector control with encoder, and V/F control modes.
3. Is it suitable for high-inertia loads?
Yes. It is specifically designed for heavy-duty and high-inertia applications.
4. What is the output frequency range?
The drive operates between 0.1 Hz and 500 Hz.
5. Does it include EMC filtering?
Yes. A built-in EMC filter is included for noise suppression.
6. What is the maximum transient current capability?
It can handle up to 295 A for short-duration peak loads.
7. Can it support long-distance motor connections?
Yes. Up to 100 m shielded and 200 m unshielded cable lengths are supported.
8. Is it compatible with synchronous motors?
Yes. It supports both asynchronous and synchronous motor control.
9. What communication protocols are available?
It supports Modbus and CANopen, with expansion options for other industrial networks.
10. How does it improve energy efficiency?
The ENA system dynamically adjusts motor performance based on load conditions.
