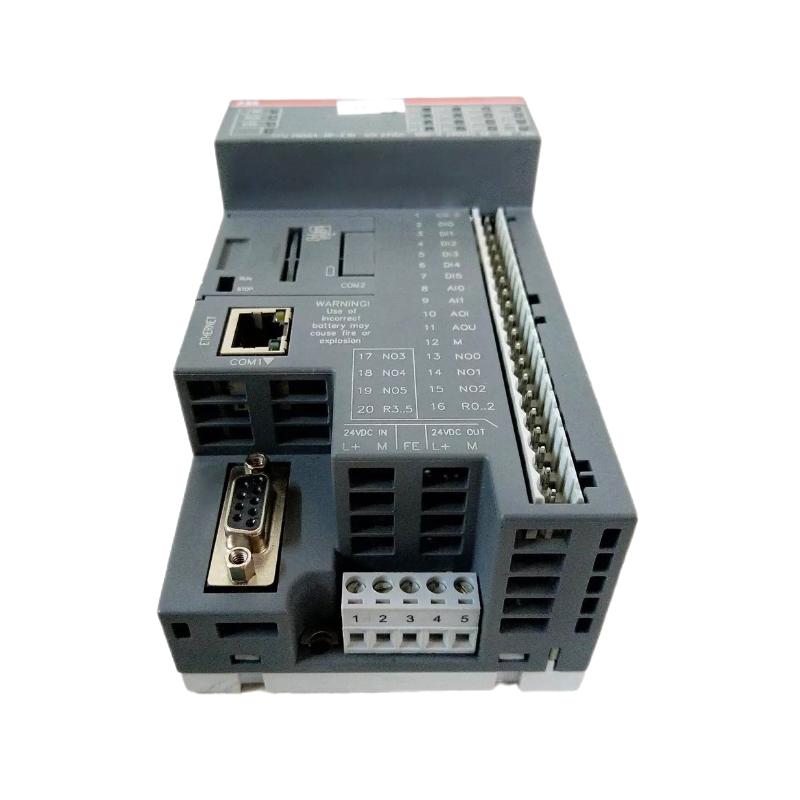

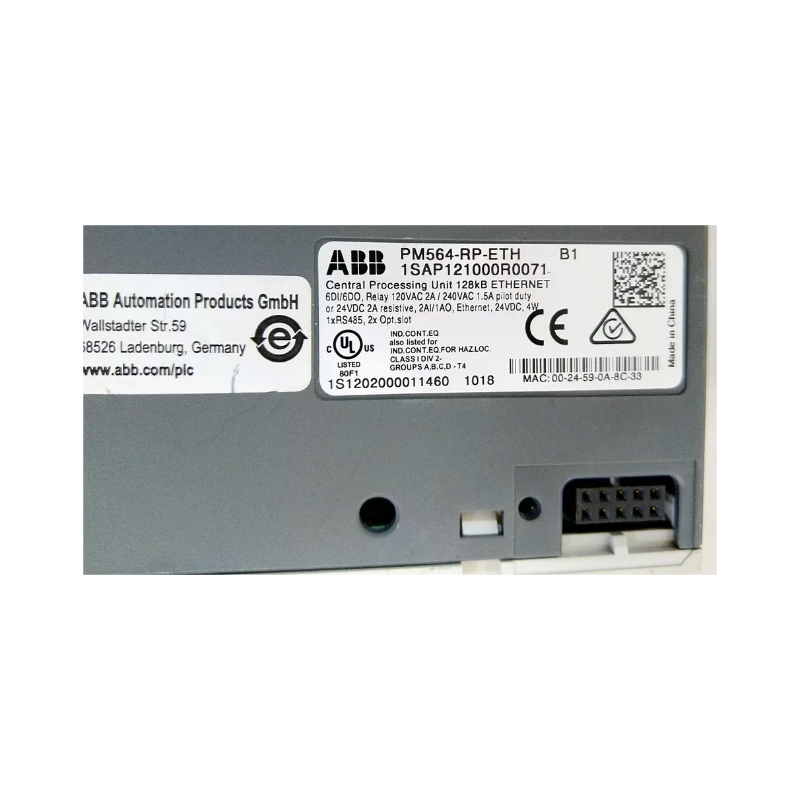

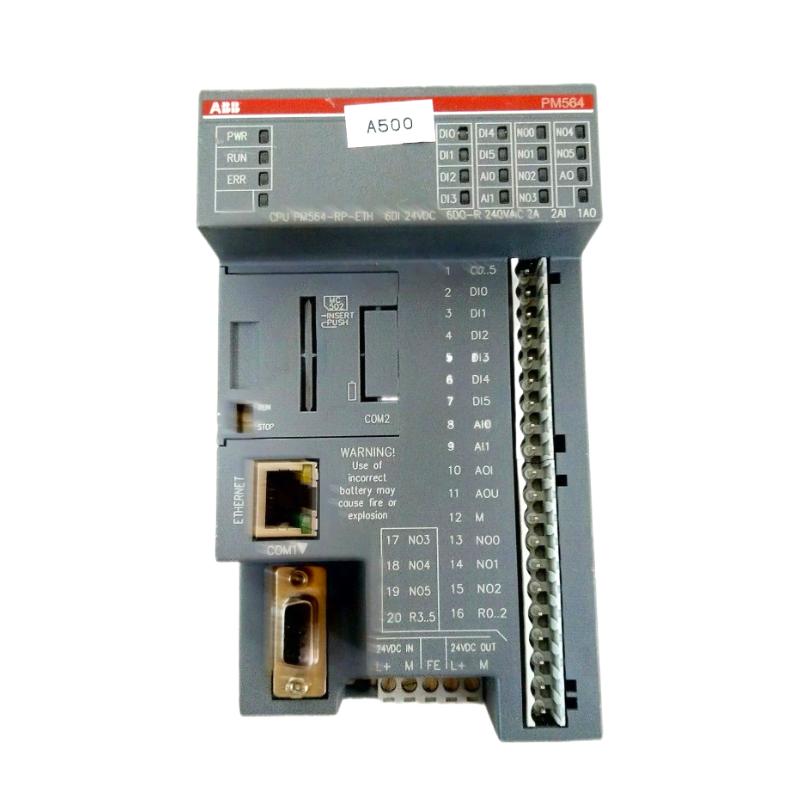

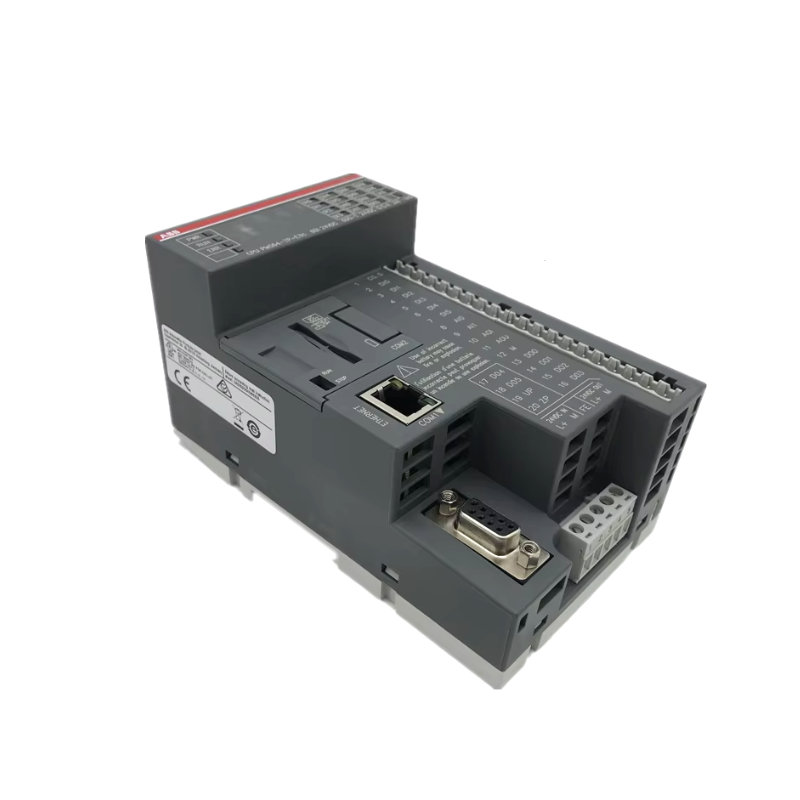

ABB PM564-RP-ETH 1SAP121000R0071 AC500 Programmable Logic Controller (PLC)

Name: ABB PM564-RP-ETH 1SAP121000R0071 AC500 Programmable Logic Controller (PLC)
Brand: ABB PLC
SKU: 7321
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PM564-RP-ETH 1SAP121000R0071
Product Origin:Sweden (SE)
Product Dimensions:135 × 82 × 74 mm
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Allen Bradley PM564‑RP‑ETH AC500 PLC Processor Module is a high‑function programmable controller that brings dependable logic processing and versatile I/O handling to industrial automation applications. Built on the AC500 platform, this PLC CPU combines Ethernet connectivity with mixed digital and analog interfaces, offering a flexible solution for small to medium control systems. Designed for real‑world production environments, it supports rapid response times, expandability, and seamless integration with other control components — helping your automation projects achieve both performance and reliability.

Technical Specifications

Feature	Specification
Manufacturer	Allen Bradley
Model	PM564‑RP‑ETH AC500 PLC Processor Module
Module Type	PLC Processor Module
Application Series	AC500/eCo Automation Platform
Program Memory	128 kB
Digital Inputs (DI)	6 channels (24 V DC)
Digital Outputs (DO‑R)	6 relay outputs
Analog Inputs (AI)	2 channels
Analog Output (AO)	1 channel
Communication Interfaces	1 × Ethernet, 1 × RS485, 2 × Option Slots
Operating Voltage	24 V DC
Power Consumption	Typical low power usage
Operating Temperature	0°C to +60°C
Protection Class	IP20
Dimensions (H × W × D)	135 × 82 × 74 mm
Weight	~0.30 kg

Applications

The PM564‑RP‑ETH is suited for a wide range of industrial automation scenarios, including:

Automated machine control for packaging, material handling, and assembly lines
Process regulation and discrete logic systems in factories
Control panels requiring integrated Ethernet communication
Distributed control architectures with remote sensors and actuators
OEM systems where a compact, reliable PLC is needed

Its mixed I/O and communication options make it capable of tackling both standard and more complex automation challenges with ease.

Advantages

Integrated Ethernet port simplifies networked communication and remote access
Versatile I/O mix supports digital and analog control without additional modules
Expandable via option slots to tailor functionality to changing needs
Efficient and rugged design for sustained industrial use
Compact size with industry‑standard mounting fits tight control layouts

With balanced processing power and adaptable connectivity, this PLC brings strong automation capabilities to diverse industrial environments.

Technical FAQs

What type of memory does this PLC use?
It uses 128 kB of program memory for control logic and application storage.
How many digital inputs does it provide?
The module includes 6 digital inputs rated at 24 V DC.
What communication interfaces are available?
One Ethernet port and one RS‑485 port are integrated, plus two option slots for expansion.
Does it support analog signals?
Yes, there are 2 analog inputs and 1 analog output.
What is the standard supply voltage?
It operates on 24 V DC.
What type of outputs are included?
Six relay‑type digital outputs provide flexible control.
Can this PLC be expanded?
Yes, the two option slots allow adding communication or functional modules.
Is Ethernet used for programming and networking?
Yes, the integrated Ethernet port supports communication and connectivity with supervisory systems.
What environmental protection is offered?
It has an IP20 rating suitable for controlled industrial enclosures.
What are the typical operating conditions?
The module functions reliably from 0°C up to +60°C.
