Introduction

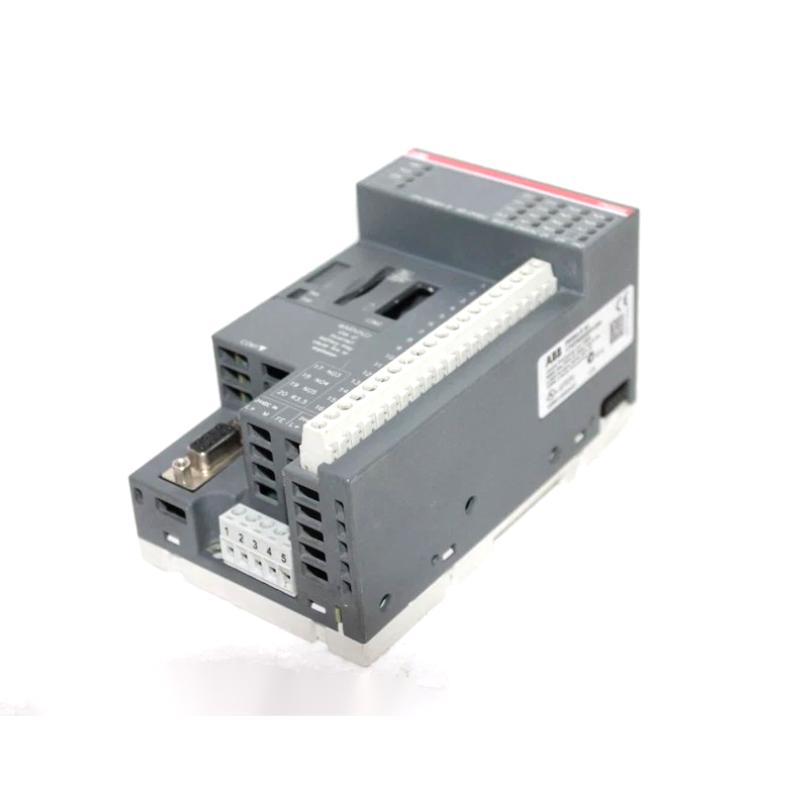

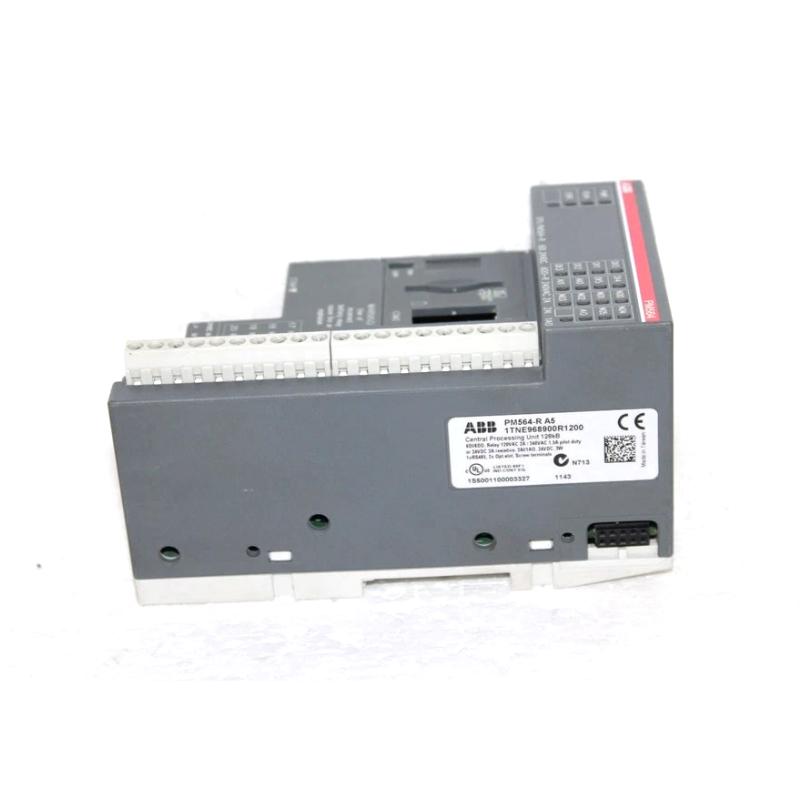

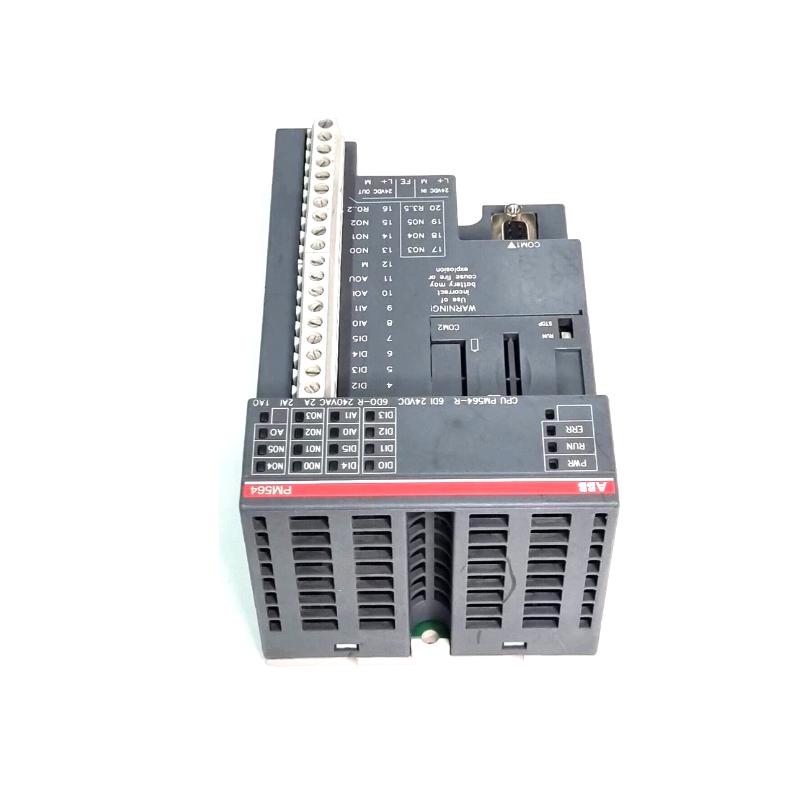

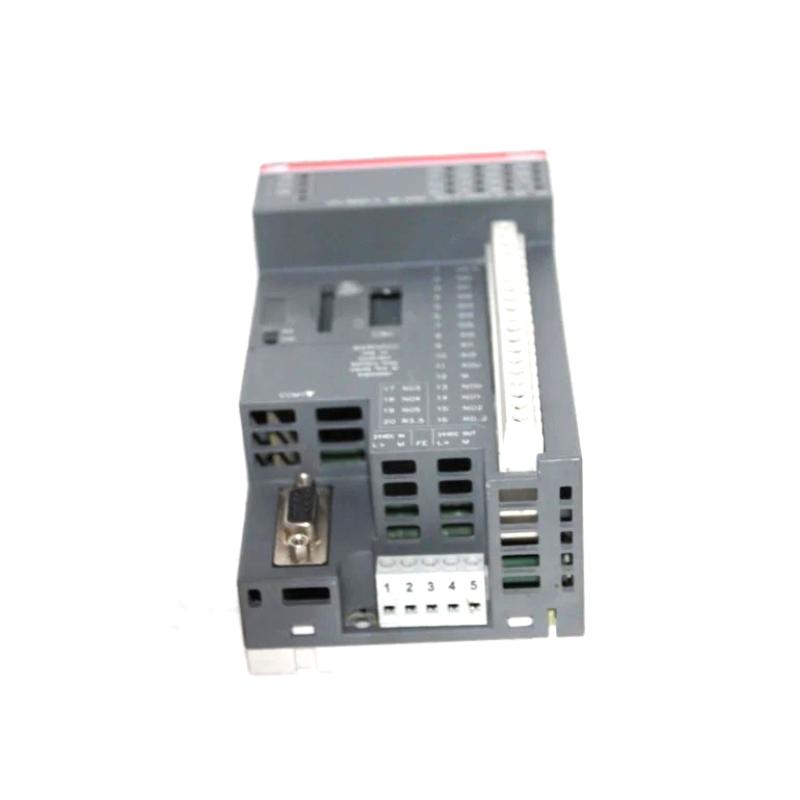

The ABB PM564‑R 1TNE968900R1200 Processor Module is a compact and versatile CPU designed for the AC500 programmable logic controller (PLC) family. Built to address the needs of modern industrial automation, this module combines reliable logic execution with flexible I/O support and expandable communication options. It’s a solid choice for engineers seeking dependable performance across a wide range of control applications.
This CPU module is known for its balanced feature set and rugged construction, making it suitable for continuous operation in production environments where precision and uptime are top priorities.
Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM564‑R |
| Part Number | 1TNE968900R1200 |
| Module Type | Processor Module |
| Application Series | AC500 PLC |
| User Program Memory | 128 kB |
| User Data Memory | 10 kB |
| Digital Inputs (DI) | 6 (24 V DC) |
| Digital Outputs (DO) | 6 (Relay) |
| Analog Inputs (AI) | 2 |
| Analog Output (AO) | 1 |
| Communication | RS‑485, Option Slots |
| Operating Voltage | 100–240 V AC |
| Mounting | DIN‑rail / rack |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | ‑40°C to +70°C |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 74 × 82 × 135 mm |
| Weight | Approx. 0.4 kg |
