Precision Machine Monitoring Sensor Introduction

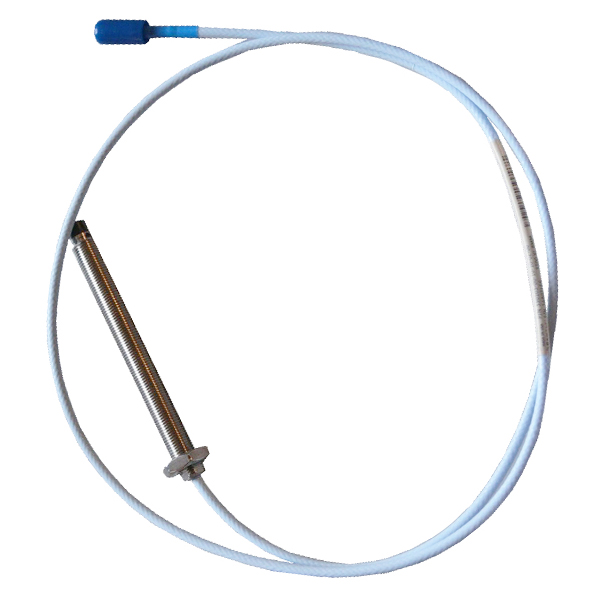

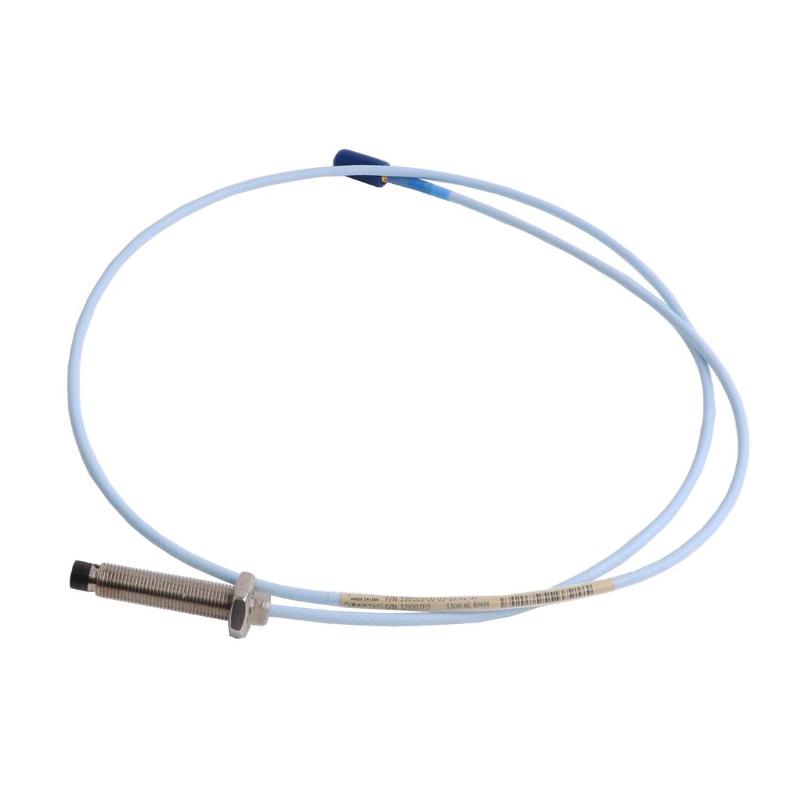

The Honeywell‑branded Bently Nevada 330103‑02‑07‑10‑02‑00 3300 XL 8 mm Proximity Probe is a high‑performance industrial proximity transducer used for contactless measurement of shaft vibration and position on rotating machinery. Part of the proven 3300 XL series, this eddy current probe is engineered for continuous monitoring in power generation, turbomachinery, centrifugal compressors, turbines, and other heavy‑duty mechanical assets where reliable vibration feedback is critical for predictive maintenance and fault detection.
Technical Specifications
| Parameter | Specification (typical for this config) |
|---|---|
| Model | 330103‑02‑07‑10‑02‑00 |
| Series | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Sensing Principle | Eddy current non‑contact measurement |
| Probe Diameter / Tip Length | 8 mm nominal sensing tip |
| Thread Size | M10 × 1 |
| Overall Case Length | 70 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector | Miniature coaxial ClickLoc® connector |
| Cable Type | Standard industrial probe cable |
| Detection/Linear Range | Optimized for short‑range eddy current sensing |
| Operating Temperature | Typical industrial range (commonly –40 °C to +85 °C) |
| Environmental Rating | IP67 (dust/water protection) |
| Material | High‑grade stainless steel housing |
| Weight | Approx. 0.5 kg (with cable) |
| Warranty | Standard manufacturer support |
