Technical Overview

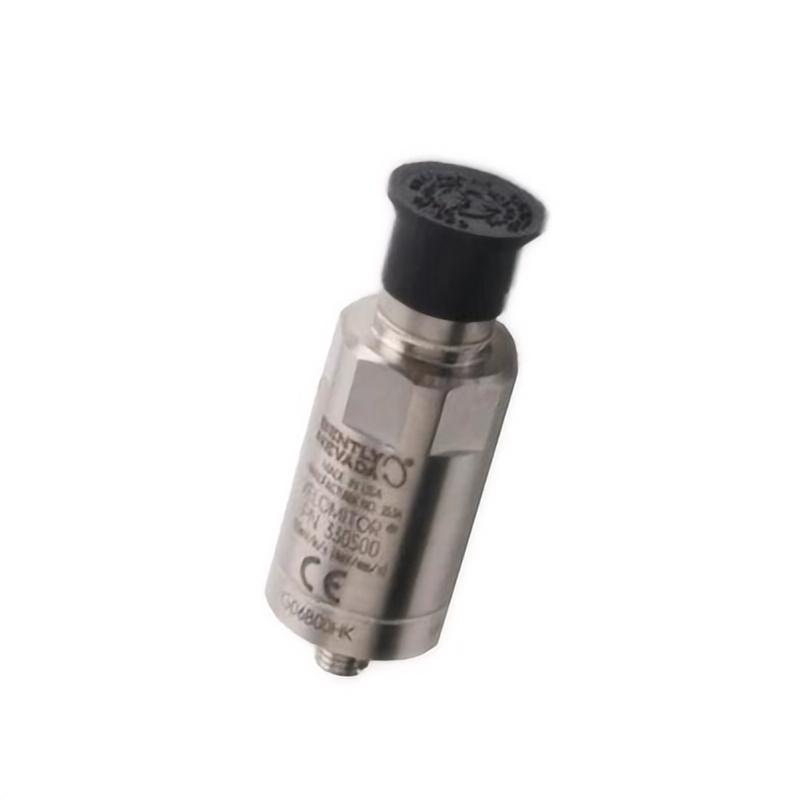

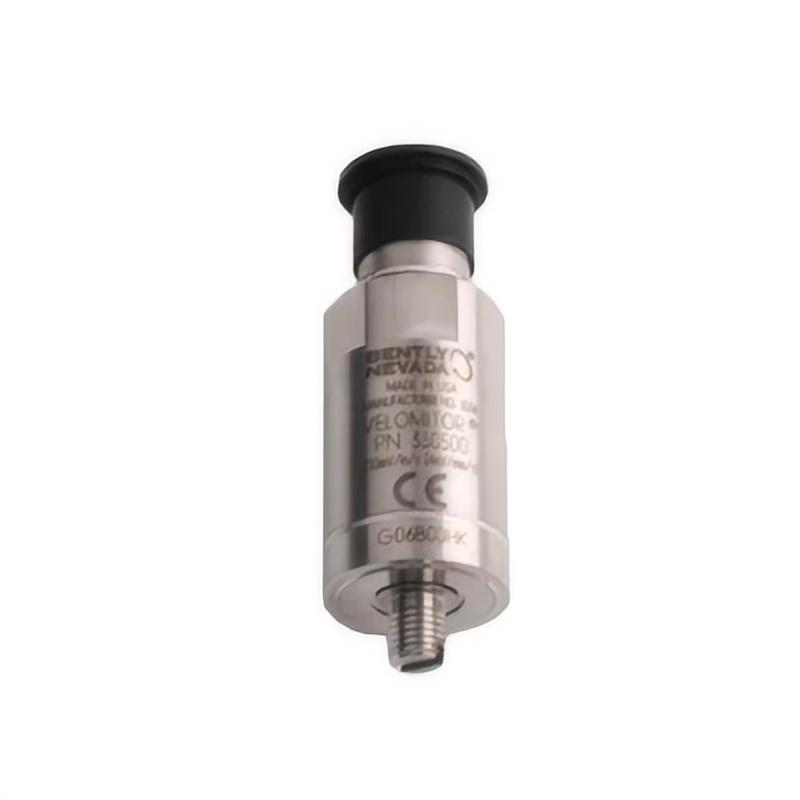

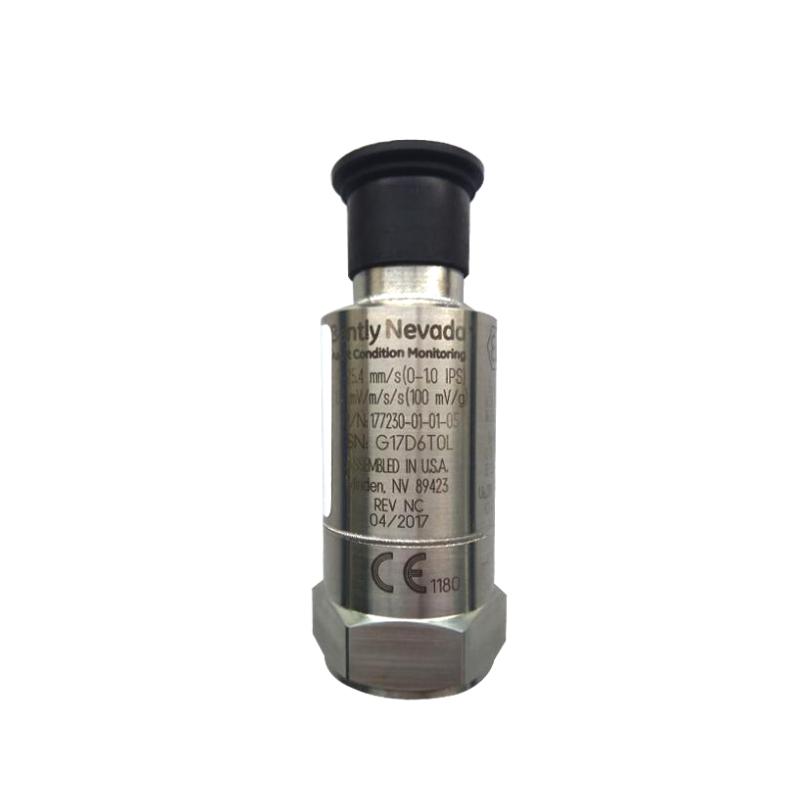

The Bently Nevada 177230-00-01-CN Seismic Sensor is a robust and reliable solution for monitoring machine casing vibration. Designed for industrial applications, it provides direct velocity measurements that are essential for evaluating overall machinery condition.
Its compact form factor and durable construction allow easy installation on a wide range of equipment. By delivering consistent and accurate vibration data, this sensor supports predictive maintenance programs and helps operators detect potential issues before they lead to equipment failure.
Technical Specifications
| Specification | Details |
|---|
| Product Type | Seismic Sensor |
| Model Number | 177230-00-01-CN |
| Measurement Type | Vibration velocity |
| Sensor Diameter | 25.4 mm |
| Output Signal | Velocity-based signal (industrial standard) |
| Compatibility | Industrial monitoring and protection systems |
| Mounting | Surface-mounted on machine casing |
| Construction | Industrial-grade durable housing |
| Weight | 0.131 kg (0.29 lb) |
Field Applications
The 177230-00-01-CN Seismic Sensor is designed for accurate measurement of vibration velocity in industrial machinery. Unlike proximity probes, this sensor directly measures casing vibration, making it particularly useful for equipment where shaft access is limited or not required.
Typical applications include:
-
Casing vibration monitoring on pumps, motors, and compressors
-
Structural vibration measurement in industrial machinery
-
Integration with machinery protection systems in power plants and process industries
-
Monitoring low- to medium-frequency vibration in rotating equipment
-
Supporting predictive maintenance strategies in general-purpose machinery
This sensor is widely used in applications where overall machine health needs to be assessed through housing vibration.
Advantages
-
Direct measurement of vibration velocity for reliable condition assessment
-
Suitable for machinery without accessible rotating shafts
-
Rugged construction for industrial environments
-
Stable performance across a wide range of operating conditions
-
Easy integration with Bently Nevada monitoring systems
-
Ideal for general-purpose vibration monitoring applications
From a practical standpoint, it provides a straightforward and dependable method for monitoring machine condition without complex installation requirements.
Technical FAQs
-
What type of vibration does this sensor measure?
It measures vibration velocity directly from the machine casing.
-
How does it differ from proximity probes?
Proximity probes measure shaft movement, while this sensor measures overall machine vibration at the housing.
-
Is it suitable for low-frequency vibration monitoring?
Yes, it performs well in low- to medium-frequency ranges typical of industrial machinery.
-
Can it be used on rotating equipment like pumps and motors?
Yes, it is commonly installed on the casing of such equipment.
-
Does it require special mounting for accurate measurements?
Proper mounting to a solid surface is recommended to ensure accurate vibration transmission.
-
Is it compatible with Bently Nevada monitoring systems?
Yes, it integrates with compatible vibration monitoring and protection systems.
-
Can it operate continuously in industrial environments?
Yes, it is designed for long-term, continuous monitoring.
-
How does it contribute to predictive maintenance?
By providing consistent vibration data, it helps detect imbalance, misalignment, and mechanical wear.
-
Is it resistant to environmental factors such as temperature and vibration?
Yes, it is built to withstand typical industrial conditions.
-
Can it be used for structural monitoring as well as machinery?
Yes, it can measure vibration on both machine casings and supporting structures.
