Product Overview

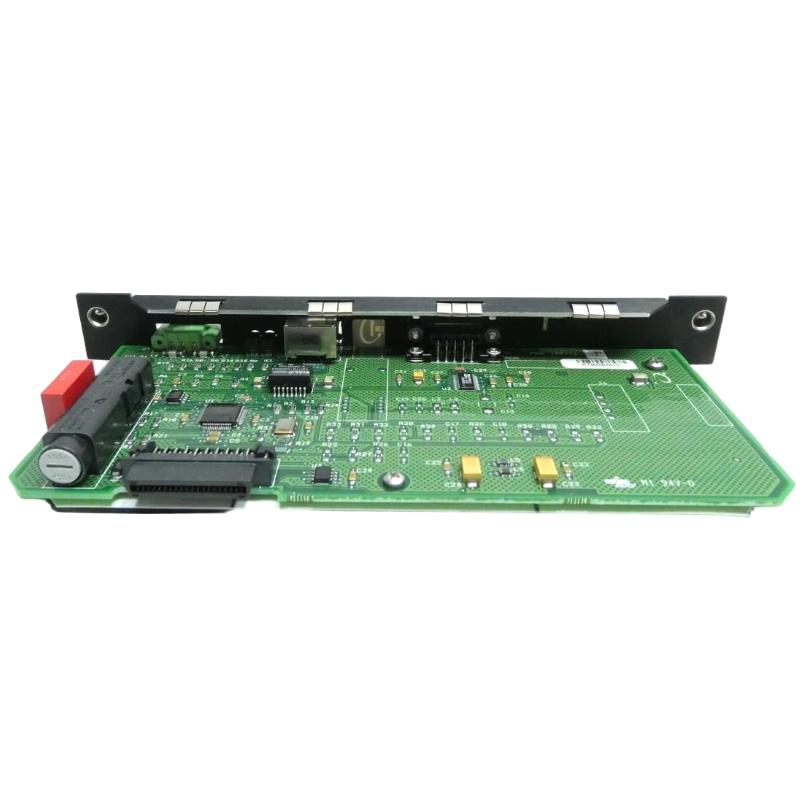

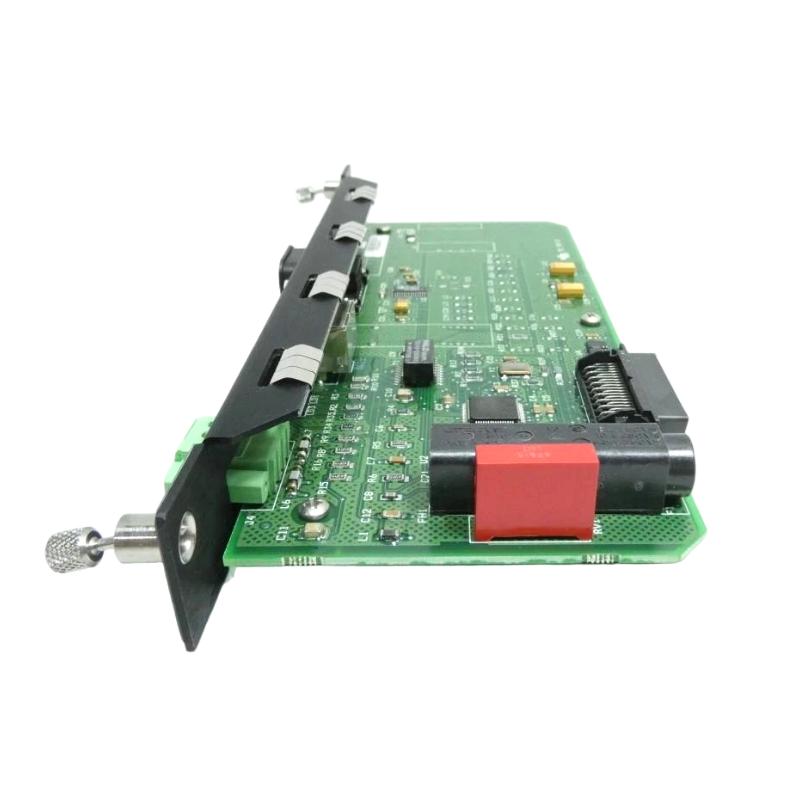

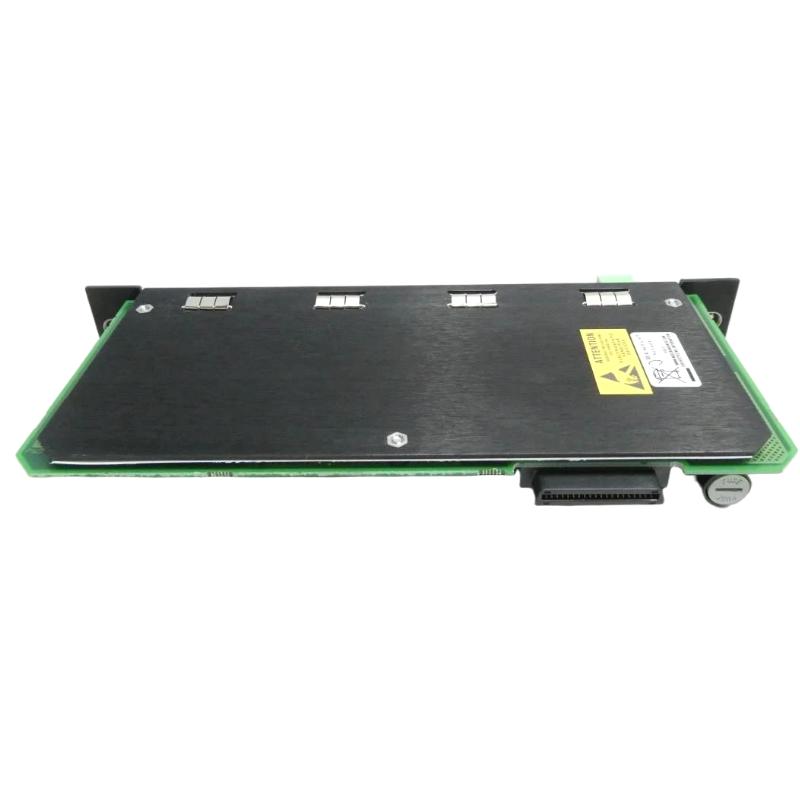

The Bently Nevada 149776-01 Backup Fiber Optic Ethernet Communication Card is a high-performance solution for enhancing the reliability of 3300 XL machinery protection networks. By providing redundant fiber optic communication paths, it ensures uninterrupted data transfer between monitoring modules, enabling continuous condition monitoring and early fault detection.
Its compact design and robust construction make it suitable for industrial environments where uptime and system integrity are critical. The card’s integration into the 3300 XL system improves overall network resilience, supporting high-speed, noise-immune communication across large industrial facilities.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 149776-01 |
| Product Type | Backup Fiber Optic Ethernet Card |
| Function | Redundant Network Communication |
| Network Type | Fiber Optic Ethernet |
| System Compatibility | 3300 XL Monitoring Systems |
| Dimensions | 241 × 25 × 114 mm |
| Operating Temperature | 0°C to 60°C |
| Mounting | 3300 XL Chassis Slot |
| Connectivity | Fiber Optic Interfaces |
| Installation | Plug-in Module |
| Shipping Weight | 1.36 kg (2.998 lb) |
Applications in Industrial Monitoring Networks
The 149776-01 Backup Fiber Optic Ethernet Communication Card is engineered to provide redundant, high-speed communication for Bently Nevada 3300 XL machinery protection systems. It ensures uninterrupted data transfer between monitoring modules, controllers, and supervisory systems in critical industrial environments.
Typical application scenarios include:
-
Turbine and compressor monitoring networks in power generation plants
-
Oil & gas facilities requiring secure, high-speed data transfer
-
Industrial plants implementing redundant communication for condition monitoring
-
Critical motors and pump systems with high uptime requirements
-
Systems integrating multiple 3300 XL chassis across large facilities
-
Control rooms requiring reliable failover communication paths
By providing backup communication capabilities, this card enhances system resilience and ensures continuous monitoring of machinery health.
Key Advantages for Network Reliability
Redundant Communication
Supports failover paths to maintain data integrity during primary network interruptions.
High-Speed Fiber Optic Connectivity
Delivers fast, deterministic data transfer suitable for real-time monitoring applications.
Robust Industrial Design
Engineered to withstand temperature variations, vibration, and electrical noise common in industrial environments.
Seamless Integration
Fully compatible with Bently Nevada 3300 XL series monitoring systems.
Compact Form Factor
With dimensions of 241 × 25 × 114 mm, it fits easily into standard chassis slots.
Technical FAQs
-
What is the main function of this communication card?
It provides backup fiber optic Ethernet communication for 3300 XL monitoring systems.
-
Is it compatible with all 3300 XL chassis?
Yes, it integrates seamlessly with standard 3300 XL monitoring chassis.
-
What type of network does it use?
Fiber optic Ethernet for high-speed, reliable data transfer.
-
Does it support redundant network paths?
Yes, it provides failover communication to ensure continuous operation.
-
Can it handle multiple simultaneous data streams?
Yes, it is designed to manage multiple monitoring module connections concurrently.
-
What are the physical dimensions of the card?
241 × 25 × 114 mm, making it suitable for standard rack installation.
-
Is it suitable for harsh industrial environments?
Yes, it is built to resist vibration, electrical noise, and temperature fluctuations.
-
What is the shipping weight?
1.36 kg (2.998 lb).
-
Does it require configuration software?
Yes, it is configured via the 3300 XL system interface.
-
What is the benefit of using fiber optic connectivity?
Provides high-speed, noise-immune, and long-distance data transmission for critical monitoring systems.
